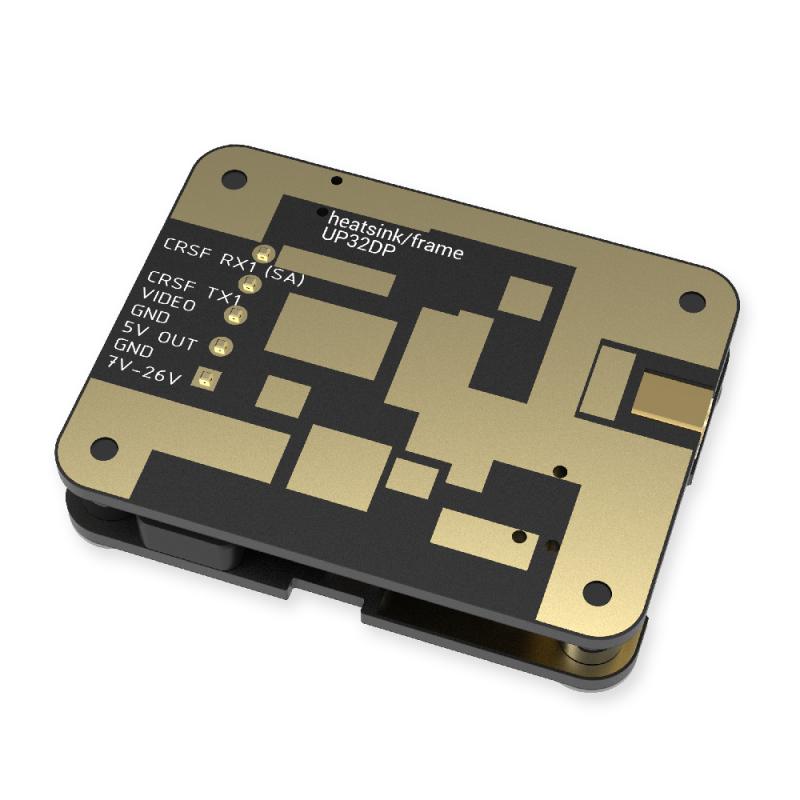

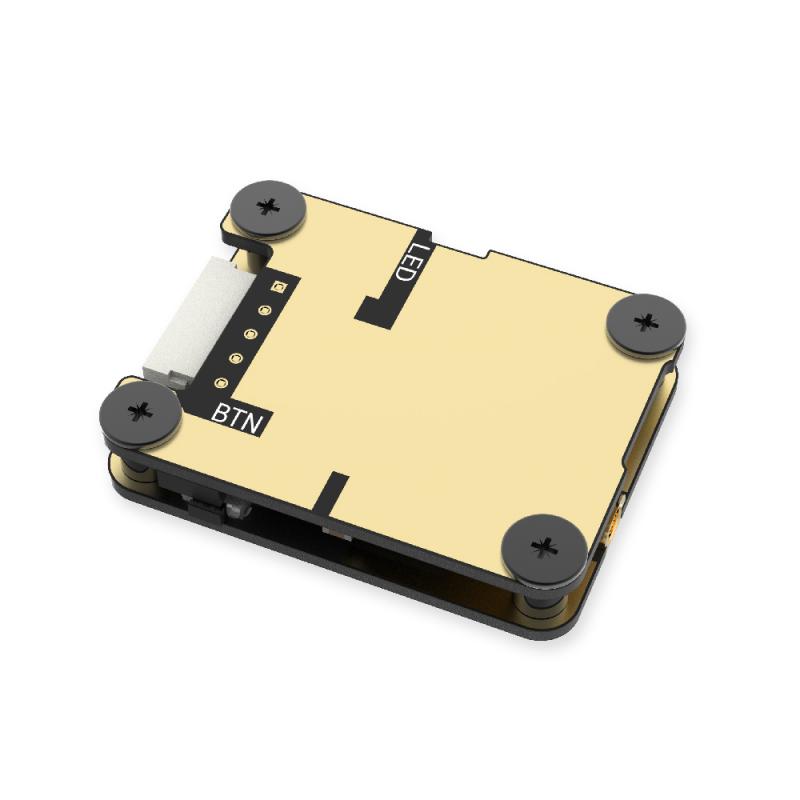

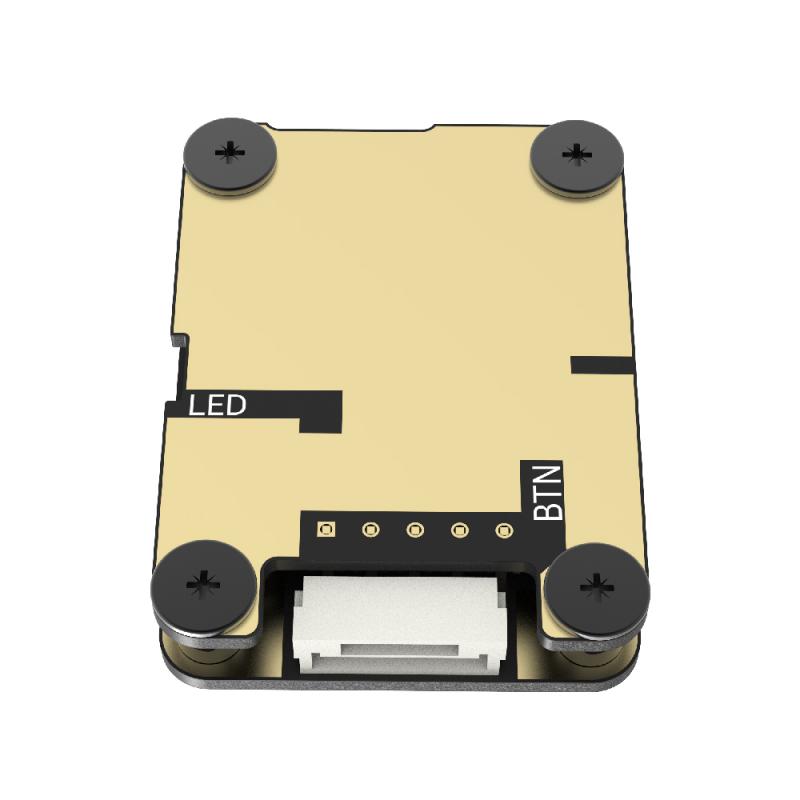

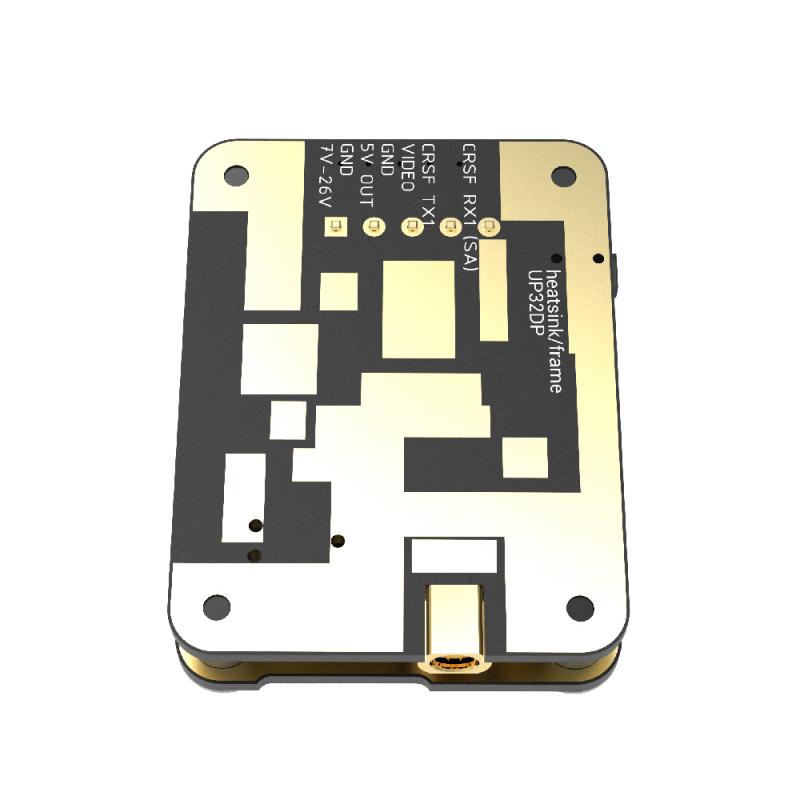

TBS UNIFY PRO32 DP (MMCX) Video Transmitter
TBS UNIFY PRO32 DP (MMCX) is a high-end video transmitter (VTx) designed specifically for FPV drones. It offers greater durability, smaller size and lower power consumption while maintaining top performance and reliability. Advanced heat dissipation design ensures optimal lifespan without the need for additional cooling such as a heatsink or fan.
Key features:
- World's lightest 3-watt VTx: Delivers high performance in a compact package, ensures long range.
- Frequency range: Operates between 4990 MHz - 6030 MHz, offering flexibility for various FPV configurations.
- TBS Smart Audio 2.1 OSD configuration: Easy setup via Betaflight, TBS Crossfire/Tracer or Ardupilot.
- One button frequency and power settings: Quick and easy frequency and power settings with just the push of a button.
- LUA support for CRSF users: Advanced compatibility with CRSF protocols for easy control.
- MMCX connector: Safe and quality connection for reliable performance.
- Wide range of input voltage: Accepts 2-6S input with voltage from 6V to 25V.
- Double noise filtering: Exceptional noise reduction with a signal-to-noise ratio of >63dB.
- Optimized heat dissipation: No need for a cooler, the transmitter stays cool in all conditions.
- Optional circular polarized antenna: Available for better signal transmission.
Specifications:
- Operating voltage: 6V - 25V (2-6S)
- Video input impedance: 75 Ohm
- Signal-to-noise ratio: >63 dB
- Weight: 8.7g
- Dimensions: 37 x 28 x 10 mm
- Antenna connector: MMCX
- Video format: NTSC/PAL
-
Output power options:
- 10mW (10dBm)
- 25mW (14dBm)
- 100mW (20dBm)
- 200mW (23dBm)
- 400mW (26dBm)
- 500mW (27dBm)
- 999mW (30dBm)
Package contents:
- 1x TBS UNIFY PRO32 DP 5G8 HV Video Transmitter
- 1x Silicone cable (pre-soldered ends)
- 1x MMCX to SMA transition cable
- 1x Heat transfer tape (for easy assembly)
