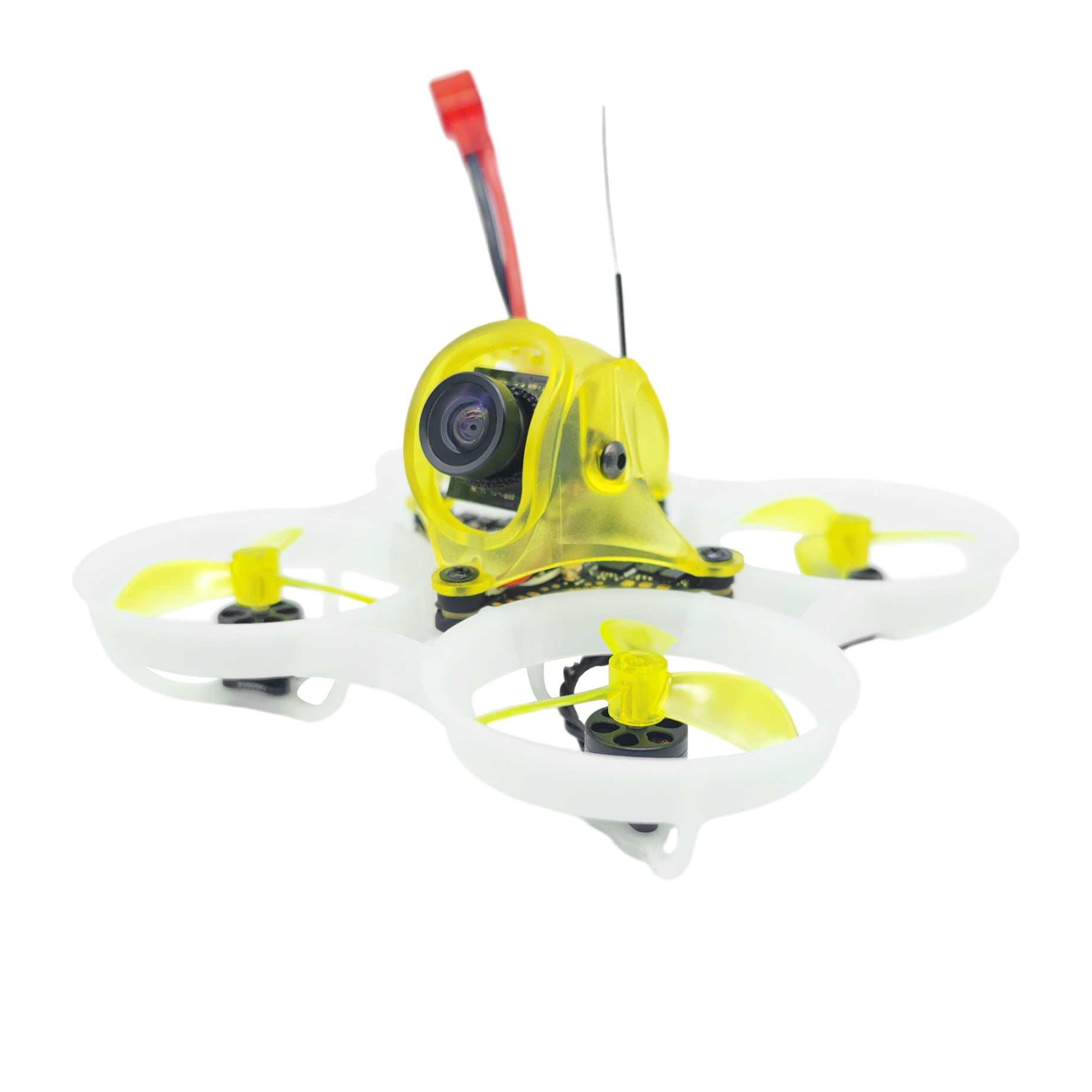

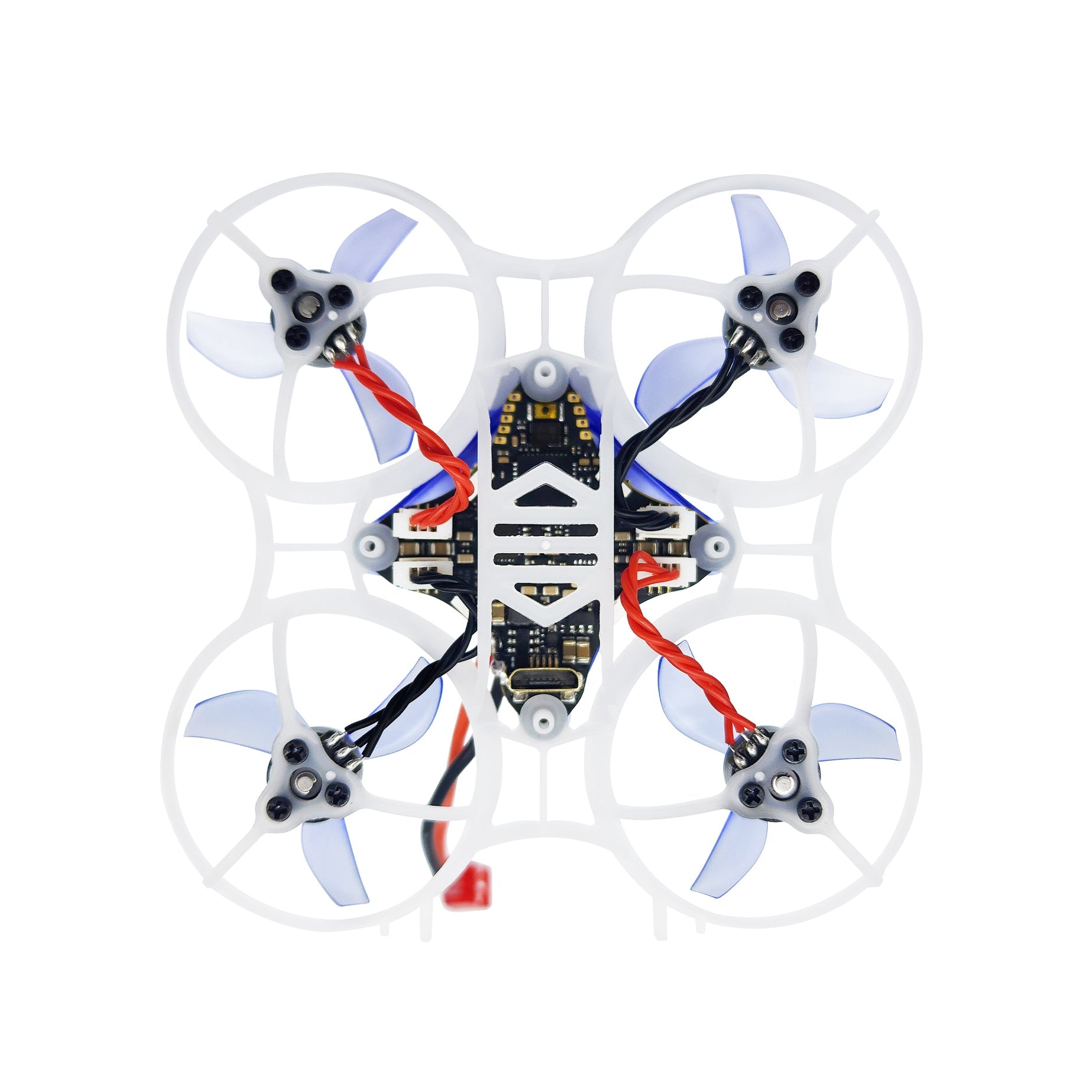

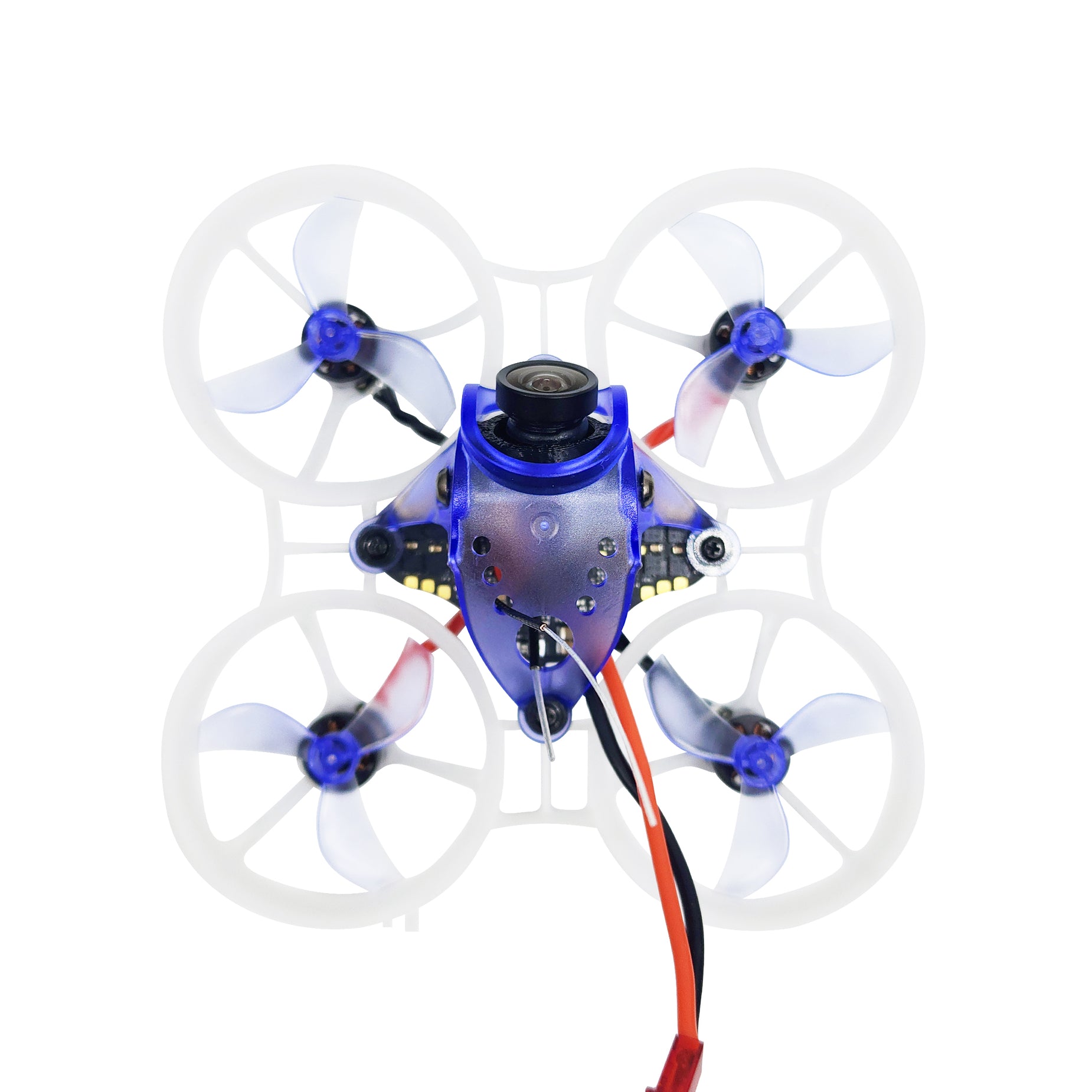

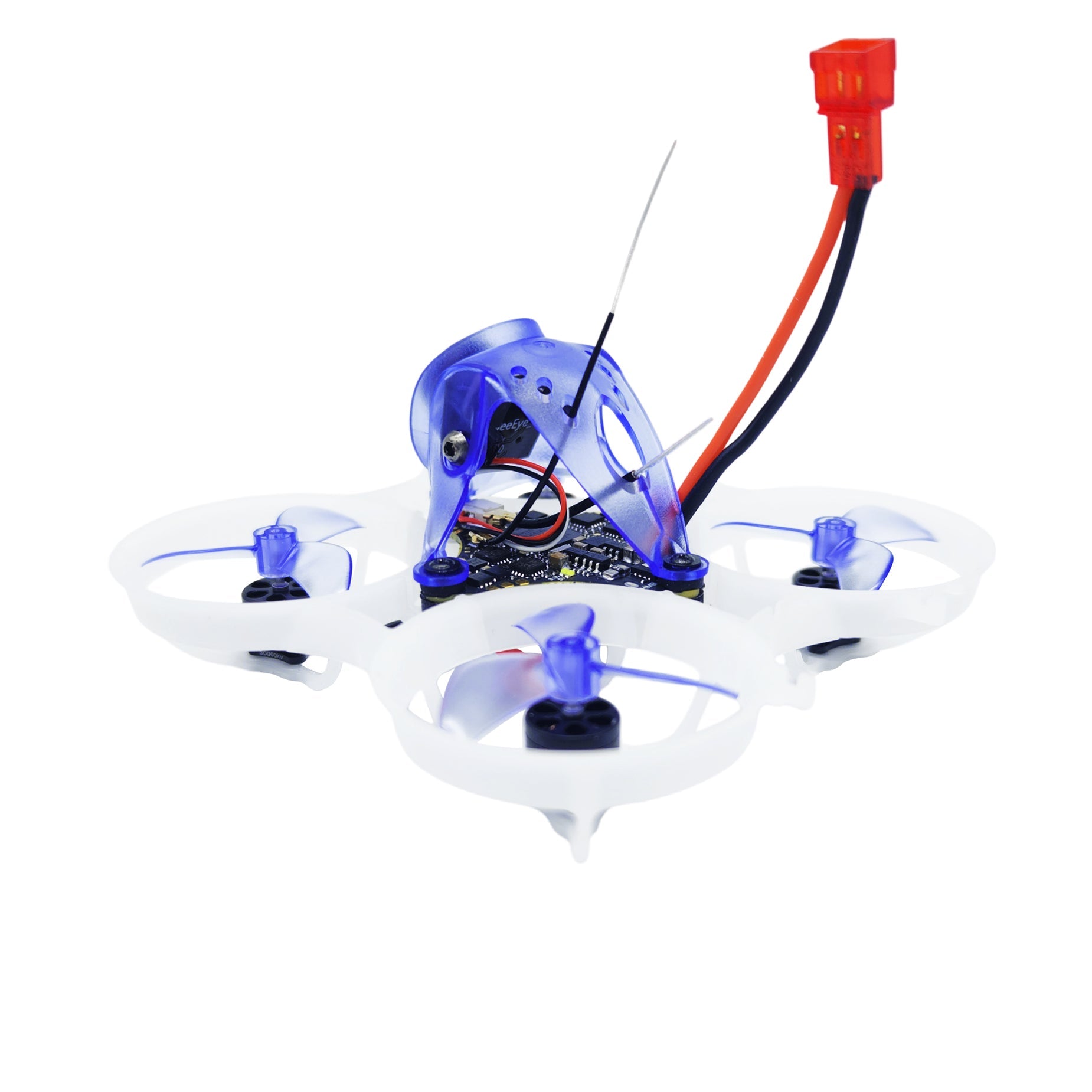

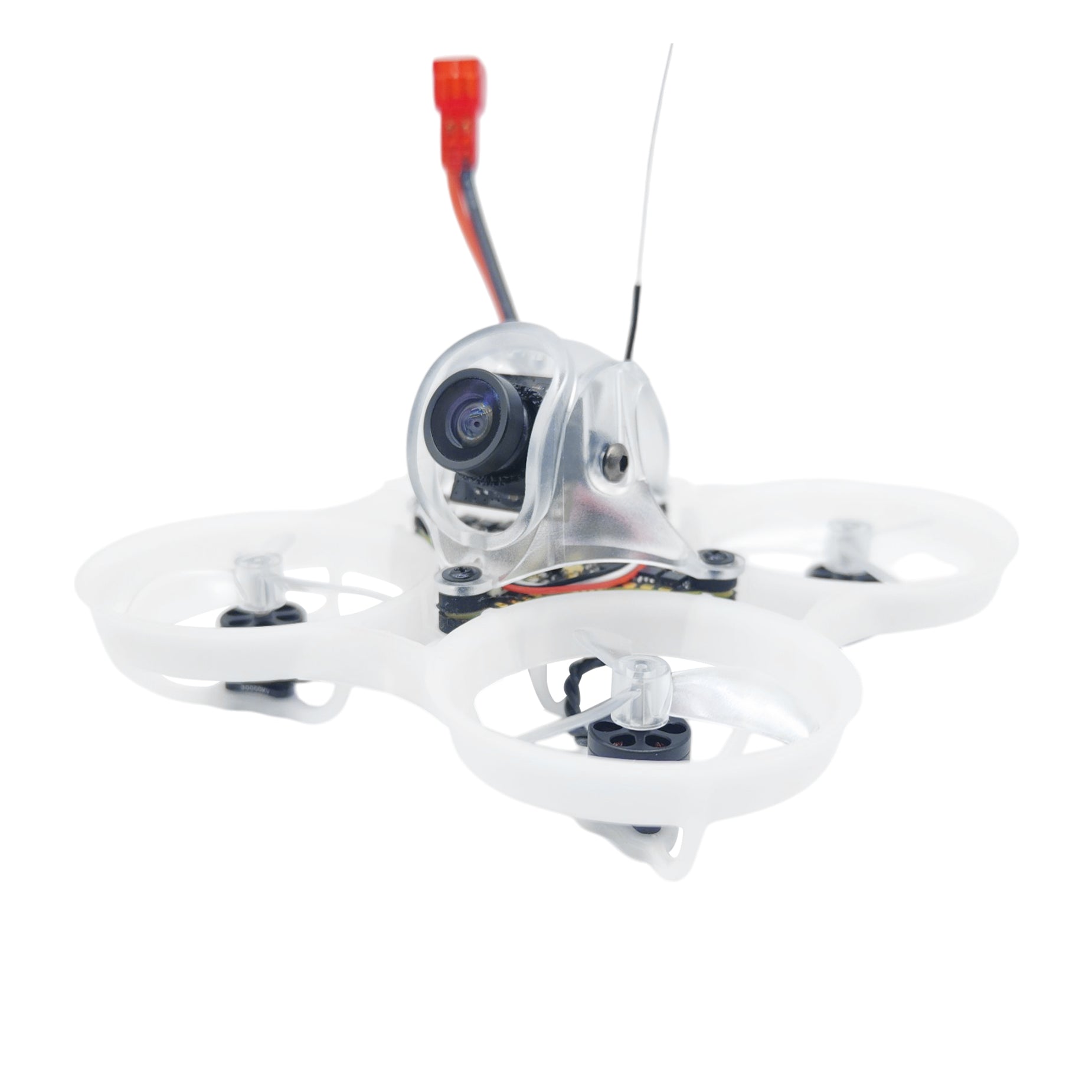

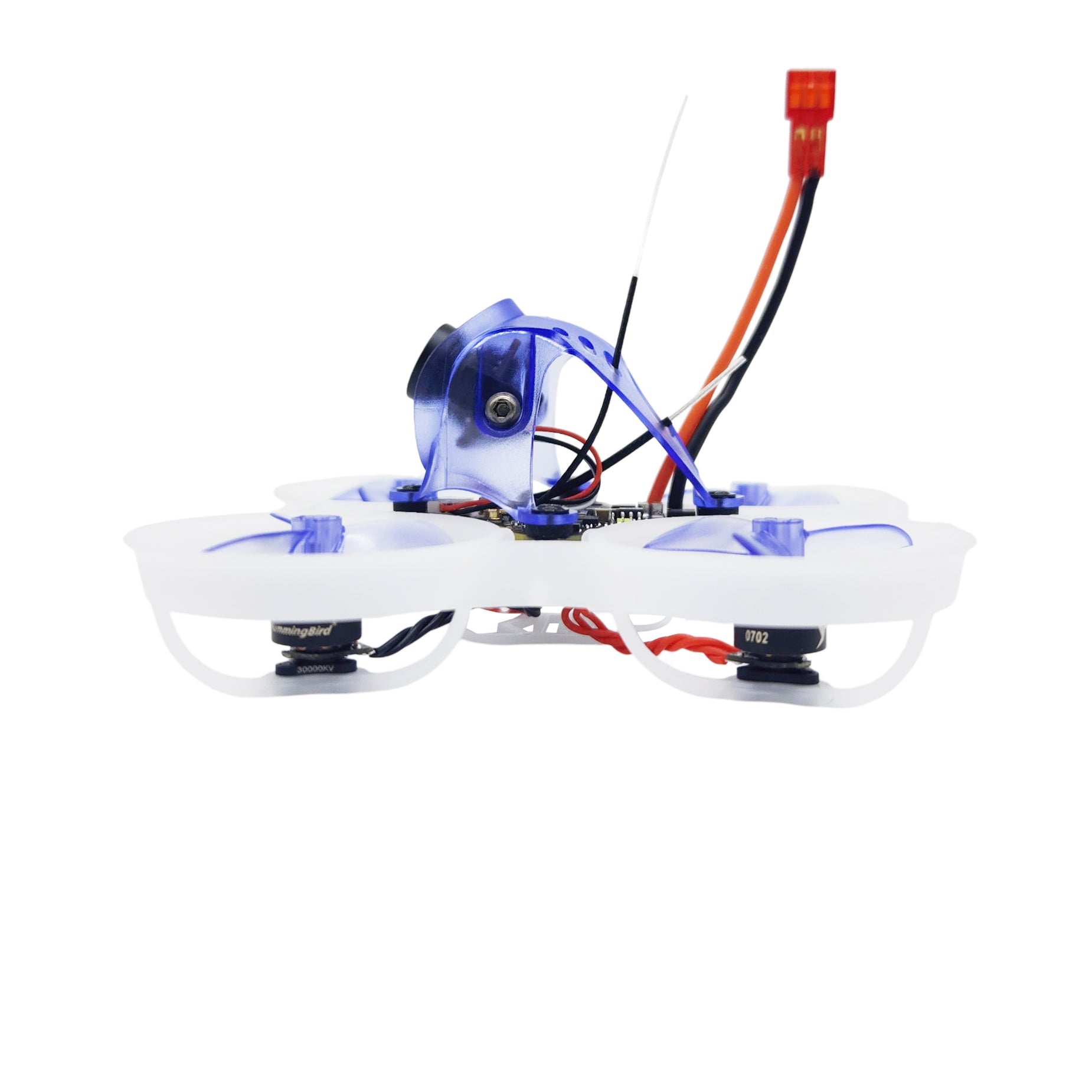

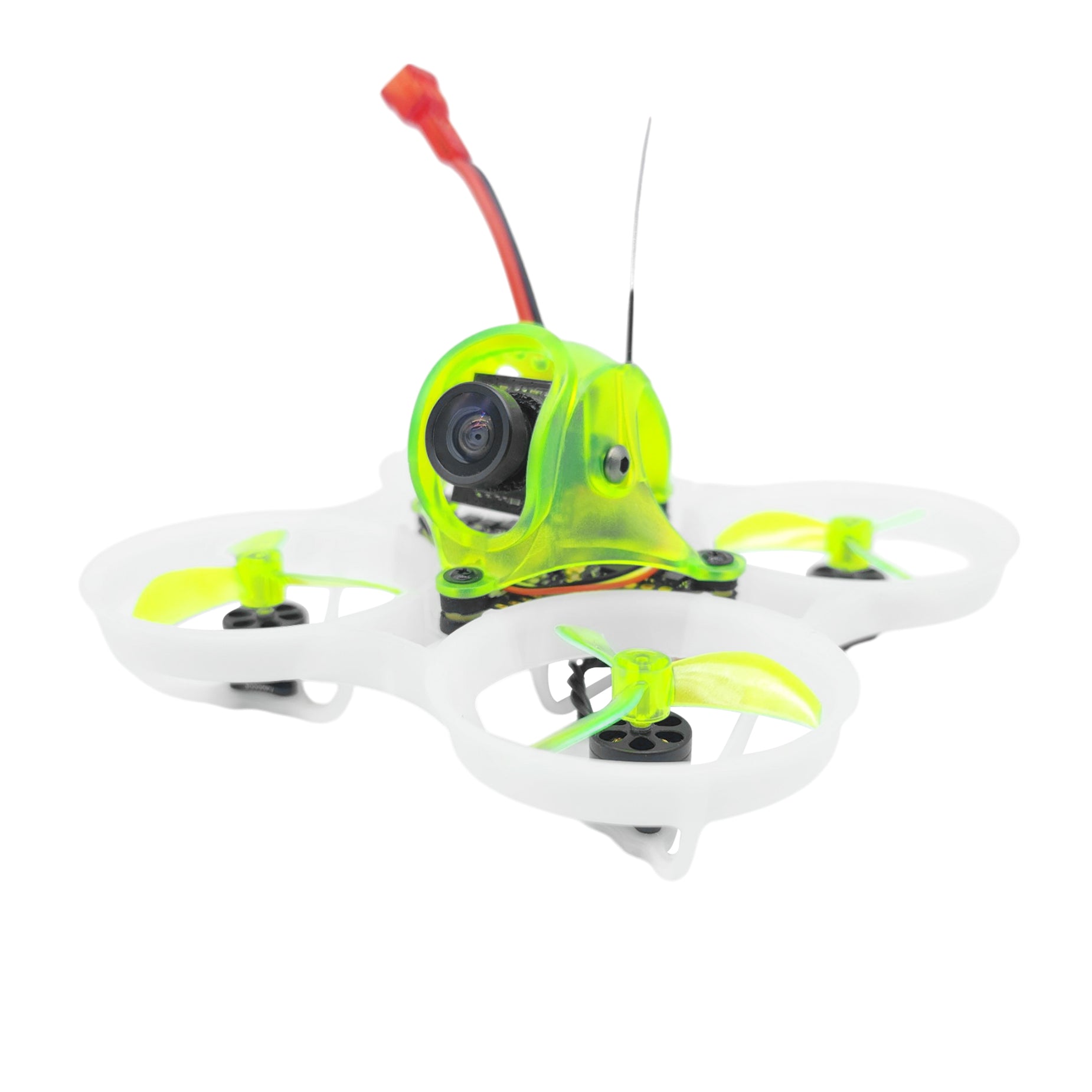

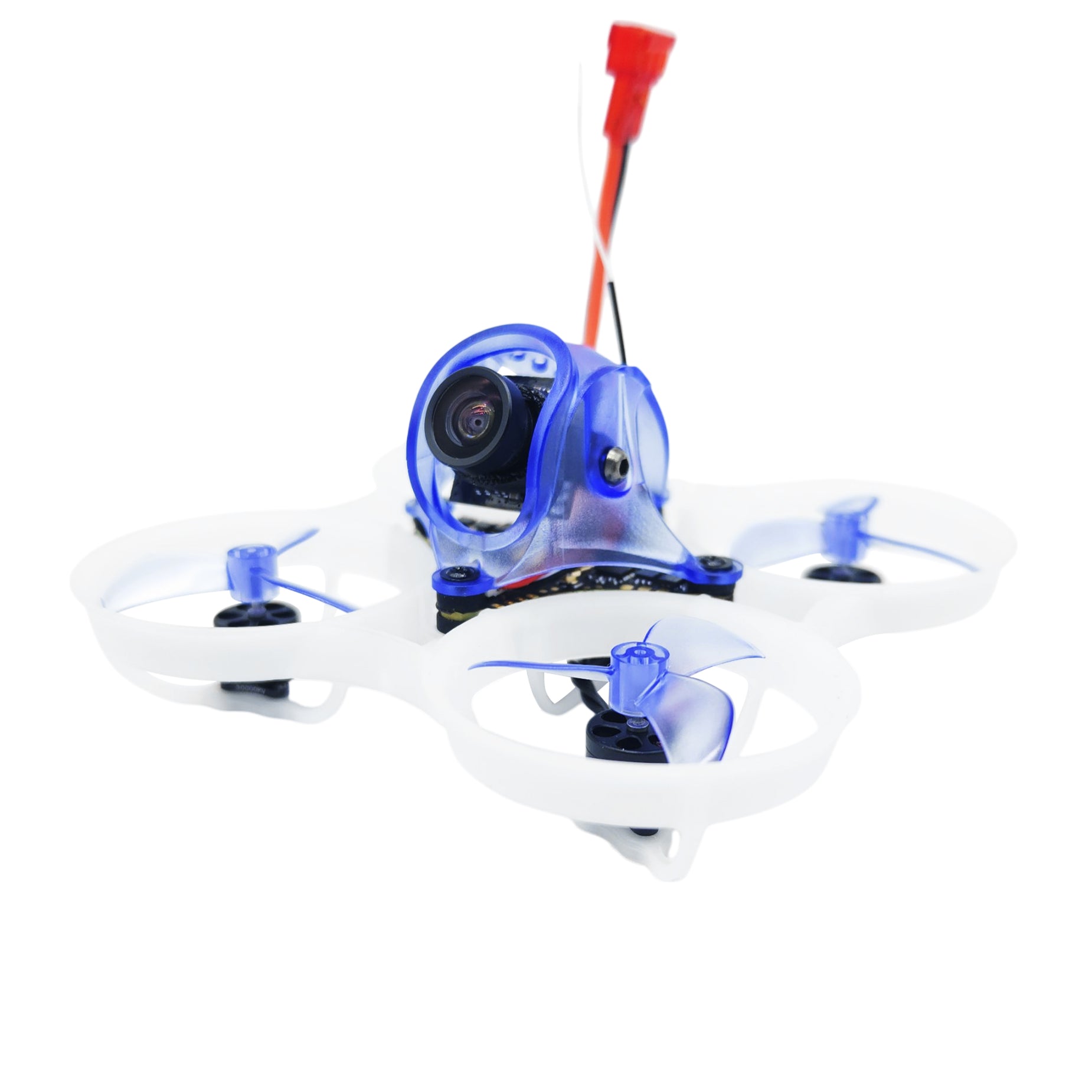

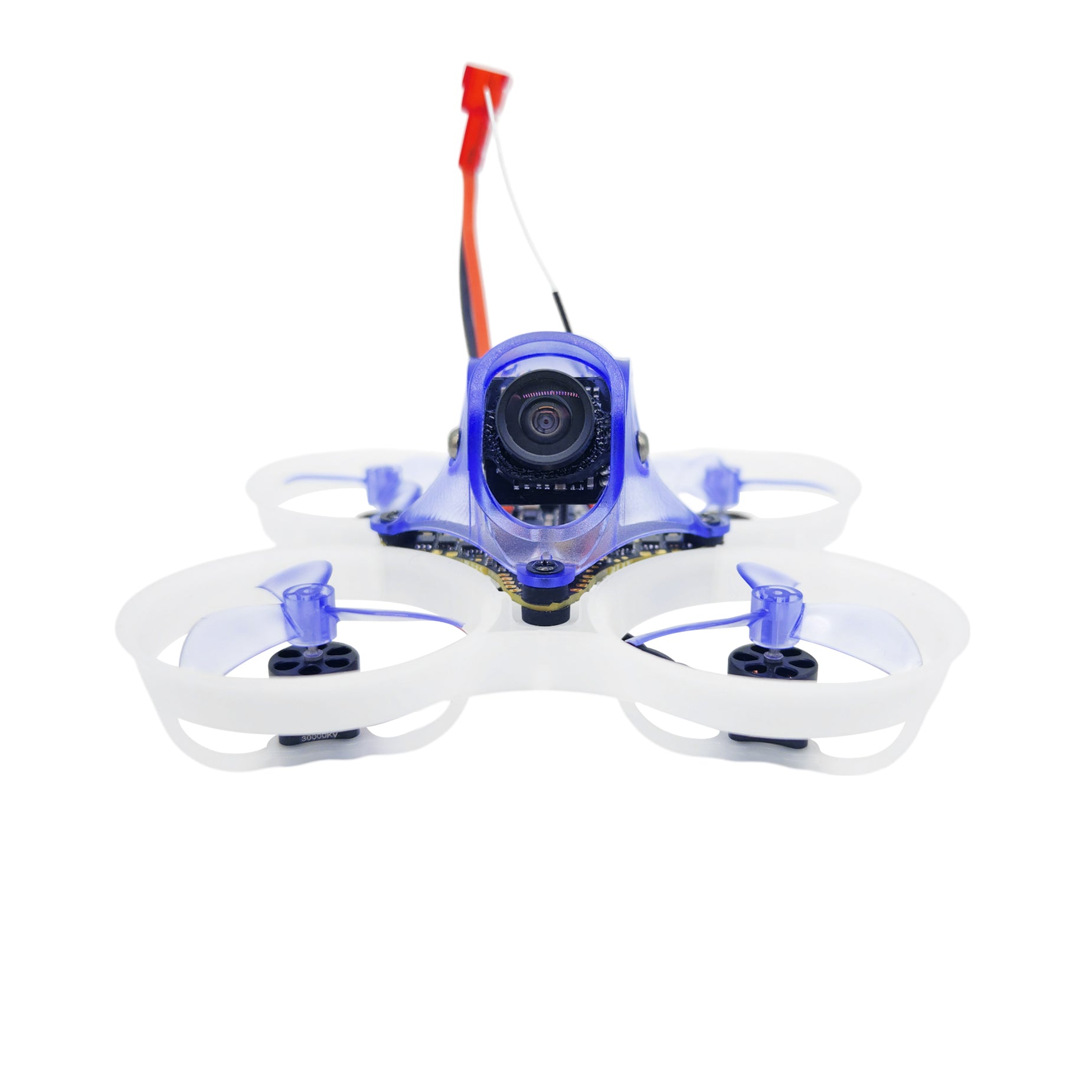

FPV Drone NewBeeDrone Hummingbird V4 BNF Whoop with SmartMax 400mw VTX ELRS2.4G The NewBeeDrone Hummingbird V4 is a lightweight, high performance FPV whoop drone designed for precision flying and racing. Powered by an STM32F411 MCU, it offers responsive and smooth flight control. The built-in VTX supports adjustable power levels of 25mW, 100mW and up to 400mW, providing excellent flexibility for both indoor and outdoor flying conditions. The drone is equipped with a single-channel 12A ESC and provides reliable and efficient motor control. It uses Hummingbird 0702 30000KV motors that provide impressive thrust and maneuverability in a compact frame. The drone features a PH 2.0 battery connector and weighs just 19.5g without battery, making it ultra-lightweight for optimal flight time and controllability. Please note: ALL Hummingbird V4 models come with a random color. Specifications: MCU: STM32F411 GYRO: BMI270 VTX: 25mw for racing/ 100mw and up to 400mw SmartMax temperature control with BeeTX 5.8Ghz antenna ESC: 12A BLHeliS pre-flashed with Bluejay 0.19.2 Target: O-H-10 48kHz Connector: JST-1.0 3Pin OSD: NBD7456 Graphical OSD compatible with Betaflight OSD Receiver: SPI ELRS3.0, 2.4G antenna, MHF3 connector Flight controller weight: 5.5g (including antennas and battery connector) Flight Controller Size: 29x29x7.6mm Flight controller holes: 25.5x25.5mm Battery input: 1S only Uart1: free Uart2: free Power plug: Nectar Connector: Gold plated PH2.0 full pin connector Drone size: 65mm The package contains: 1 x Hummingbird V4 BNF Whoop with SmartMax 400mw VTX ELRS2.4G 1 set x Azi Prop 31mm 1.0 random color Note: Batteries are not part of the product.
