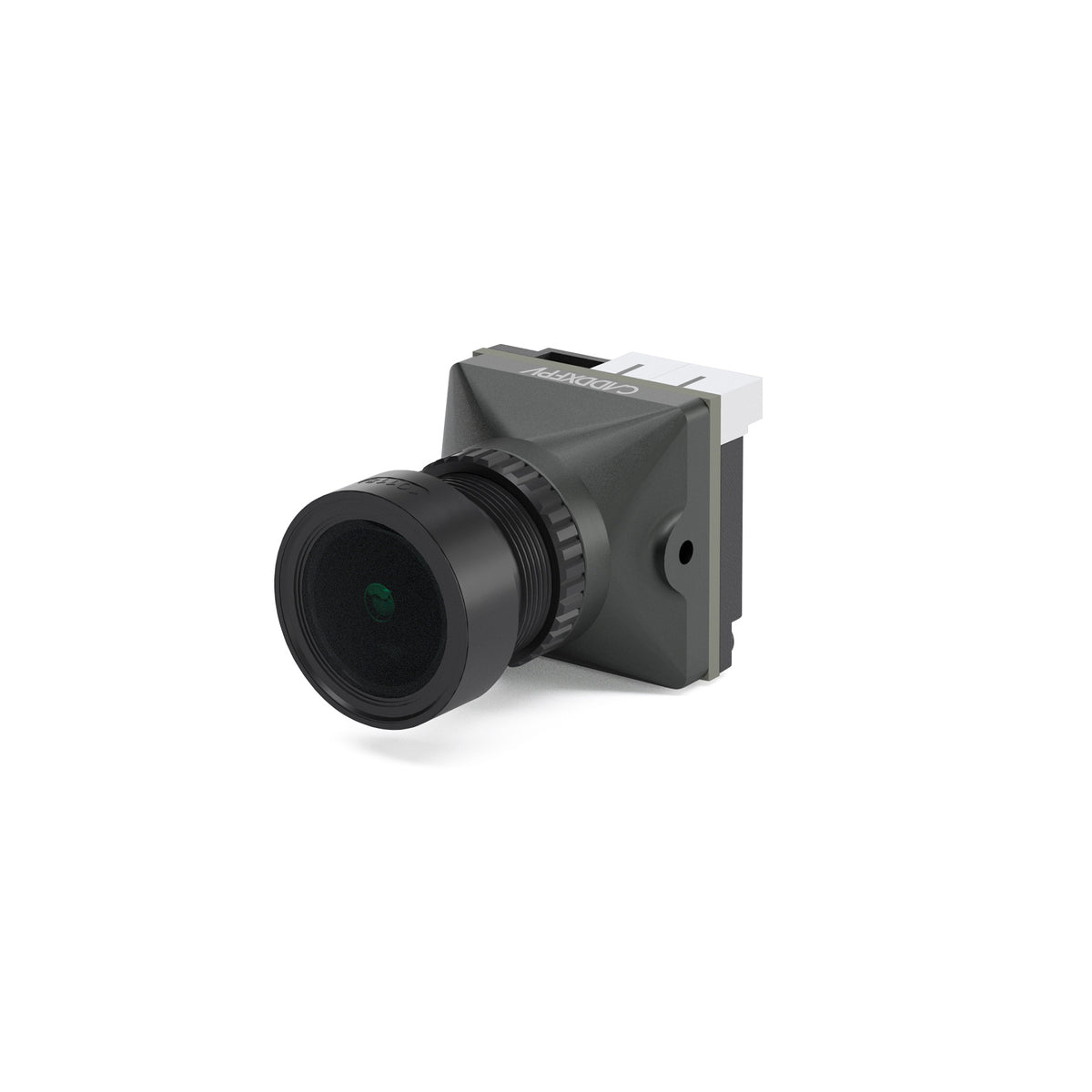

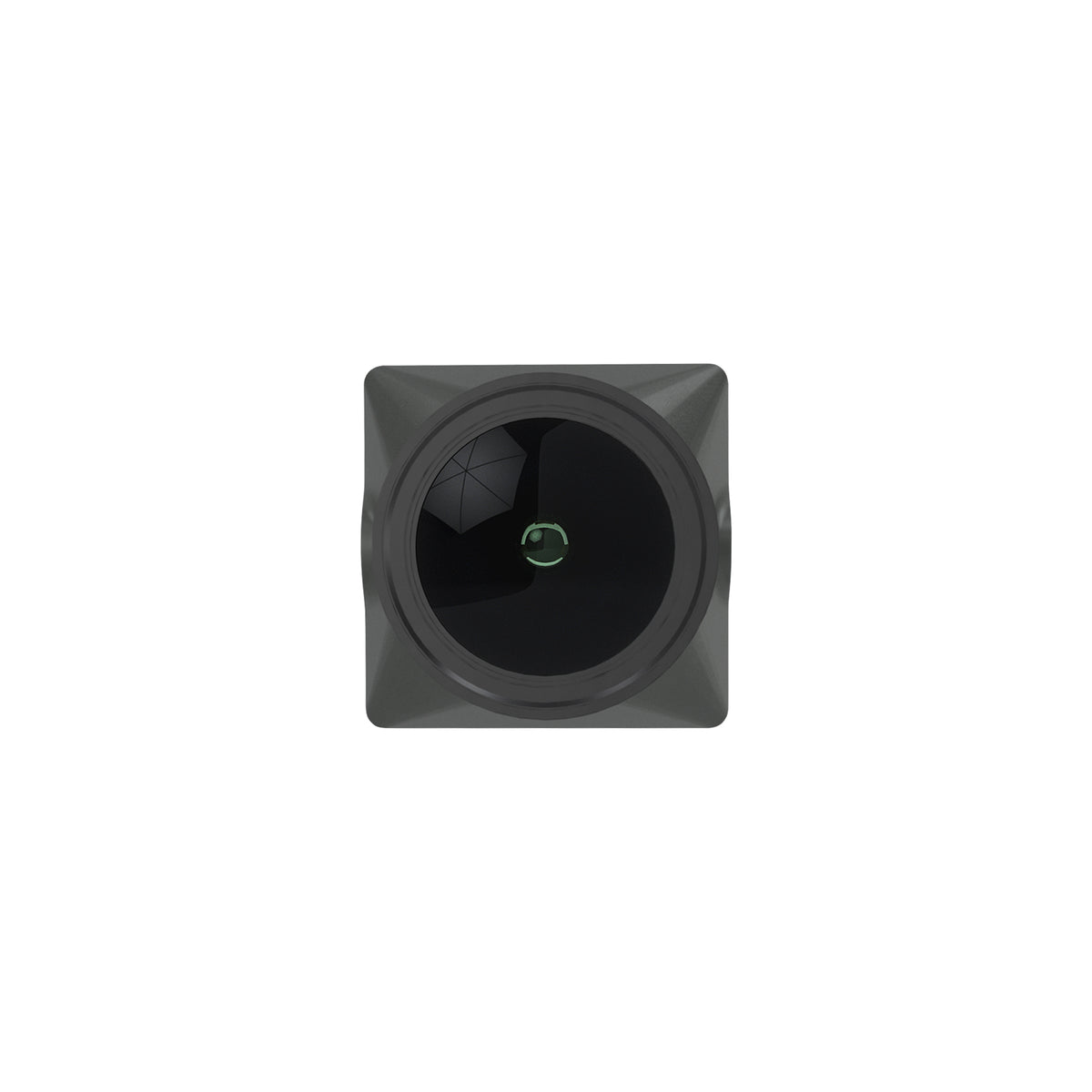

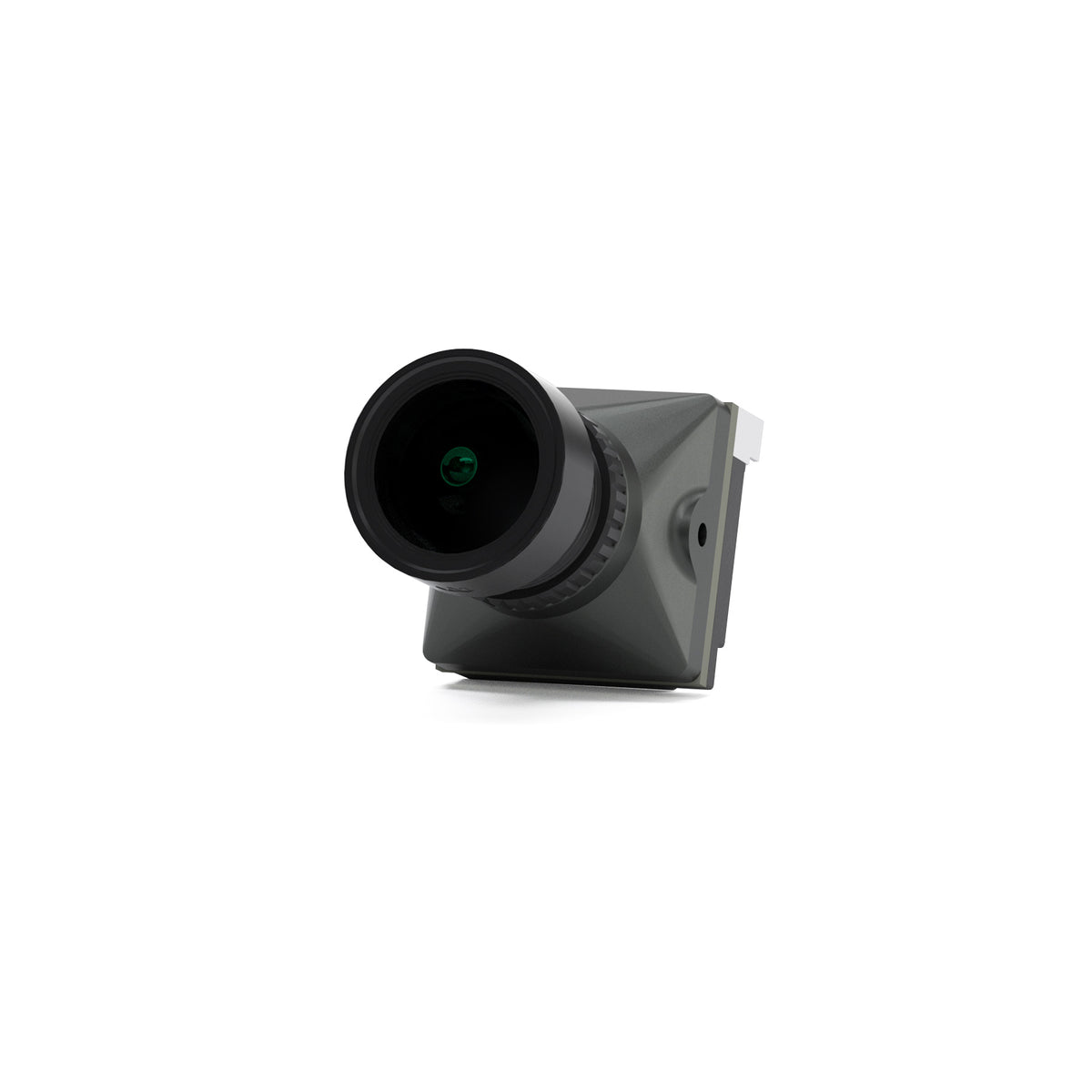

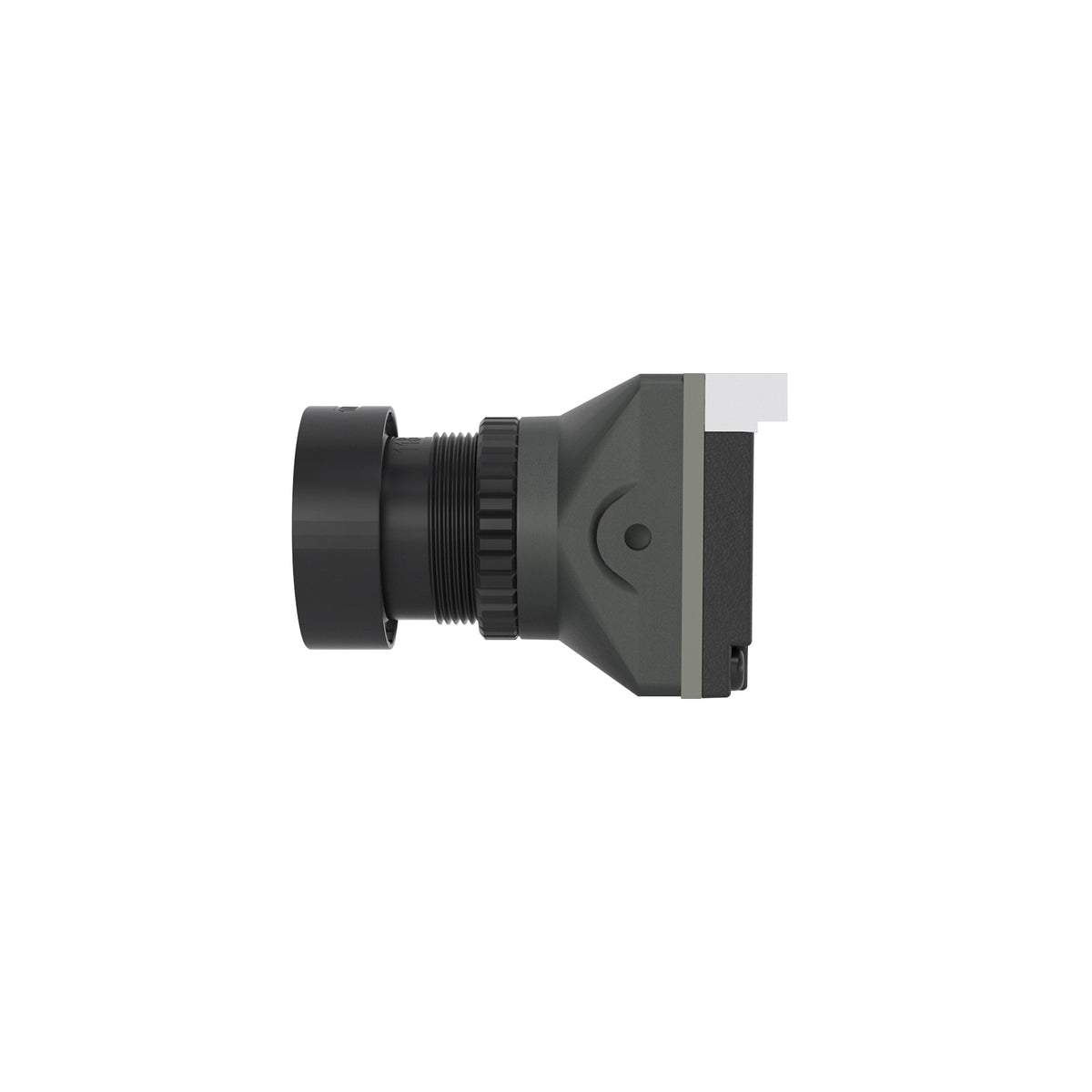

Caddx Ratel Pro Analog Camera Specifications: Model: Ratel PRO
Sensor: 1/1.8" inch Sensor
Horizontal resolution: 1500TVL
TV system: NTSC and PAL (switchable)
Image: 16:9 and 4:3 (switchable)
WDR: Super WDR (HDR)
Minimum illumination: 0.00001 lux
Lens: 5Mega
Color: Black
Sync: Internal
Electronic Shutter: PAL: 1/50100000; NTSC: 1/60100000
Signal to Noise Ratio: >60dB (AGC Off)
Video Output: CVBS
OSD Menu: Supported
DNR: 3-DNR
FOV: 125°
Language: (ENGLISH/中文/繁中文/Русский/ESPANOL/ITALIANO/ FRANCAIS/POLSKIM/ PORTUGUES/日本语)
Day/Night: Auto/Color/Black & White/EXT
Size: 19mm x 19mm
Wide Power: DC 4.5-27V
Working Temperature: -20℃~+60℃
Working Humidity: 20%~80%

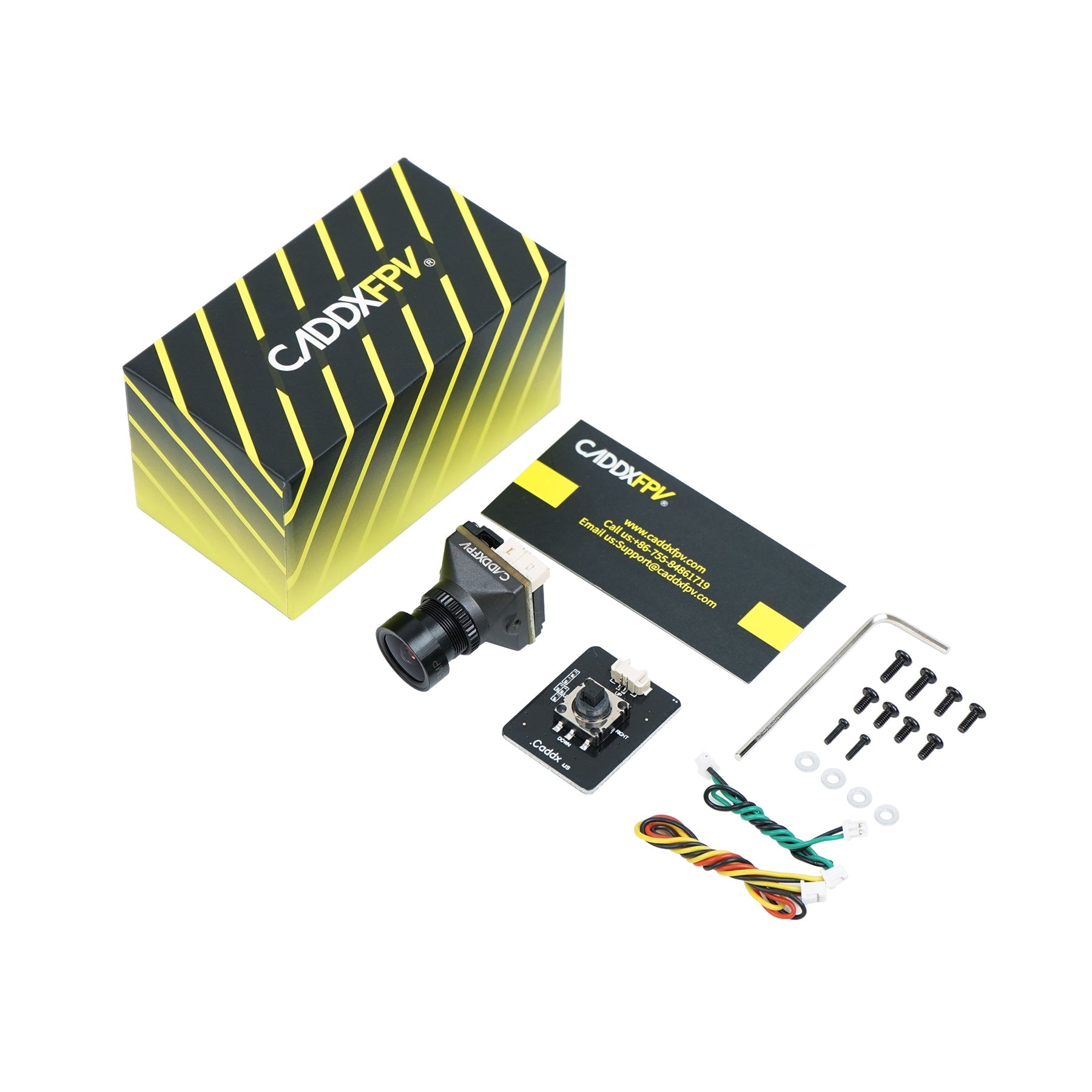

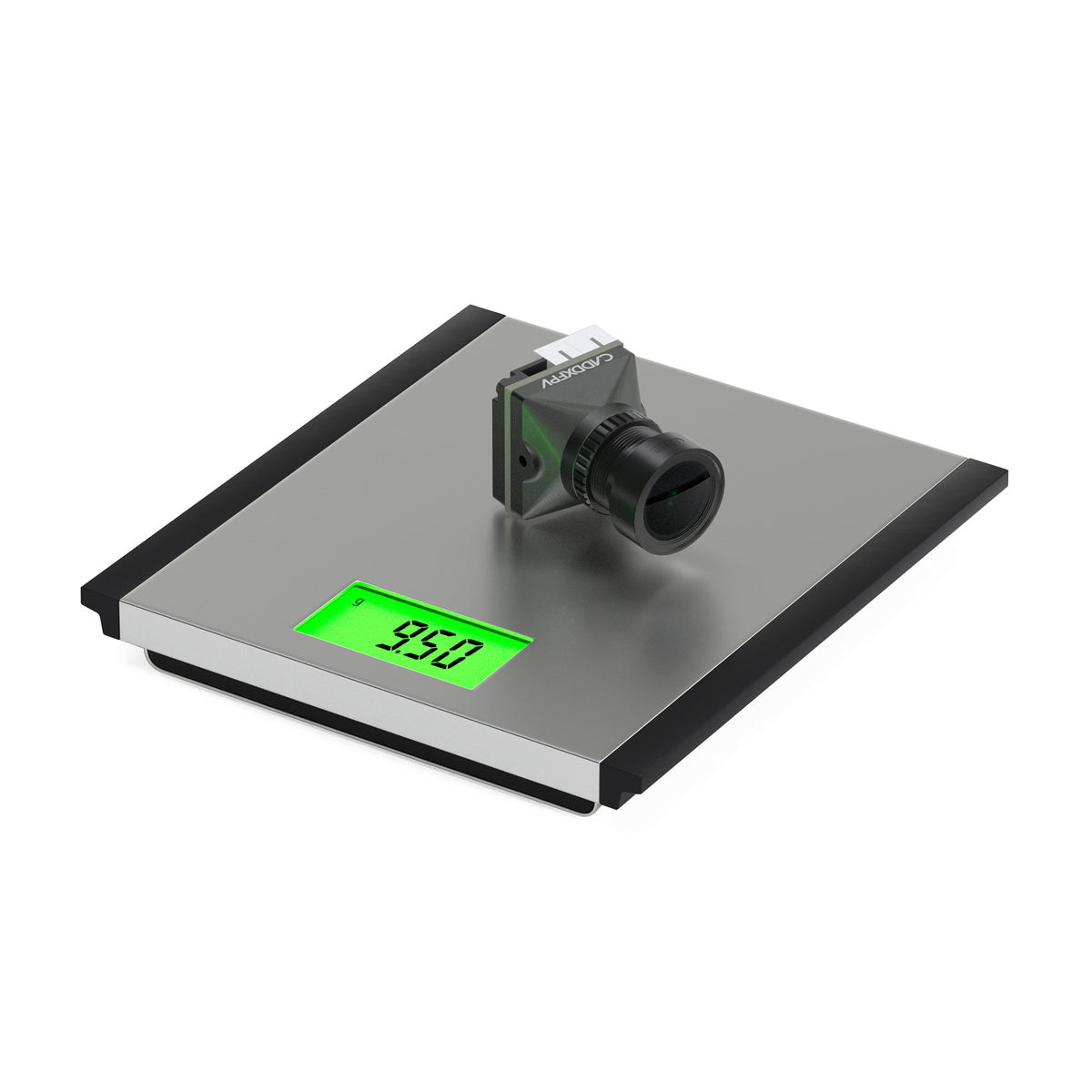

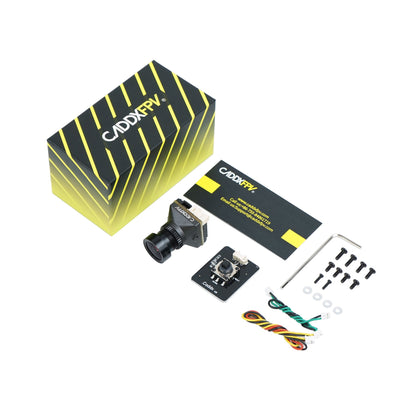

Weight: 9.5g The package contains: 1x CADDX Ratel 2 camera 1x Menu Board 1x 2pin silicone cable 1x 3pin silicone cable 1x 1.5mm Allen key 1x Set of screws
