TX Module RadioMaster Nomad Dual 1-watt Gemini Xrossband ExpressLRS Module
TX Module RadioMaster Nomad Dual 1-watt Gemini Xrossband ExpressLRS Module
Brand: RadioMaster
Couldn't load pickup availability
- Description
- Related Files
- Discussion
Receiver RadioMaster Nomad Dual 1-watt Gemini Xrossband ExpressLRS Module
RadioMaster Nomad is equipped with dual third-generation Semtech LR1121 transmitters that allow operation on both 2.4GHz and 868/900MHz frequencies using the advanced Gemini Xrossband protocol. This technology allows the transmitter to send packets on both bands simultaneously, reducing the risk of packet loss due to interference.
With dual 1-watt dual-band transmitters, the Nomad has exceptional range and revolutionary immunity to interference, providing increased performance and reliability in demanding environments. The Nomad comes with a micro module and nano module adapter, ensuring compatibility with most of today's radio controllers.
The DBR4 ExpressLRS receiver pairs perfectly with the Nomad and offers perfect compatibility. Together, they push the boundaries of traditional performance and deliver unmatched reliability and efficiency of Gemini-X technology.
Properties:
- Compatible with all existing 2.4ghz and 900mhz ExpressLRS receivers. (See mode compatibility chart below)
- Compatible with dual band 2.4ghz + 900mhz (Gem-X) ExpressLRS receivers.
- Dual 1W dual band transmitters.
- Experience unmatched reliability with dual-band ELRS Gemini Xrossband.
- ExpressLRS Gemini 2.4GHz.
- ExpressLRS Gemini 900MHz.

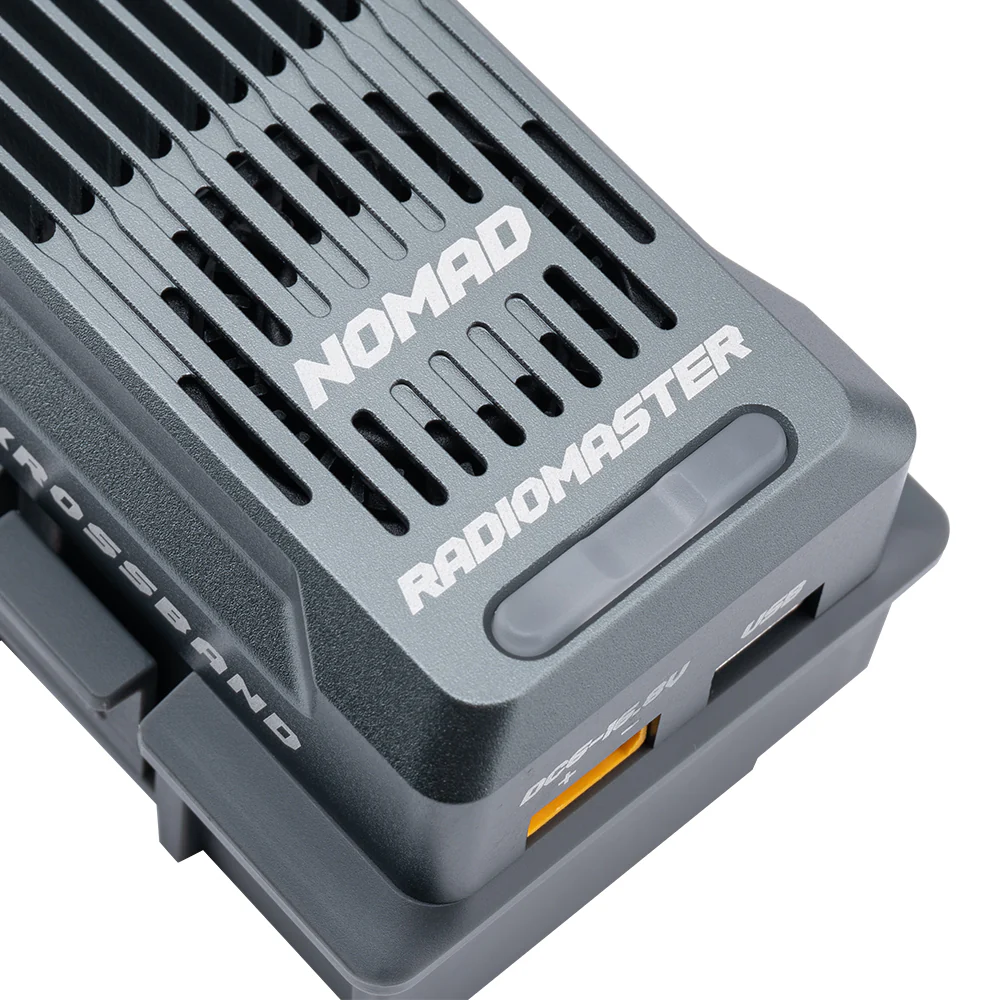

- Powerful Cooling System - The Nomad offers serious performance, complete with an advanced cooling system that keeps your pod cool even on the hottest days.
Specifications:
Item: Nomad Dual Band Module with Micro Adapter
Regulatory domain: ISM_2.4, FCC_915
MCU: ESP32 (main), ESP32c3 (auxiliary, like ESP backpack)
RF chip: Semtech LR1121 x 2
RF: Dual 1000mW | Gemini ELRS Dual Band
Frequency Range: 2400MHz - 2479MHz / 903MHz - 927MHz
Maximum Baud Rate: 500Hz (1000Hz coming soon in ExpressLRS V3.5)
Minimum Receiver Refresh Rate: 50Hz
RF Output Power: 1000mW x 2

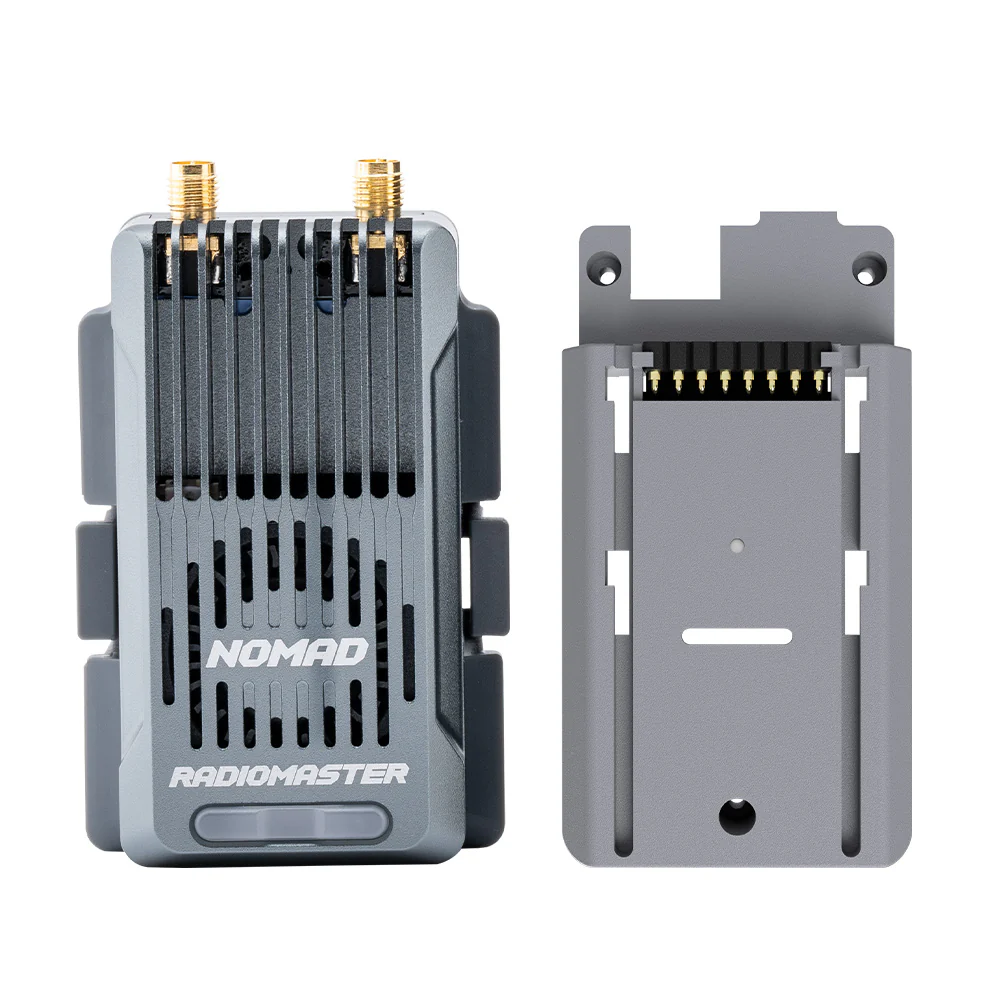

Module Adapters slot: Micro standard 5-pin socket & Nano standard 8-pin socket
WiFi support: Yes
Bluetooth support: Yes
Built-in RGB light bar

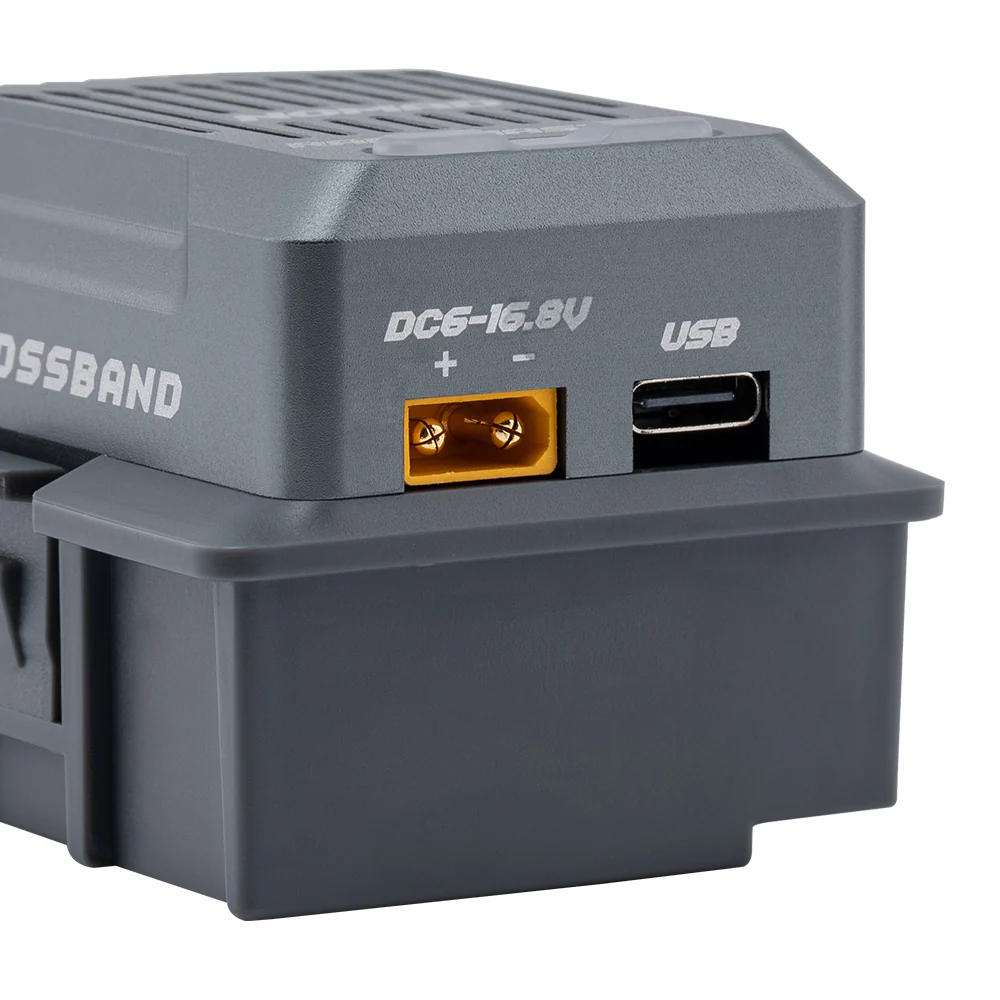

XT30 power supply: DC 6V - 16.8V
Weight: 87.20g (with antenna) / 71.10g (without antenna)

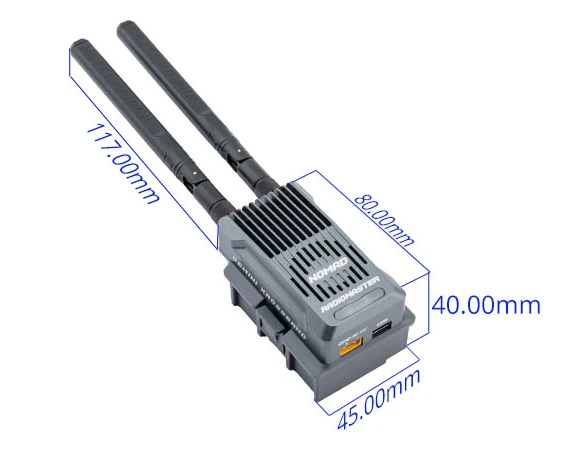

Dimension: 804540mm (without antenna)

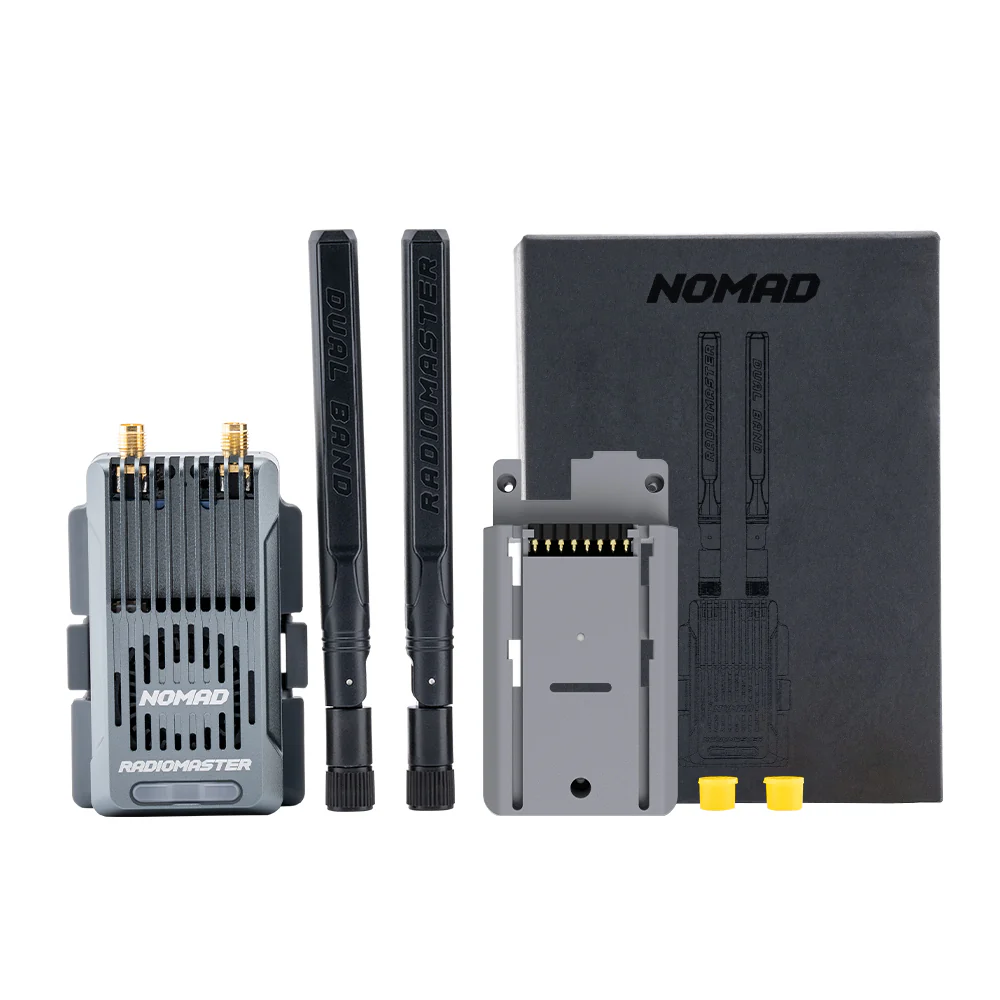

Package Contents: 1x Nomad Dual Band Module with Micro Adapter
2x Dual Band 2.4GHz / 900MHz Antennas
1x Nano Adapter
1x Manual Card
