    Code: 18089

    Holybro Remote ID

    Holybro Remote ID

    Brand: Holybro

    €29,59
    €29,59 €29,59
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

    The Holybro RemoteID module is an affordable, compact and lightweight module that transmits UAV information during flight via WiFi and Bluetooth. It supports both CAN and serial protocols. It is an FCC and CE certified module.

    This product runs on open-source firmware (ArduRemoteID) and provides a standard Remote ID solution, primarily targeted at drone manufacturers and system integrators.

    If you need customization or have a special request, please feel free to contact us by email.

    Specifications:

    Radio Module:

    • Module: Espressif ESP-C3
    • Bluetooth and WiFi 2.4 GHz (ERP): + 20 dBm (100 mW)
    • Certification: FCC and CE

    Firmware:

    • ArduRemoteID (link to GitHub)
    • Supports firmware update via web interface ("OTA")
    • Supported in PX4 and ArduPilot

    Protocol:

    • CAN and Serial

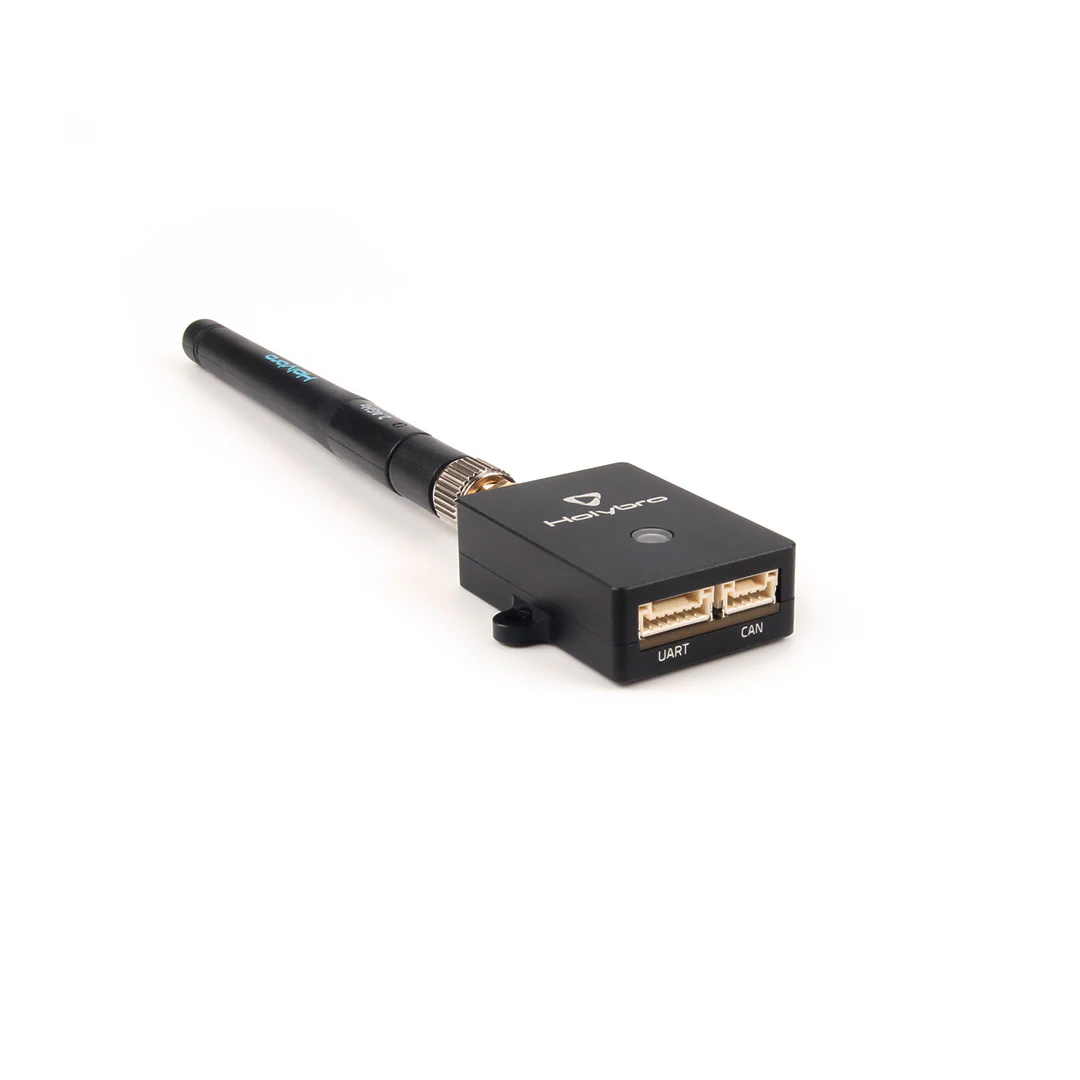

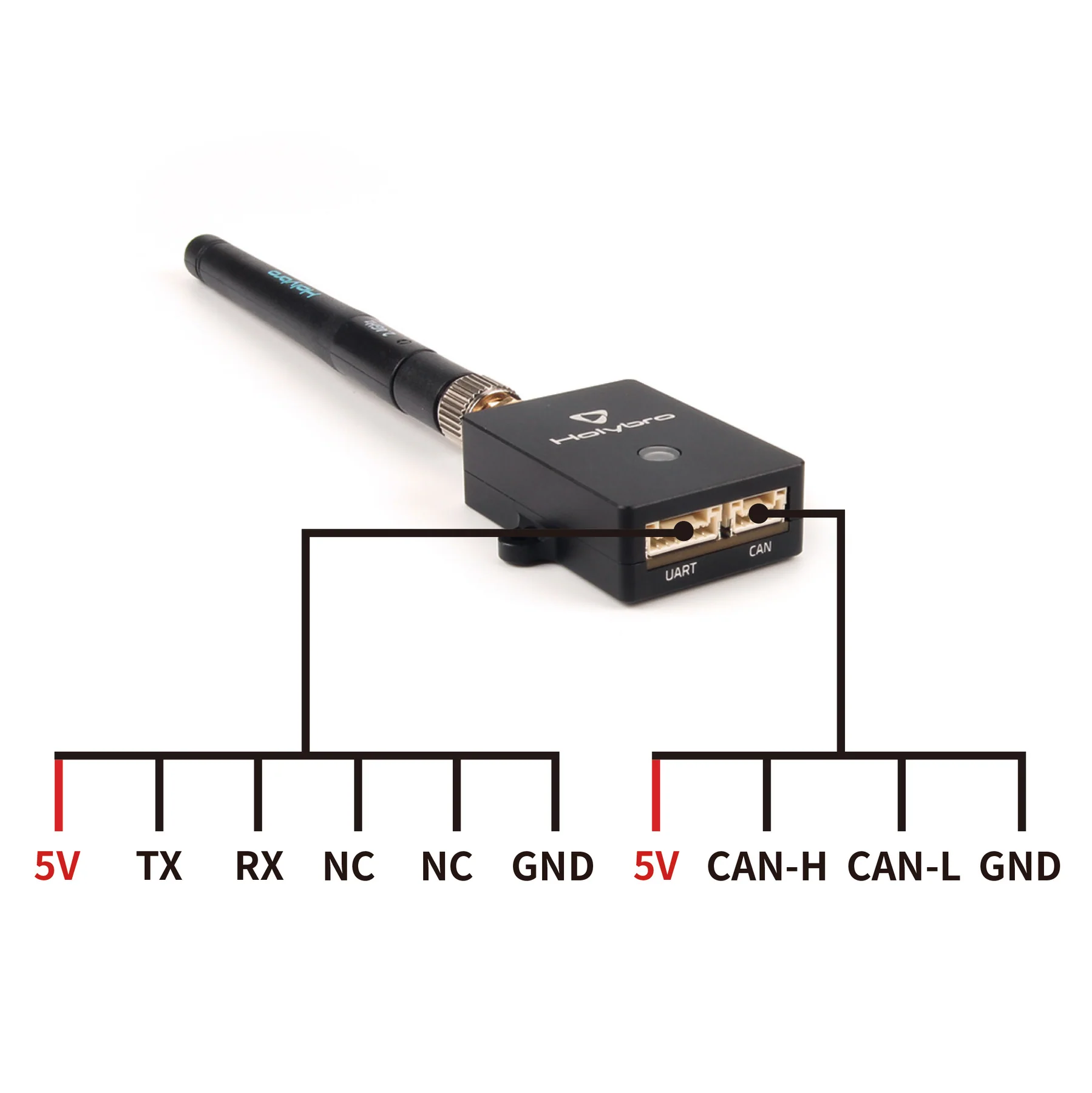

    Interface:

    • 1x JST GH 4-pin CAN (CAN) port
    • 1x JST GH 6-pin TELEM (UART) port

    Antenna connector type:

    • On the CNC cover: SMA connector
    • On PCB: IPEX connector

    Reach:

    • 5 km detection range*

    Power:

    • 5V from TELEM or CAN port

    LEDs:

    • Bright RGB status LED

    Dimensions:

    • Without cover: 35.3 x 23.5 mm (without antenna)
    • With CNC cover: 38 x 26.5 x 11.5 mm (without antenna)

    Assembly:

    • M2 screws

    Operating temperature:

    • -40°C to +85°C

    Weight:

    • PCB only: 4g

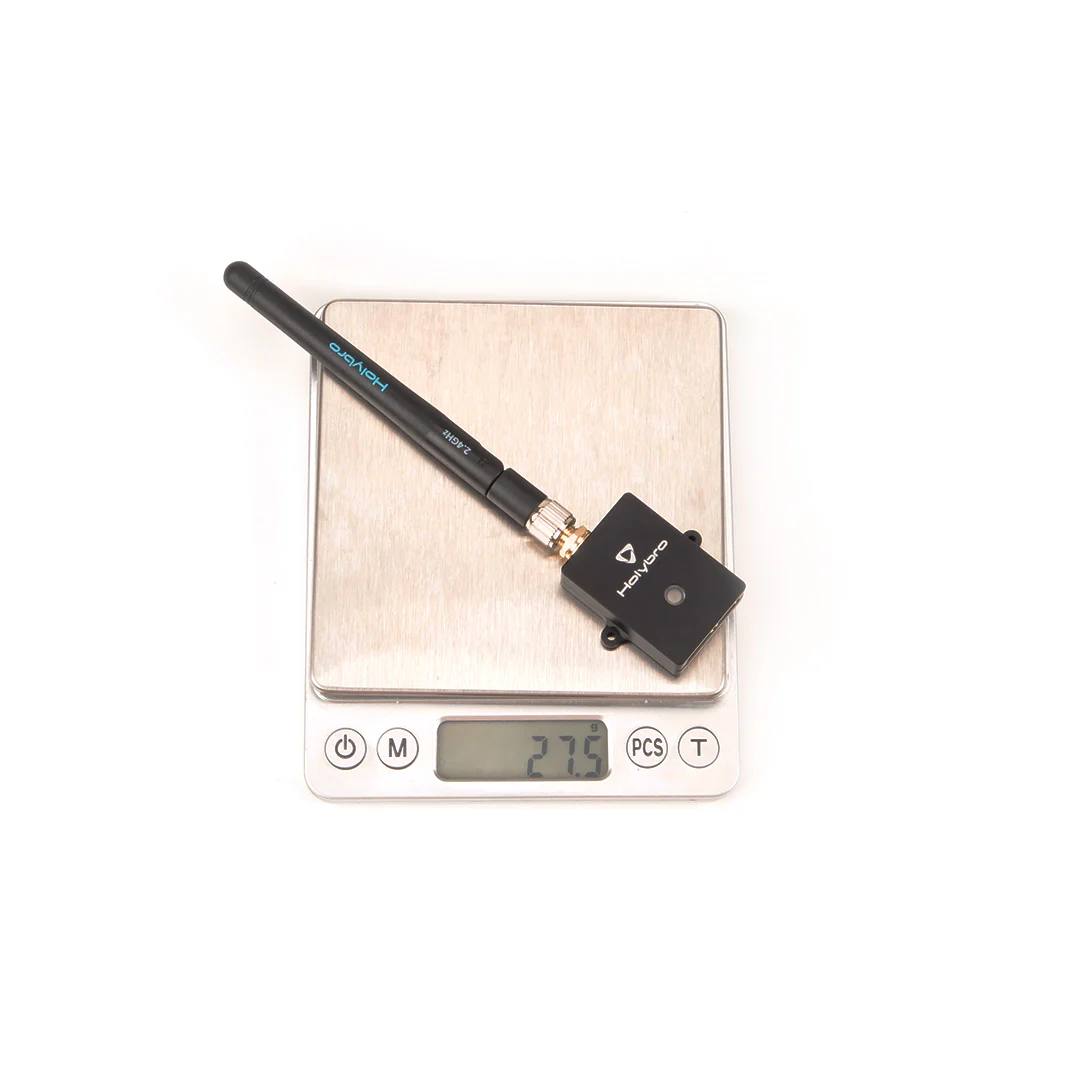

    • With CNC cover and antenna: 27.5 g
    • Without cover and antenna: 16.5 g (cable 20 cm)

    Certification:

    • FCC and CE

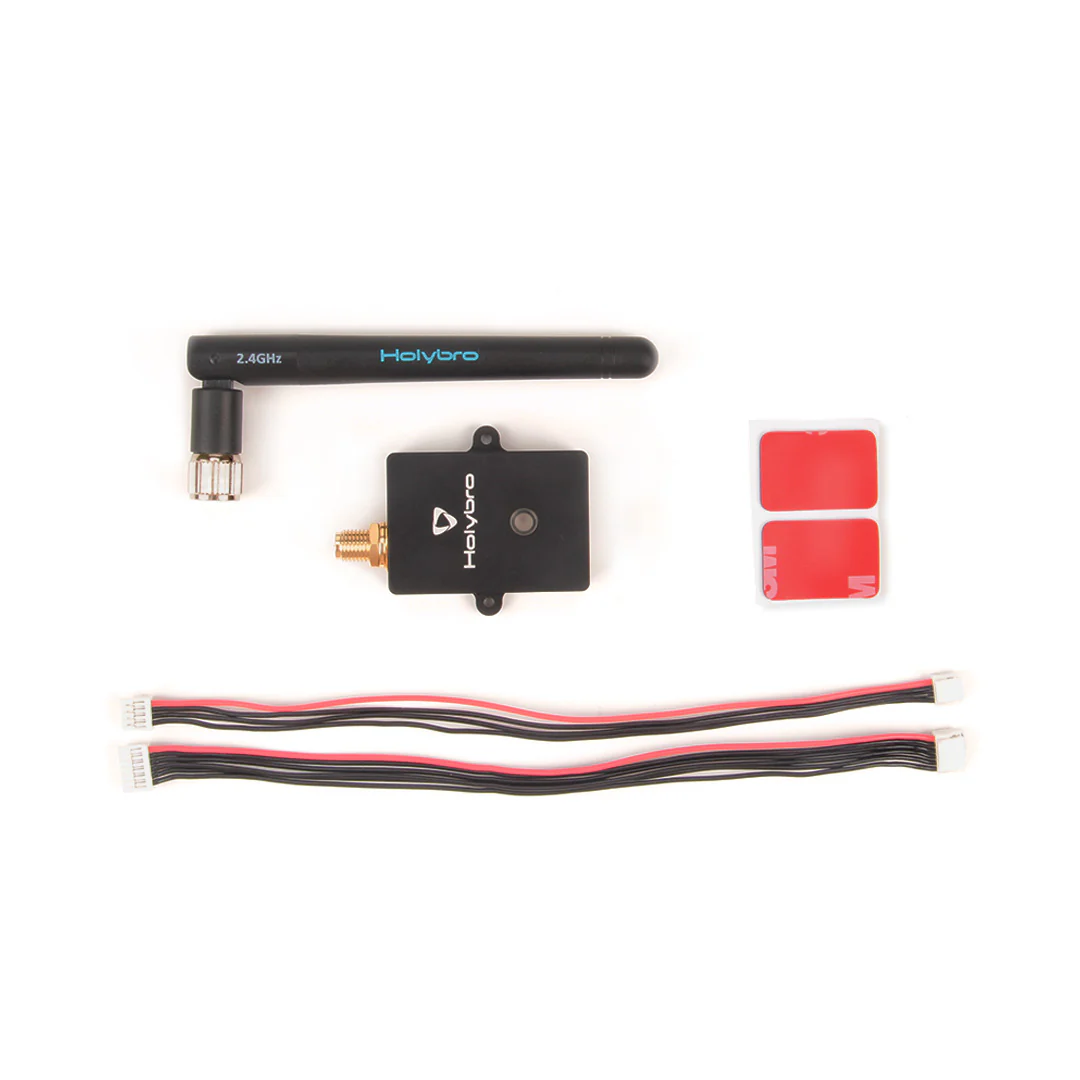

    Package contents:

    • 1x Remote ID module
    • 1x Antenna
    • 1x JST GH 6pin 150mm cable
    • 1x JST GH 4pin 150mm cable
