Antenna RushFPV Cherry UFL 5.8G RHCP

Name: Antenna RushFPV Cherry UFL 5.8G RHCP
Brand: Baltic Drones
SKU: DC5R
Price: 8.65 EUR
Availability: InStock

Antenna RushFPV Cherry UFL 5.8G RHCP

Brand: RUSH

€8,65

~~€8,65~~ €8,65

-0% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

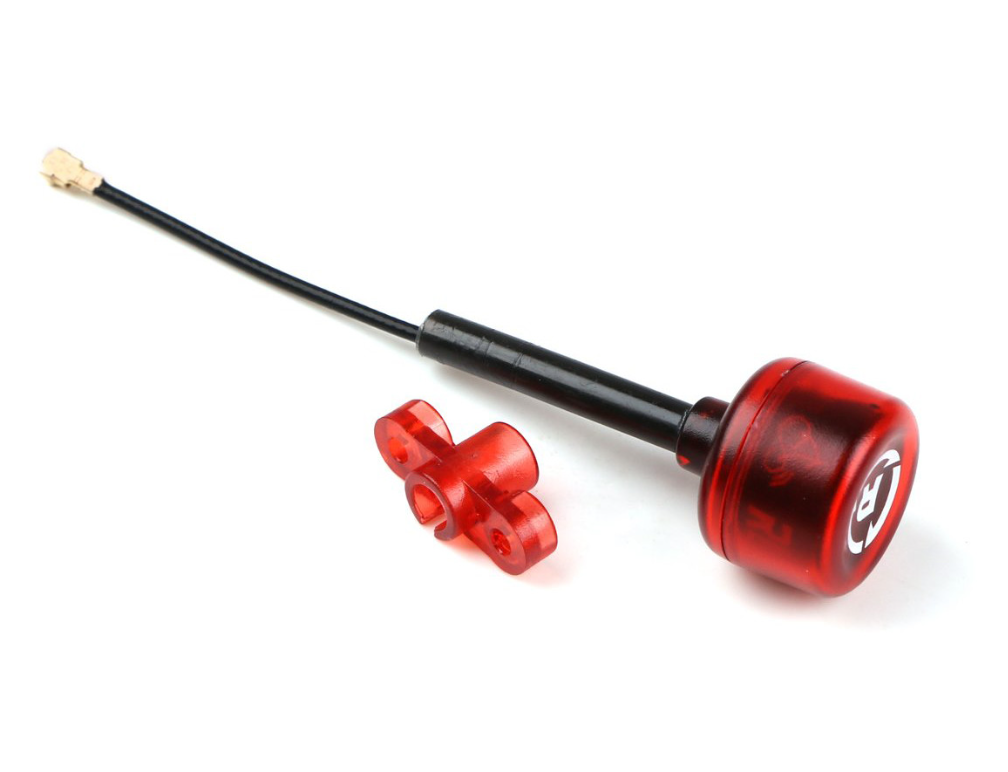

Antenna RUSH Cherry UFL 5.8G

The Rush Cherry 5.8G antenna is characterized by high-quality components and a well-thought-out design. A durable one-piece plastic housing protects the antenna from damage. The cable of the MMCX and UFL versions is half protected by a plastic tube, on which you can install the included plastic frame holder (fixing nuts and screws are also included).

Function:

- Maximum signal coverage. The frequency range of 5.6 - 6 GHz covers the entire frequency band and all channels have almost the same transmission power.
- Durable one-piece plastic case. Optimized design obtained through crash testing.
- Cables are protected from damage and bending at any angle.
- Contains a bracket for mounting the antenna on the frame.
- The radiation field is distributed evenly and there is no dead zone when maneuvering the signal at a large angle.
- Ideal relation to the axis of circular polarization. Effectively suppress screen flicker caused by multipath interference.
- Almost ideal SWR ratio, with high radiation efficiency up to 98%, which can also effectively reduce the heating of the video transmitter.

Specifications:
Frequency: 5600-6000 MHz
Gain: 1.2dBi
Axle ratio: about 1.0
S11 SWR: max 1.4 - min 1.1
Polarization: RHCP
Connector: UFL
Length: 85 mm

Package includes:
1x RushFPV Cherry UFL 5.8G RHCP antenna
