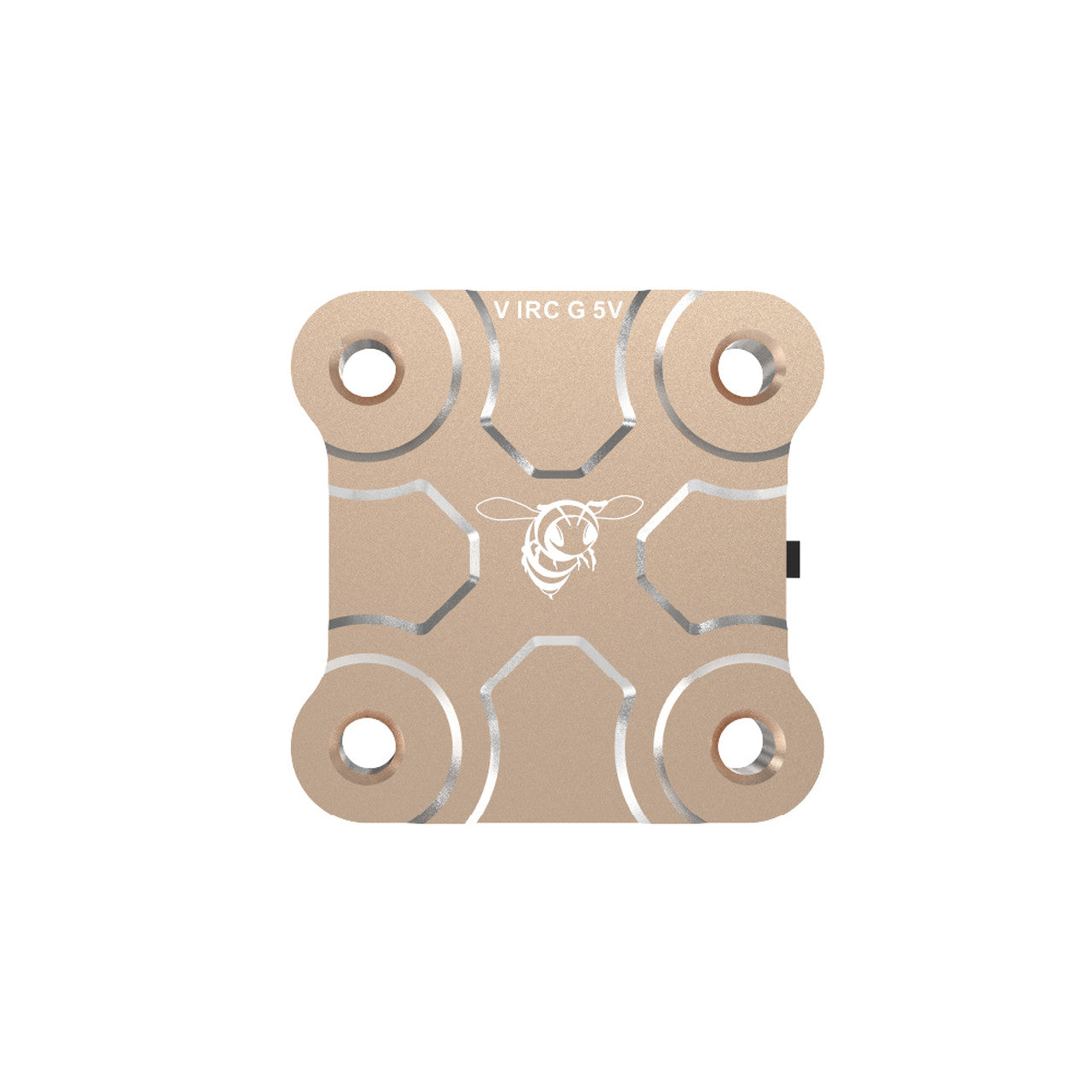

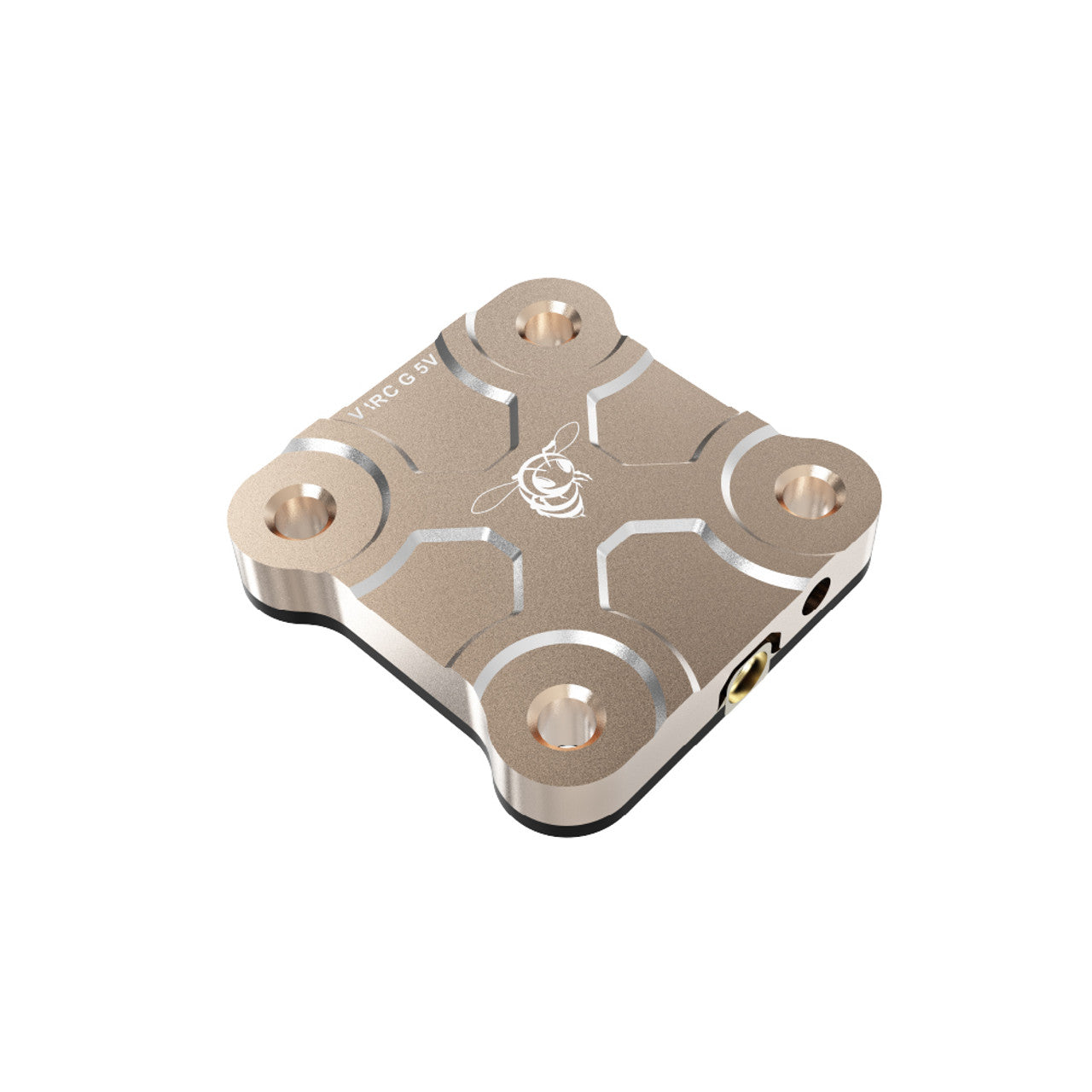

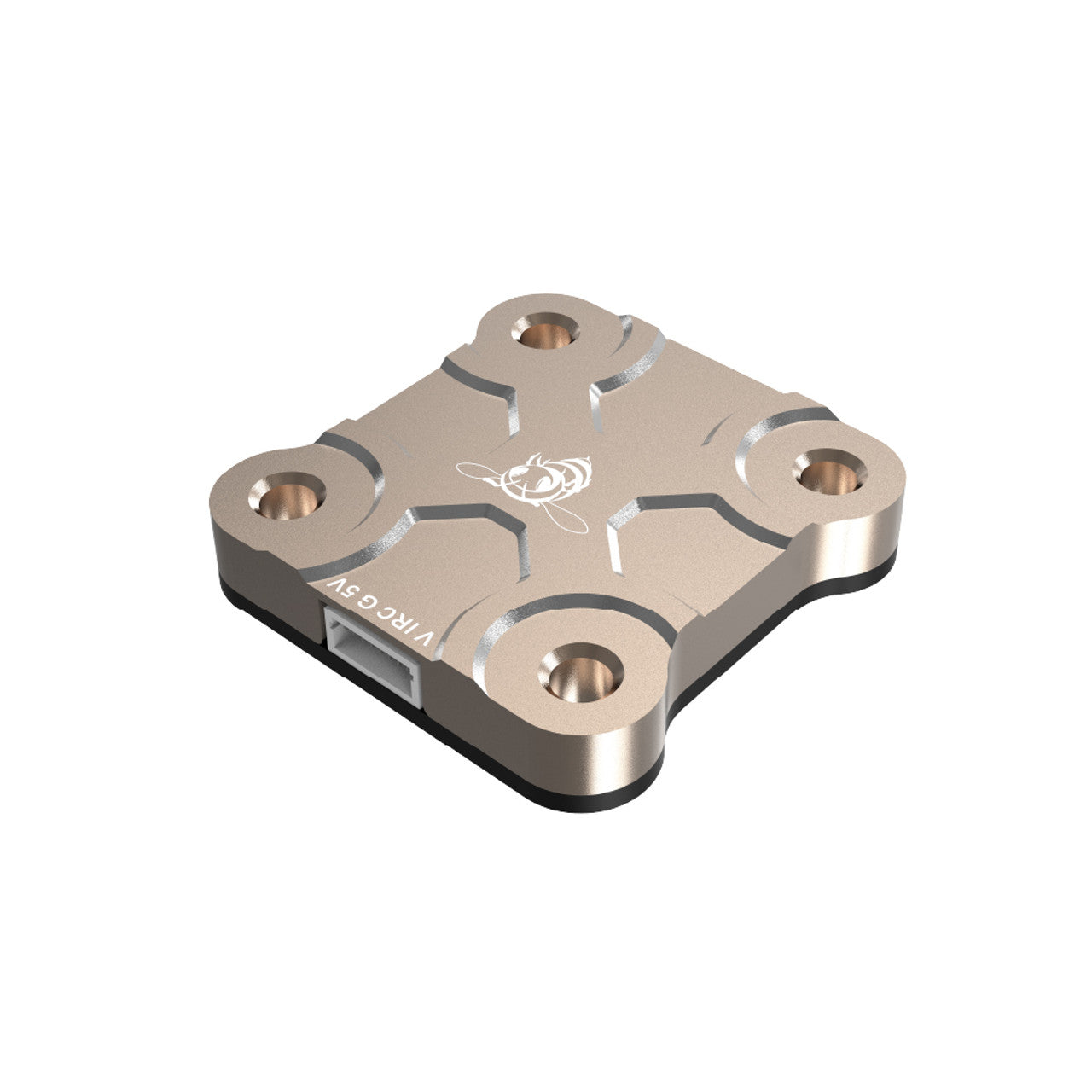

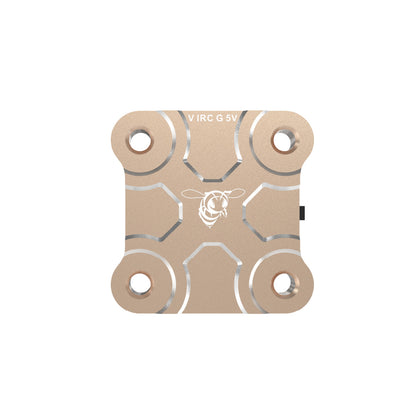

SpeedyBee TX800

The Speedybee TX800 is a small but powerful VTX. Capable of 800 mW output power when mounted in a 20 x 20 mm mounting pattern. An integrated heatsink keeps dangerous heat away from sensitive electronics.
TX800 supports IRC TRAMP protocol and adjust video transmission parameters by remote control, including frequency, working power, etc. If your flight controller supports Bluetooth or WiFi, you can also adjust the video transmission parameters through the SpeedyBee app.

Specifications:
Frequency channel: 5.8 GHz 48 CH
Output power: PIT/25mW/200mW/400mW/800mW
Working current: 5V@250-750mA
Output voltage: 5V@max 250mA
Voltage in: 3.7-5.5V
Input video impedance: 75 Ohm
Antenna connector: MMCX
Weight 5.6g: (without antenna)
PCB size: 28x28mm, 20x20 M2
