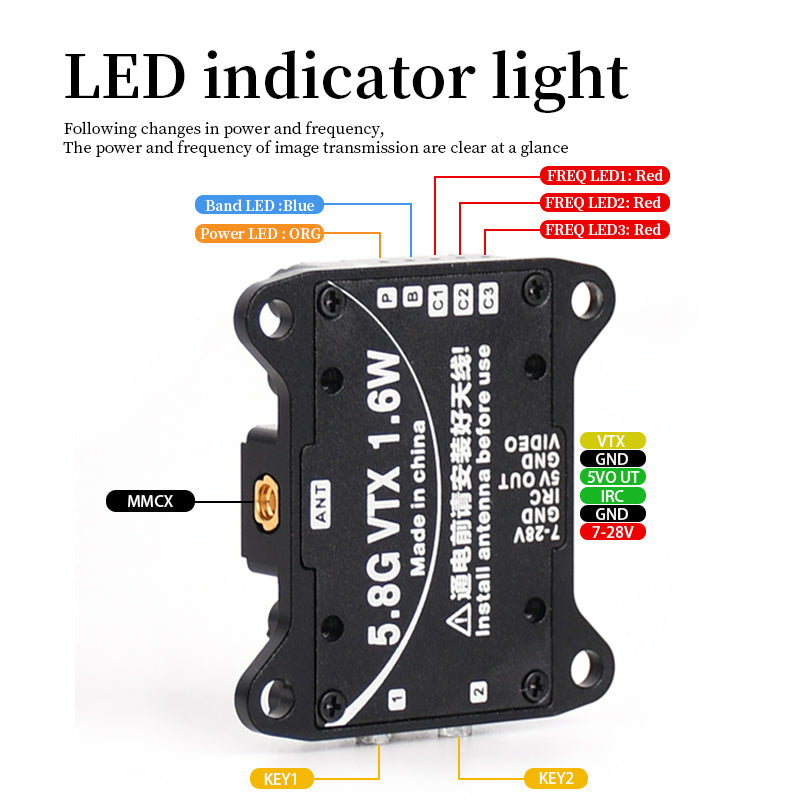

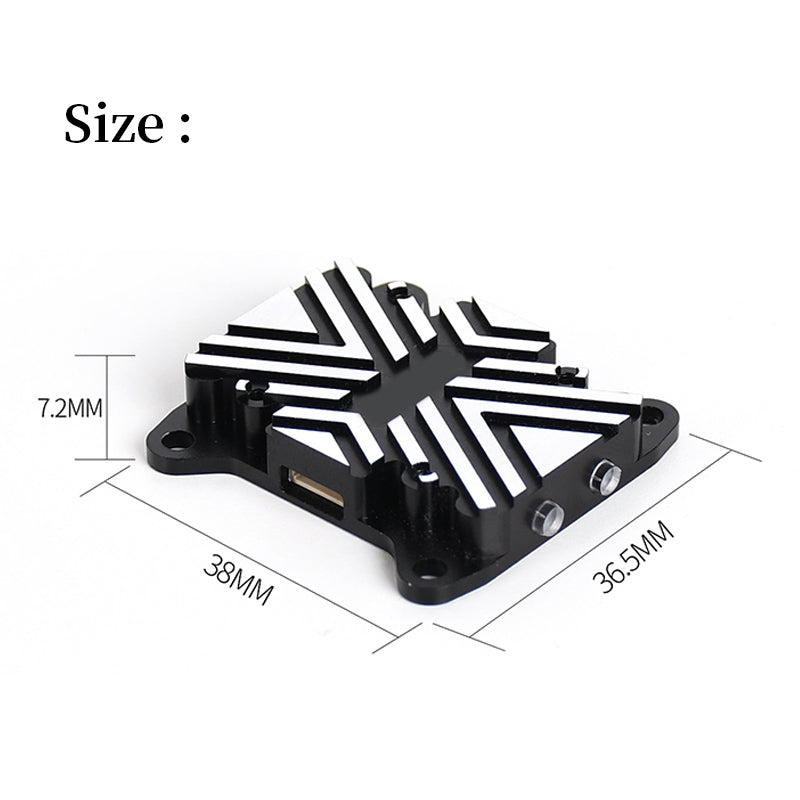

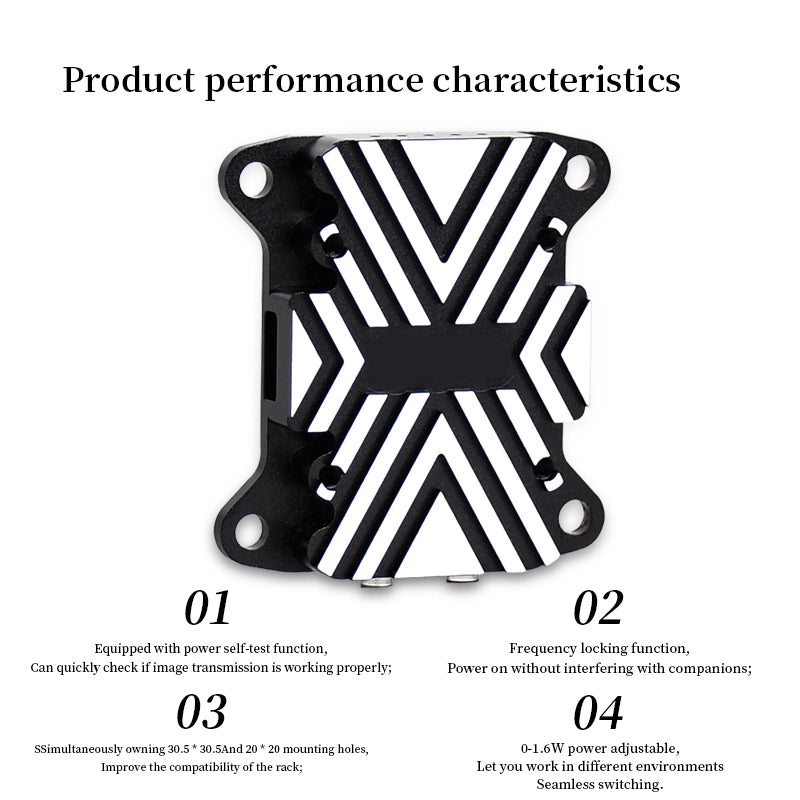

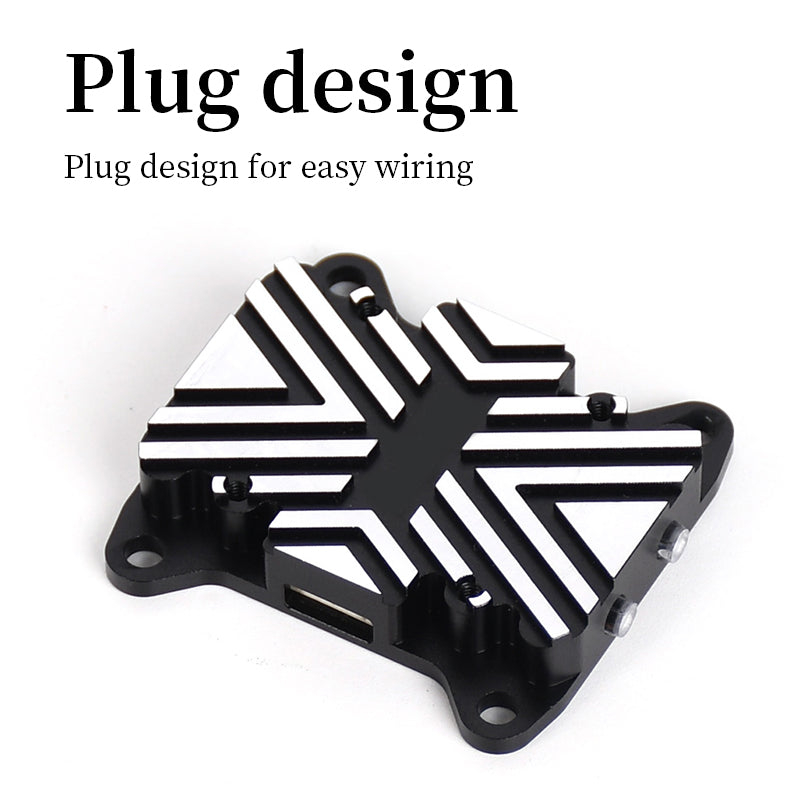

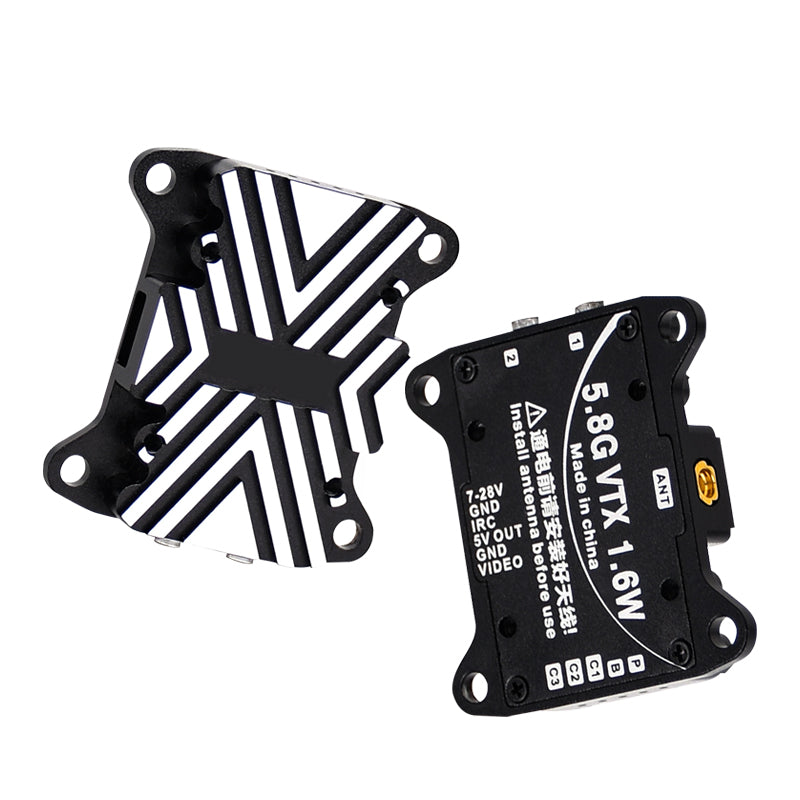

VTX Pilotix R1600 (5.8G 1.6W) VTX Pilotix R1600 (5.8G 1.6W) is a high-performance analog video transmitter designed for FPV drones. With a power of 1.6 W, it provides strong and stable video transmission. Its compact and lightweight design makes it suitable for a wide range of drones and ensures reliable performance for both beginners and professional pilots. Function: - Power self-test function. It can quickly check if the image transfer is working properly. - Frequency lock function, no interference when power on. - 30.5x30.5 and 20x20 mounting holes simultaneously to improve compatibility. - Adjustable power output from 0 to 1.6 W, allowing for smooth switching in different environments. Specifications: Brand: Pilotix Model: Pilotix R1600 (5.8G 1.6W) Frequency band: 5645MHz-5945MHz Number of channels: 40CH Output power: 25-400-800-1000-1600mW Input voltage: DC7-27V (2-6S battery) Output voltage: 9V@780mA Control protocol: IRCTramp Antenna interface: MMCX Mounting hole: 30.5x30.5mm - 20x20mm Dimensions: 38 x 36.5 x 7.2 mm Weight: 14.5g The package includes: 1x VTX Pilotix R1600 (5.8G 1.6W)
