RAD VTX 5.8G 2.5W

RAD VTX 5.8G 2.5W high power video transmitter for FPV drones.
It has six adjustable power levels with a maximum output power of 2500 mW and comes with three regional frequency bands, including the general regional frequency band, the US FCC frequency band and the EU European frequency band.

Specifications:

Model: RAD VTX 5.8G 2.5W
Input voltage: DC 7-36V (2-8S battery)
Output voltage: 5V @ 600mA
Input impedance: 75Ω
Protocol: IRC Tramp
Antenna interface: MMCX
Cable interface: GH 1.25-6P
Output power levels: PitMode, 25mW, 200mW, 600mW, 1600mW, 2500mW
Frequency groups: General Regional Frequency Group (40CH), US FCC Frequency Group (37CH), European EU Frequency Group (26CH)
Video format: PAL/NTSC
Microphone: Built-in
Mounting holes: 30.5mm x 30.5mm (M3)

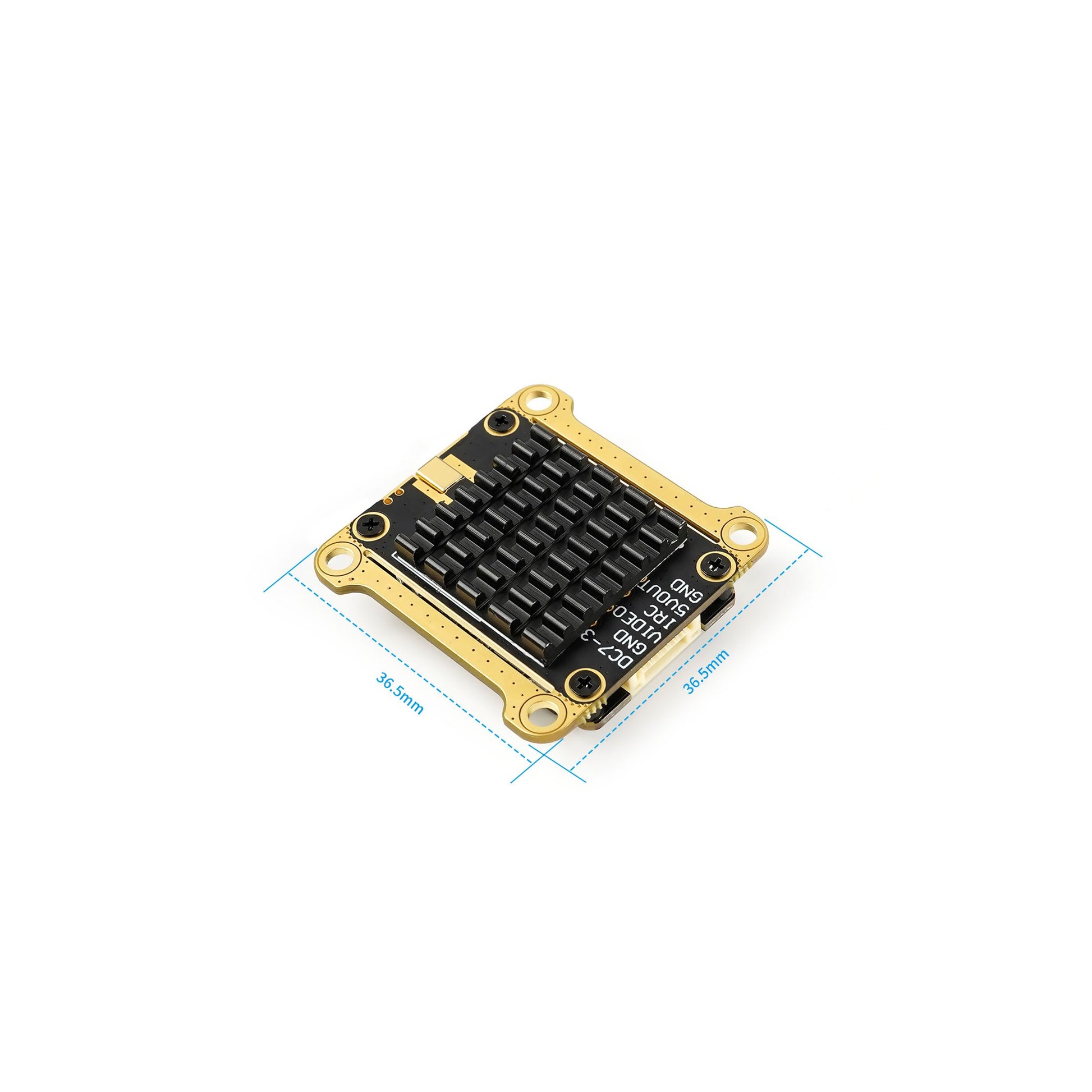

Dimensions: 36.5mm x 36.5mm x 12mm
Weight: 15g (without wire)
