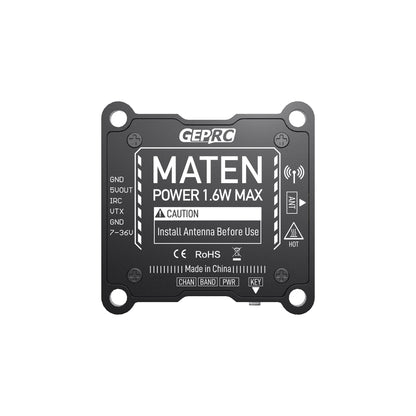

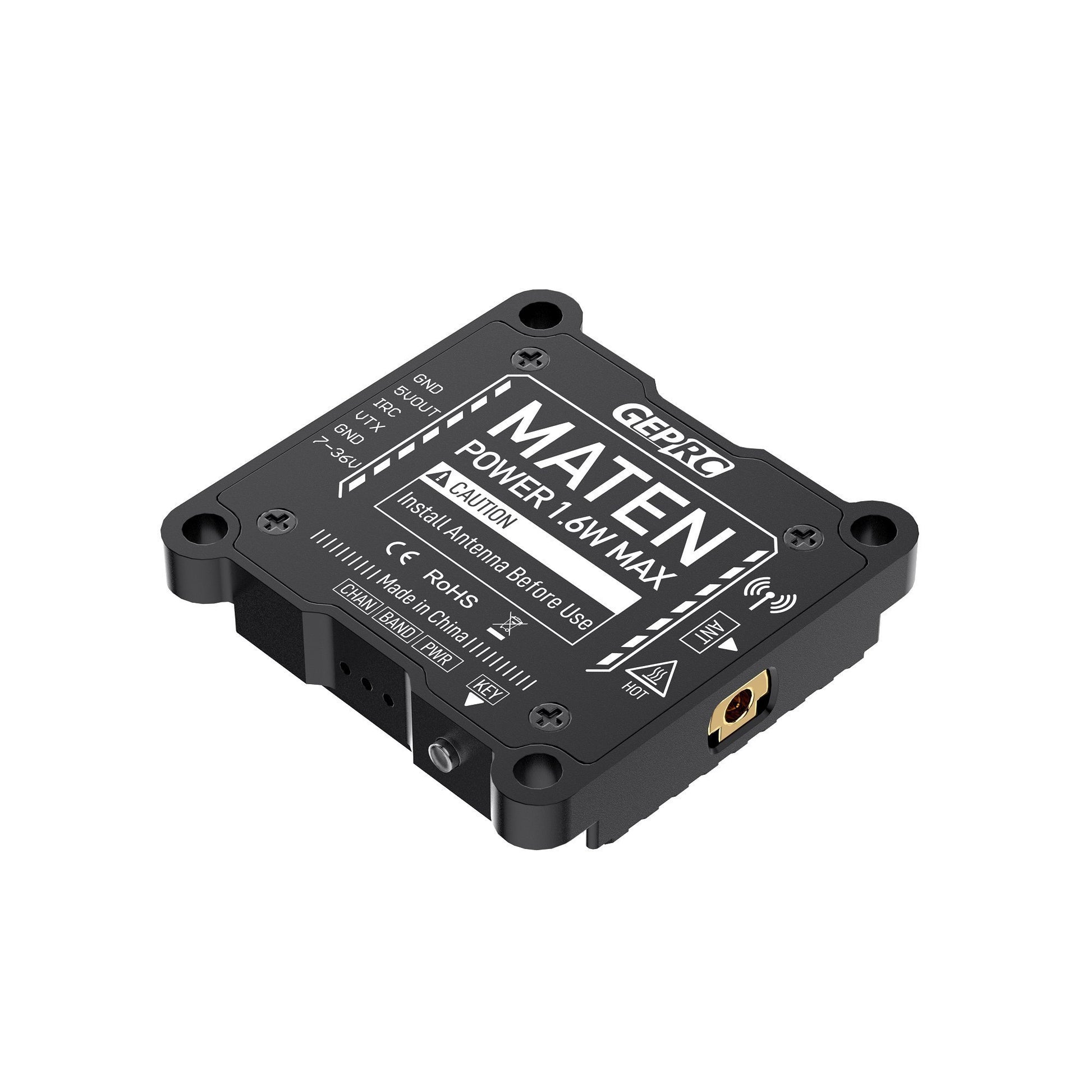

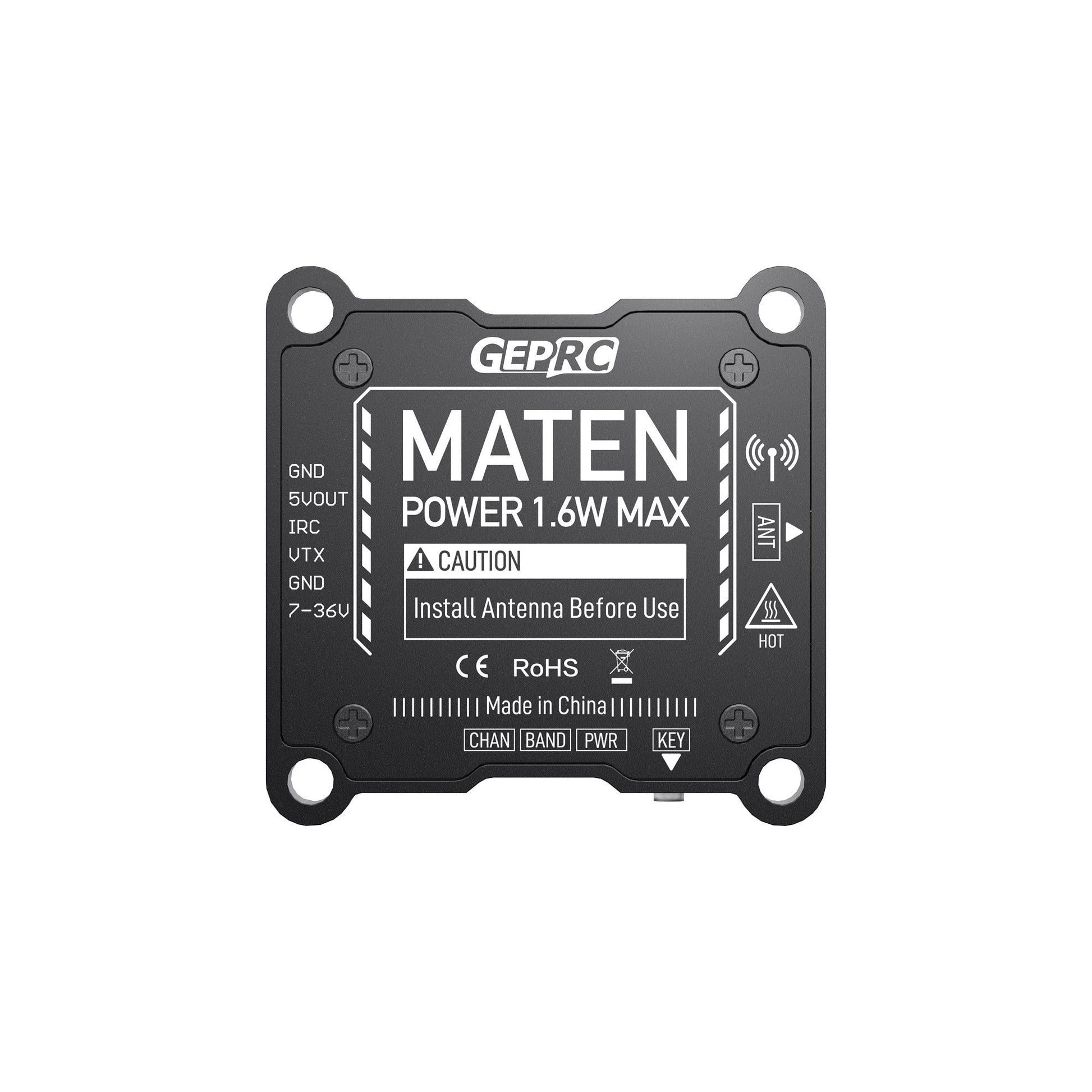

MATEN 5.8G 1.6W VTX is a high power image transmitter newly developed by GEPRC team. Its power is very strong, it has 4 adjustable power levels and a maximum power of up to 1600 mW. The transmission signal is very stable and has excellent penetration.

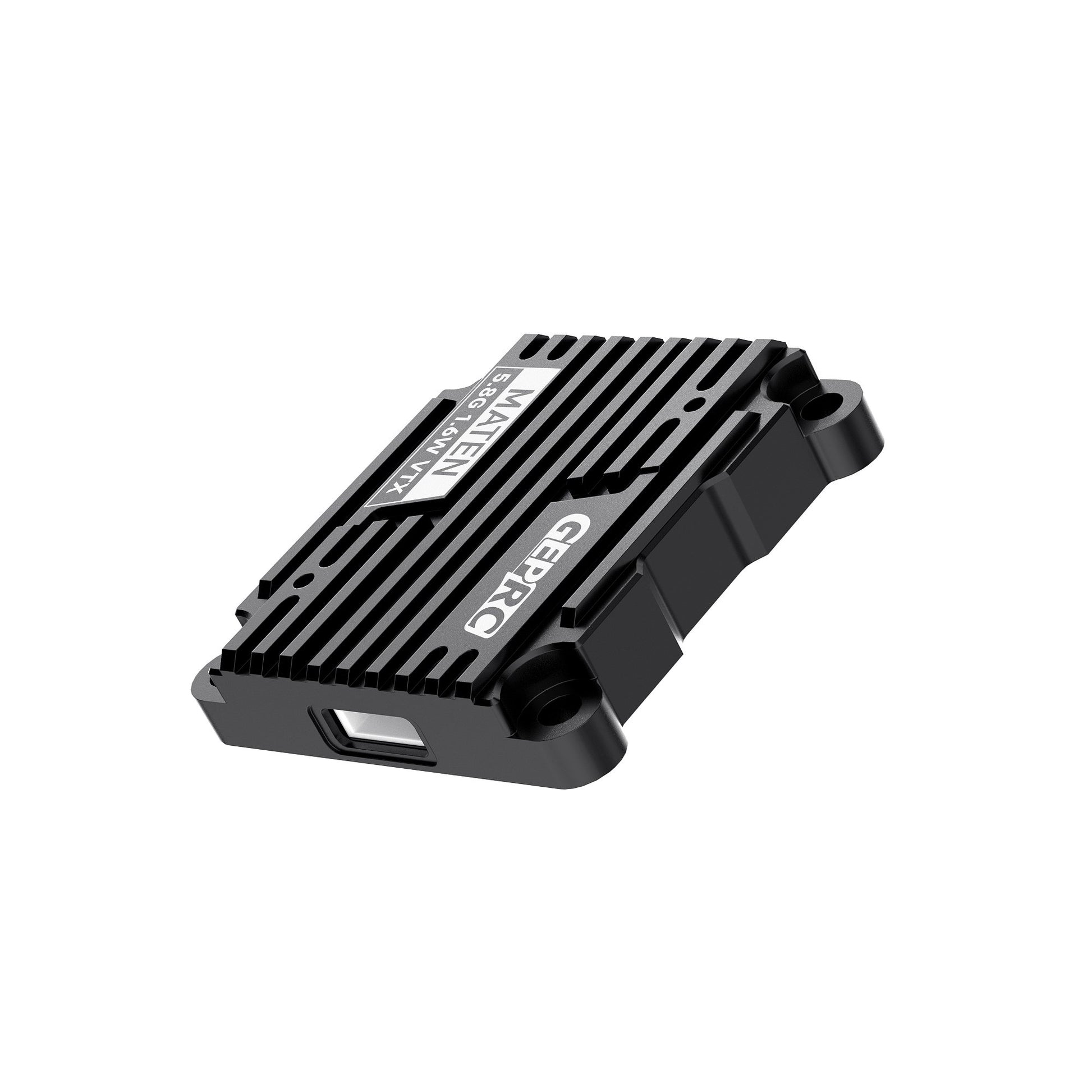

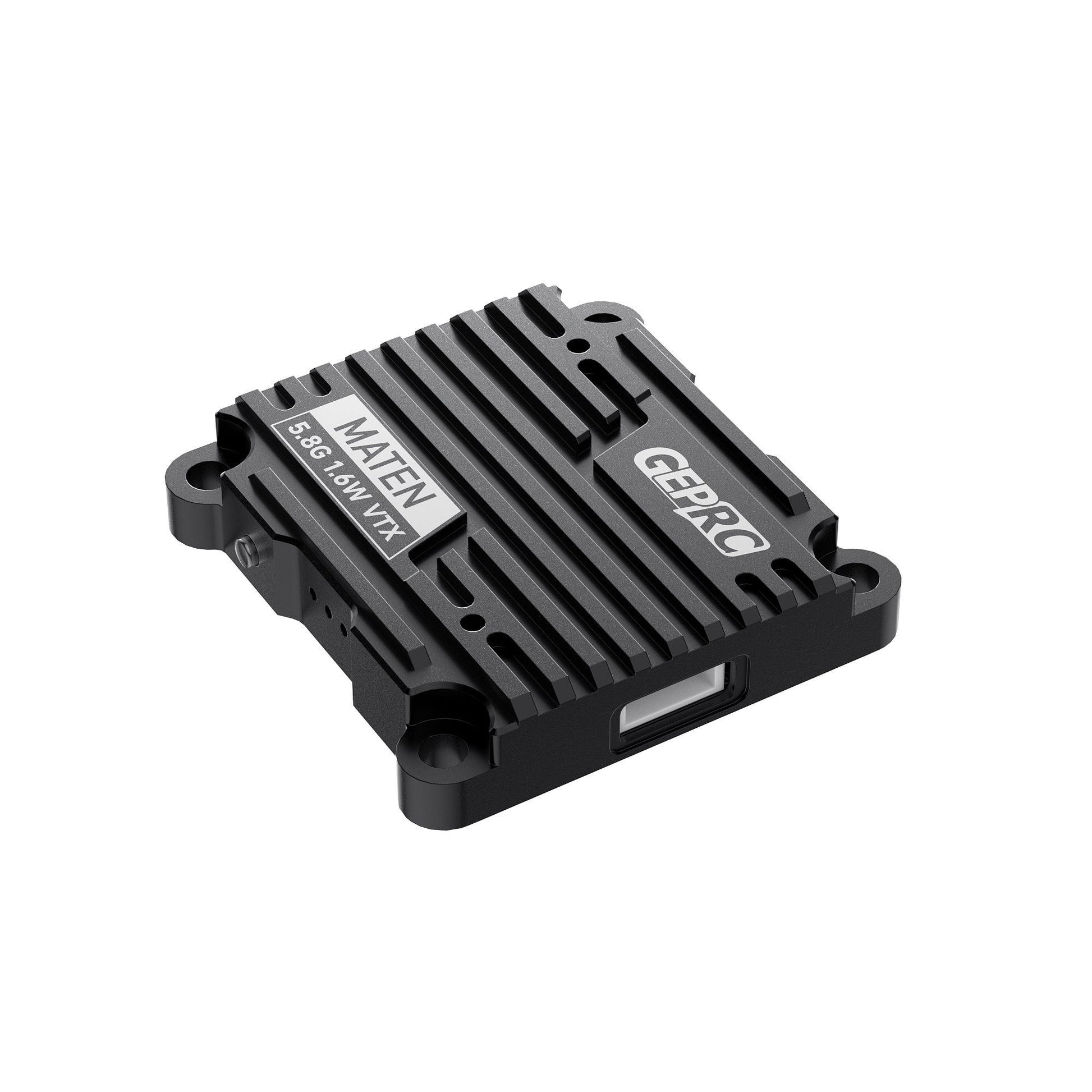

MATEN 5.8G 1.6W VTX uses a CNC machined aluminum shell for better heat dissipation. The unique design increases impact resistance and improves heat exchange. It supports the IRC Tramp protocol, which allows quick parameter settings via the OSD. The VTX has a wide voltage range of 7-36V and an overheat protection function.
Features:
- Four adjustable power levels up to 1600 mW, suitable for long-distance flights
- Aluminum CNC casing for auxiliary heat dissipation
- Wide input voltage range 7-36V
- One function button, three control diodes, easy operation
- IRC Tramp protocol, OSD support for setting parameters
- Overheat protection function to prevent overheating
- VTX has a built-in microphone for real-time audio transmission
- Support 72 transmission channels
- Mounting holes 30.5×30.5 mm (M3)
Specifications:
- Model: MATEN 5.8G 1.6W VTX
- Dimensions: 36.4×36.4×7.9 mm
- Mounting holes: 30.5×30.5 mm (M3)
- Output power: 25 mW / 200 mW / 600 mW / 1600 mW / Pit mode
- Frequency: 5.8G
- Channels: 72 channels
- Input voltage: DC 7-36V (2-8S battery)
- Output voltage: 5V@600mA
- Protocol: IRC Tramp
- Antenna connector: MMCX
- Cable connector: SH1.0 6pin
- Video format: PAL/NTSC
- Microphone: Built-in microphone
- Weight: 17.5 g
Notes:
- Connect the antenna before use.
- Ensure constant airflow and a well-ventilated environment to prevent overheating. If using in closed areas, please install a cooling fan.
- 5V output is for camera or cooling fan only! Do not connect input power/battery to 5V output, serious damage to VTX may occur.
Package contents:
- 1 x MATEN 5.8G 1.6W VTX
- 1 x MMCX copper pipe antenna
- 1 x MMCX to SMA connector
- 1 x SH1.0 6P connection cable
- 5 x M3*7 screw
- 5 x M3*8 screw
- 5 x M3*10 hexagons
- 5 x M3*5 insulating post
- 5 x M3 nylon nut
- 1 x product description
