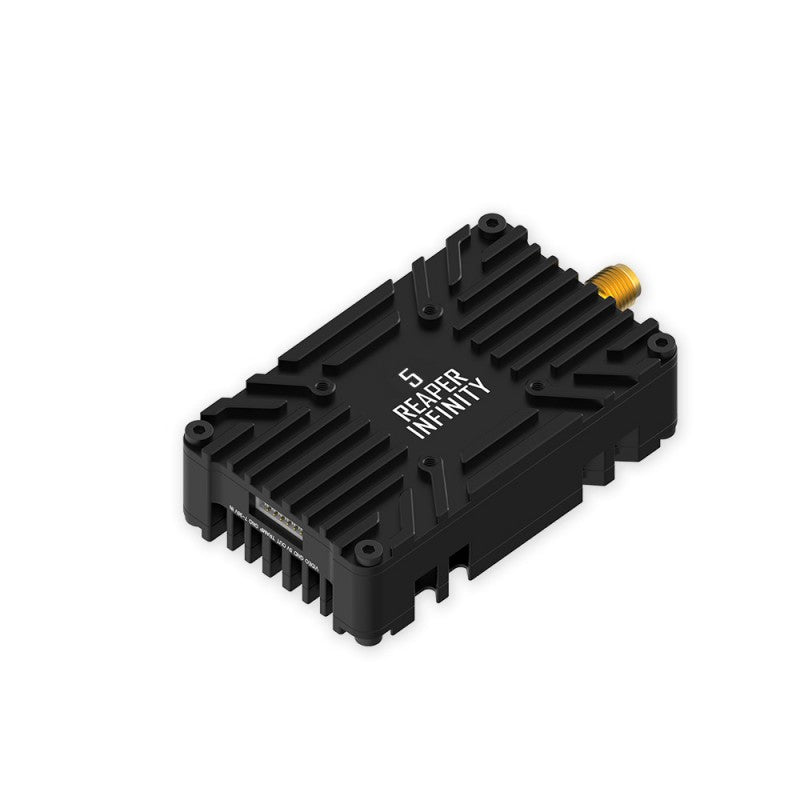

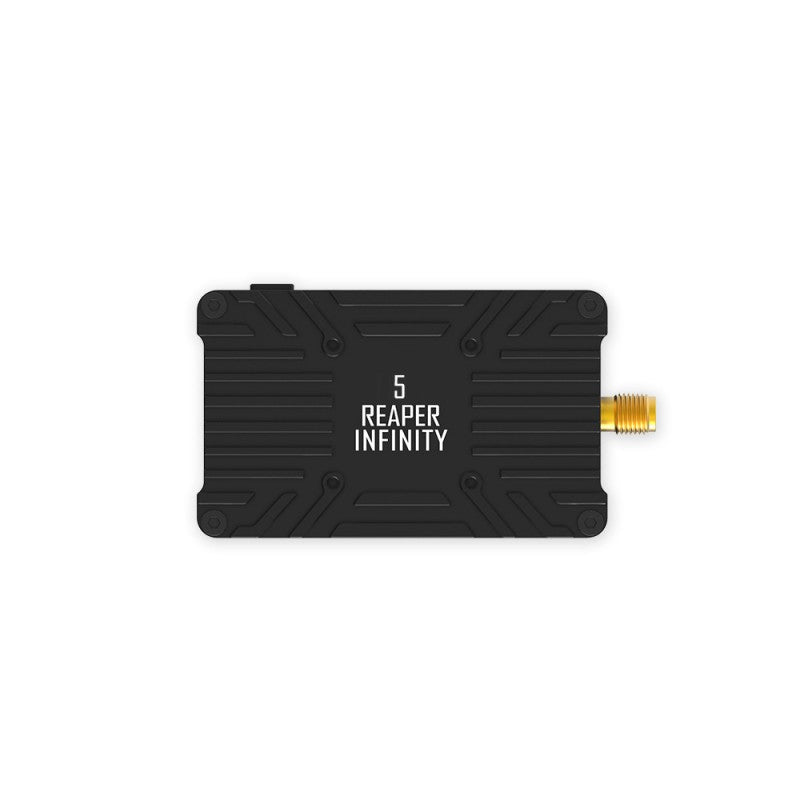

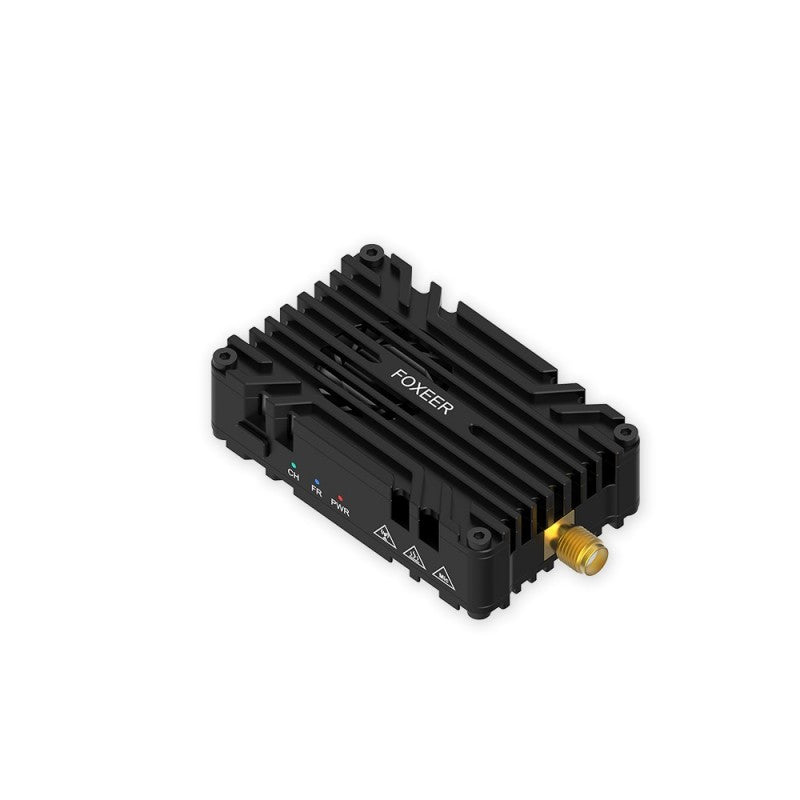

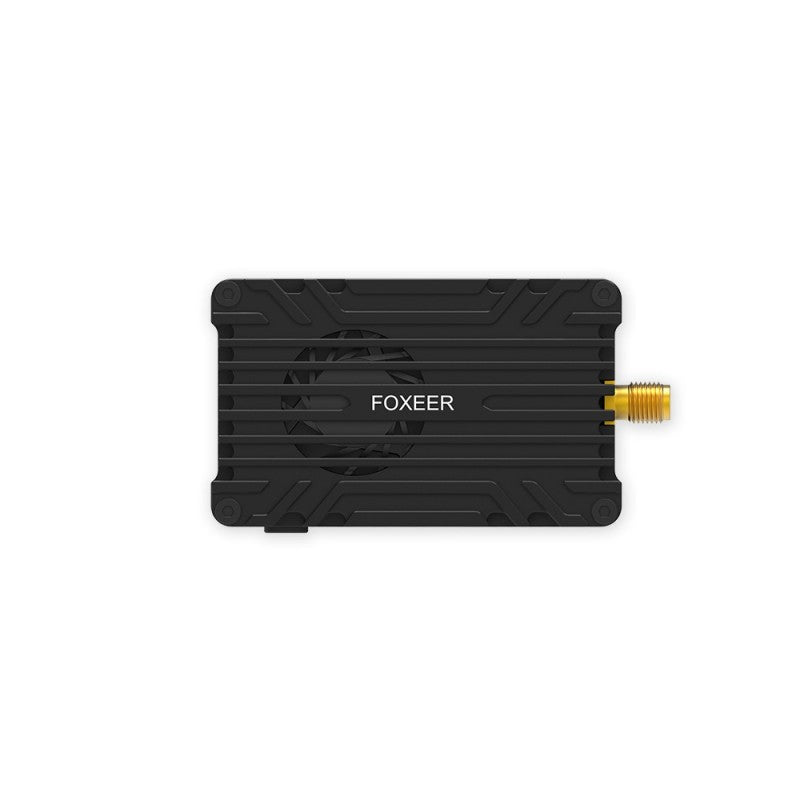

VTX Foxeer Reaper Infinity 4.9G~6G V2 5W 80CH
The Reaper Infinity 5W VTx is a versatile and efficient FPV transmitter designed for pilots who value performance and reliability. Adjustable power levels and robust construction make it ideal for medium to long FPV applications.
Key features:
- Input voltage range: 9-36V, compatible with various power supply systems.
- Output voltage: 5V for stable and reliable power supply.
Adjustable transmission power:
- Power levels: 1W, 2W, 3W, 4W and 5W for optimal range and performance.
- Frequency channels: Support 80 channels to reduce interference and better signal selection.
- Pit Mode: Simple double-click activation for safe operation while setting up.
Construction and design:
-
Compact and lightweight:

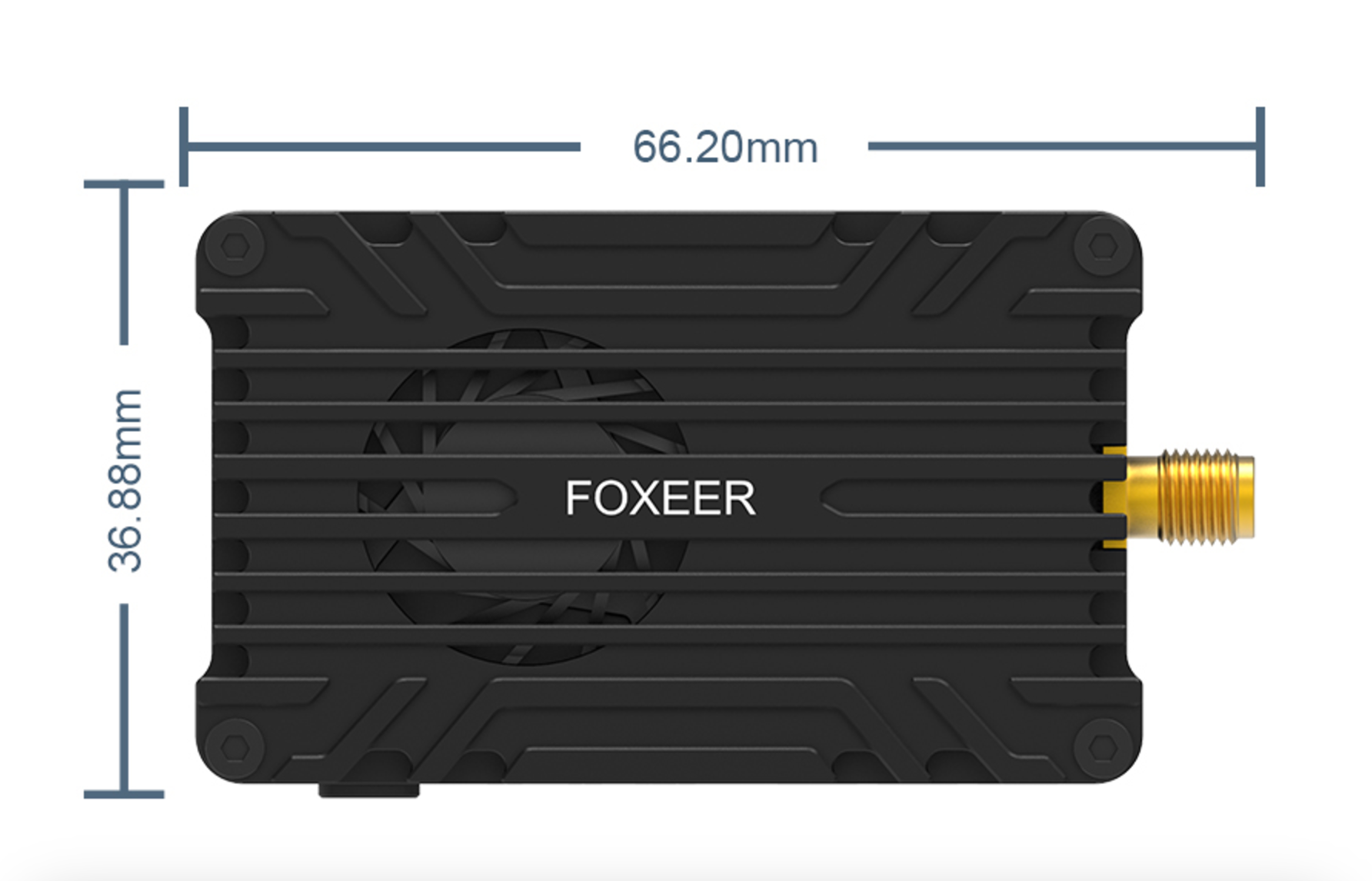

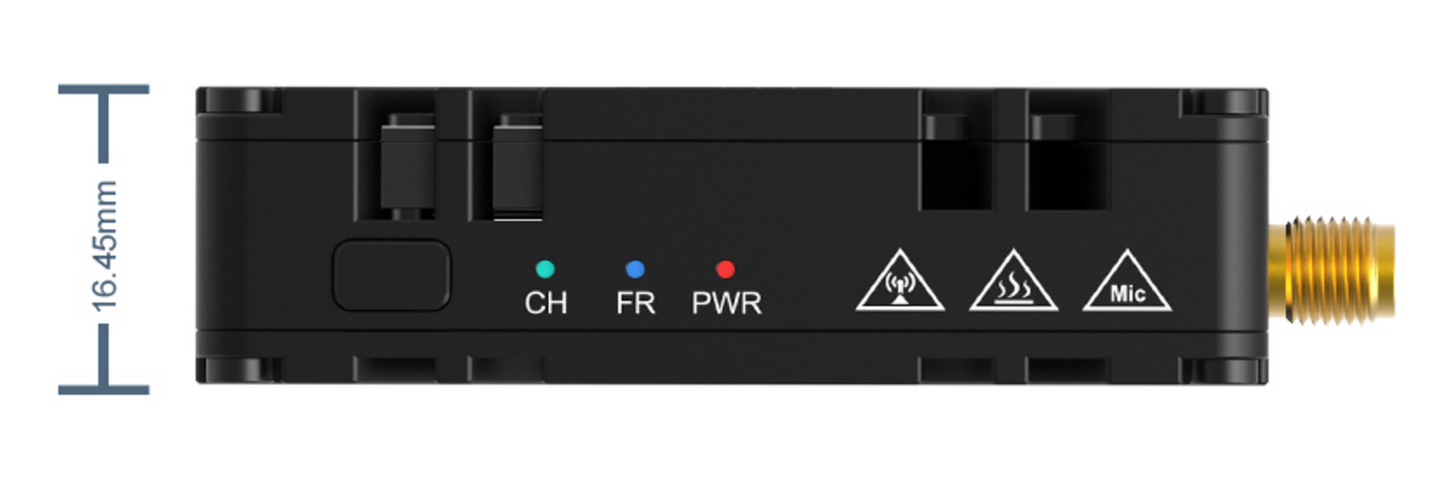

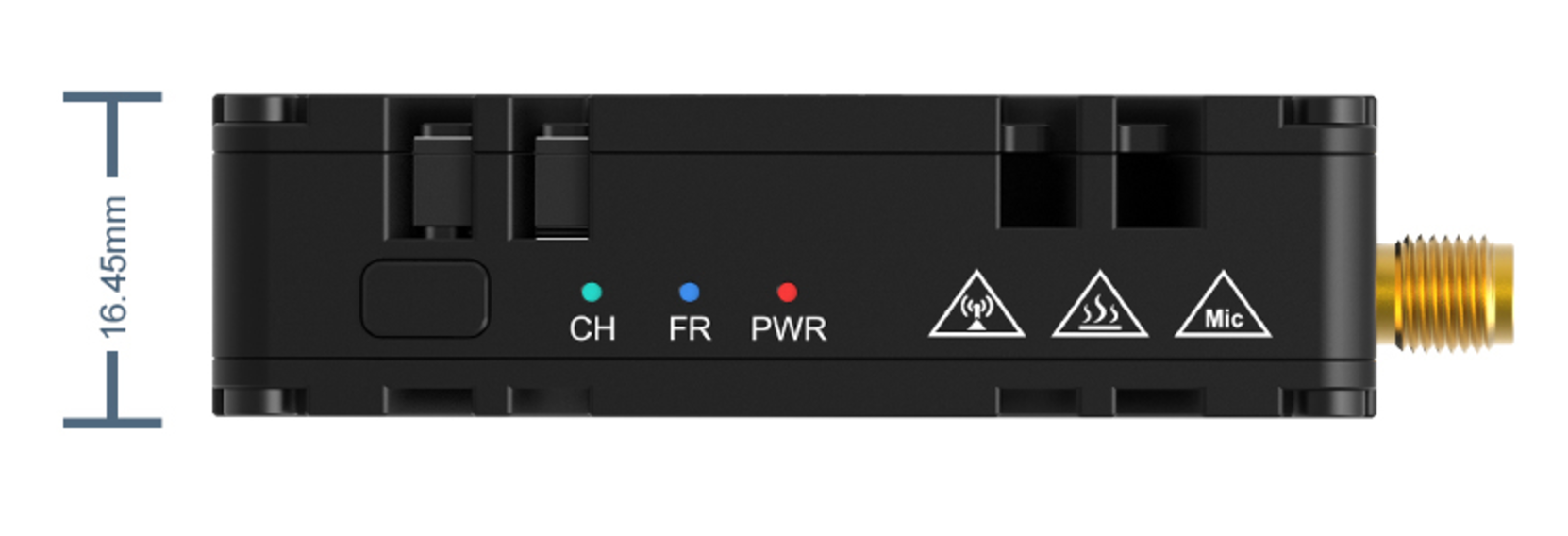

- Dimensions: 66 × 37 × 16 mm.
- Weight: 48 g.
- Mounting compatibility: 20 x 20mm holes, 2.5mm depth, M2 screws.
Connectors:
- Antenna: SMA connector for safe and reliable connection.

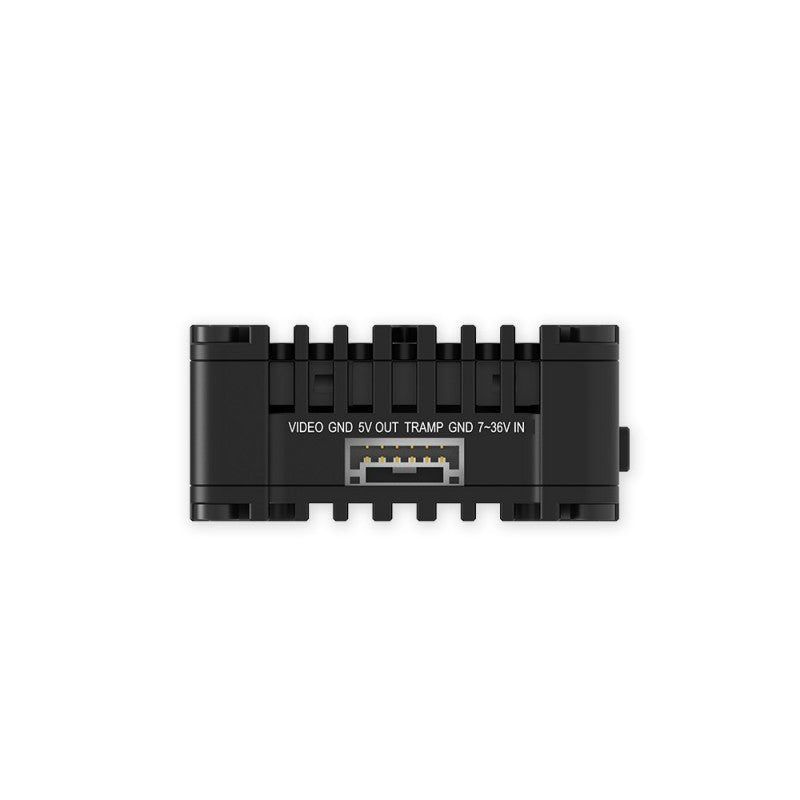

- Cable: GH1.25 6-pin for easy installation.
Energy efficiency:
-
Power consumption:
- 10V @ 2.3A.
- Maximum power consumption: 5 W.
Package contents:
- 1 × Reaper Infinity 5W VTx.
- 1 × Silicone cable
