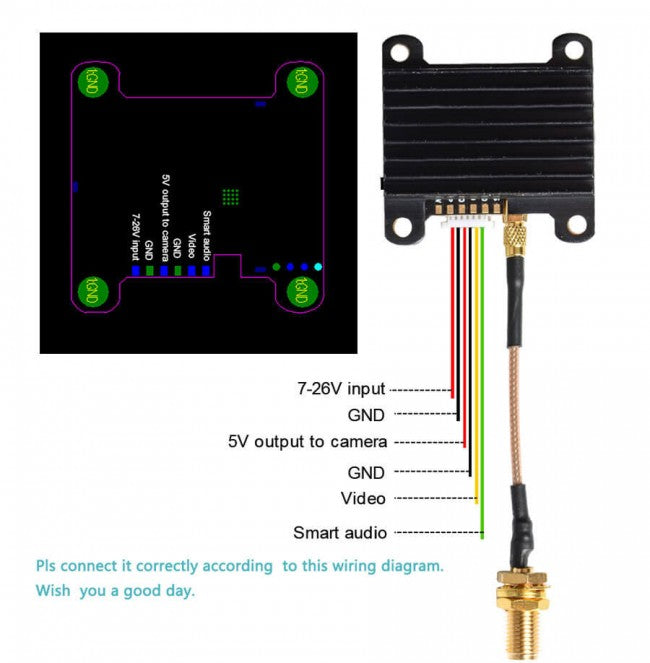

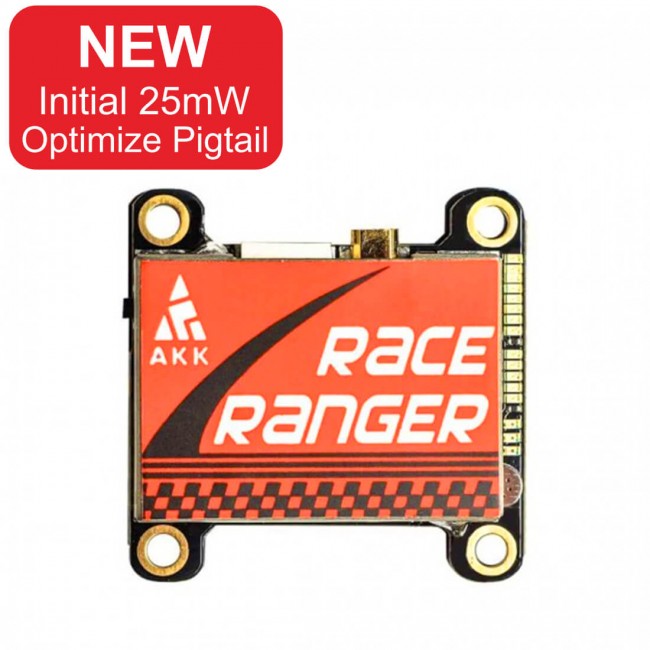

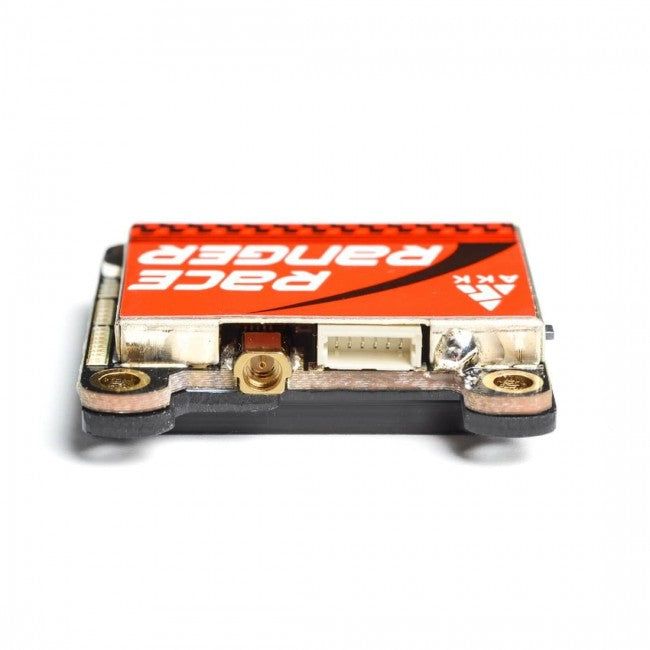

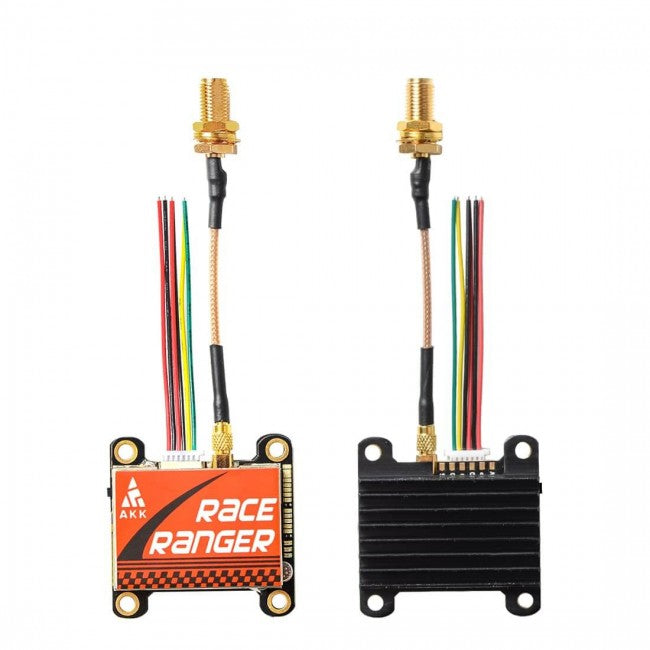

VTX AKK Race Race The Race Ranger FPV VTX is a new 5.8GHz video transmitter from AKK that offers improved durability, extended transmission range and better indicator clarity. Function: - Full cover protection in a metal shell. - Clearer indicator. 8 blue for CH, 5 green for band and 3 red for power. The new intelligent indicator design of this FPV VTX meets visual needs as well as actual operation. - Up to 1600 mW power and stable signal transmission are ideal for long-distance flights. - Smart audio support. You can change the VTX settings in the Betaflight OSD. - Frequency and power setting with one button. If you don't like smart sound, you can still change channel, band and power with just one button. - Built-in microphone - Wide voltage input 7-28V, battery 2-6s. - 5V output to your FPV camera. - Switchable power 25mW/400mW/800mW/1600mW. Specifications: Model: AKK Race Ranger Input voltage: 7V to 28V Extra function: Smart audio 1600mW Power supply: 5V camera @ under 500mA max. Output power: 25mW/400mW/800mW/1600mW Antenna connector: MMCX Cable connector: JST, 6pin Dimensions: 36 x 36 mm, 30.5 x 30.5 mm (hole) Weight: 16.81 g (without antenna) The package includes: 1x VTX 1x Sable
