    Code: T015652

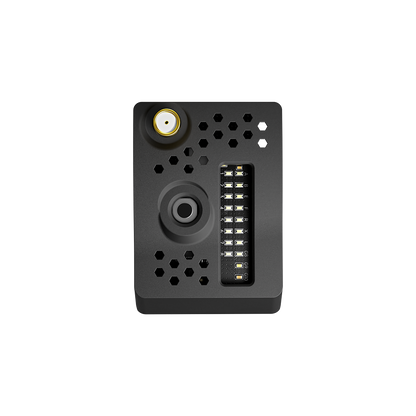

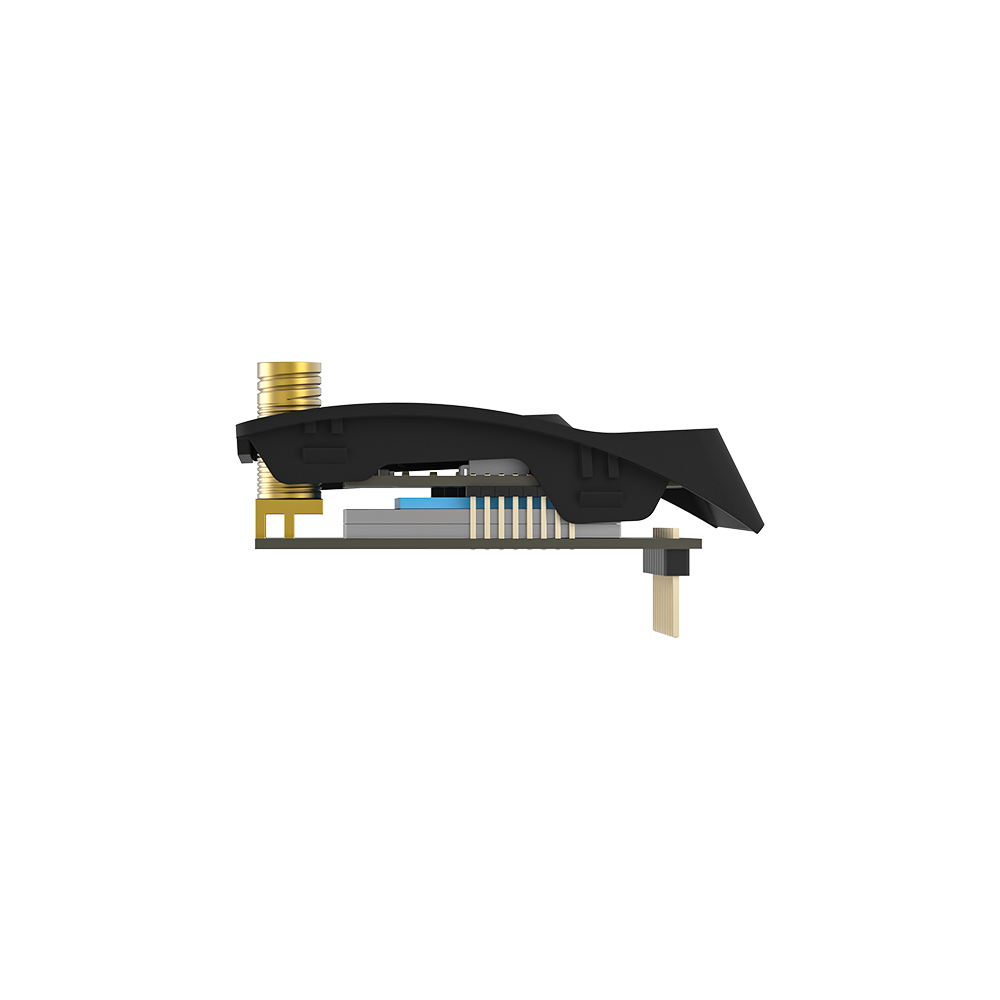

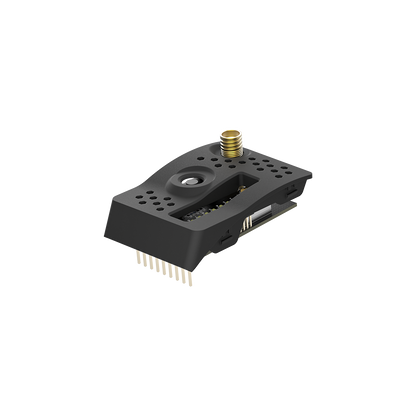

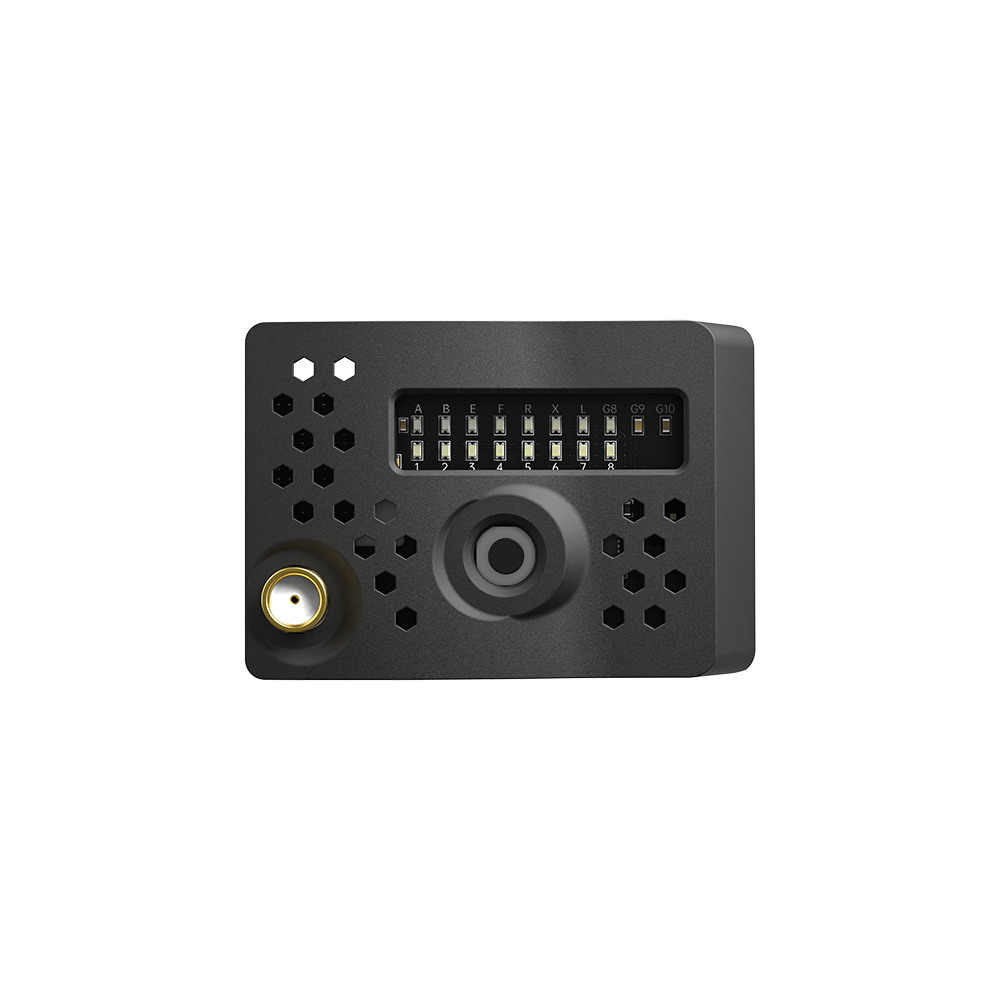

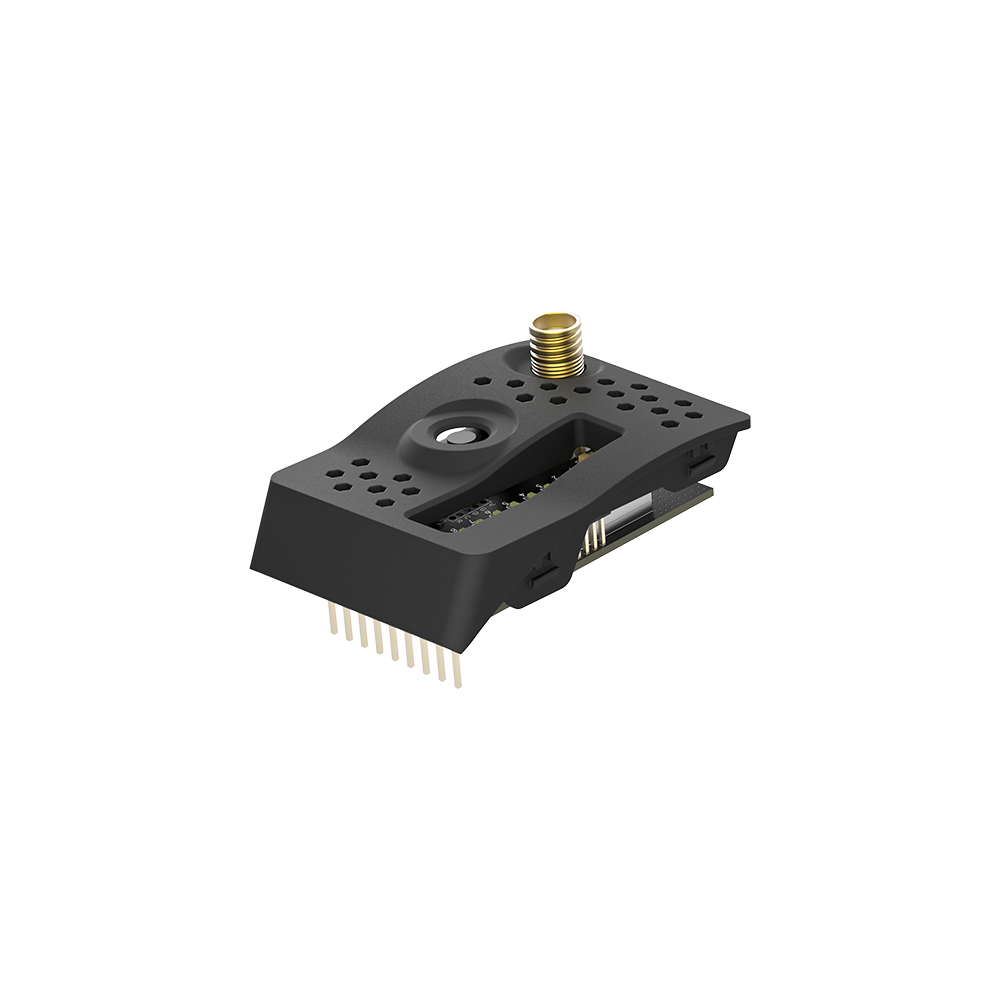

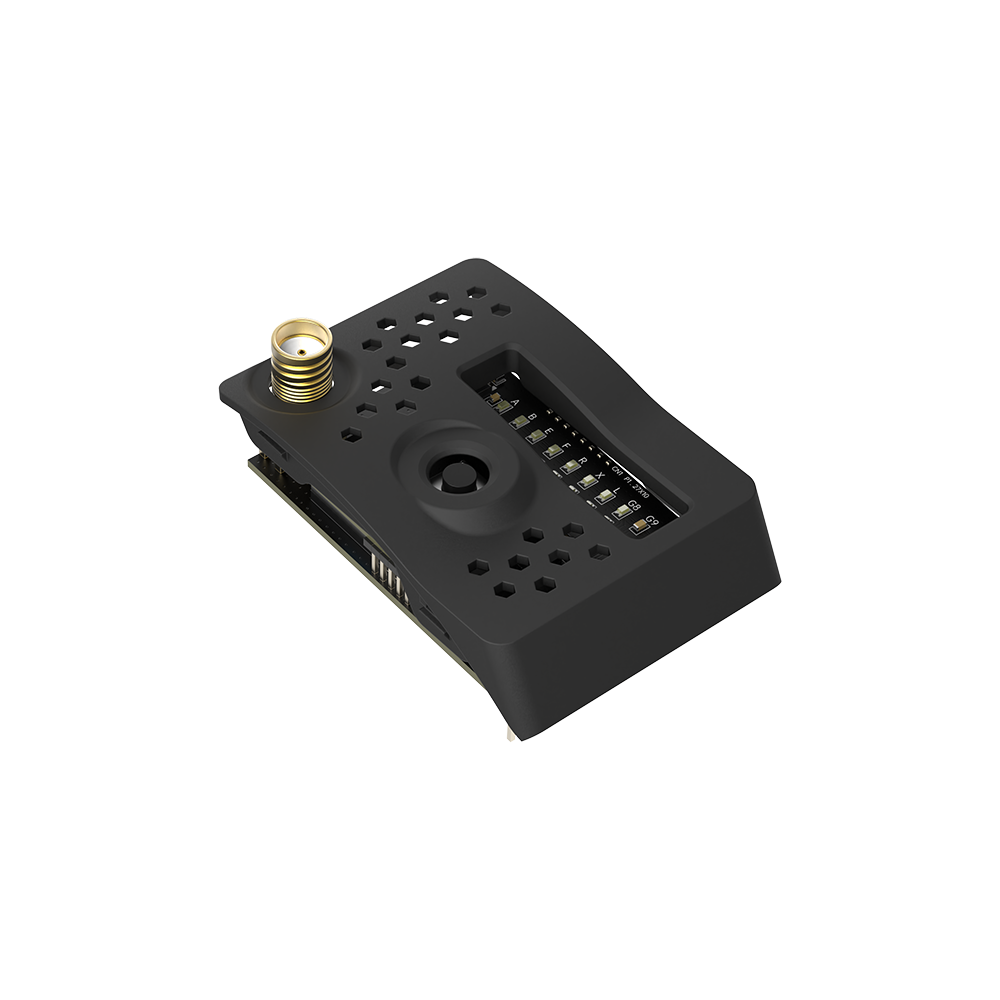

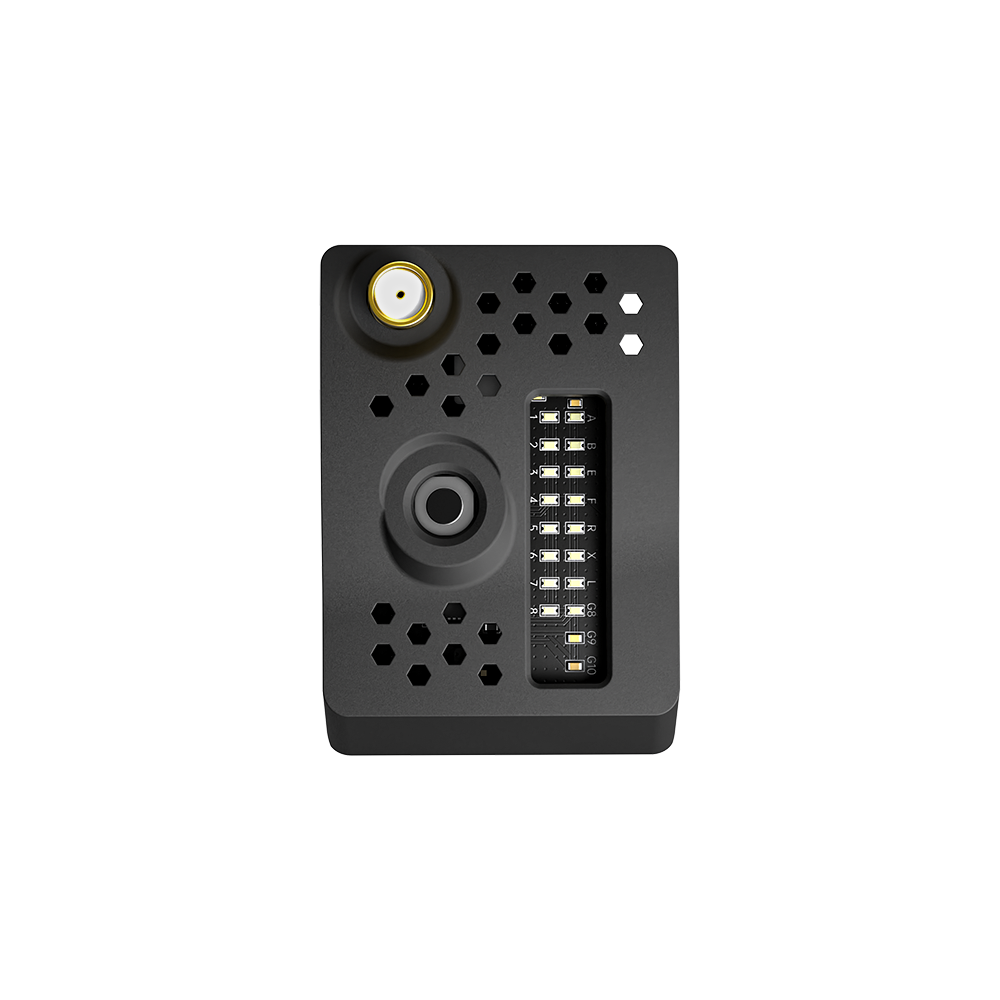

    VRX iFlight 4.9G/5.8G Goggle Receiver Module Set (For FatShark)

    VRX iFlight 4.9G/5.8G Goggle Receiver Module Set (For FatShark)

    Brand: iFlight

    €58,19
    €58,19 €58,19
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    4.9G/5.8G Glasses Receiver Module Kit (For FatShark)

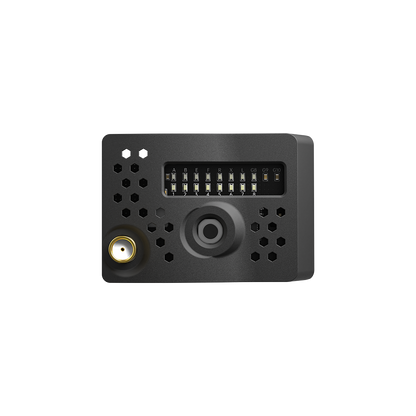

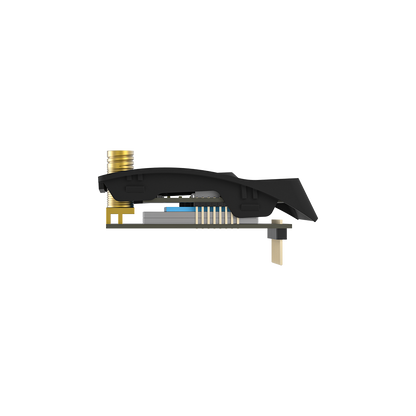

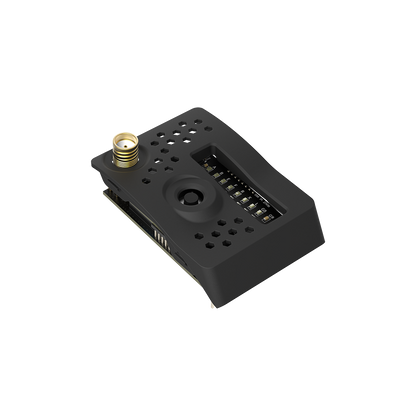

The high-end 4.9-5.8G VRX Goggle Receiver Module is designed specifically for FATSHARK goggles.

Specifications:
Receiving frequency: 56CH (4990 MHz to 5945 MHz)
RX sensitivity: -95dBm
Input: 5V/2.54 9 PIN socket, compatible with FATSHARK Goggles
Current consumption: 0.3A @ 5V
LED channel: 8LED
LED strip: 7LED
Video format: NTSC/PLA
Video output impedance: 75Ω, Typ.
Audio auxiliary frequency: 6.5 MHz and 6.0 MHz
ANT. Input Impedance: 50Ω, Typ.
RF connector: SMA

Button control: Short press to change the frequency, long press for 2 seconds to change the frequency band

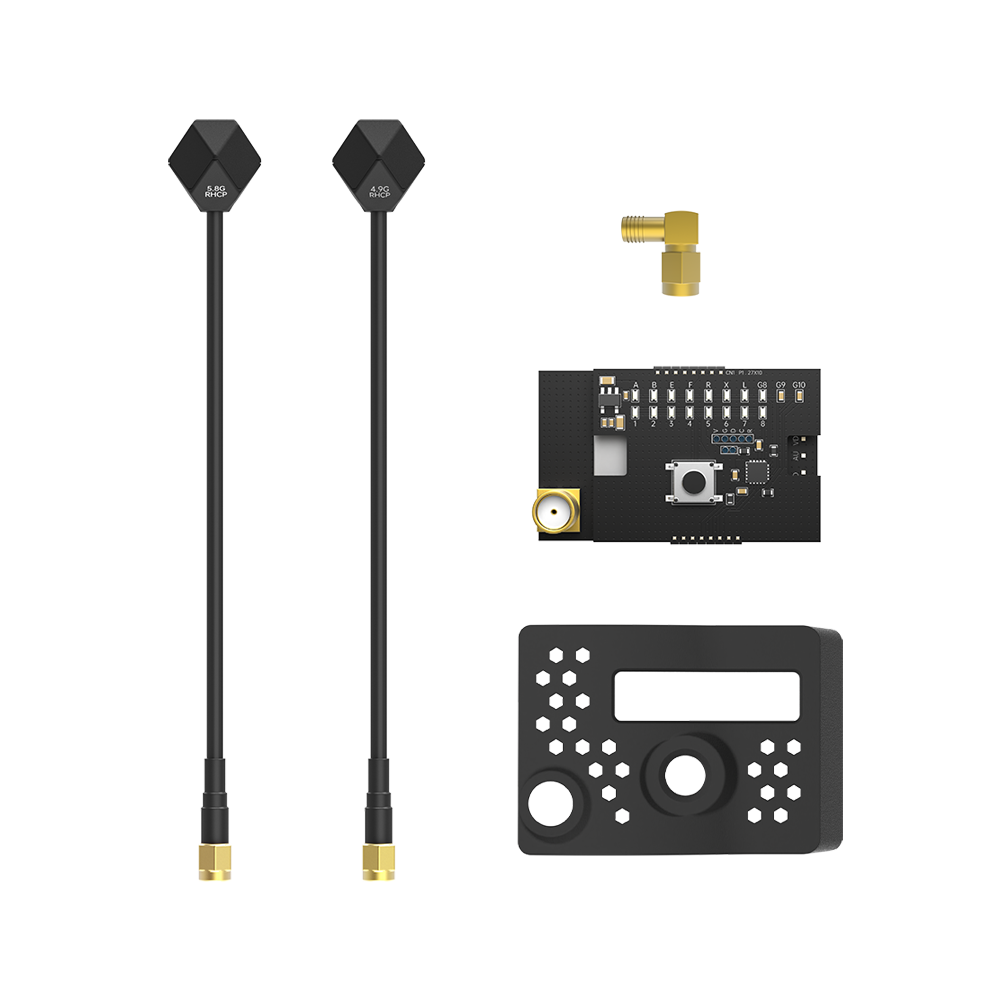

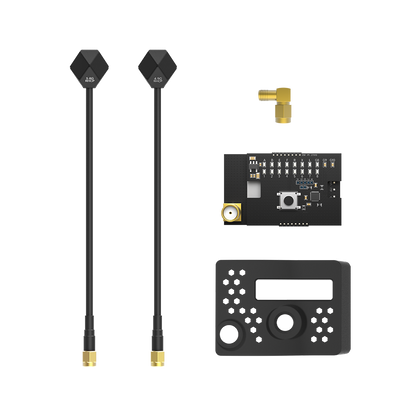

The package includes:
1 x iFlight 4.9-5.8G VRX
1 x iFlight 4.9-5.8G VRX shell
2 x 4.9G / 5.8G Albatros SMA antennas
1 x SMA Male to SMA Female adapter
