Sunnysky X2-series Power Combo
The Sunnysky X2-series Power Combo is designed for reliable and efficient RC model performance. This package includes the X2820 III-KV570 motor, which provides smooth power and high thrust for a variety of operating conditions. In conjunction with the 60A ESC controller, it ensures stable and sensitive power control. In addition, the EOLO 12 x 6.5 propeller provides balanced lift and precise maneuverability. This set is ideal for those looking for a versatile and high performance solution for their RC model projects.
Specifications:

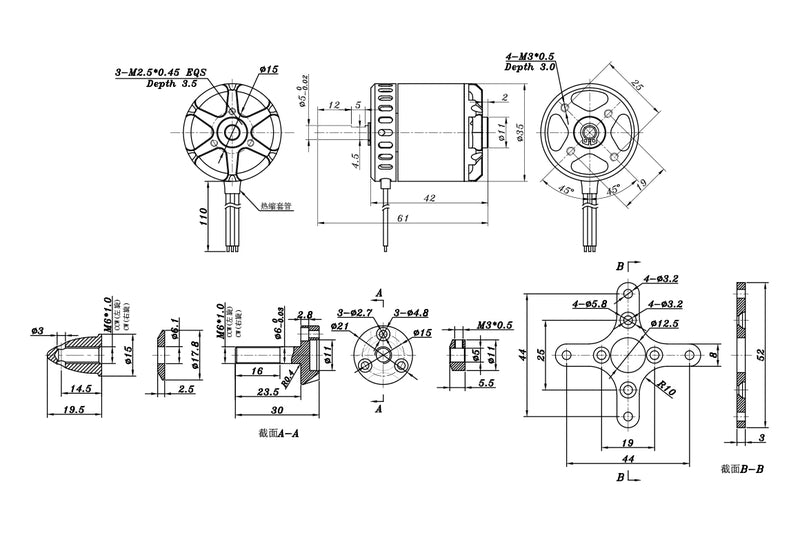

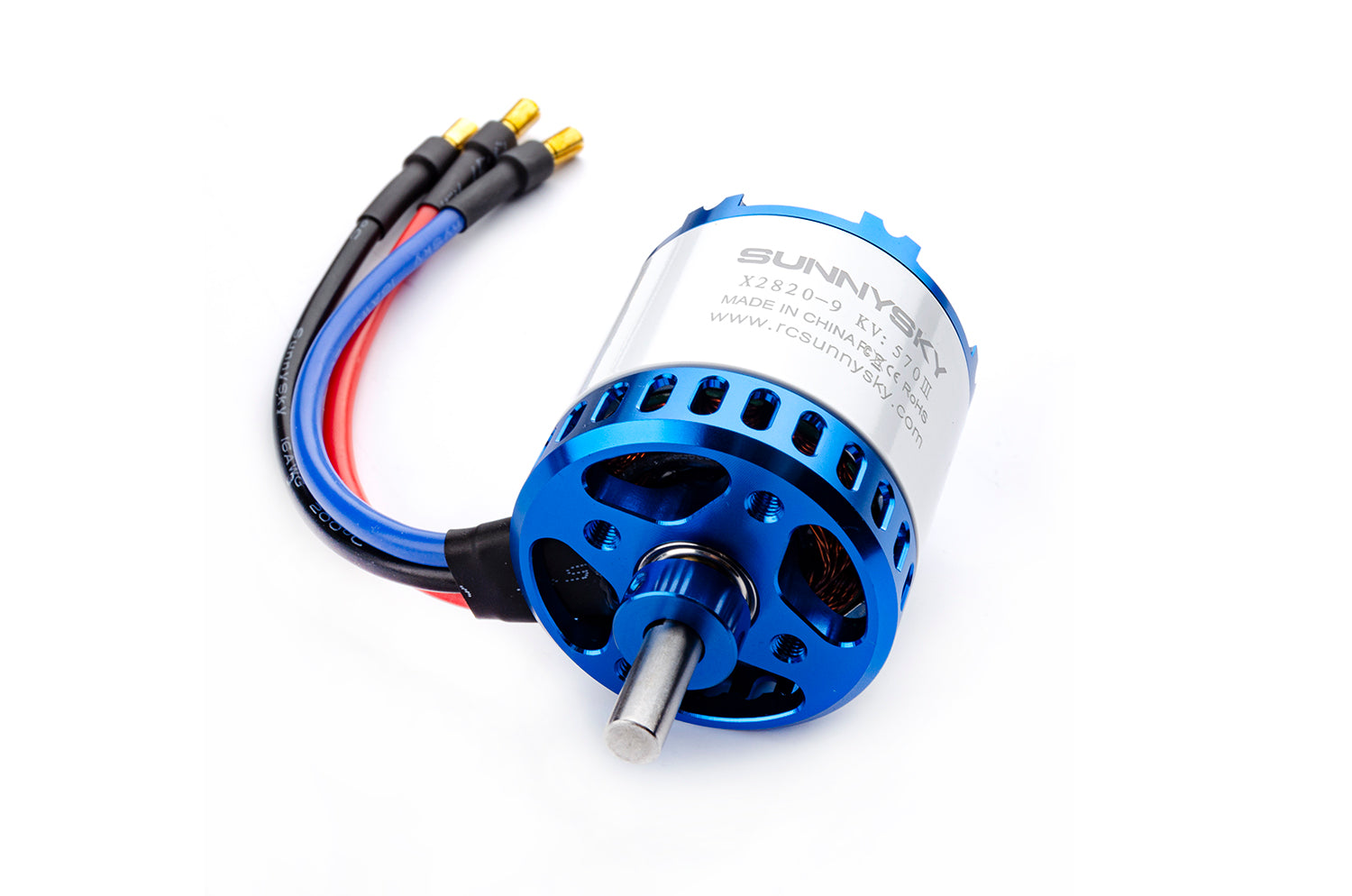

Engine
- Engine model / KV: X2820-III / KV570
- Number of stator/rotor poles: 12N14P
- Internal resistance: 53 mΩ
- Motor length: 61 mm
- Shaft diameter: 5.0 mm
- Cable: 100mm
- Motor weight (including cable): 146 g
- Operating voltage: 22.2V (6S)
- No load current: 0.83A
- Maximum continuous power: 1325W
- Maximum continuous current: 53A
- Maximum thrust: 3000-4000 g
- Recommended regulator: 60A
- Recommended propeller size: 1260", 1370"
- Motor mounting: 19x25 mm; 44x44 mm
- Sensorless: Yes
- Configuration: Outrunner

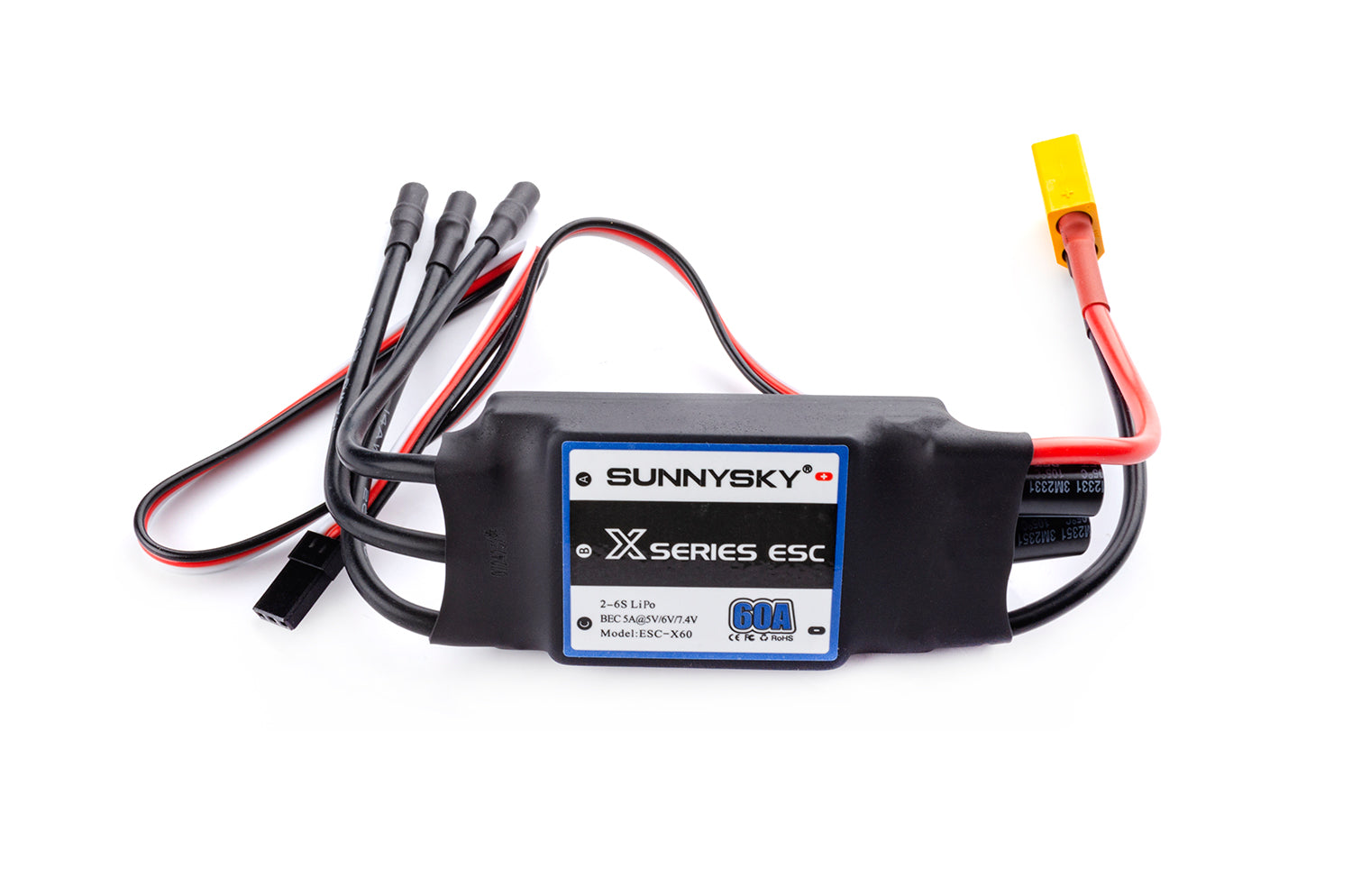

Controller (ESC)
- Continuous current: 60A
- Peak current: 80A (≤ 10s)
- Input voltage: 2-6S LiPo
- BEC output: 5V/6V/7.4V @ 5A
- Motor connector: 3.5mm banana plug
- Connector for battery: XT60
- Dimensions: 82×36×18mm (without wires)
- Weight: 94g

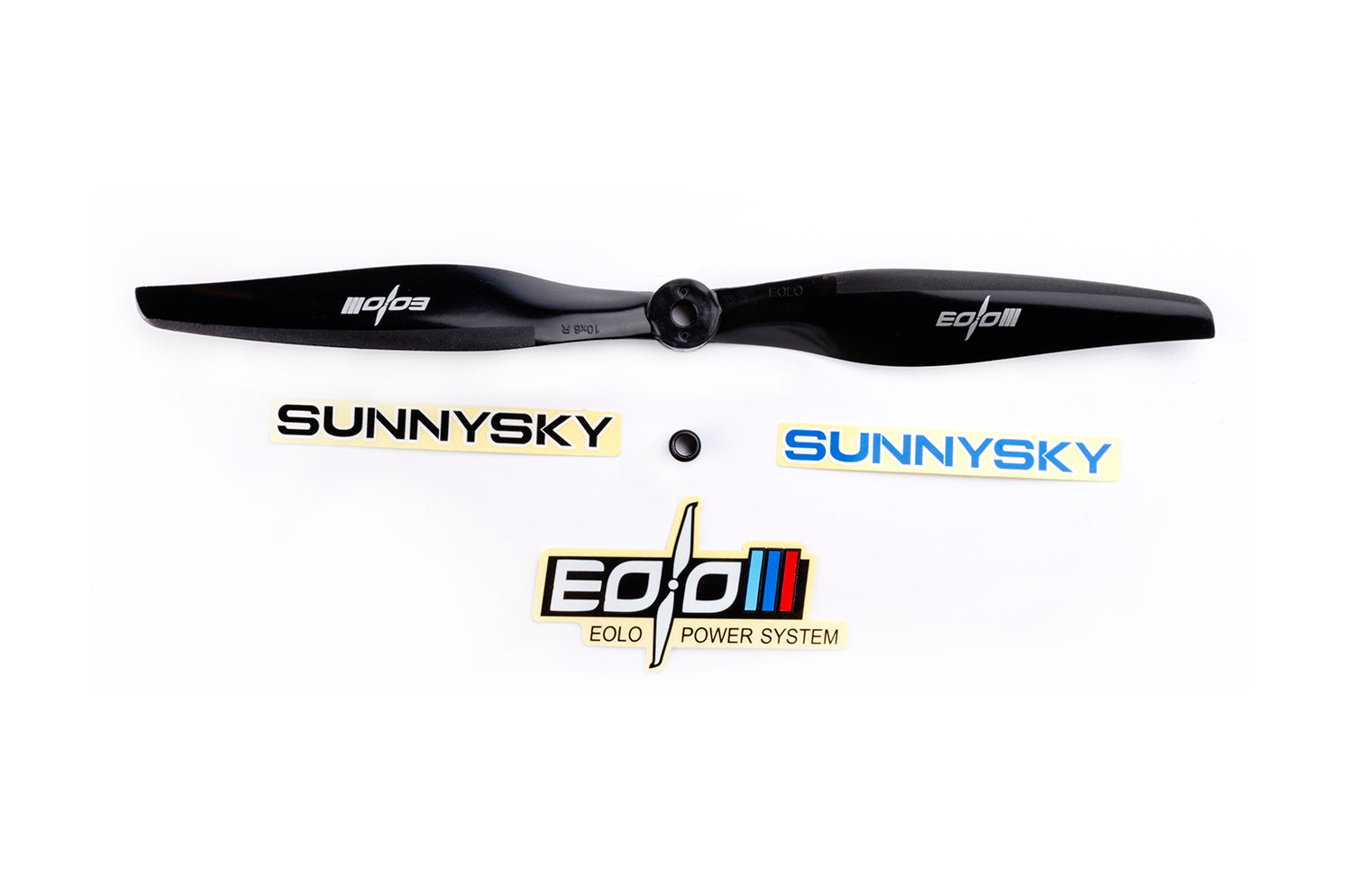

Propellers
- Brand: EOLO/12*6.5
- Propeller type: Integrated propeller
- Material: Plastic
- Storage temperature: -10℃ - 50℃
- Storage humidity: <85%
- Propeller specification: 12x6.5
- Dynamic balance: 4000 rpm ≤15mg
- Weight of one propeller: 21g
- Maximum working speed: 11370 rpm
- Working temperature: -20℃~60℃

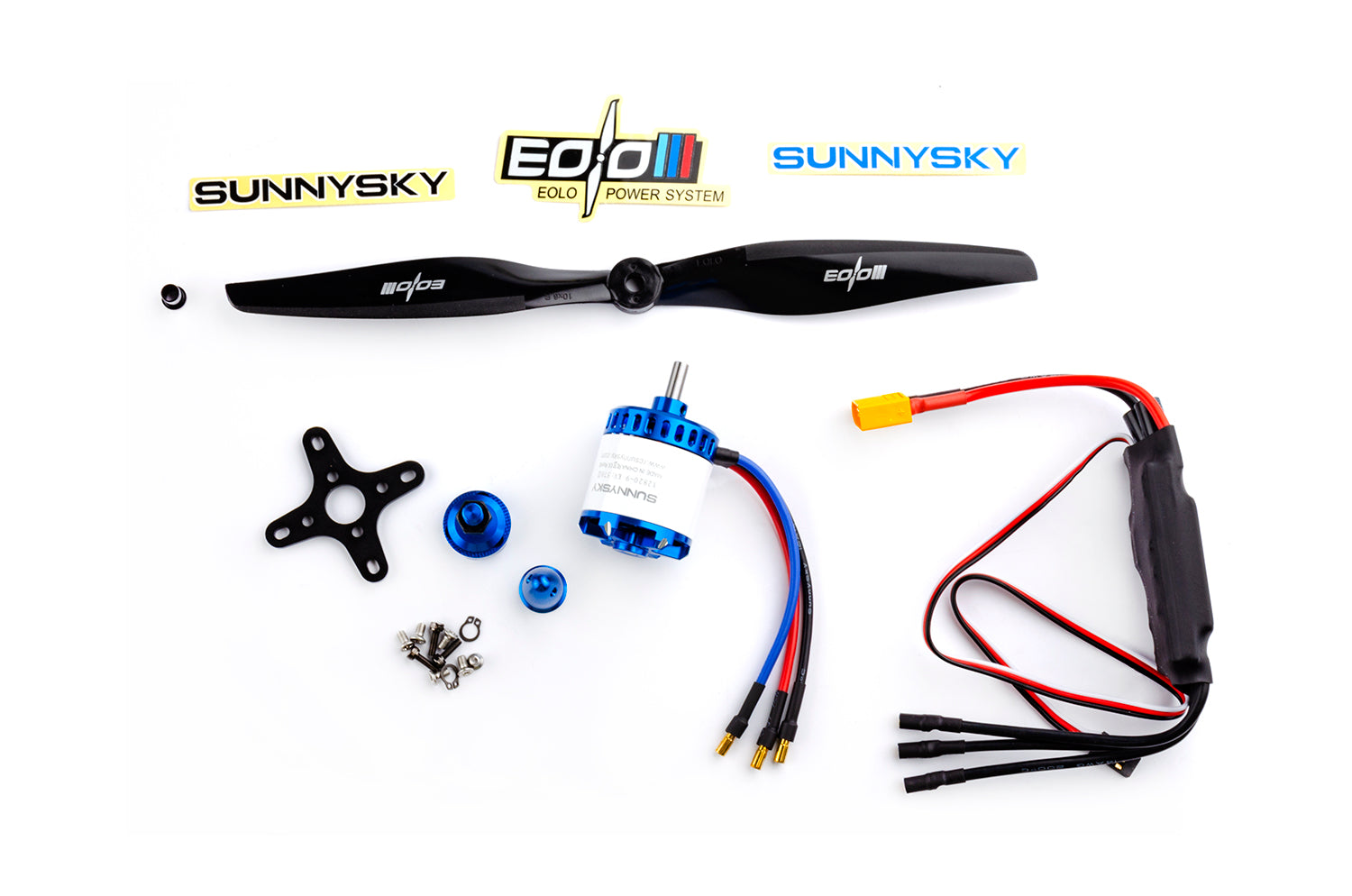

The package contains:
- 1x Motor X2820 III-KV570
- 1x ESC 60A
- 1x EOLO 12 x 6.5 propeller
