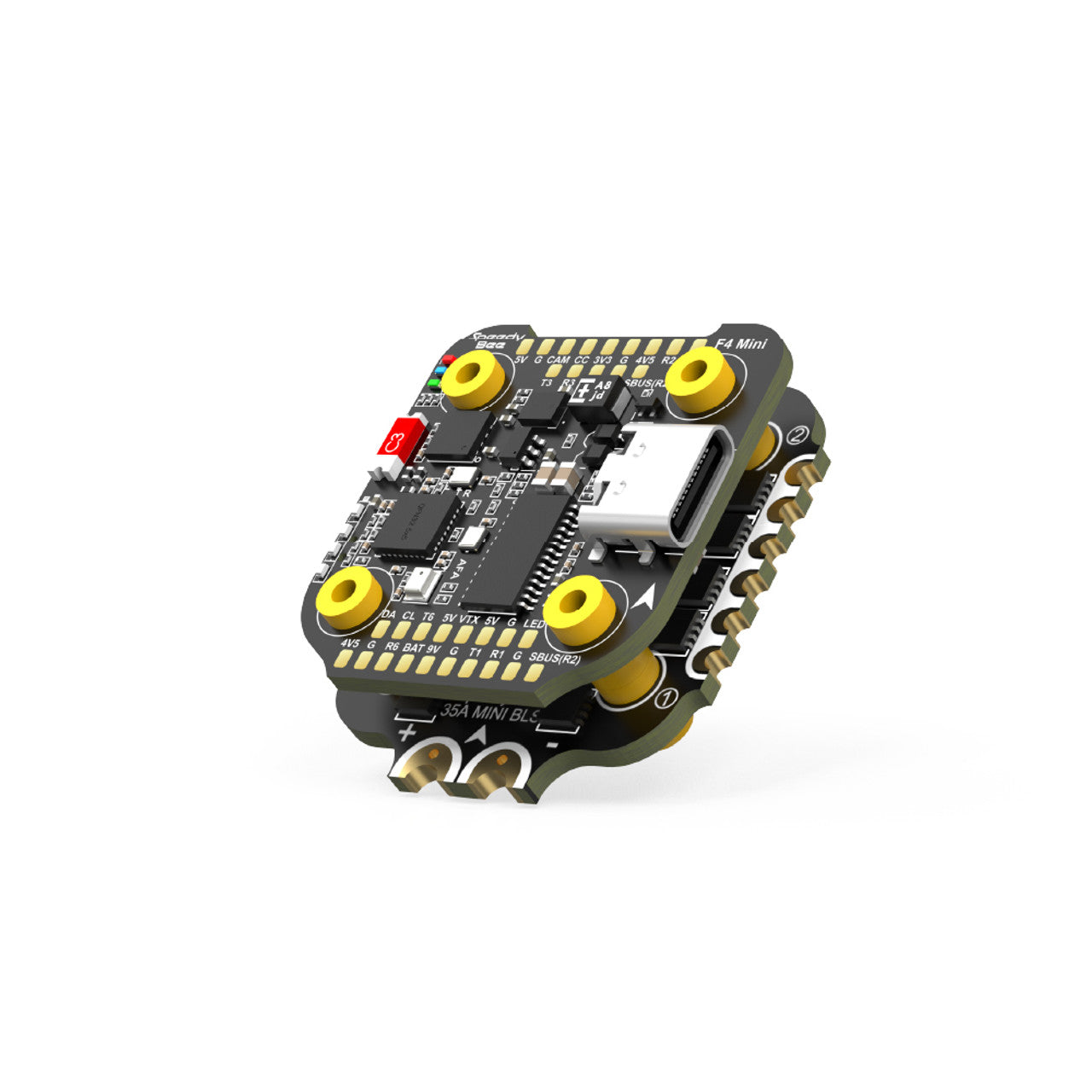

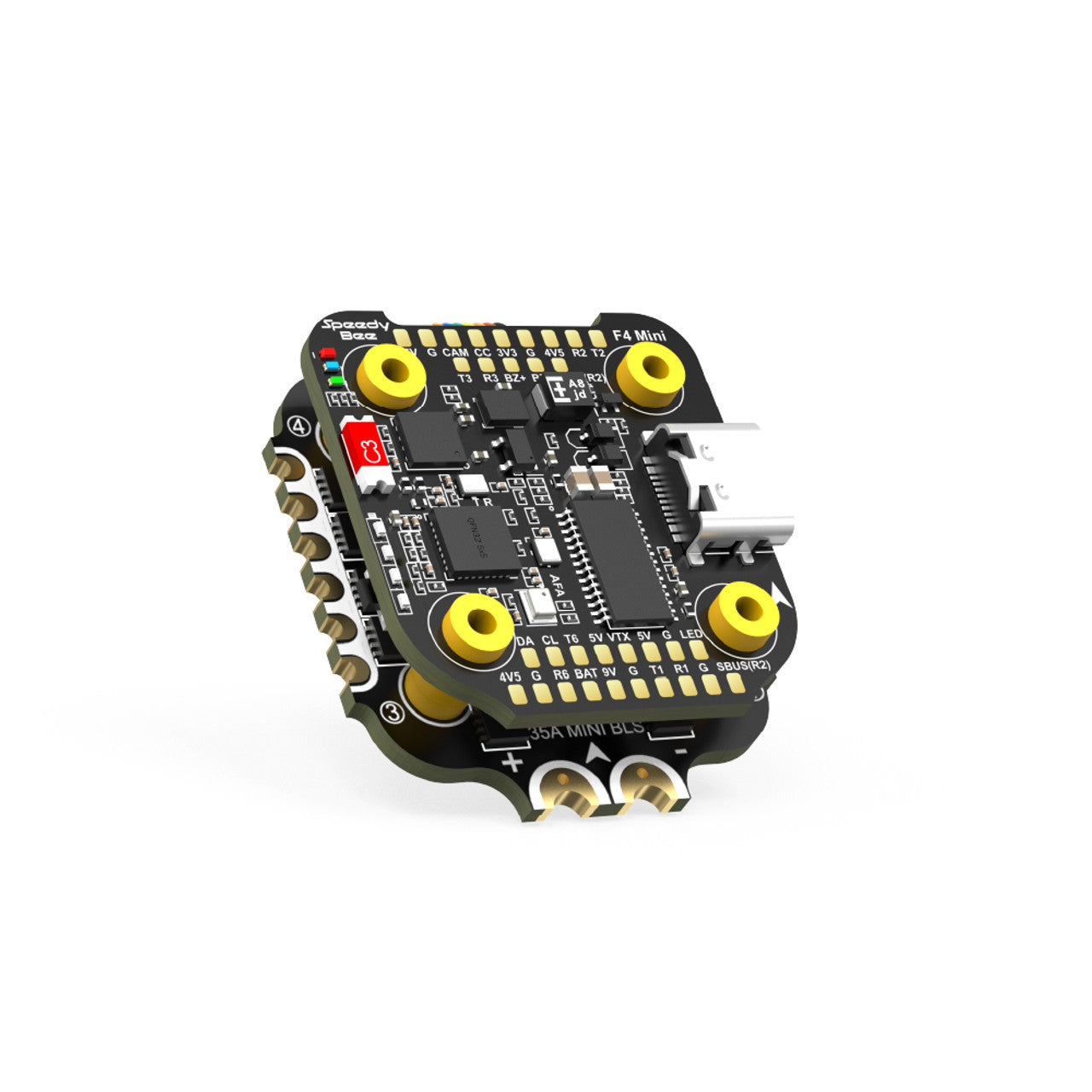

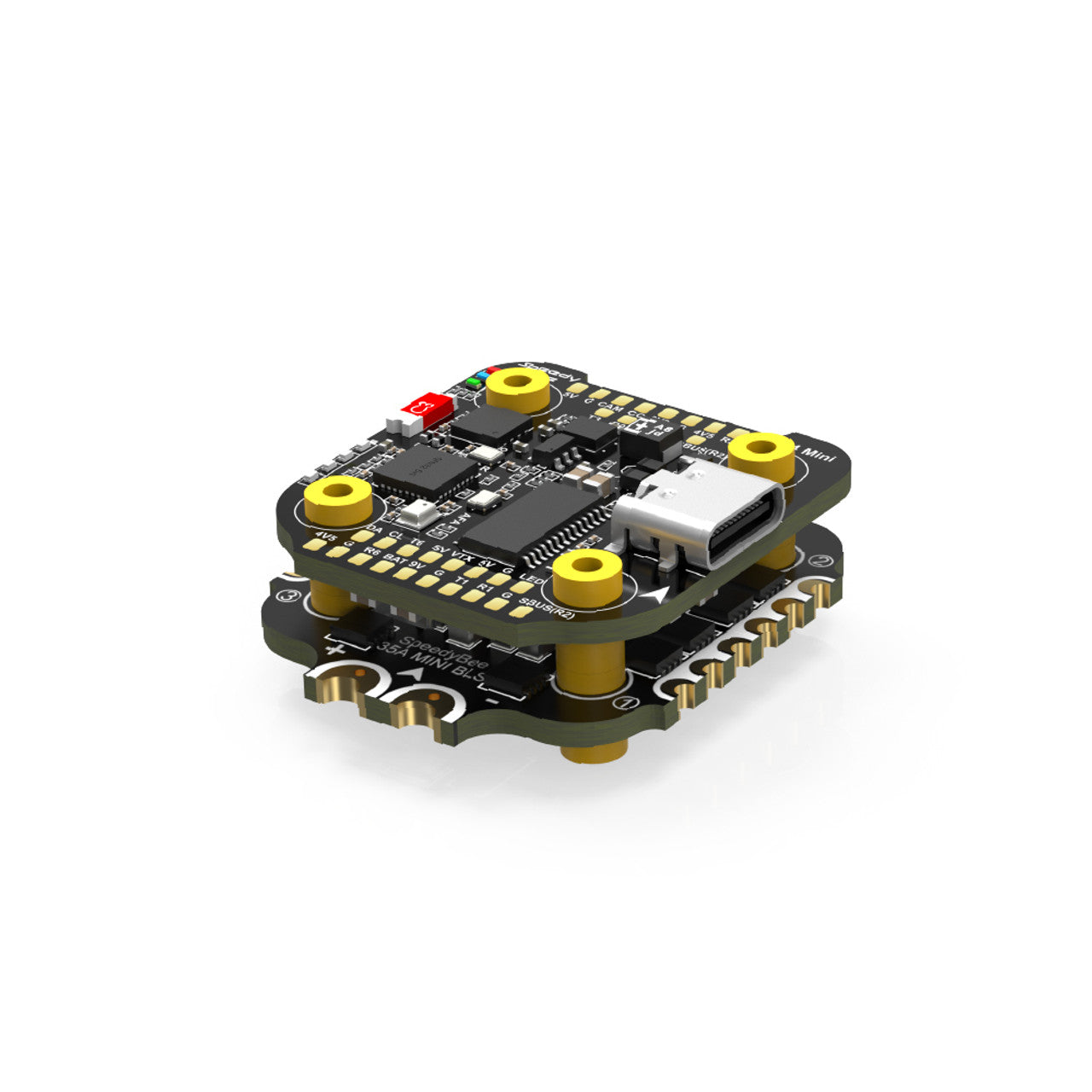

SpeedyBee F405 Mini BLS 35A 20x20 STACK Function: - TVS transient suppression diode for overvoltage absorption and increased protection - Compatible with 2-4 inch and lightweight 5 inch quadcopters - Four synchronized outputs with a continuous current of 35A - Dual BEC settings: 5V 2A output and 9V 3A output - Built-in Bluetooth chip for Betaflight wireless debugging - Supports connection to all DJI air units - Upgraded F405 flight controller chip - 4-level battery voltage display - Permanent current output 35A - Supports 4-6S battery - 4 available UART ports - Built-in barometer Specifications: SPEEDYBEE F405 V3 20X20 FLIGHT CONTROLLER: DJI Air Unit Compatibility: Compatible with all DJI Air Units (DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1). Use specific solder pads for pin-to-pin connections. Note: UART1 is used for OSD and SUBS(R2) is used for SBUS receiver signal input BLE Bluetooth: Supported. It is used to connect to the SpeedyBee application for the flight controller and configure the ESC parameters. Note: MSP to UART 4 switch
