Stack RushFPV RUSH BLADE F722 30x30 FC V2 & 60A BLHeli_32 4-in-1 128 ESC - Extreme Edition & RUSH Tank II VTX Combo

1 5

Code: SKU:DD25-DE17-DE11-DA05-

Stack RushFPV RUSH BLADE F722 30x30 FC V2 & 60A BLHeli_32 4-in-1 128 ESC - Extreme Edition & RUSH Tank II VTX Combo

Name: Stack RushFPV RUSH BLADE F722 30x30 FC V2 & 60A BLHeli_32 4-in-1 128 ESC - Extreme Edition & RUSH Tank II VTX Combo
Brand: Baltic Drones
SKU: DD25-DE17-DE11-DA05-
Price: 260.84 EUR
Availability: InStock

Stack RushFPV RUSH BLADE F722 30x30 FC V2 & 60A BLHeli_32 4-in-1 128 ESC - Extreme Edition & RUSH Tank II VTX Combo

Brand: RUSH

€260,84

~~€260,84~~ €260,84

-0% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

RUSHFPV RUSH BLADE F722 30x30 Flight Controller V2 Version & 60A BLHeli_32 30x30 4-in-1 128Khz ESC - Extreme Edition & RUSH Tank II VTX Stack/Combo

Specifications

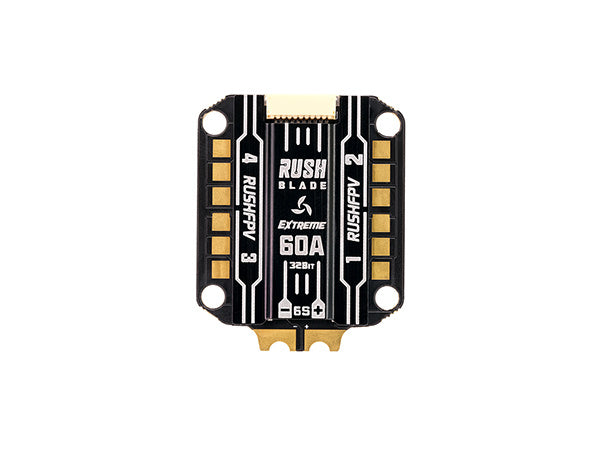

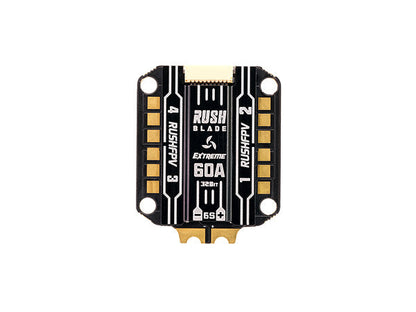

Item: 60A BLHeli_32 30x30 4-in-1 128Khz ESC Extreme Edition
Rated current: 60A
Peak current: 80A
Input Voltage: 3-6S Lipo
MCU: F4 @ 200 MHz
PWM FREQUENCY: 24-128KHz
LED color: orange
Weight: 16.5g
Dimensions: 45 x 36.5 x 7.5 mm
BL32 FW: RUSH_BLADE_EXTREME

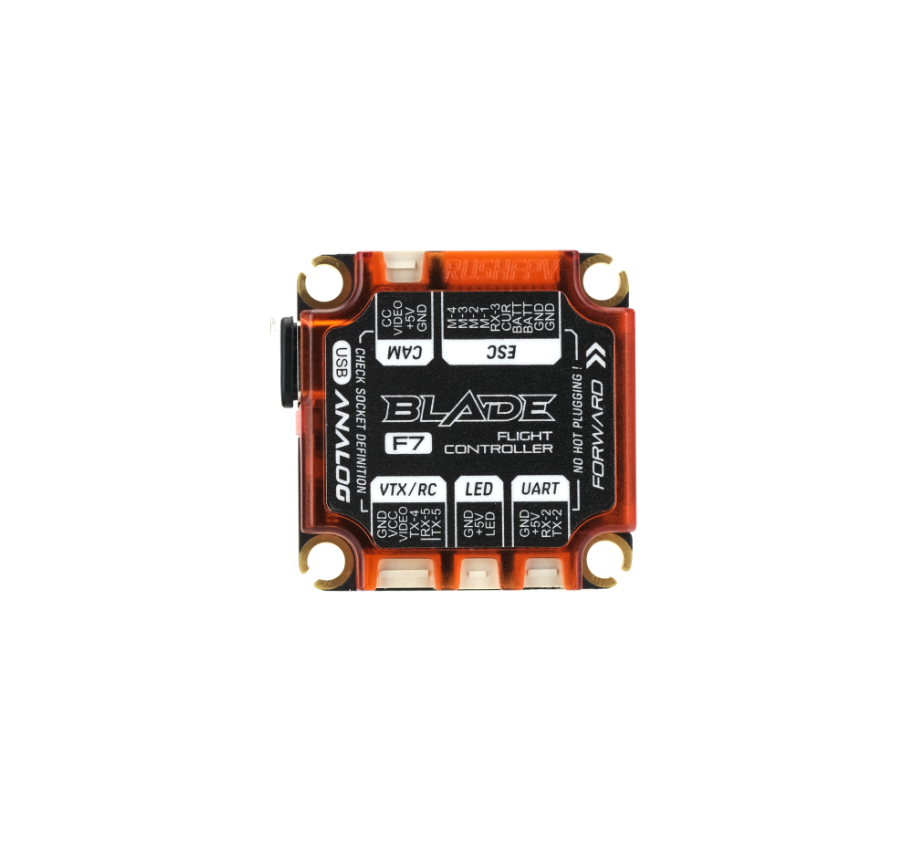

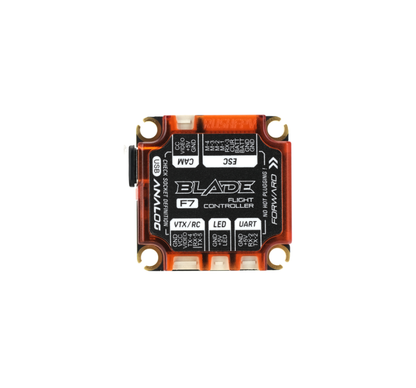

Item: RUSH BLADE F722 30x30 Flight Controller for Analog V2
MCU: STM32F722RET6
GYRO: ICM42688P
BEC: INPUT 7-36V / 3-6S LIPO, OUTPUT 5V 3A
OSD: AT7456E CVBS OSD
BLACKBOX: 16 MB FLASH
TARGET: RUSH_BLADE_F7
PORT: 8×PWM 5×UART 1×I2C
ADC: V-BATT / CURR-ESC
LED: WS2812 LED STRIP
BARO: BMP280
MOUNTING HOLES: 30.5x30.5mm
DIMENSIONS: 36.5 x 37 x 5.2 mm
WEIGHT: 11g (without cable)

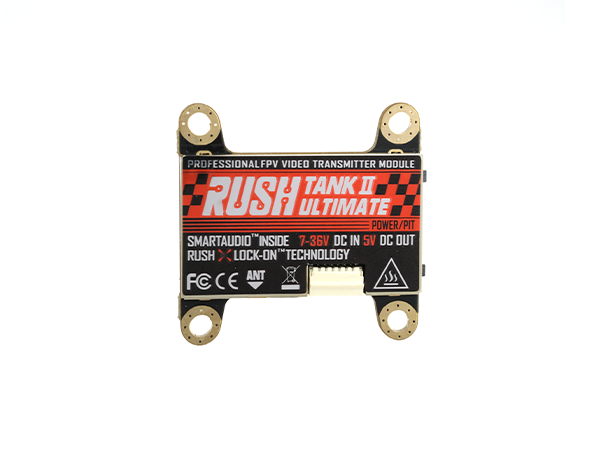

Subject: Rush Tank II
Input voltage: 7-36V DC
Output voltage: 5V 1A
12V input current: 40mA@Pitmode, 95mA@25mW, 185mA@200mW, 250mA@500mW, 380mA@800mW
Channels: 48CH
Power: PIT/25/200/500/800 mW
Audio: Support audio input
Dimensions: 36x36x4.5 mm
Weight: 6.8g (including cable)

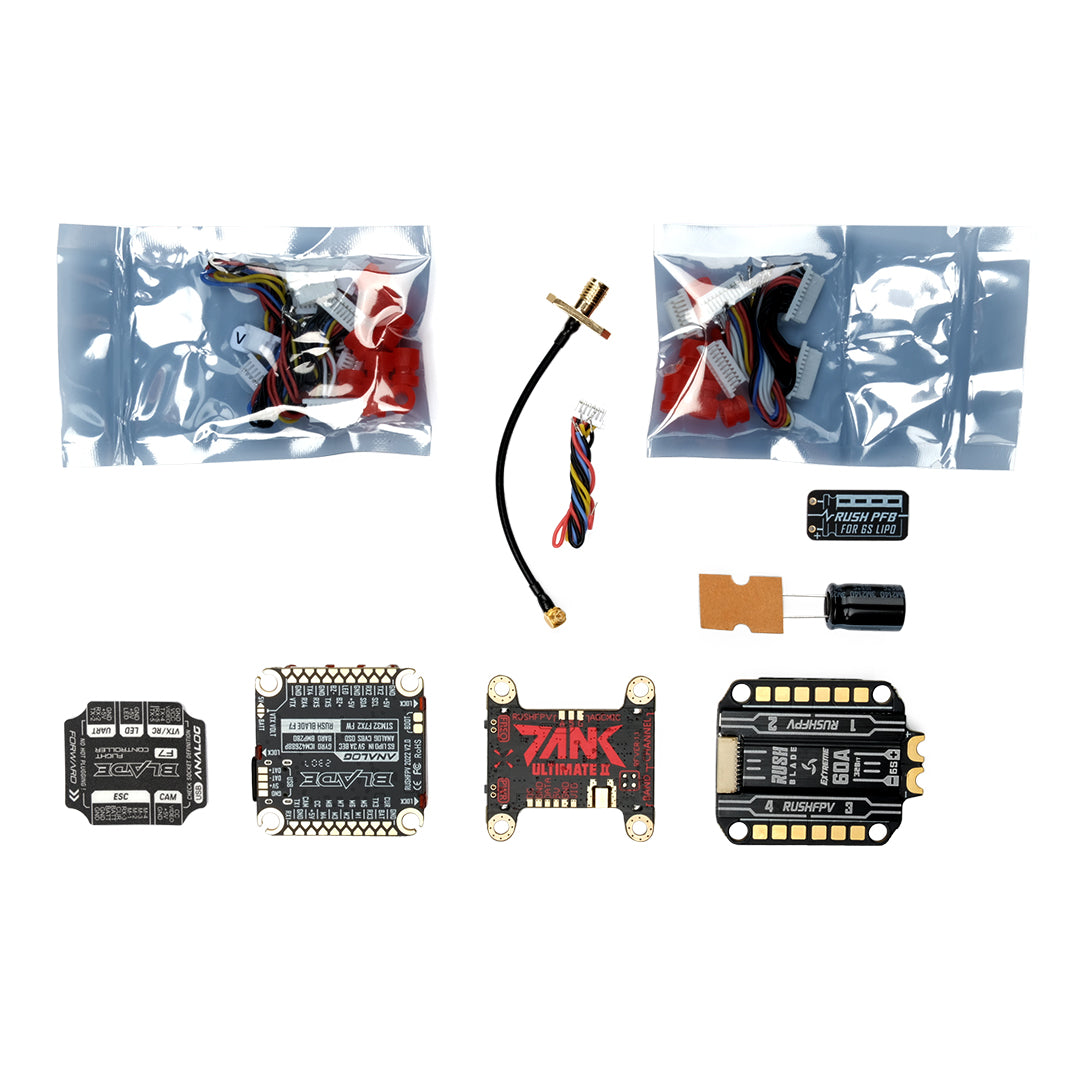

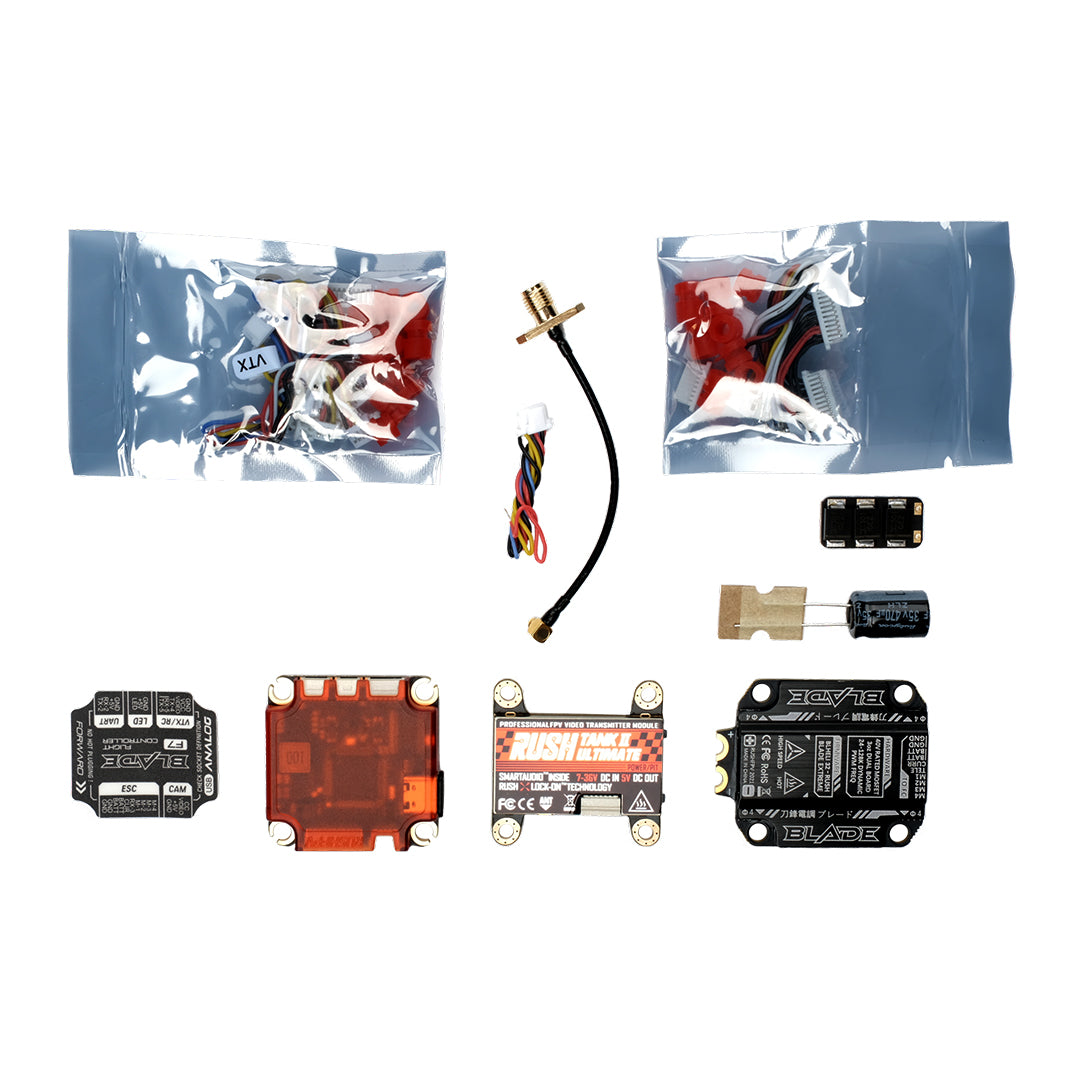

The package includes:
1x RUSH BLADE F722 30x30 flight controller for analog V2
1x 60A BLHeli_32 30x30 4-in-1 128Khz ESC Extreme Edition
1x RUSH Tank II VTX
