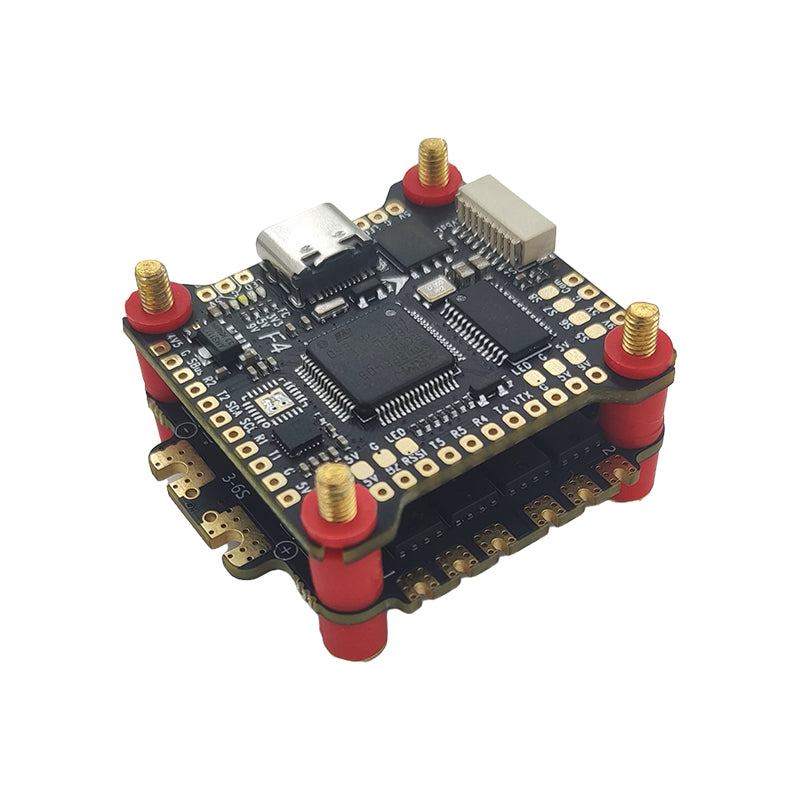

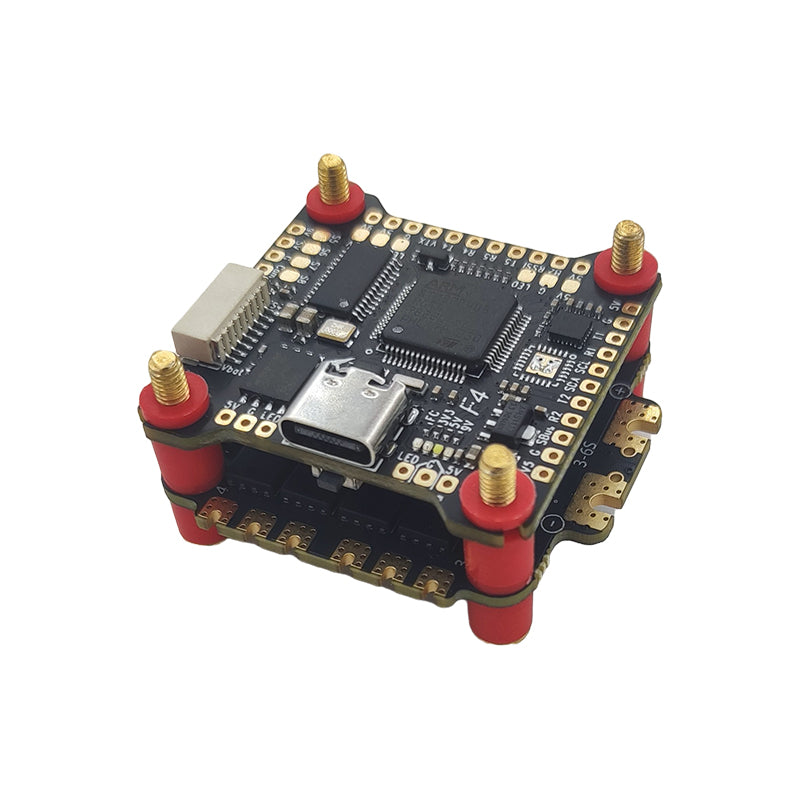

Stack Pilotix F460 (F405 V2 FC + 60A ESC)

The Pilotix F460 Stack is an advanced flight controller and electronic speed controller (ESC) combination designed for high-performance drone applications. The F405 processor offers fast and precise flight control for smooth and stable flight maneuvers. The 60A ESC provides enough power for a wide range of motors and propeller combinations, ensuring reliable and efficient performance.

Specifications

FC Specifications:

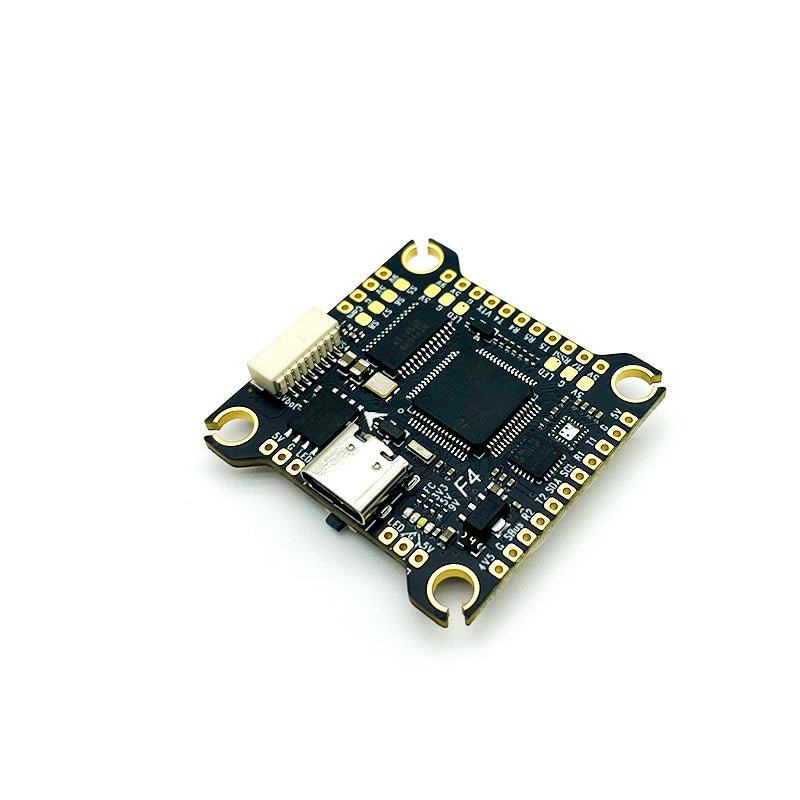

CPU: STM32F405RGT6
Gyroscope: MPU 6500
Baro: BMP280/DPS310
OSD: Support
BEC Output: 5V/2.5A 9V/2A
BlackBox: 16MB
Uart: 5 channels
Light strip buzzer: support
Receiver protocol: ELRS/CRSF/S.BUS/Frsky/Futaba/flysky/TBS Crossfire/DSMX
USB connector: Type-C
DJl/Vista Digital Sky End: support
Weight: 8.2g
Mounting hole: 30.5 x 30.5 mm, M3
Size: 36X36 mm
FC firmware: AOCODARCF405V2MPU6500

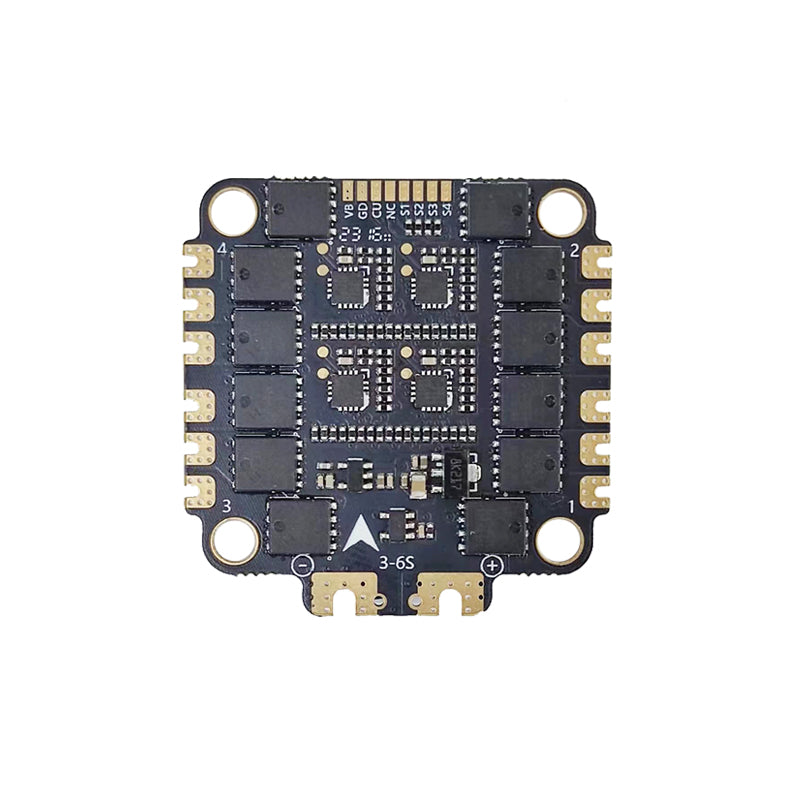

ESC Specifications:
Continuous current: 60A X4
Explosive current: 70A X4
Power supply: 3-6S Lipo
Default Protocol: 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
ESC telemetry: No output
Current sensor: support
ESC firmware: Bluejay H-H50
Weight: 10.4g
Size: 40 x 40.7 mm
Mounting hole: M3 30.5×30.5 mm

The package includes:
1x F405 V2
1x 3060S
2x SH1.0 8P cable
1x Electrolytic capacitor 1000uF 35V
1x XT60 AWG12 power cable 130MM
8x M3*8 shock-absorbing balls
8x M3 nylon nut
4x M3*25mm metal screw
