Code: SKU:5201

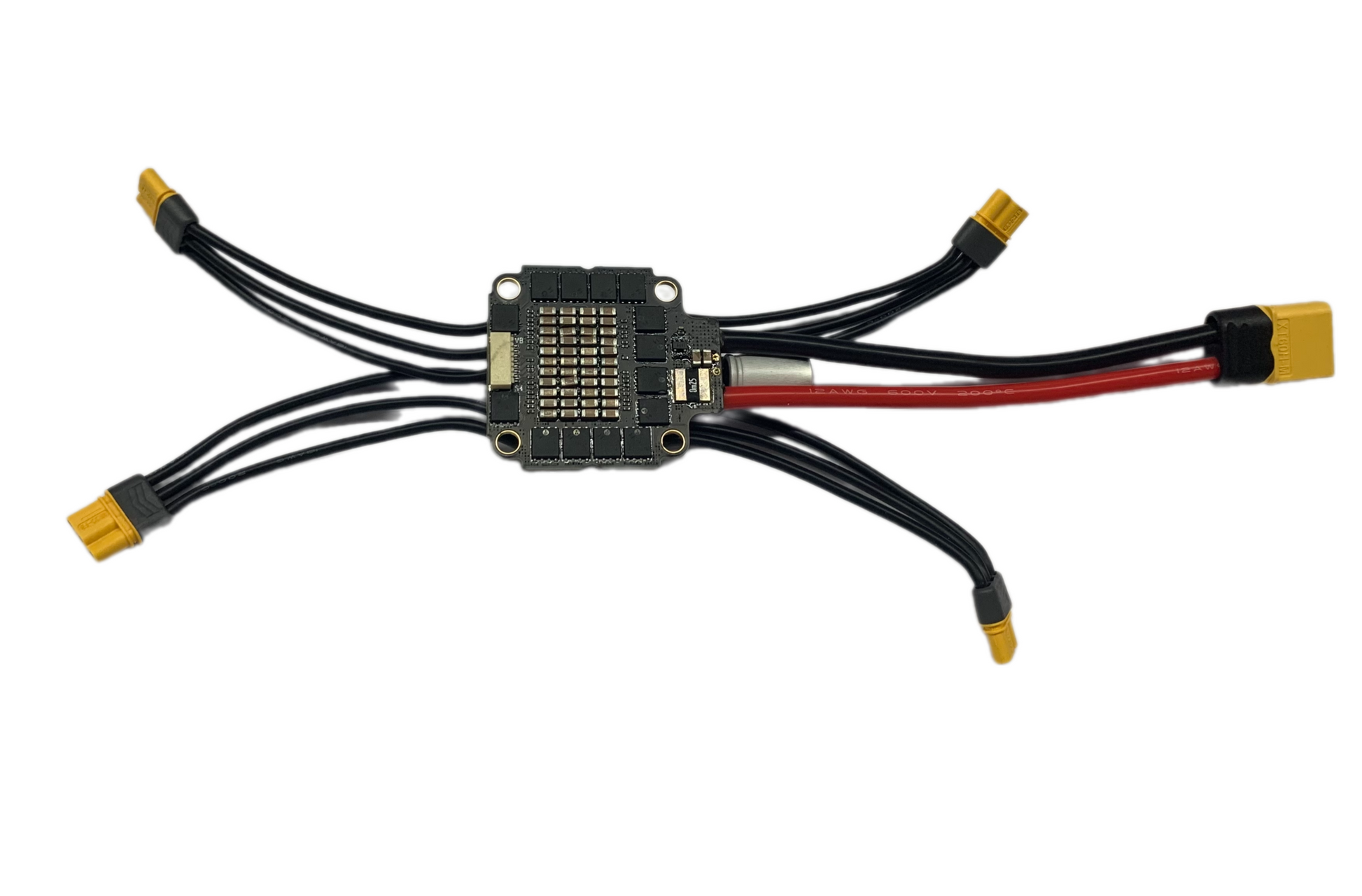

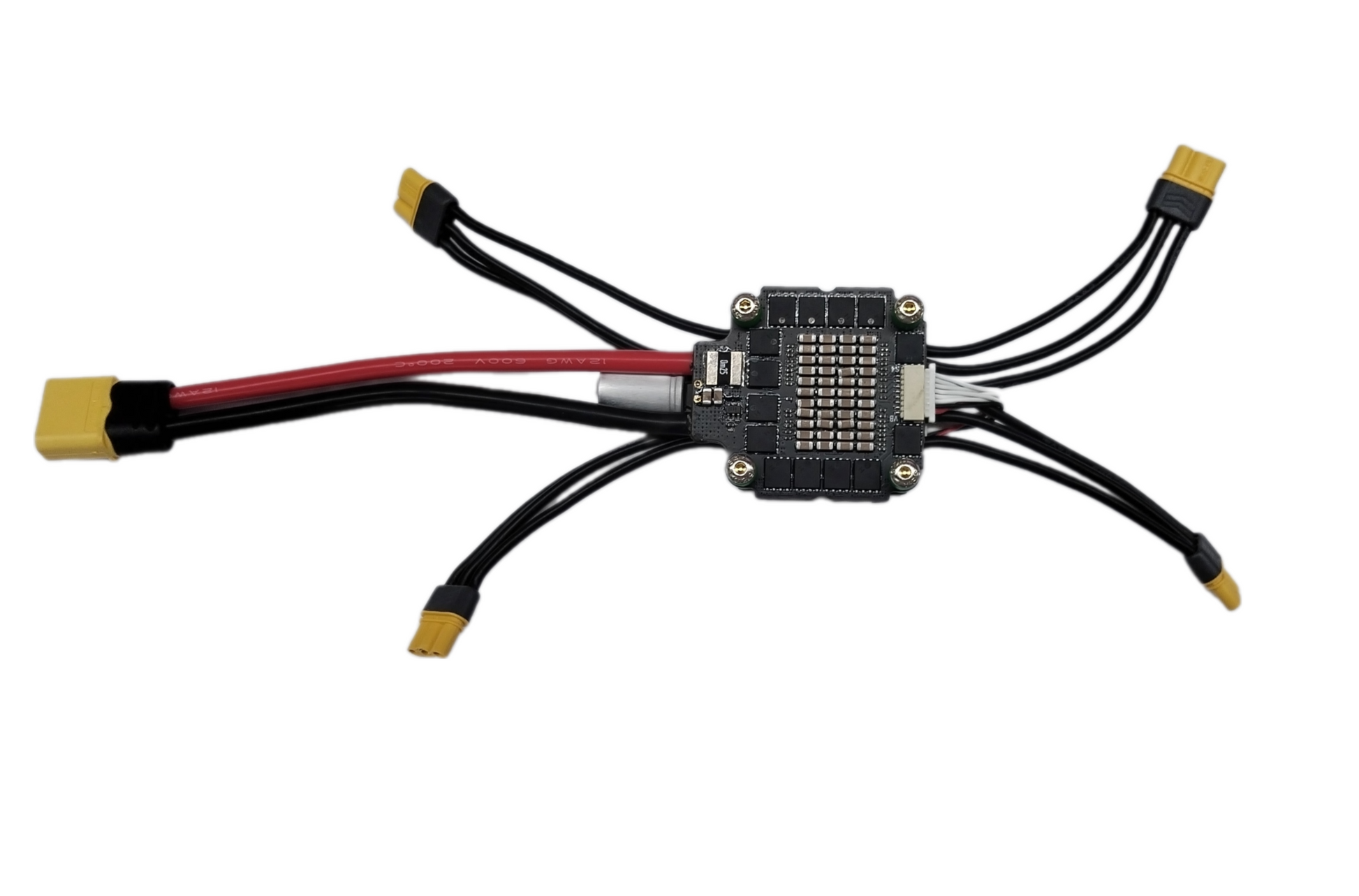

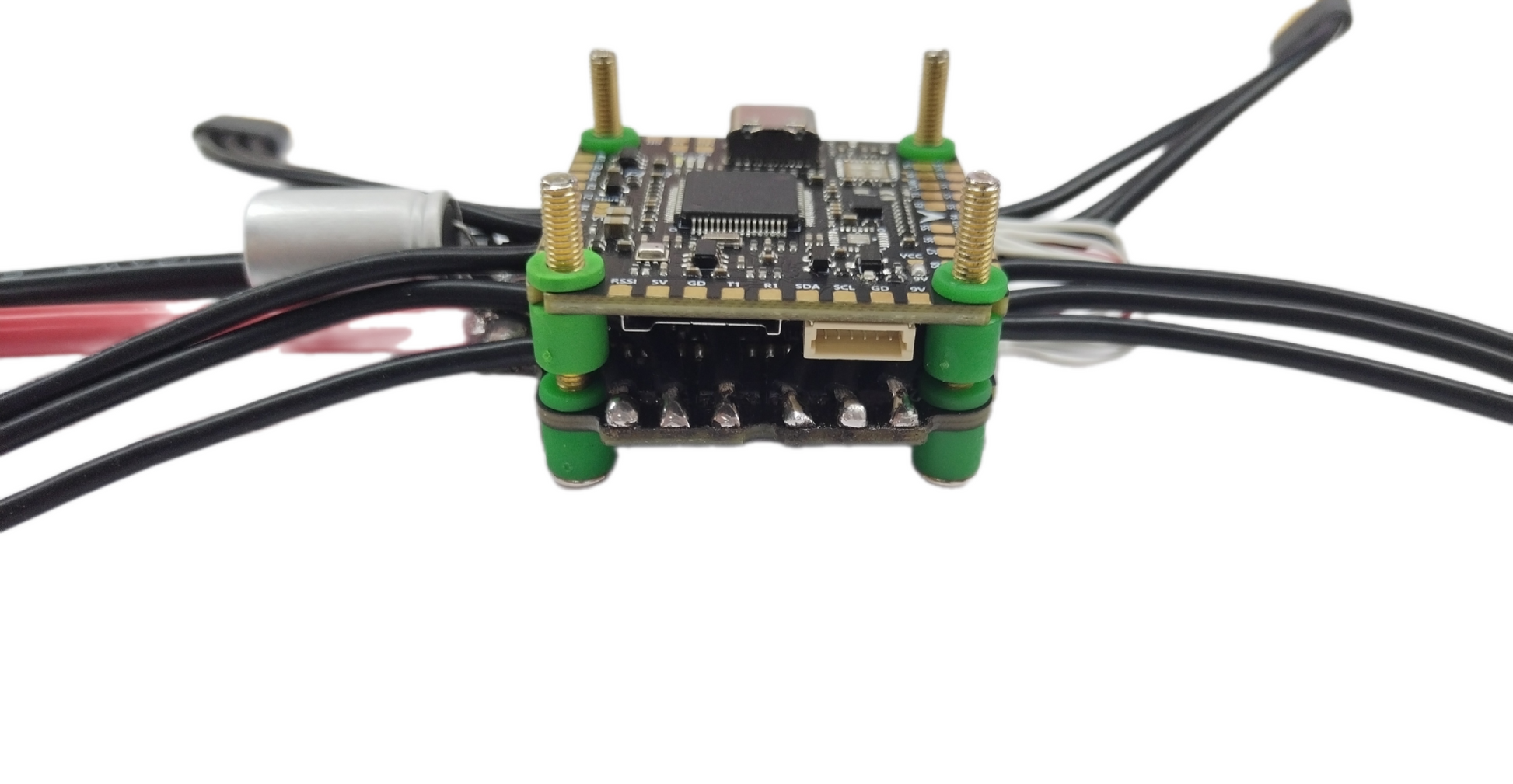

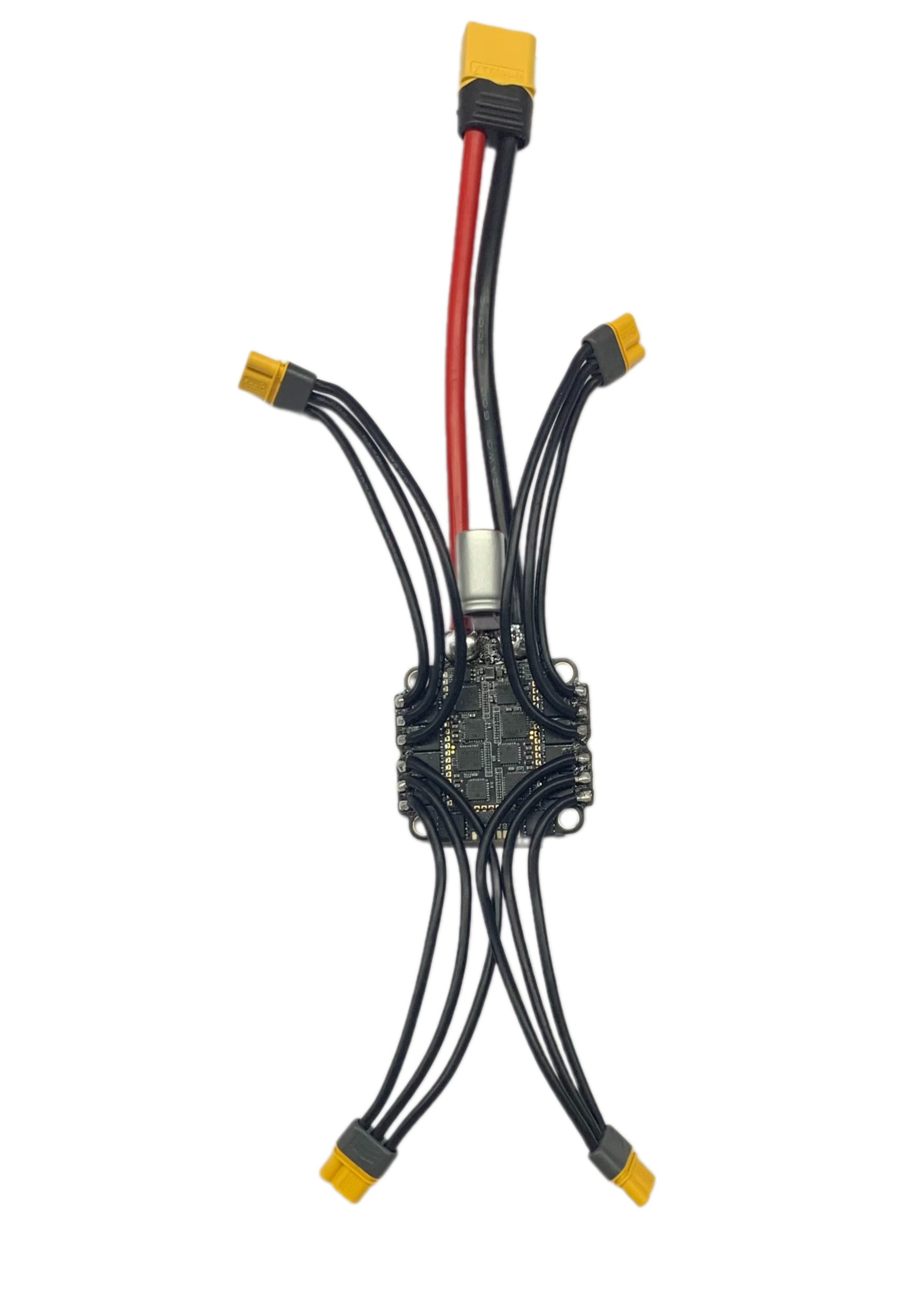

Stack PILOTIX DIY Kit (F405 V3 FC + 60A V1.0 ESC)
Stack PILOTIX DIY Kit (F405 V3 FC + 60A V1.0 ESC)
Brand: Pilotix
Regular price
€123,78
Regular price
€102,49
Sale price
€123,78
Unit price
/
per
Taxes included.
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Payment methods
- Description
- Related Files
- Discussion
Stack PILOTIX DIY Kit (F405 V3 FC + 60A V1.0 ESC)

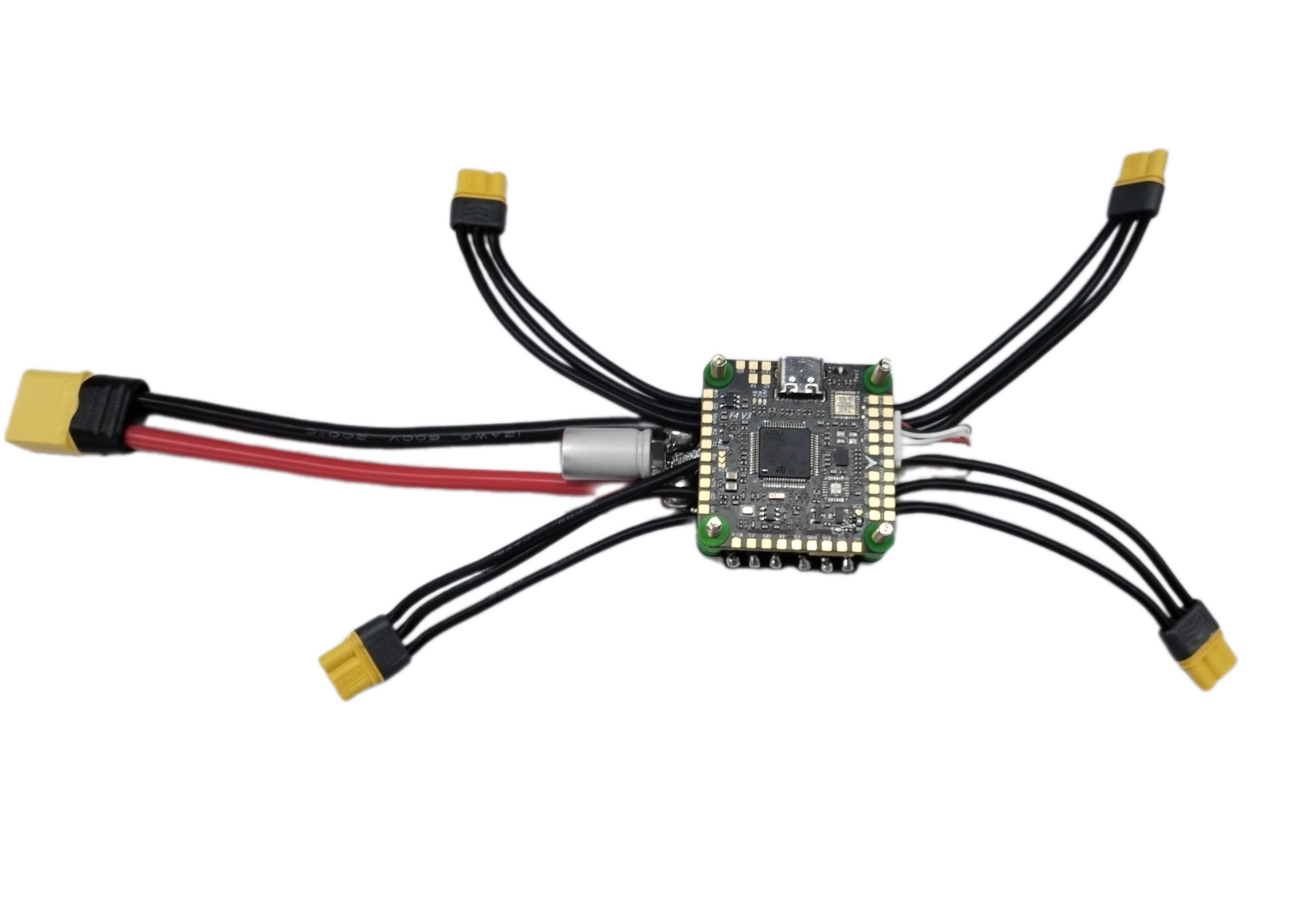

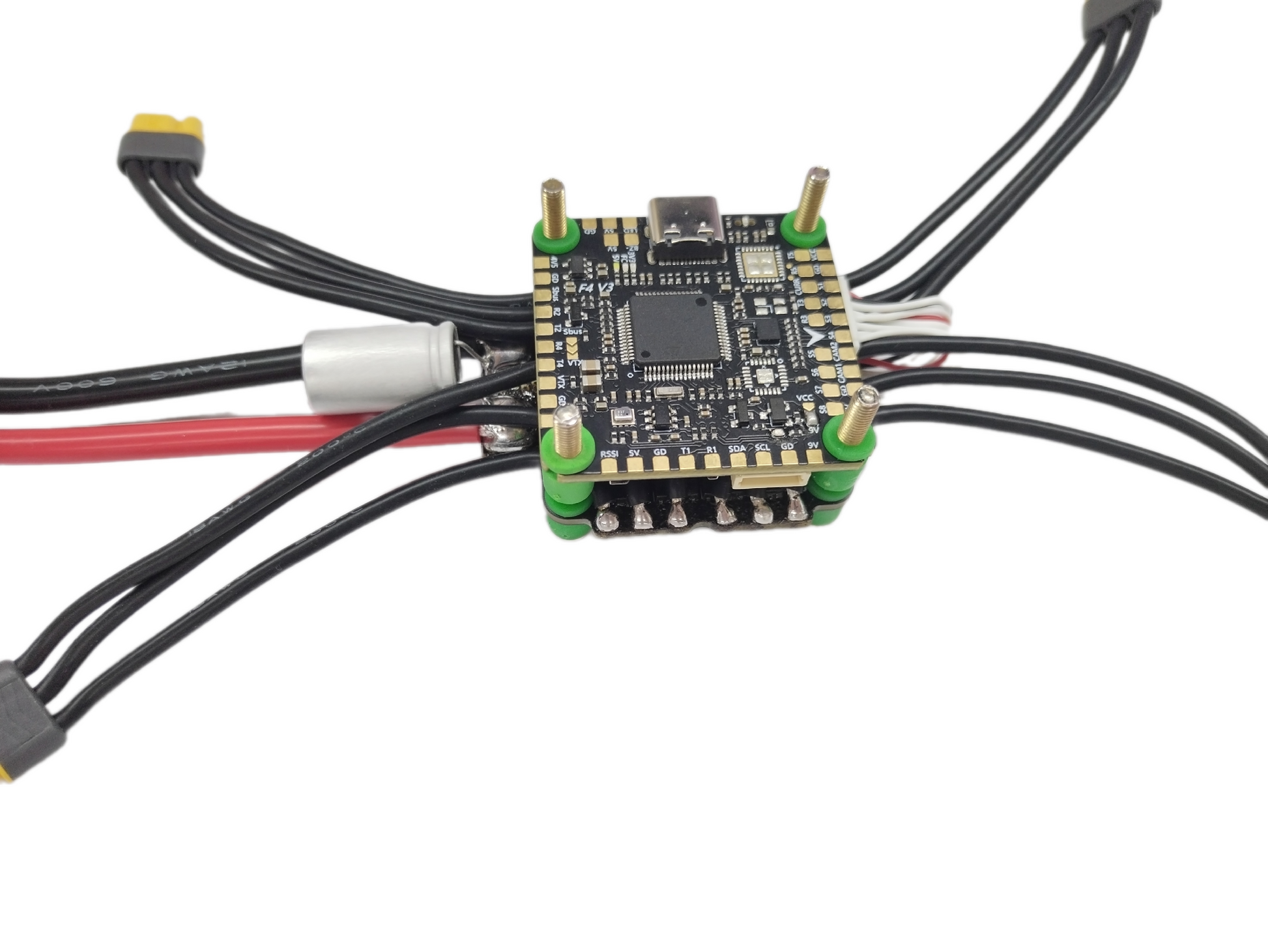

F405 V3 Flight Controller
- Controller: STM32F405RGT6
- Gyroscope: ICM42688
- Barometer: SPL06B
- Black Box: 16 MB
- Motor output: 8 channels
- Universal serial ports: 5 channels
- Output power: 5V/2.5A, 9V/2A
- OSD: Supported
- Bluetooth: Supported
- Weight: 9.6 g
- Dimensions: 36mm x 36mm
- Mounting holes: 30.5mm x 30.5mm
- Firmware: AOCODAF405V3

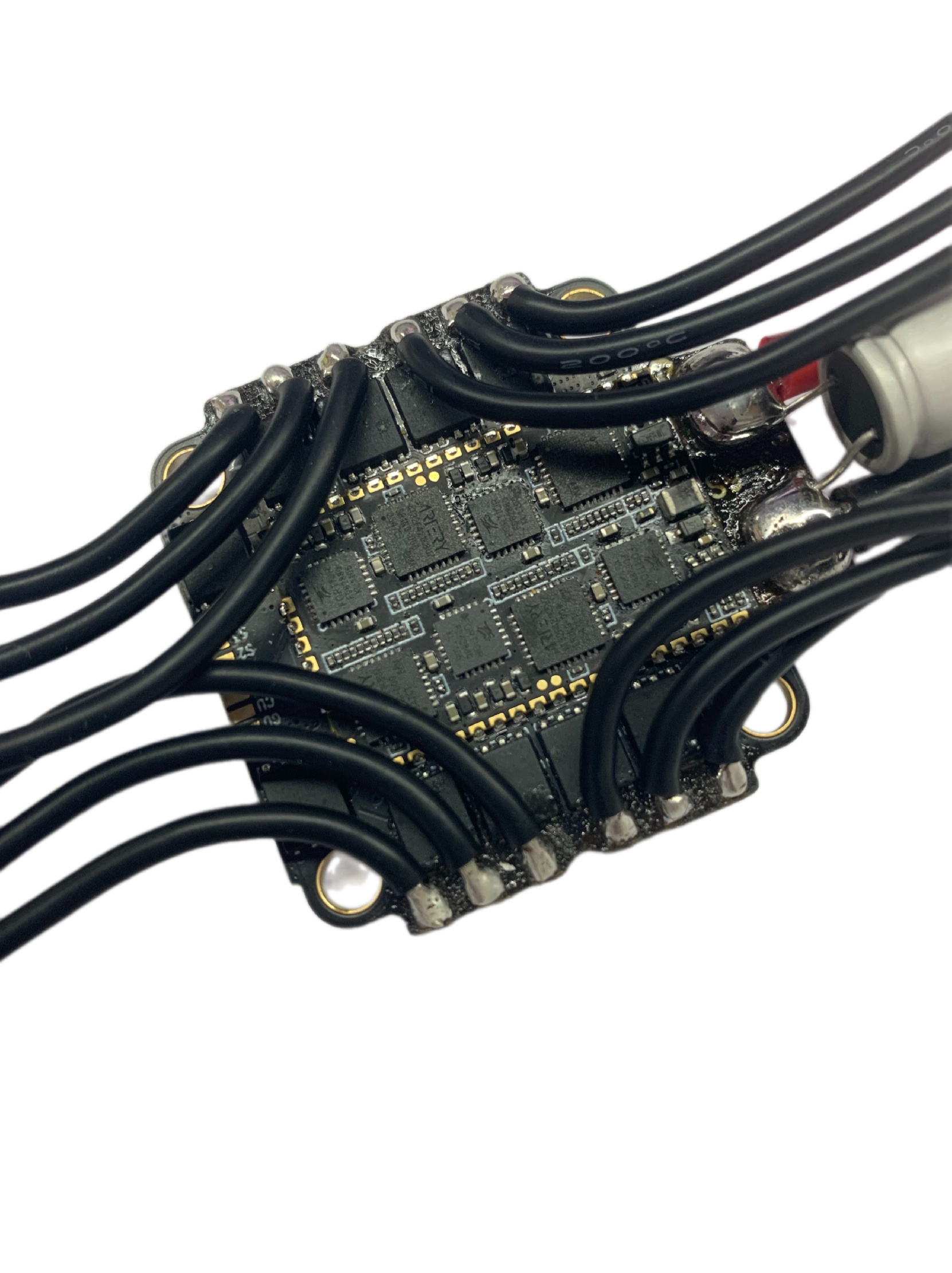

Bettle 3060 Electronic Controller (ESC)
- Continuous current: 60A x 4
- Peak current: 70A x 4
- Input signal: Dshot300, Dshot600, PWM, Bi-directional Dshot
- Telemetry: Supported
- Current Meter: Supported
- Input Voltage: 3-6S LiPo
- Firmware: AM32 AORC AT421A
- Working temperature: -20°C to +85°C
- Working humidity: 20% to 95%
- Storage temperature: -20°C to +70°C
- Mounting holes: M3, 30.5mm x 30.5mm
- Weight: 13.9g
- Dimensions: 41mm x 44.5mm
-
Package contents:
- 4 motor cables
- 1 power cable
- 1 fixed capacitor
