Stack Partizan F722 60A
Stack Partizan F722 60A
Brand: Partizan
Regular price
€78,00
Regular price
€78,00
Sale price
€78,00
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

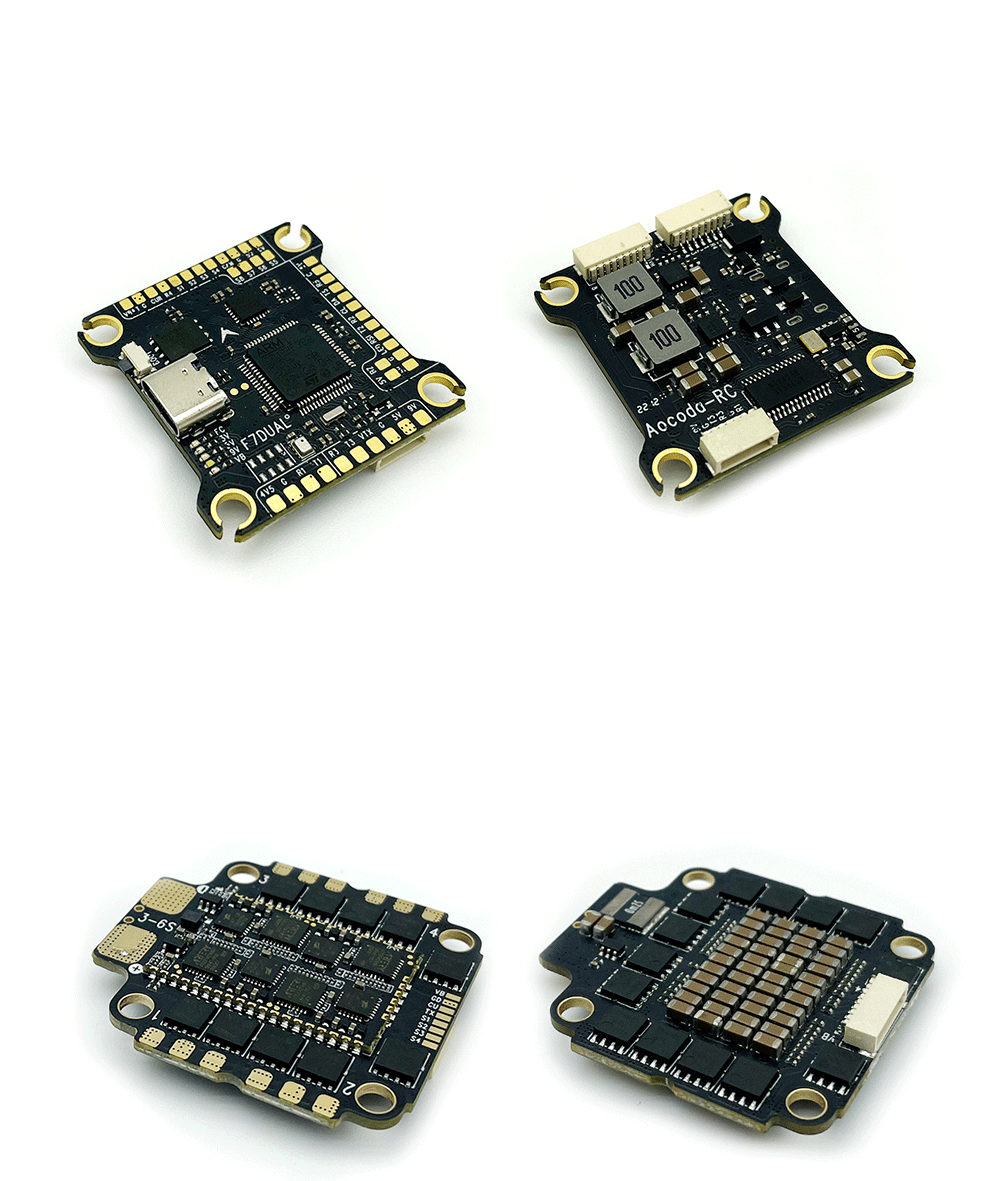

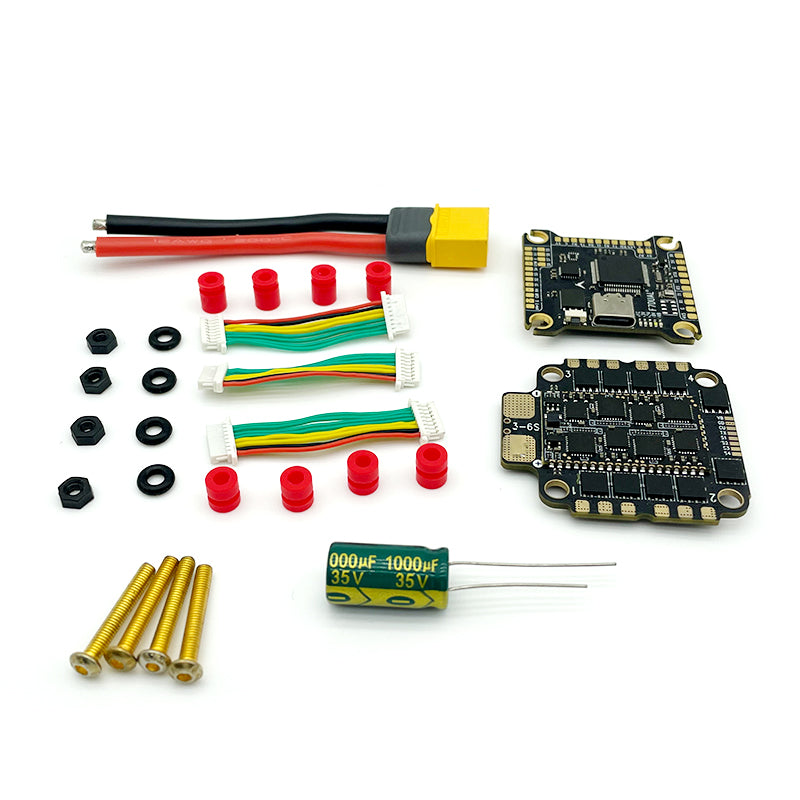

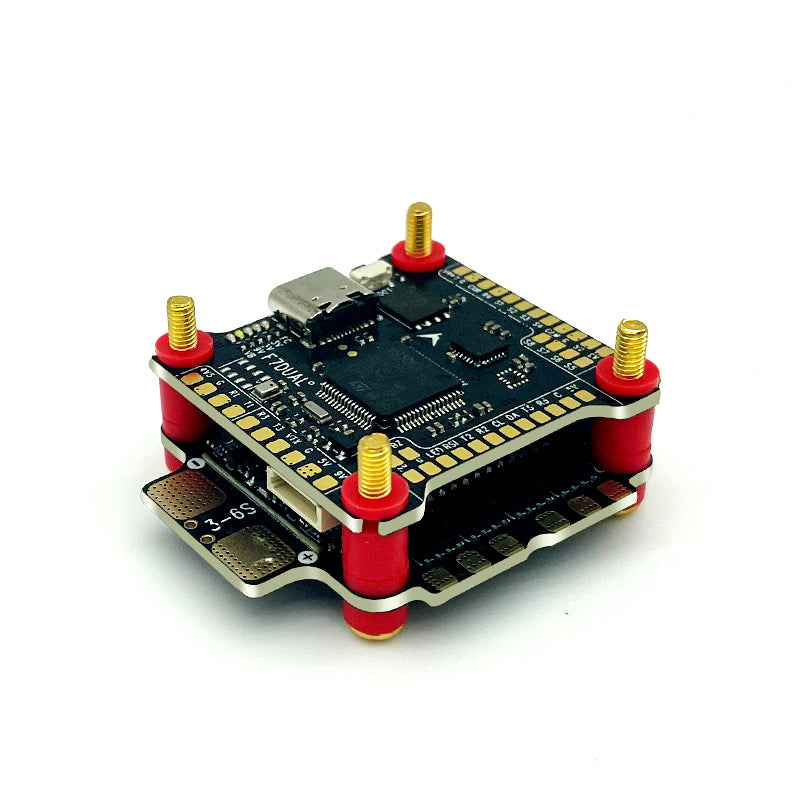

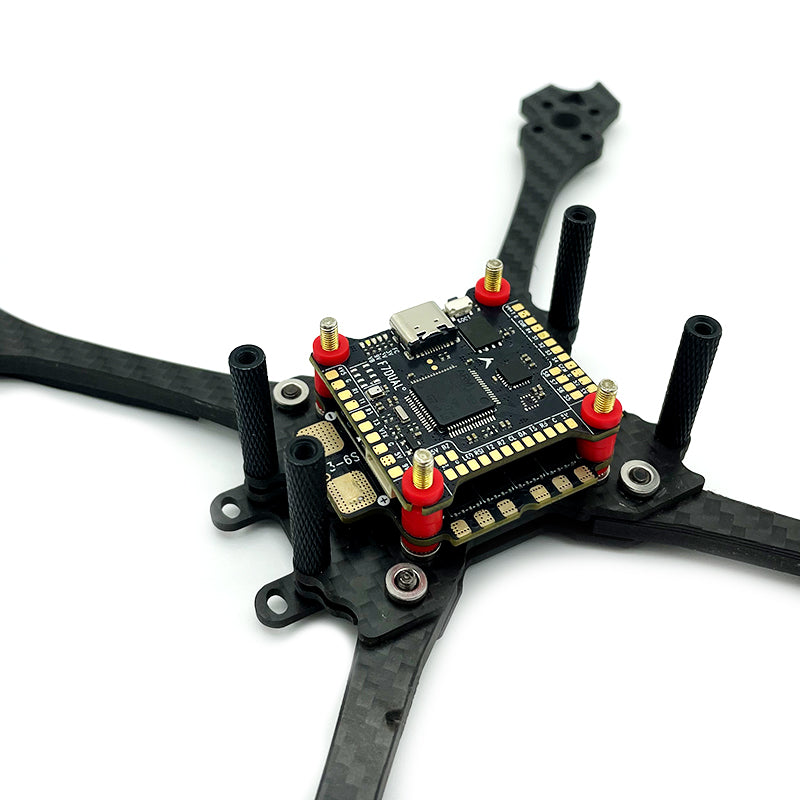

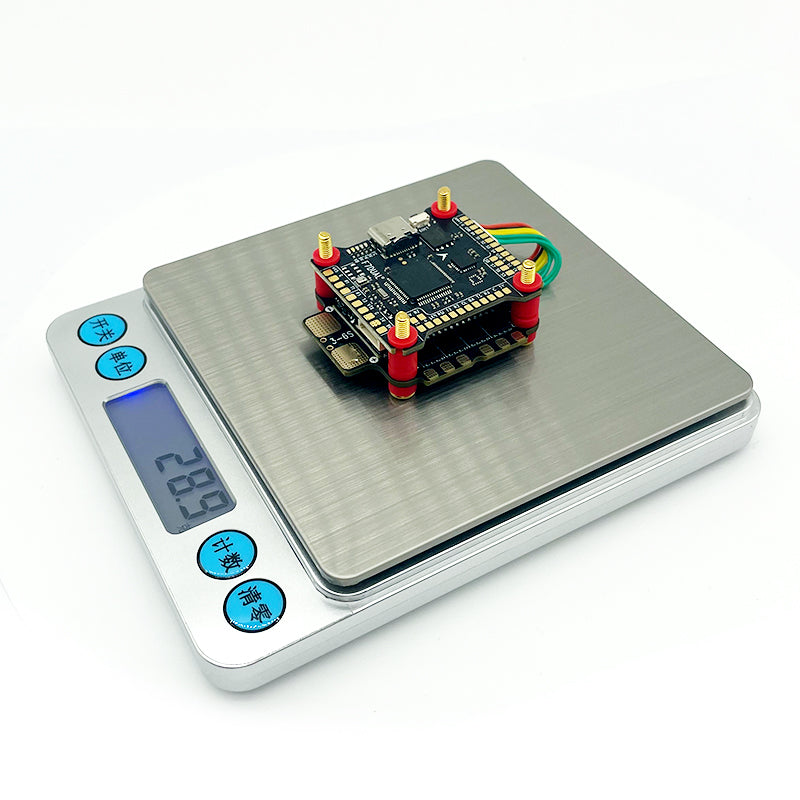

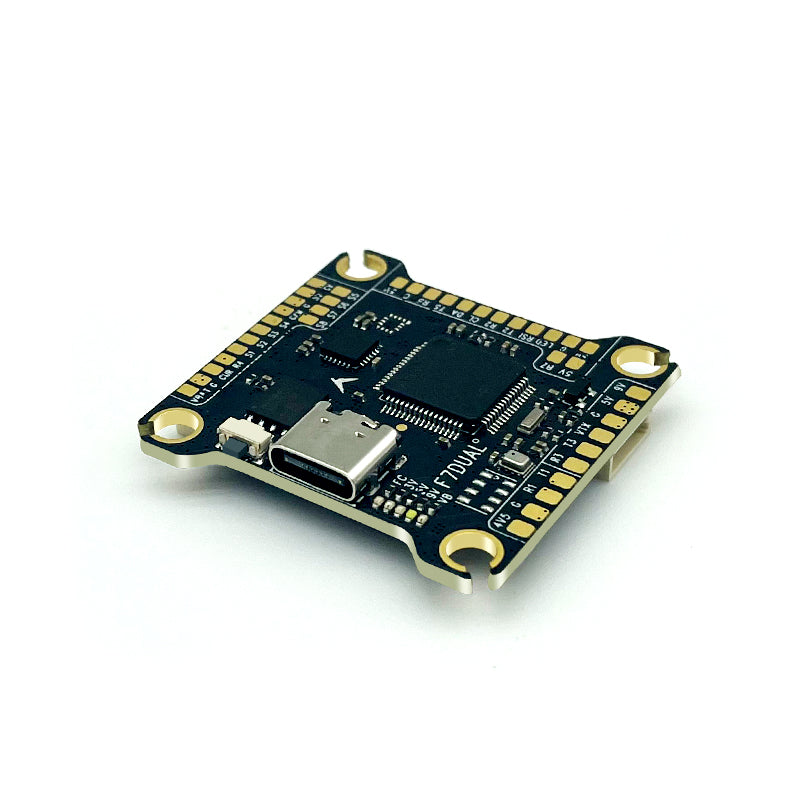

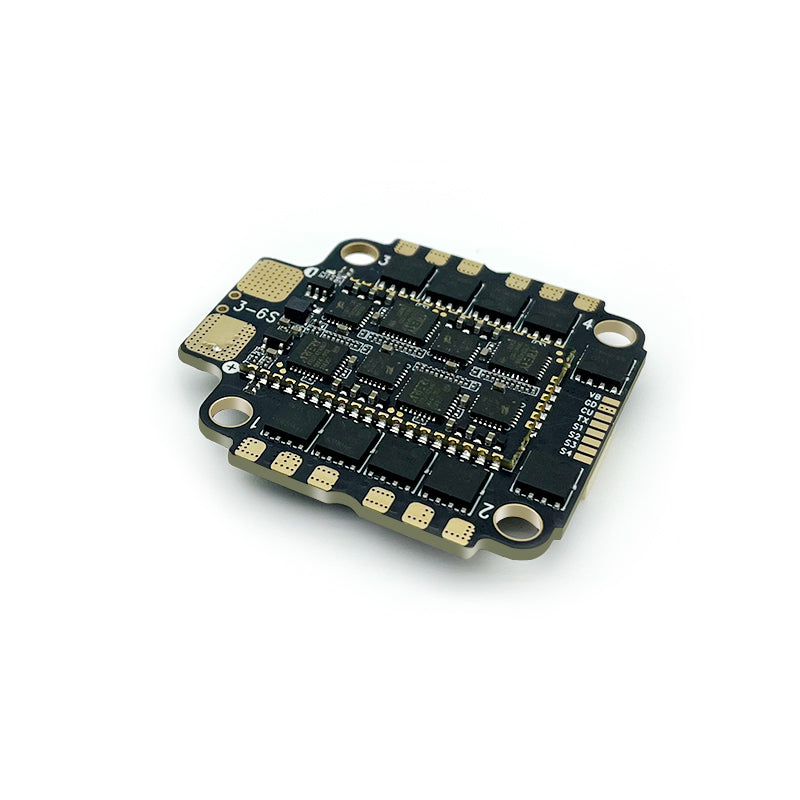

Magazine Partizan F722 60A The Partizan F722 60A Stack combines a high-performance flight controller and an electronic speed controller (ESC) for precise and stable drone control. With its powerful F722 processor, this kit offers fast response that ensures smooth flight maneuvers and reliable performance. With a rated current of 60A, the ESC provides enough power for a wide range of motor and propeller configurations. Specifications: FC specification CPU: STM32F22RET6 Gyro: MPU 6000 Baro: BMP280,DPS310 OSD: Support BEG Output: 5V/2.5A 9V/3A BlackBox: 16MB Uart: 5 channels BEC: 5V/2.5A, 9V/3A USB connector: Type-C Weight: 8.8g Mounting hole: 30.5 x 30.5 mm, M3 Size: 37 x 37 mm FC firmware: AOCODAF7DUAL ESC specification Power supply: 3-6S Lipo MCU: G071 Continuous current: 60A X4 Explosive current: 70A X4 Current sensor: Support Current scale: 125 (recommended) ESC Telemetry: Support Weight: 13.8g Mounting hole: 30.5 x 30.5 mm, M3 Size: 41 x 44.5 mm Default Protocol: 150/300/600/1200 & MultiShot/0neShot/Proshot/PWM etc. ESe Firmware: BL32 41N1 60A Model: 3060ESC Packing List: 1x F7DUAL 1x 3060 ESC 2x SH1.0 8P cable 1x Electrolytic capacitor 1000uF 35V 1x XT60 AWG12 power cable 13CM 8x M3*8 shock-absorbing balls 8x M3 nylon nut 4x M3*25mm metal screw
