Stack FLYWOO GOKU HEX GN405 HD 20A V3 ELRS
Stack FLYWOO GOKU HEX GN405 HD 20A V3 ELRS
Brand: FLYWOO
Regular price
€62,49
Regular price
€62,49
Sale price
€62,49
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

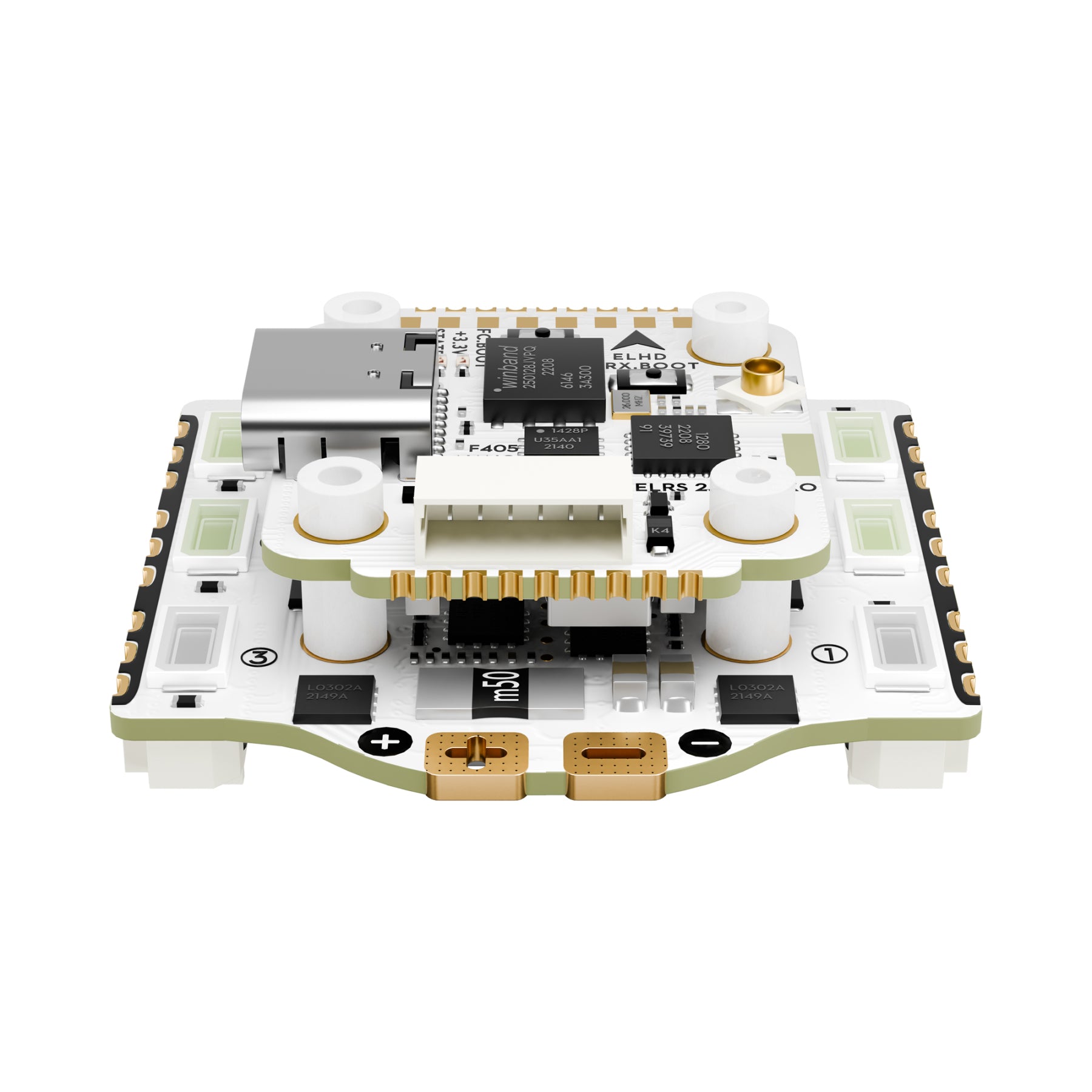

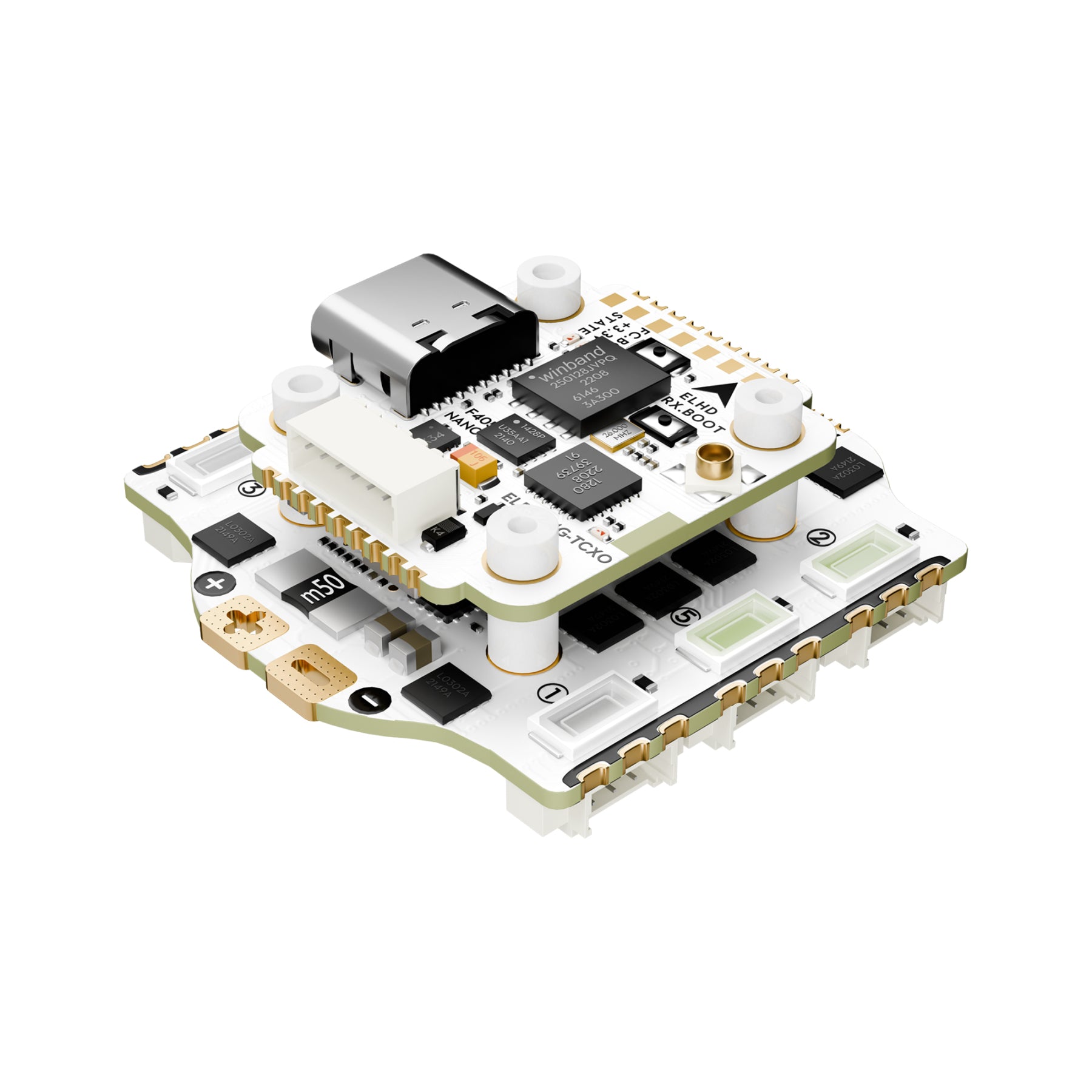

Stack Flywoo GOKU HEX GN405 HD 20A Stack V3 ELRS Flywoo GOKU HEX GN405 HD 20A Stack V3 is a compact and highly efficient solution for building micro hexacopters. This stack combines a robust STM32F405-based flight controller with a built-in ELRS receiver and a 6-in-1 20A ESC, enabling smooth performance for advanced 2-4S setups. With ICM-42688P precision gyroscope, 16MB black box and up to 6 UARTs, it supports demanding FPV configurations with reliable stability. Its plug-and-play architecture and 16 x 16 mm mounting format make it ideal for compact designs requiring multiple motor outputs without compromising performance, control or response. Flight controller: MCU: STM32F405 BGA Gyroscope: ICM-42688P (SPI) OSD: No Barometer: DP310 Black box: 16 MB USB: Type C UART: 1 / 2 / 3 / 4 / 5 / 6 Input Voltage: 7.4V-24V (2-6S LiPo) BEC output: 5V 2A / 3.3V 0.5A Dimensions: 25 x 23 x 8 mm Mounting holes: M2 16 × 16 mm Weight: 3 g ESC: ESC MCU: BB21F16G Continuous current: 20 A Input voltage: 2-4S LiPo Supported protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot150/300/600 LED power indicator: No Dimensions: 33 x 35 mm Mounting holes: M3 16x16 mm Weight: 6.4 g The package contains: 1 × Stack Flywoo GOKU HEX GN405 HD 20A Stack V3 ELRS
