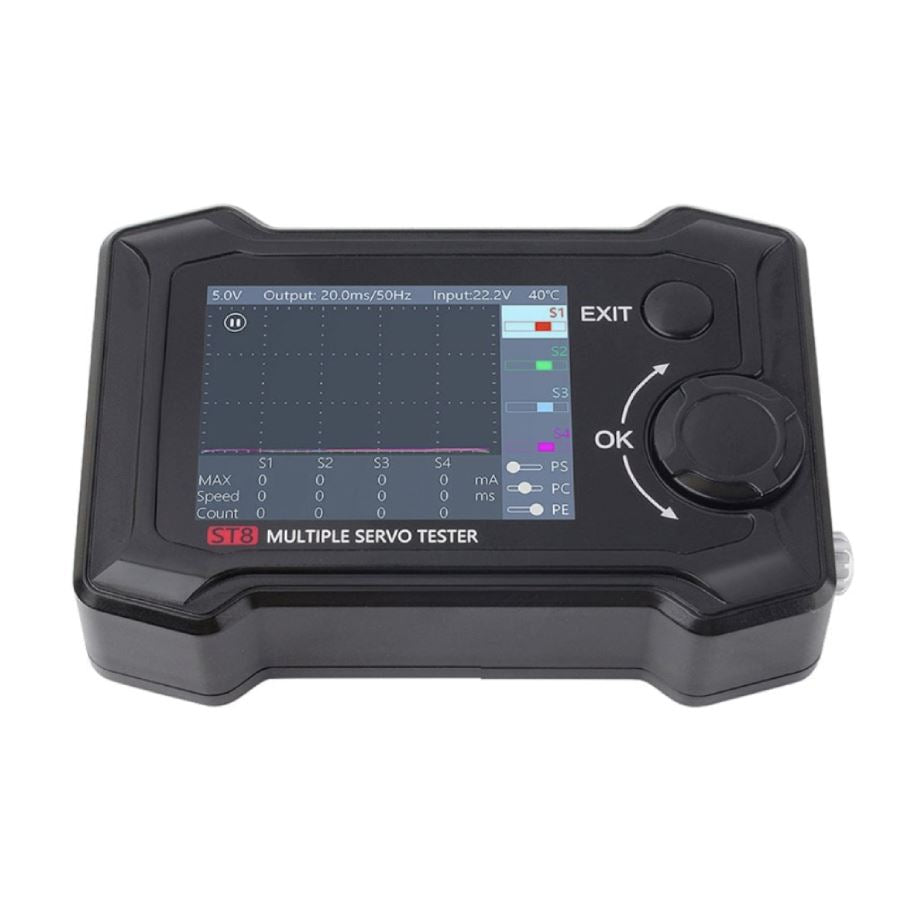

Advanced Servo Tester ST8

The ToolkitRC ST8 advanced servo tester allows you to test up to 8 servos simultaneously via 4 independent output channels.

Function:

- 4 channels of programmable independent signal, 8 channels of output signal, accuracy 1 ms
- 4 independent current measurements, or waveform display
- Multiple measurement modes (speed, count, step, linear)
- PWM output signals with a period of 33 to 1000 Hz
- Various signal trigger sources (internal, buttons, knobs, external sources)
- Measure the response speed of the steering gear to the nearest 1 millisecond
- External input signal supports PWM/PPM/SBUS with 1ms accuracy
- External input signal supports PWM/PPM/SBUS with 1ms accuracy
- Drive the servo with a maximum load of 100W
- Multilingual system
- The device is simulated as a USB flash drive enabling firmware upgrade

Specifications:

- 7.0-28.0V @MAX 10A
- 5.0V-28.0V@MAX 10A
- 5.0V-8.4V@MAX 4A/S1-S4
- 5.0V-8.4V@MAX 4A/S4 Ext.
- 100us-2900us@33-1000Hz @S1-S4
- PWM 500us-2500us@S5
- PPM 8CH@S5 SBUS 16CH@S5
- 1000us-2000us@P1
- Upgrade@USB3.0
- 2.4" TFT RGB resolution 320*240
- 99mm * 68mm * 26mm
- 120 g

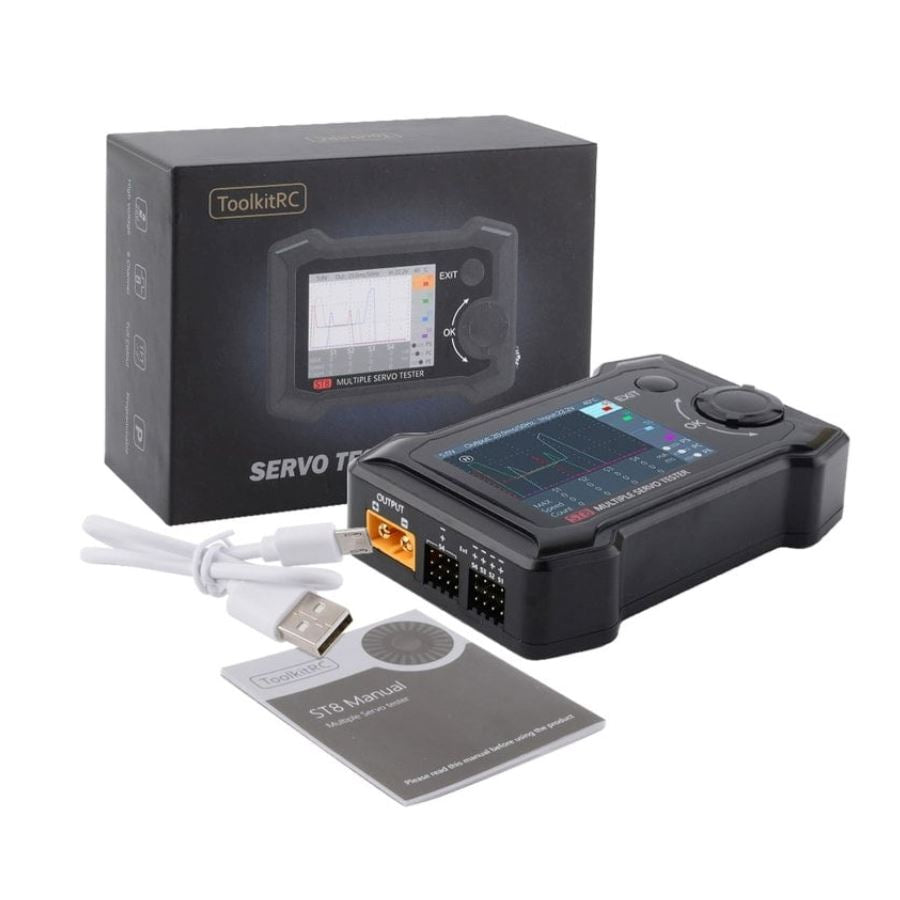

Included:
1x ToolkitRC ST8 Advanced Servo Tester
