    Servo Emax ES9052MD (Upgraded from ES9051)

    Servo Emax ES9052MD (Upgraded from ES9051)

    Brand: Emax

    €9,19
    €9,19 €9,19
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

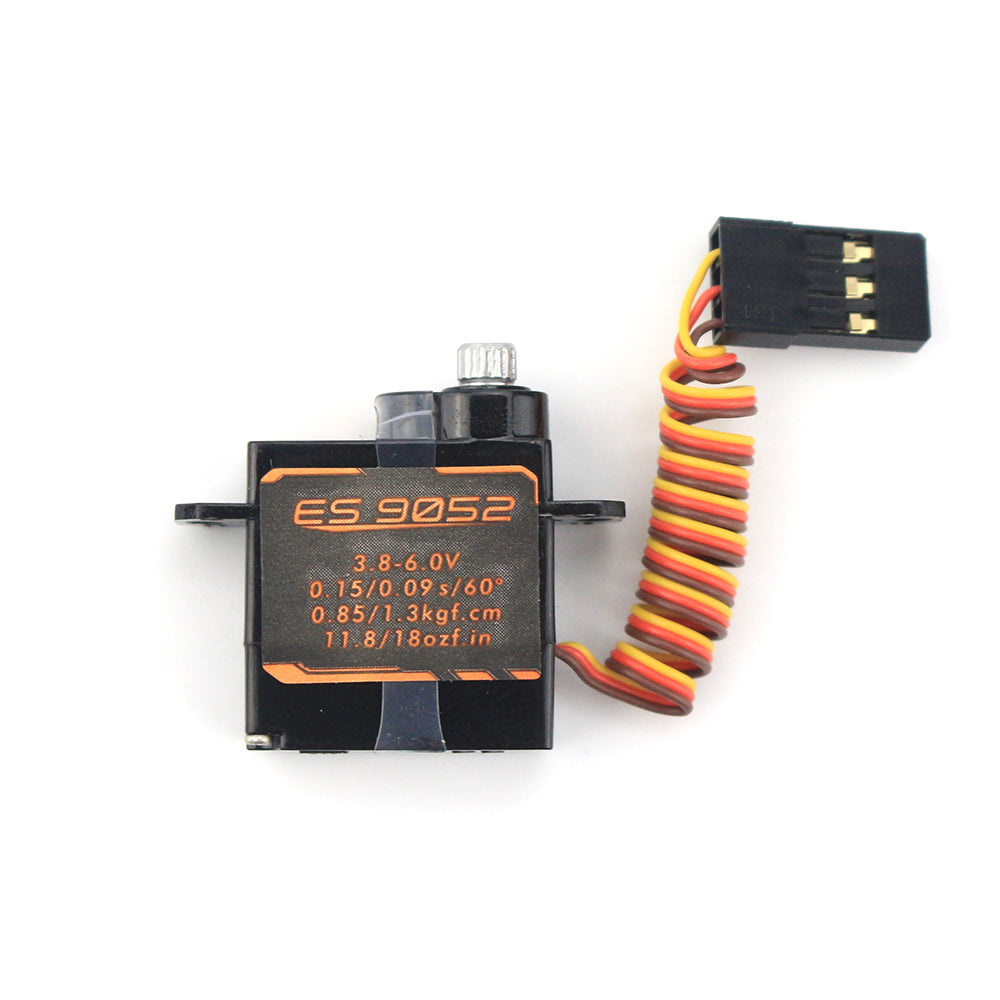

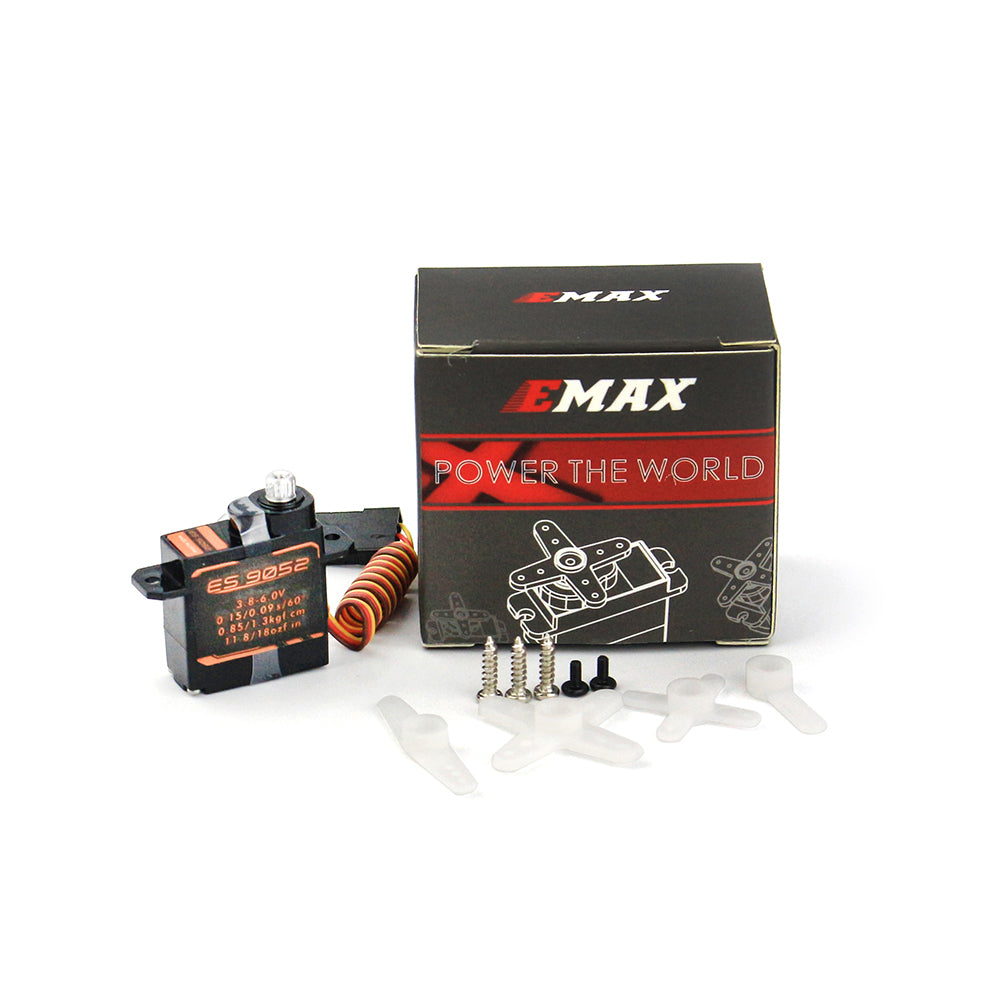

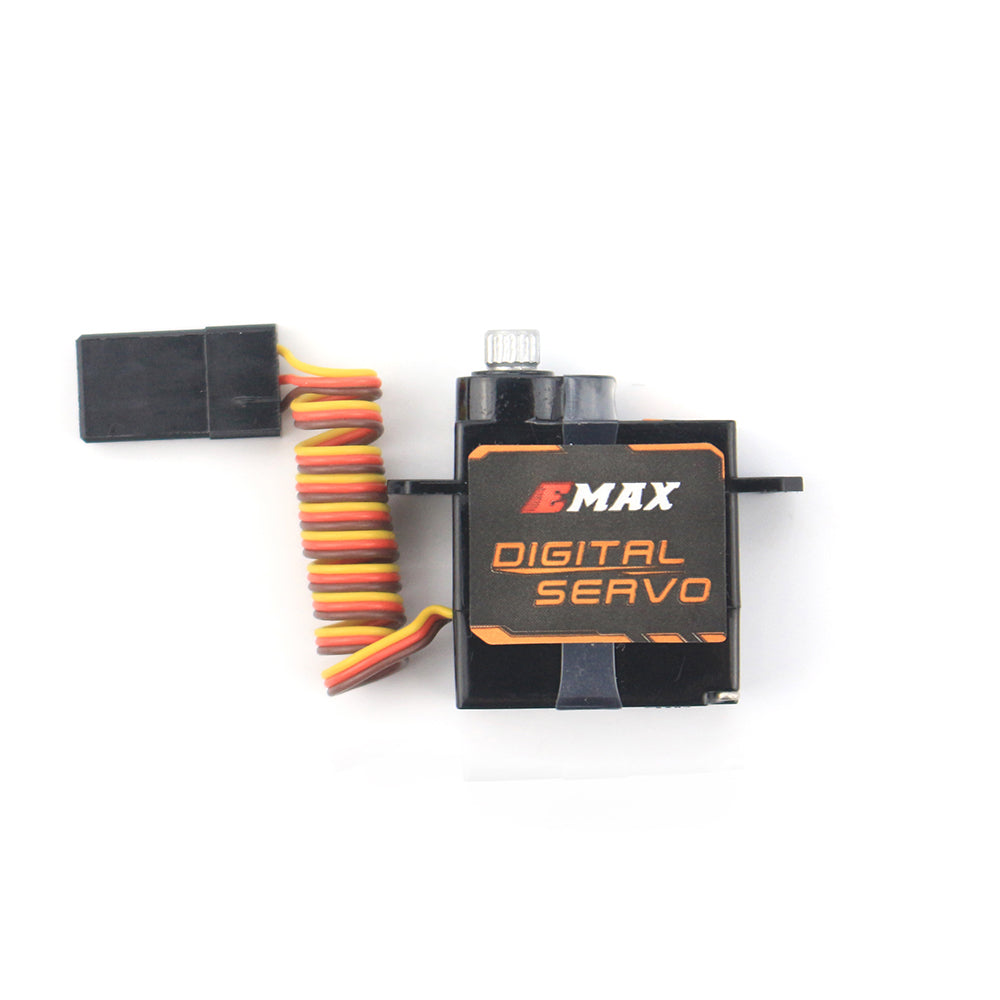

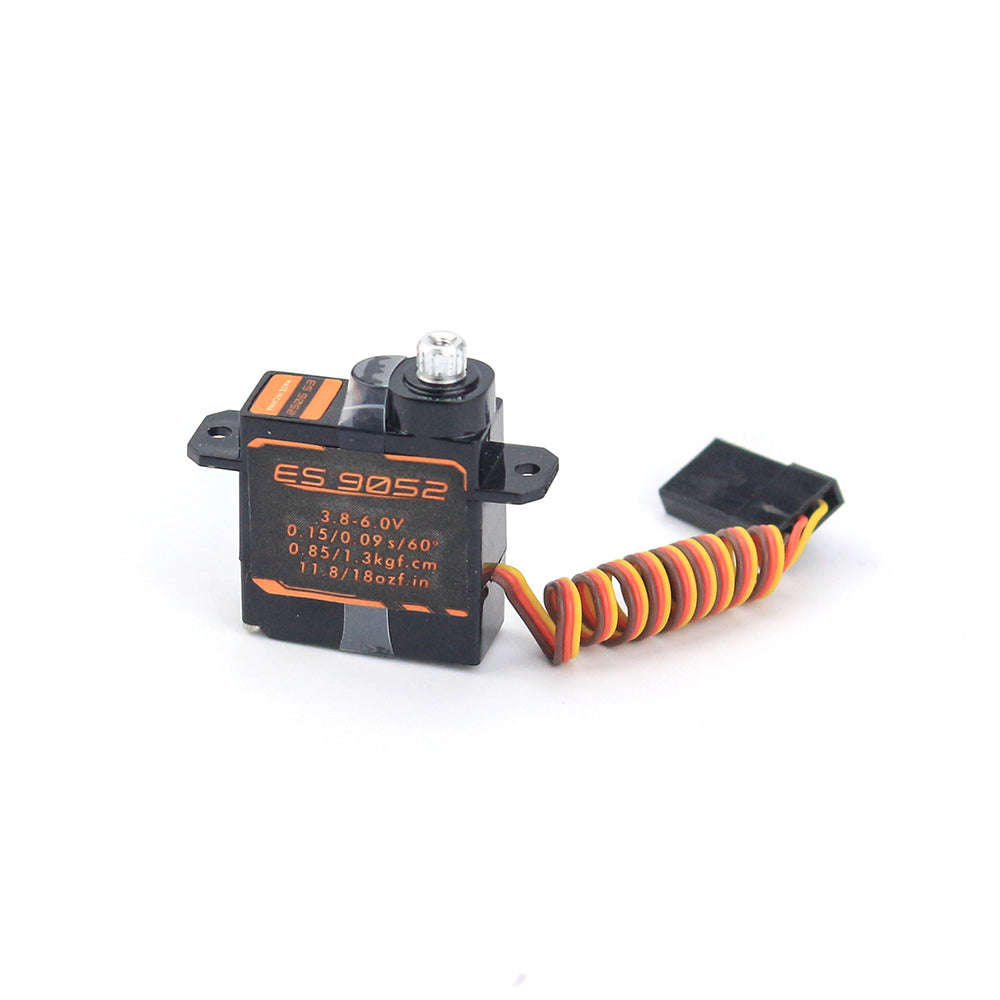

    Emax Servo ES9052MD (upgraded from ES9051)

ES9052MD Coreless Motor/ Universal Use / Metal Digital Servo

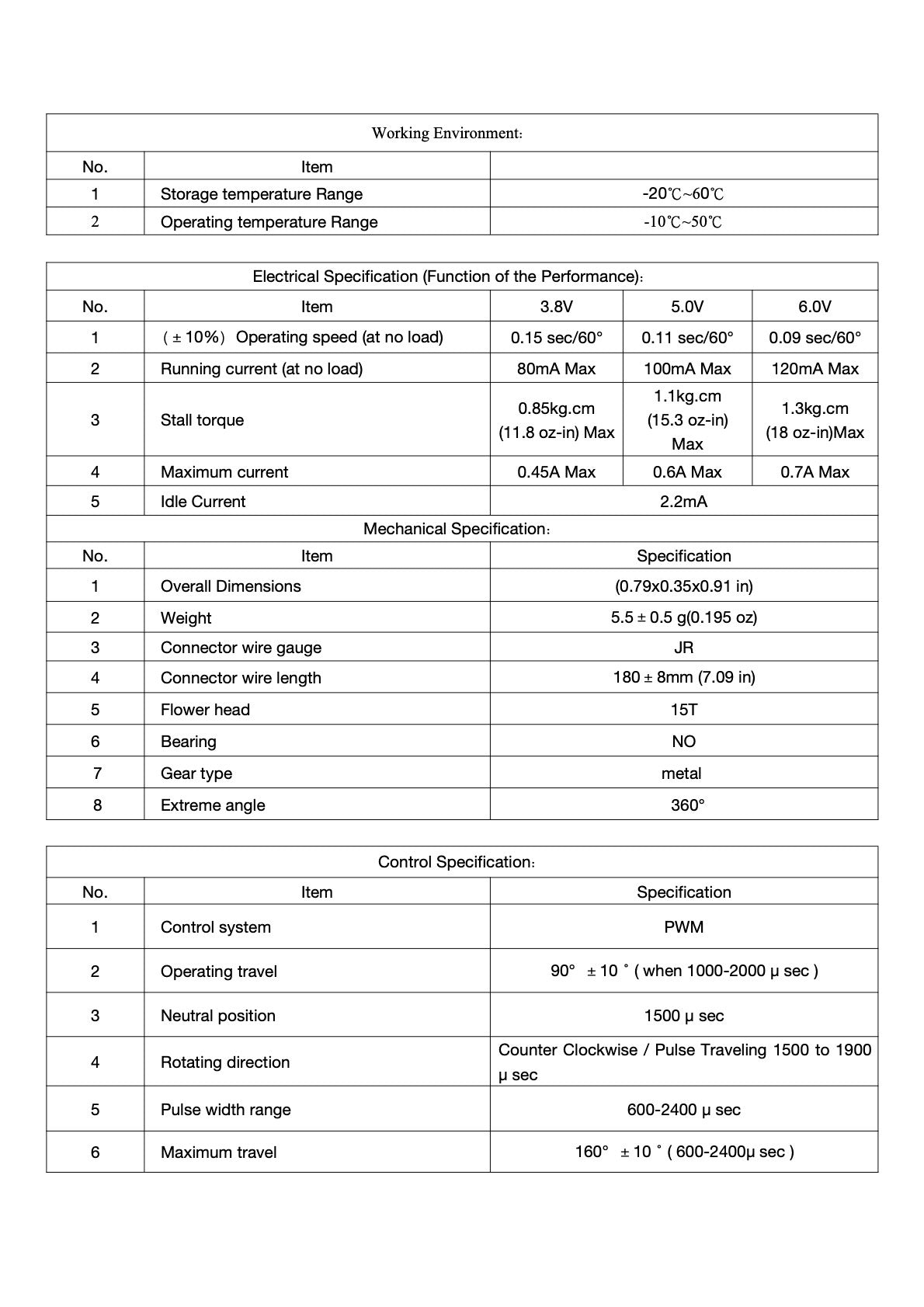

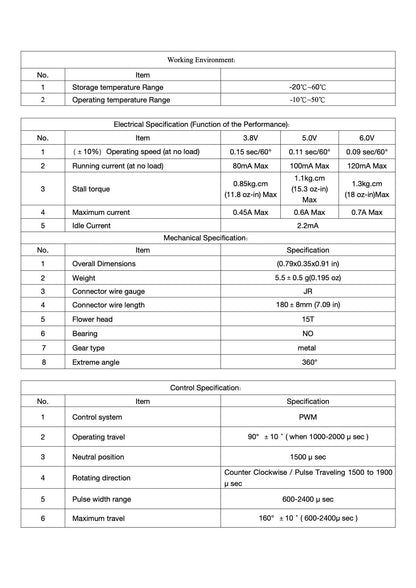

Specifications:
Type: digital metal gear with bearing
Voltage: 3.8V/5V/6V
Operating speed: 0.15s/0.11s/0.09s 60°
Operating current (MAX): 80mA/100mA/120mA
Tightening torque (MAX): 0.85 kg.cm/1.1kg.cm/1.3kg.cm
Maximum current: 0.45A/0.6A/0.7A
Open circuit current: 2.2 mA

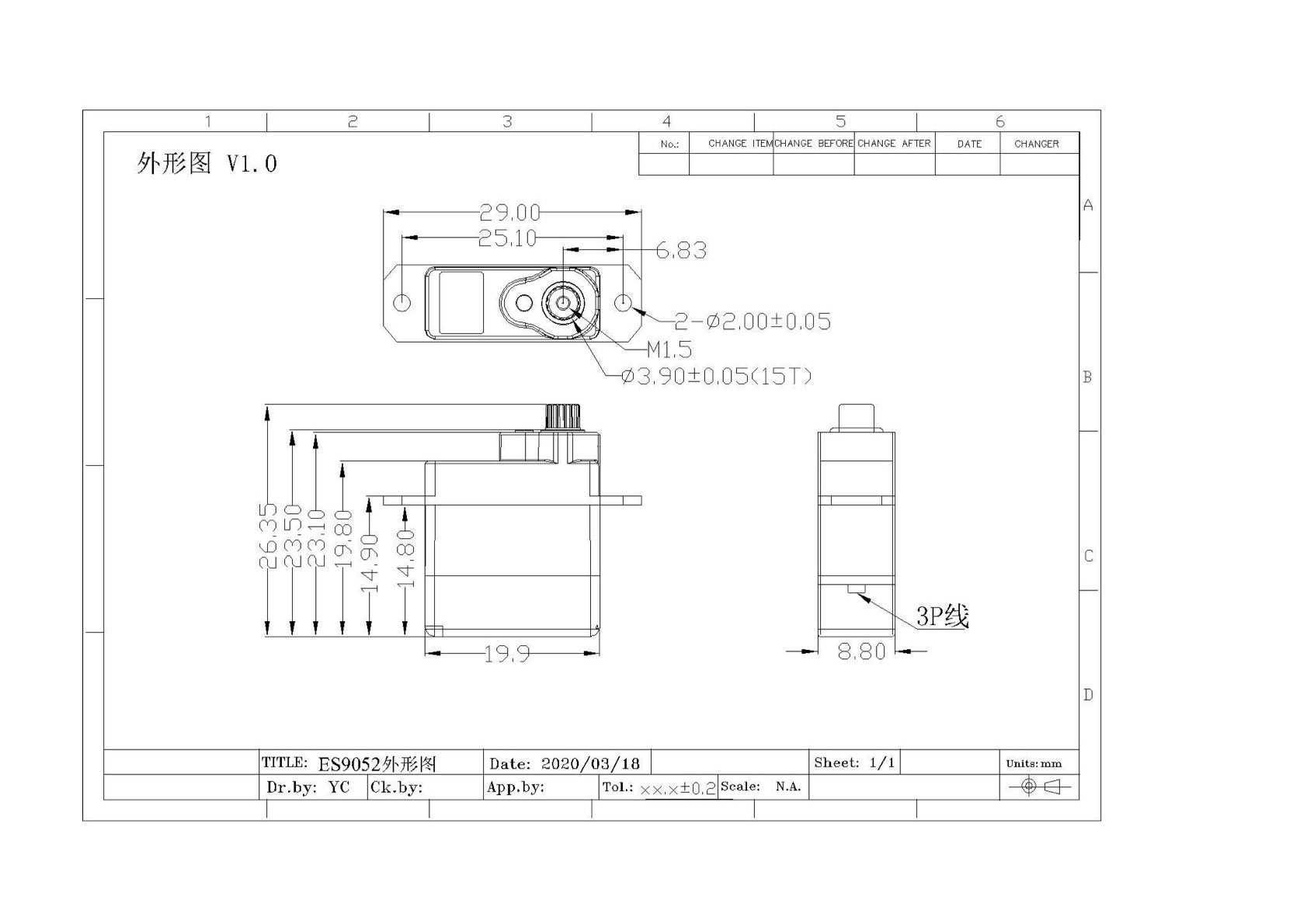

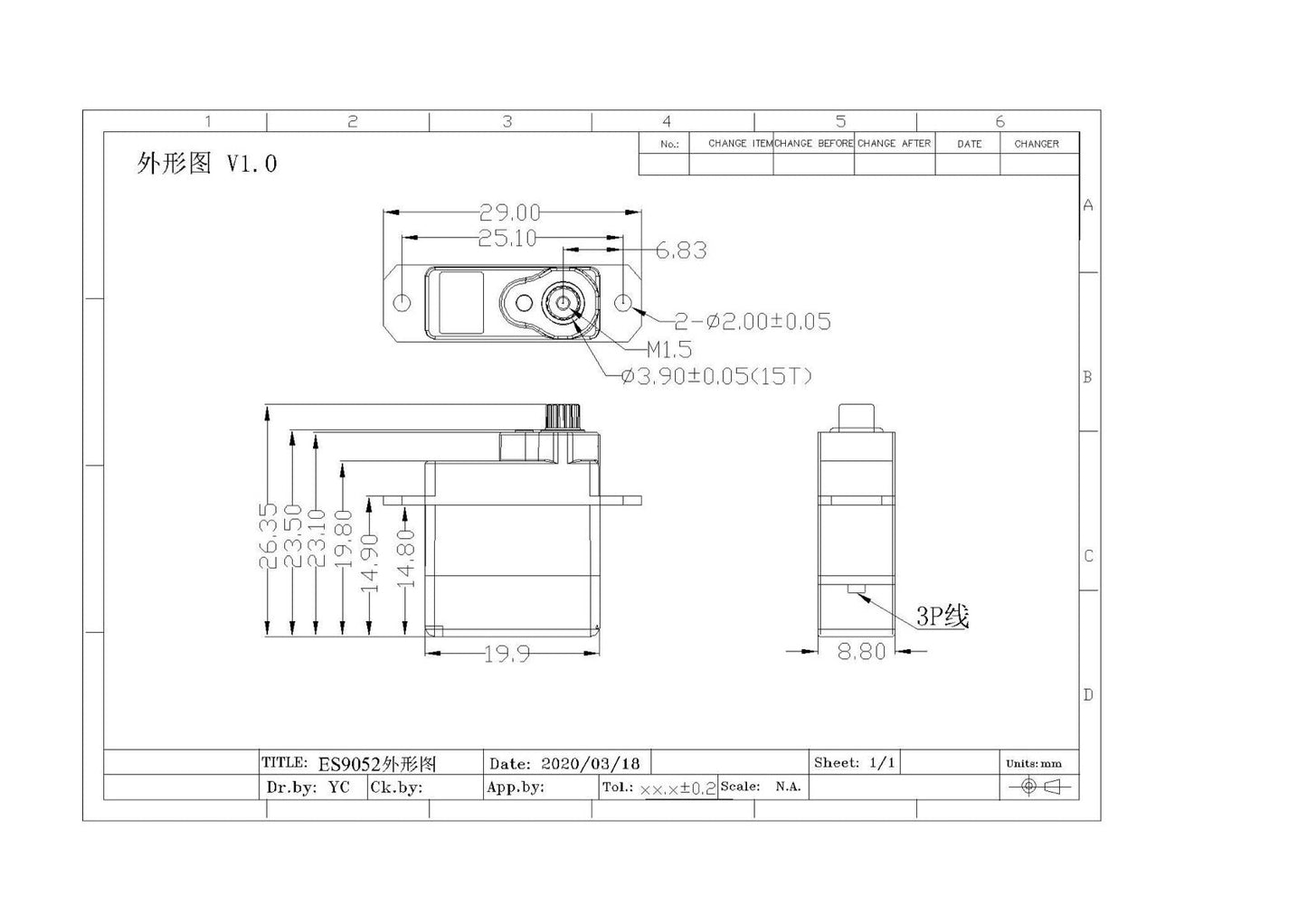

Overall dimensions: 0.79 x 0.35 x 0.91 inches
Weight: 5.5g
Connector wire feedthrough: JR
Connector cable length: 180 mm
Flower head: 15T
Gear Type: Metal
Extreme angle: 360°
