Code: SKU:DYBH0640J
Protection board SEQURE 40A for 6S 4000mah 21700
Protection board SEQURE 40A for 6S 4000mah 21700
Brand: SEQURE
Regular price
€8,25
Regular price
€8,25
Sale price
€8,25
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

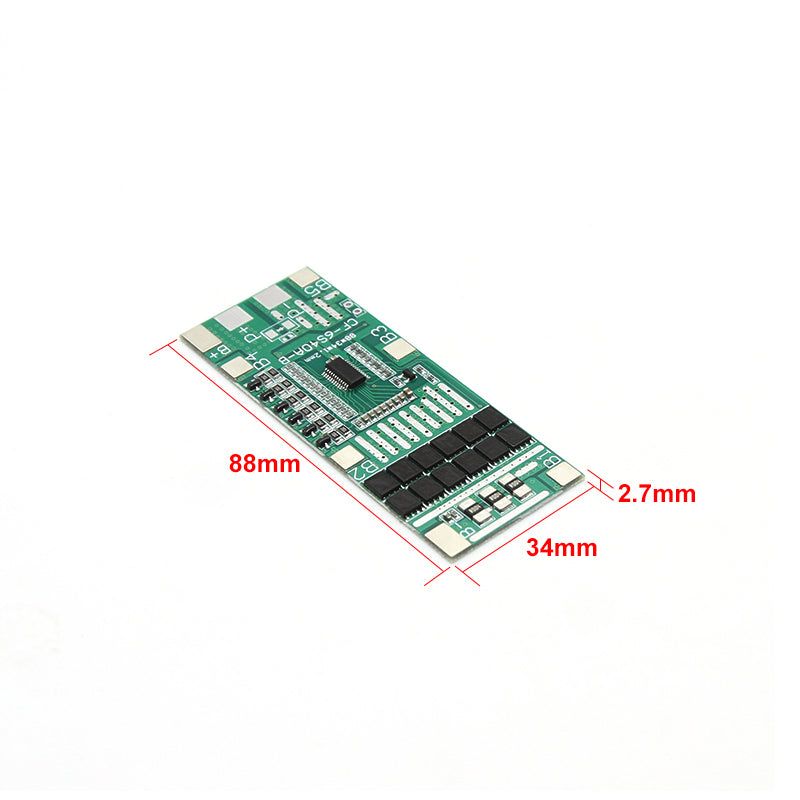

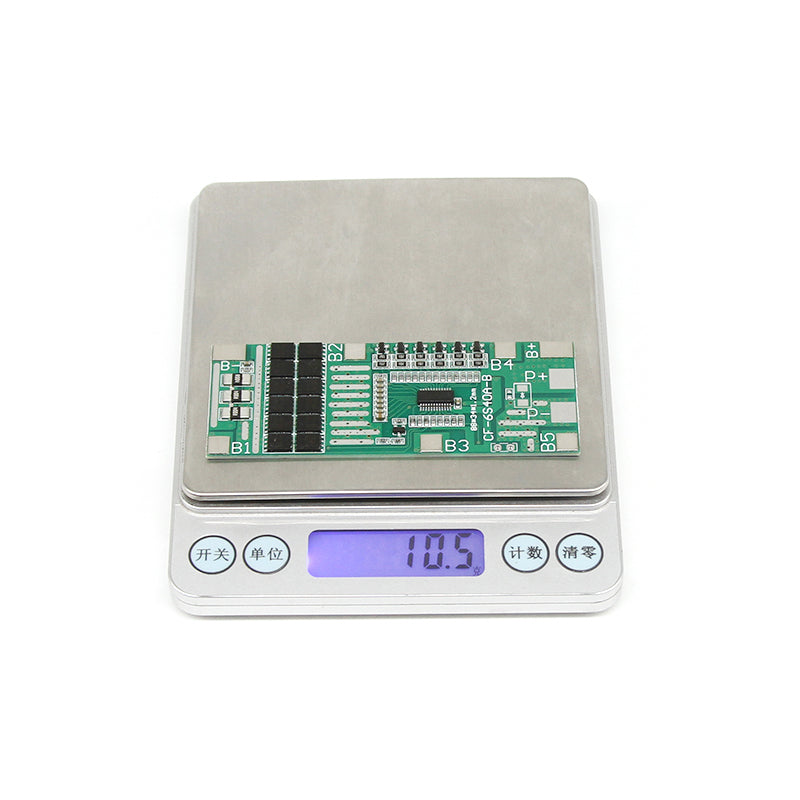

SECURE 40A protection board for 6S 4000mah 21700 The SEQURE 40A protection plate is designed for 6S 4000mAh 21700 lithium batteries, providing reliable protection and ensuring optimal battery performance. This board includes several safety features, including overcharge, overdischarge, overcurrent, and short circuit protection. With a maximum continuous discharge current of 40A, it effectively balances the load and extends the life of the battery. Specifications: Application: rated voltage 3.7V ternary lithium battery, 18650, 21700, etc. Charging voltage: 25.2V Maximum output current: 40A Product size: 88 x 34 x 3mm Net weight: 10.5g Overcharge protection Detection voltage: 4.25±0.025V Detection delay: 1000±500ms Cut-off voltage: 4.15±0.05V Over discharge protection Detection voltage: 2.7±0.1V Detection delay: 1000±500ms Cut-off voltage: 3.0±0.1V Balanced voltage Detection voltage: 4.2±0.025V Detection delay: 100±50ms Symmetrical voltage: 42±5mA Discharge overcurrent protection Detection voltage: 100mV Detection delay: 1000±500ms Current protection: 70±8A Short circuit protection Trigger status: external short Detection delay: 300us Release condition: disconnect the load Temperature control protection Charging working temperature: can be customized Discharge working temperature: can be customized Release condition: recovery at working temperature Own consumption Working consumption: ≦35uA Sleep power consumption when discharged: ≦10uA Working temperature range: -30/+80℃ The package includes: 1x PCB protection board
