PCB board Pilotix Ground station without shell and wires (20km)
PCB board Pilotix Ground station without shell and wires (20km)
Brand: Pilotix
Couldn't load pickup availability
- Description
- Related Files
- Discussion

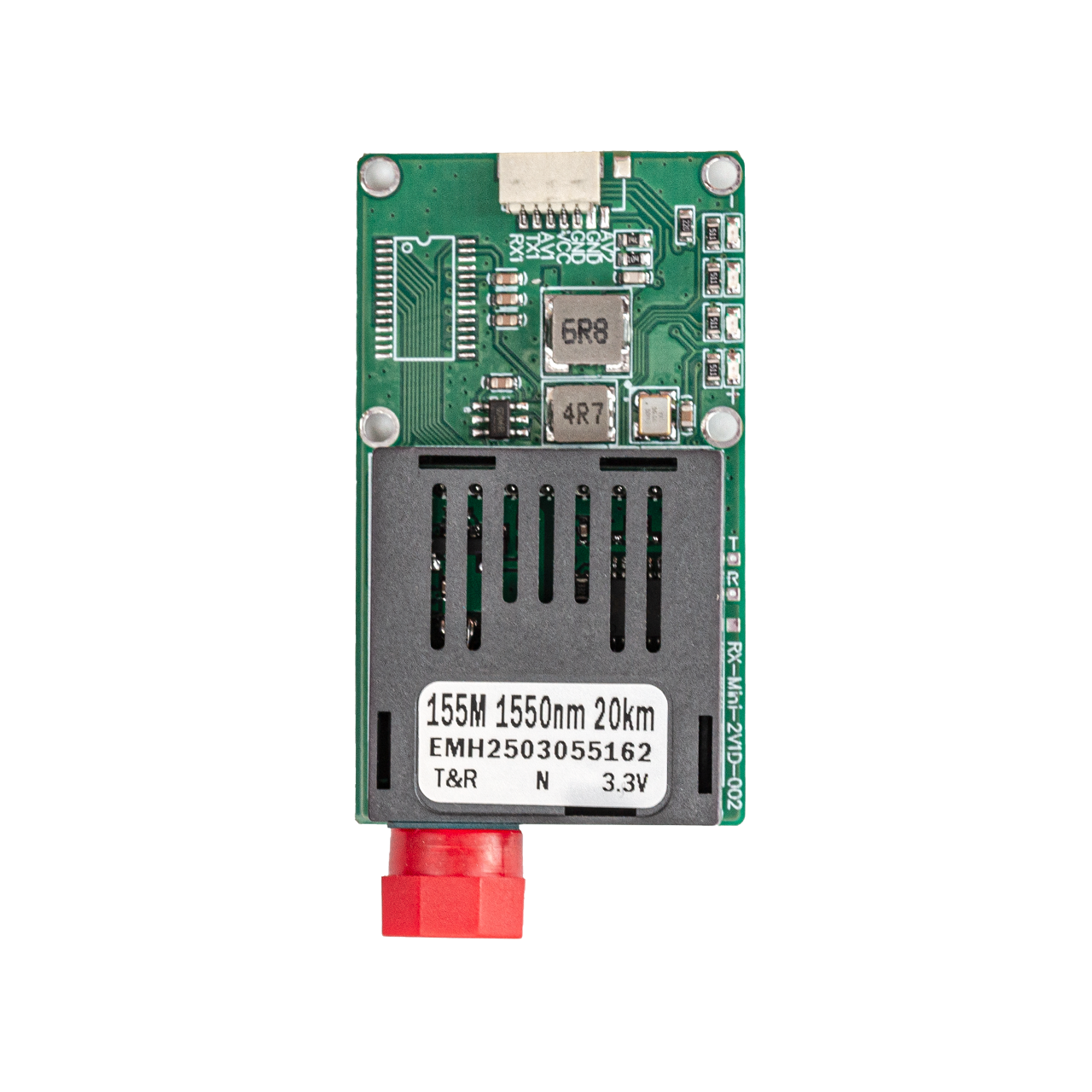

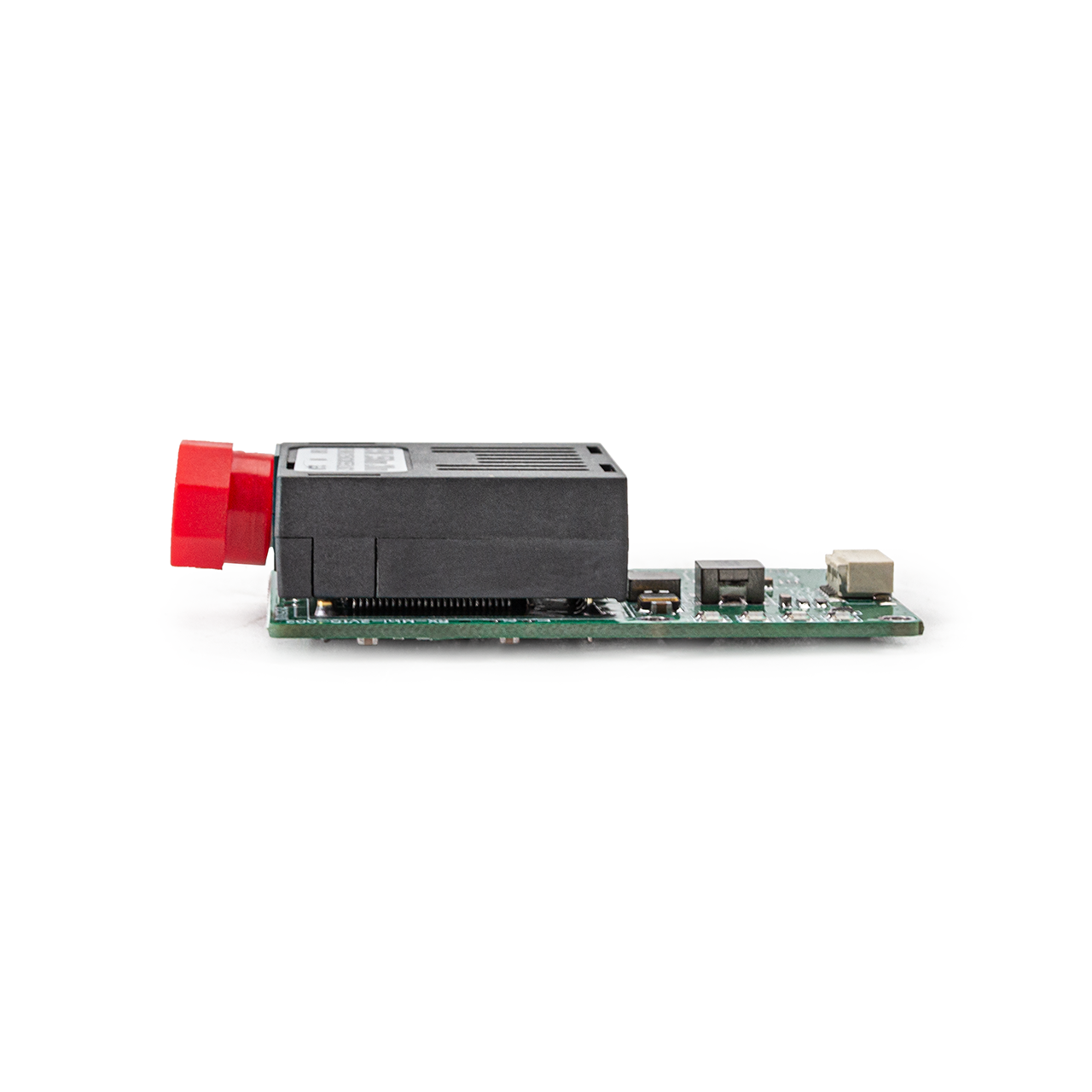

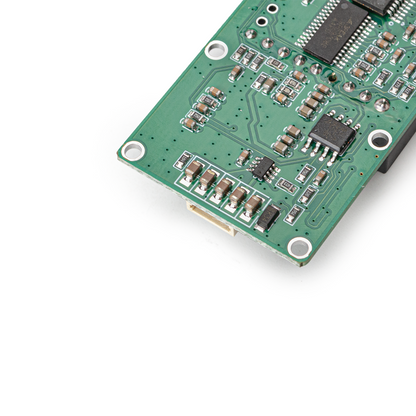

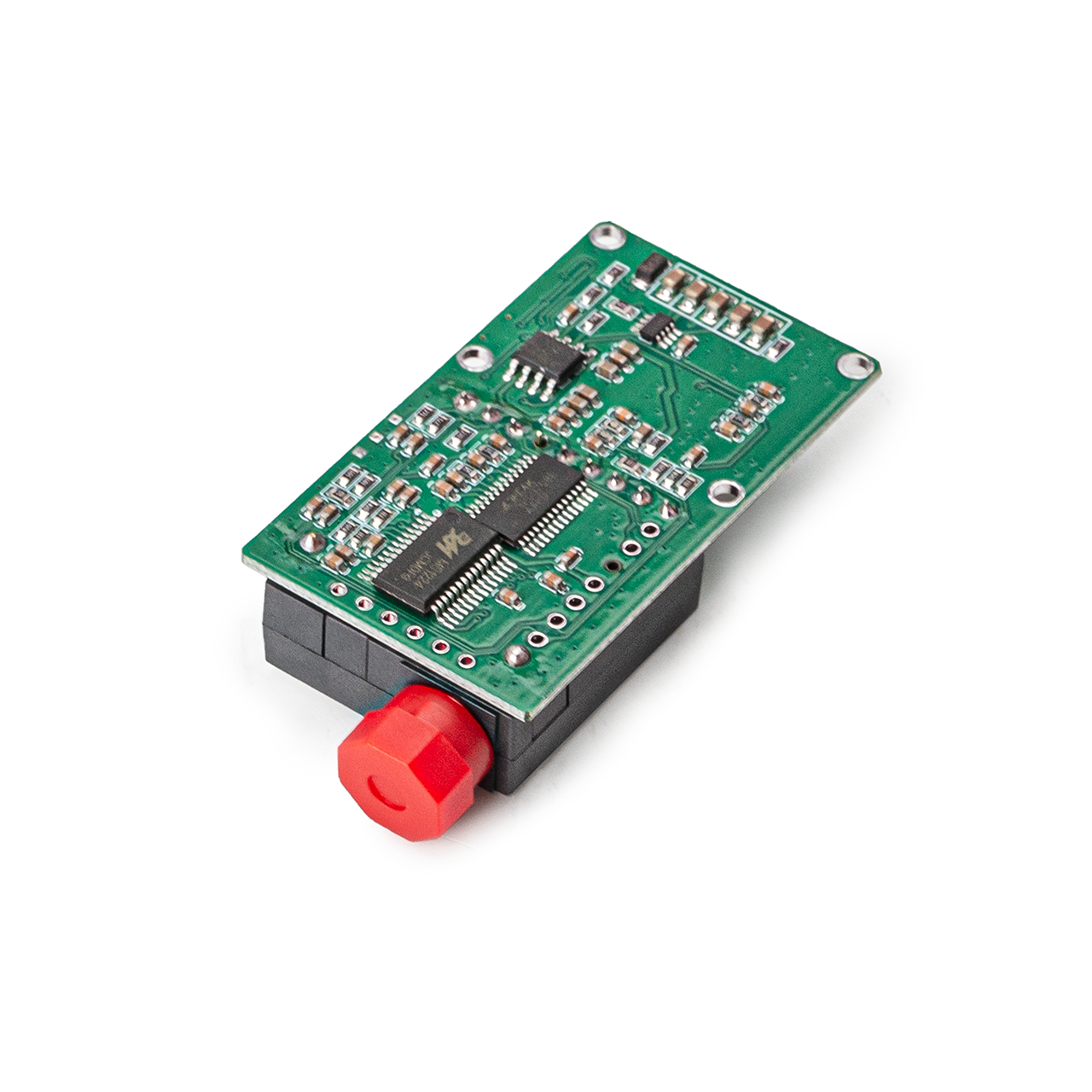

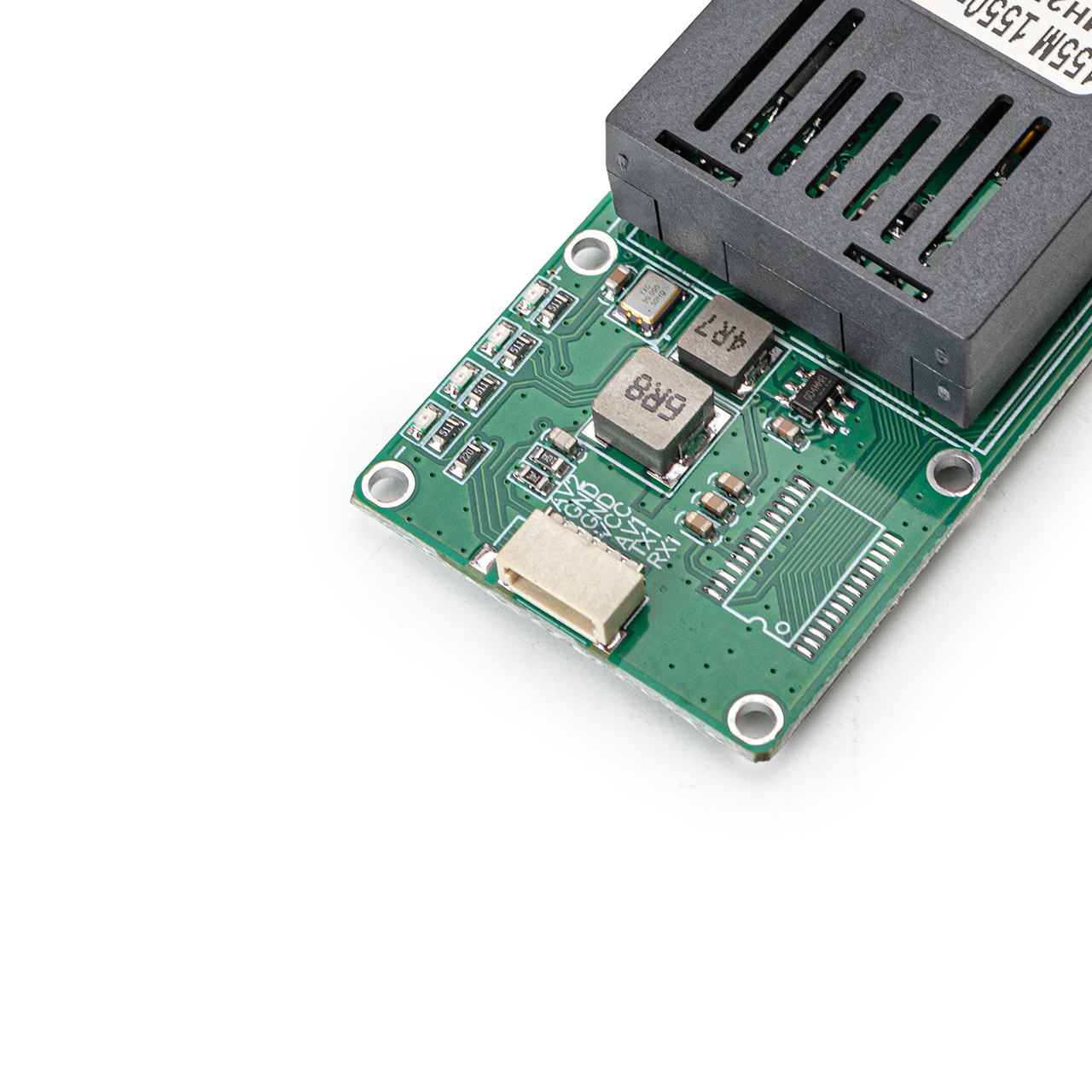

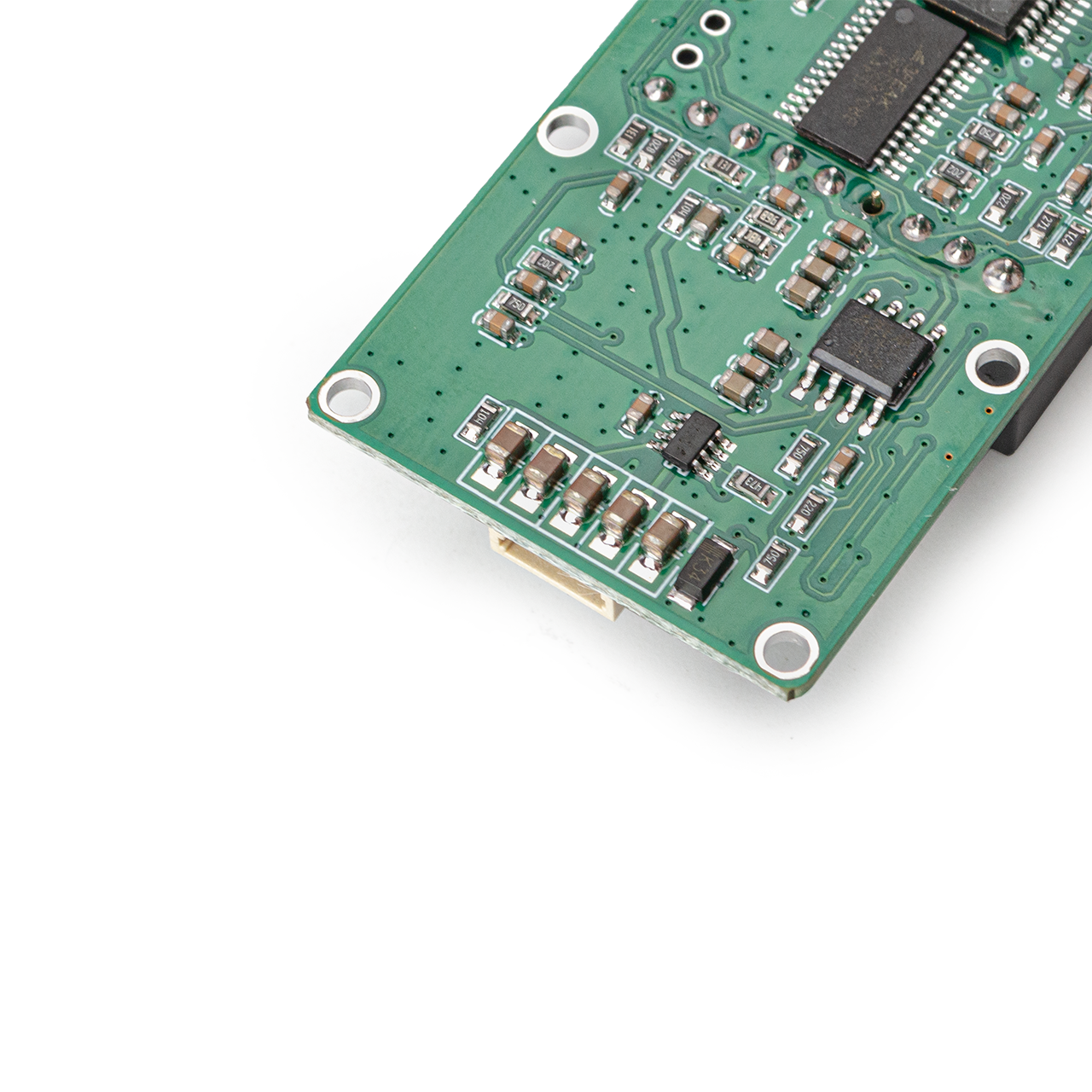

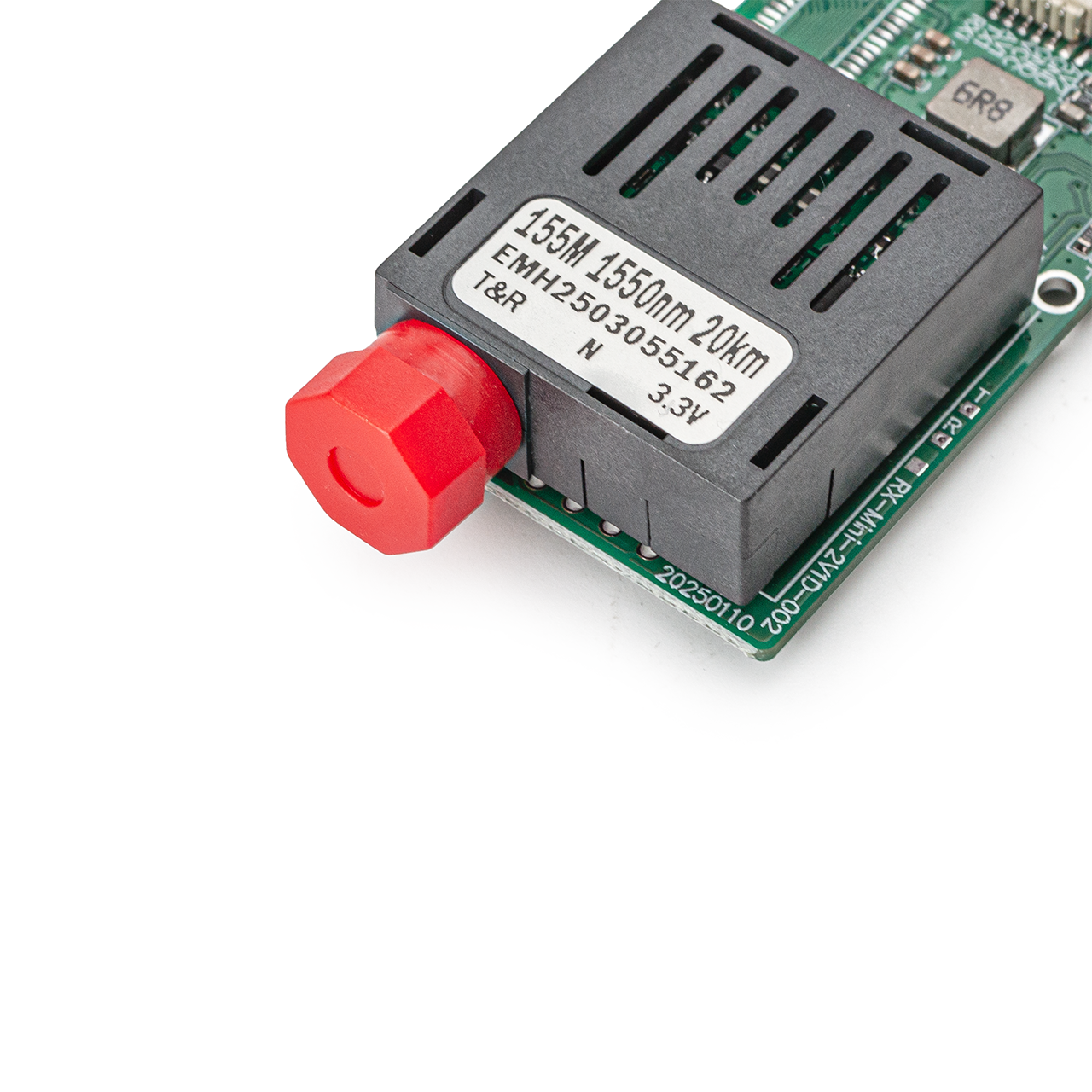

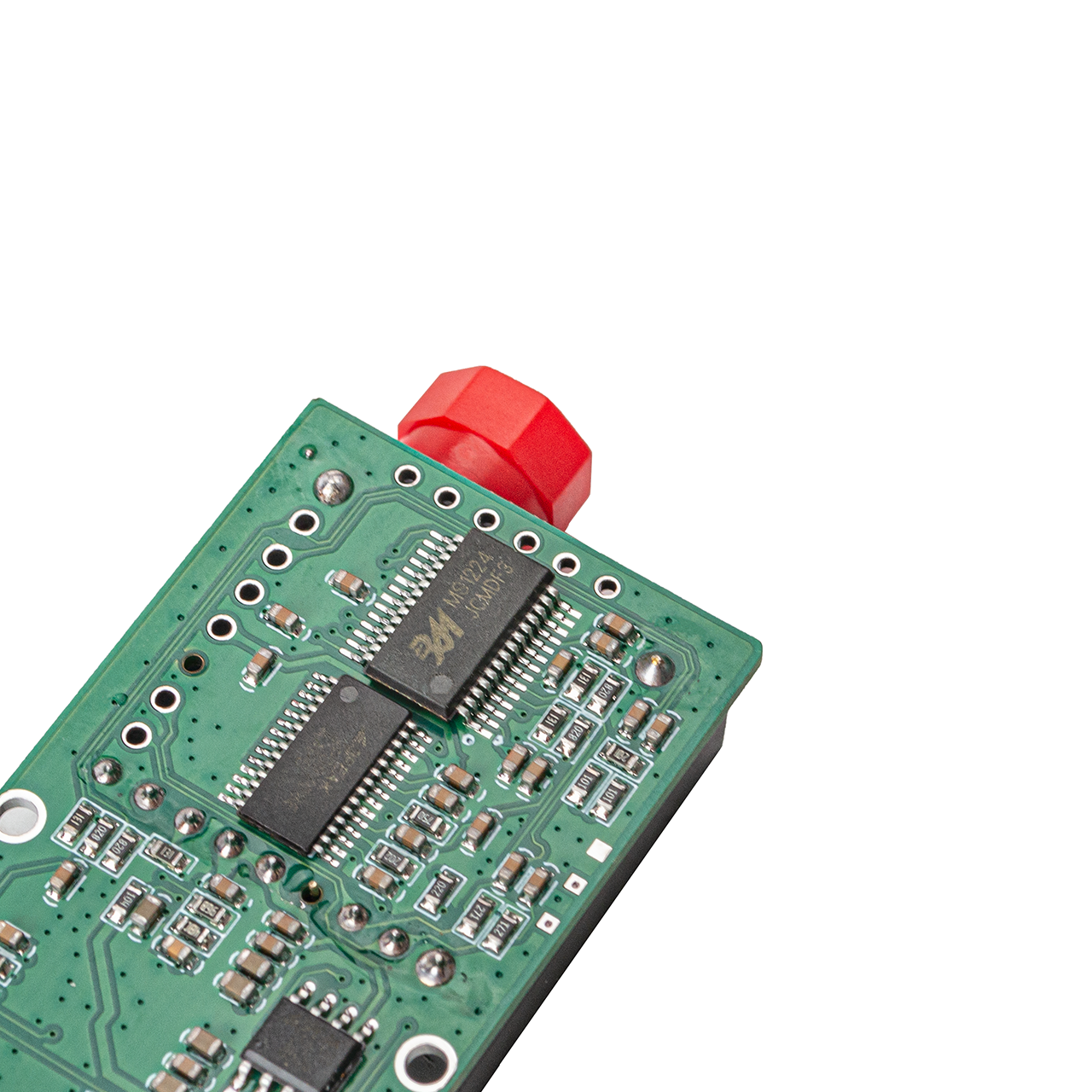

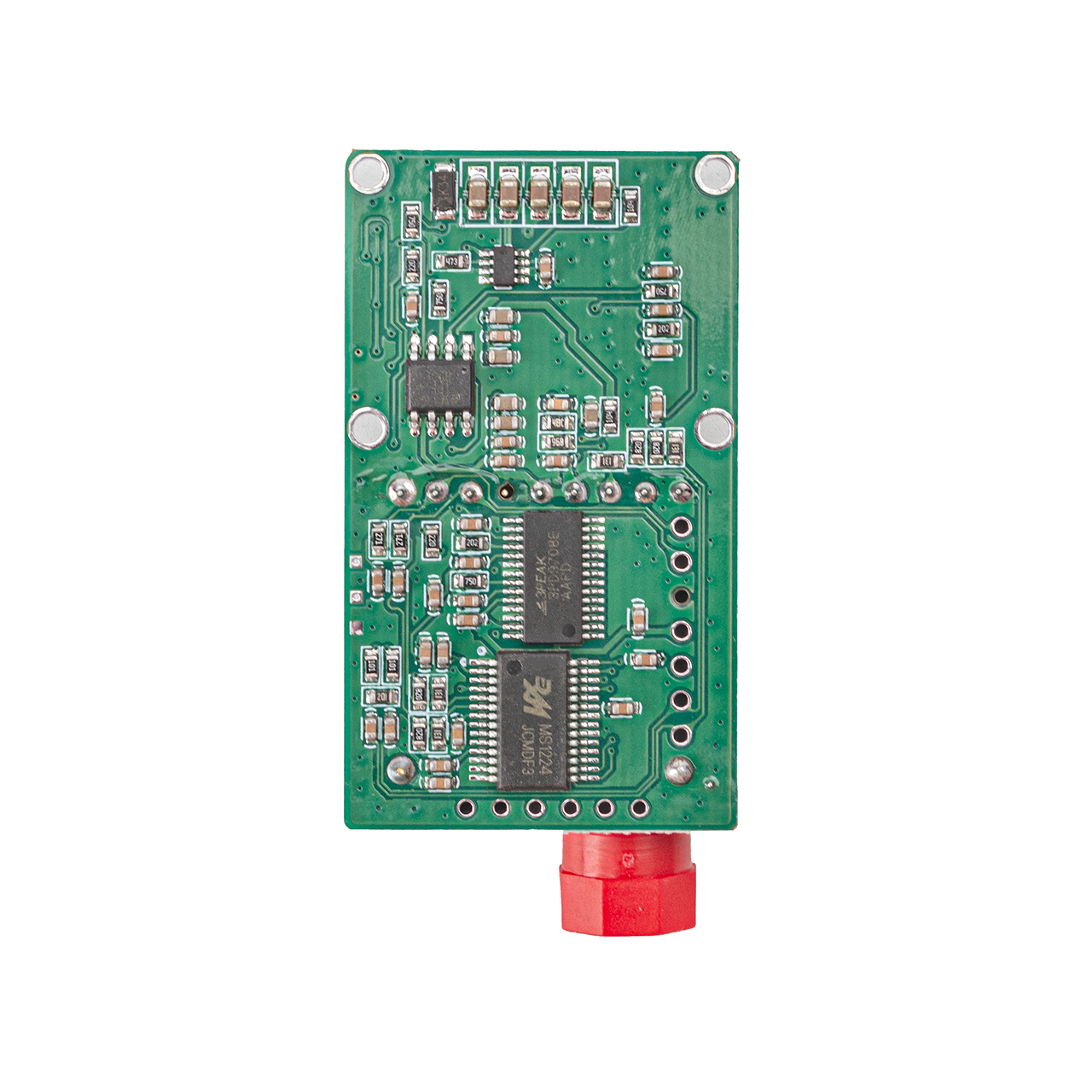

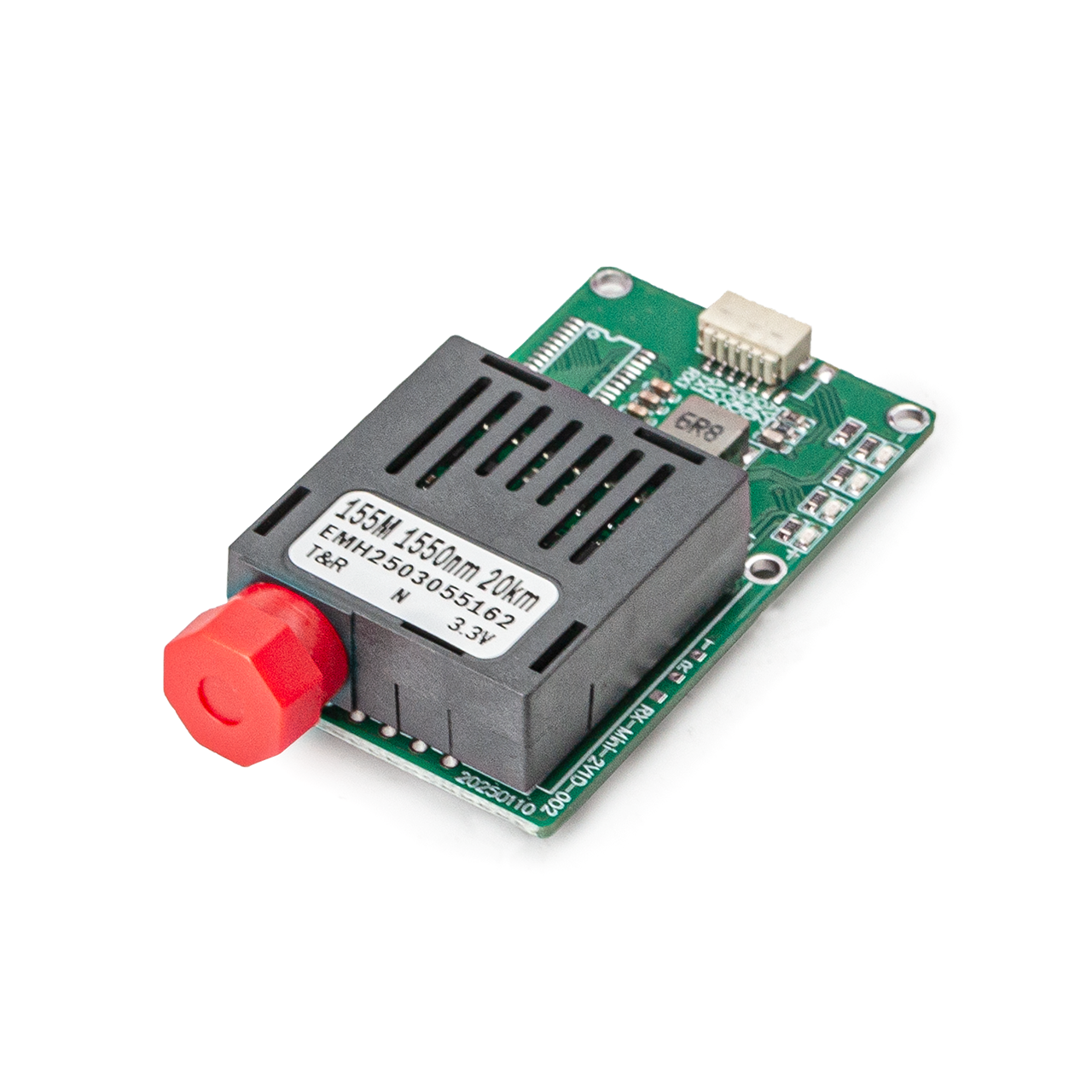

Pilotix ground station circuit board without cover and cables (20 km)
The Pilotix ground station circuit board without cover and cables is designed for seamless cooperation with the Pilotix optical communication system. It ensures stable and high-speed data transmission for drones, underwater ROVs and land-based robotic systems, even without radio communication.
This transceiver features a single-mode optical interface and supports bidirectional data transmission, making it ideal for applications that require low latency, high security, and interference-free connectivity.
Comes without a cover, making it ideal for developers and integrators who need maximum mounting flexibility.
Important notes:
- For reliable communication at distances of 5 km, 10 km or 15 km, we recommend choosing a transceiver with a range of up to 20 km. For communication systems with a range of 20 km and more, we recommend a transceiver with a range of 40 km.
- Pilotix optical communication modules are only compatible with transceivers of the same series. We do not guarantee compatibility nor are we responsible for correct operation when using devices from other series.
Specifications:
Optical Module
Device Name: Ground Unit 20km
Optical Interface: FC Interface
Optical Fiber Type: Single Mode - Single Fiber
Data Interface: SH1.0
Video Format: NTSC/PAL/SECAM
Data Direction: Bidirectional
Data Format: TTL/SBUS
Speed: 0~1Mbps
Wavelength Single Mode: 1550 (9/125 μm)
Transmission distance: single-mode fiber up to 20 km
Package includes:
1x Pilotix ground station circuit board without cover and cables (20 km)
