Motor T-Motor MN600711 AntigravityType 320KV
Engine Specifications

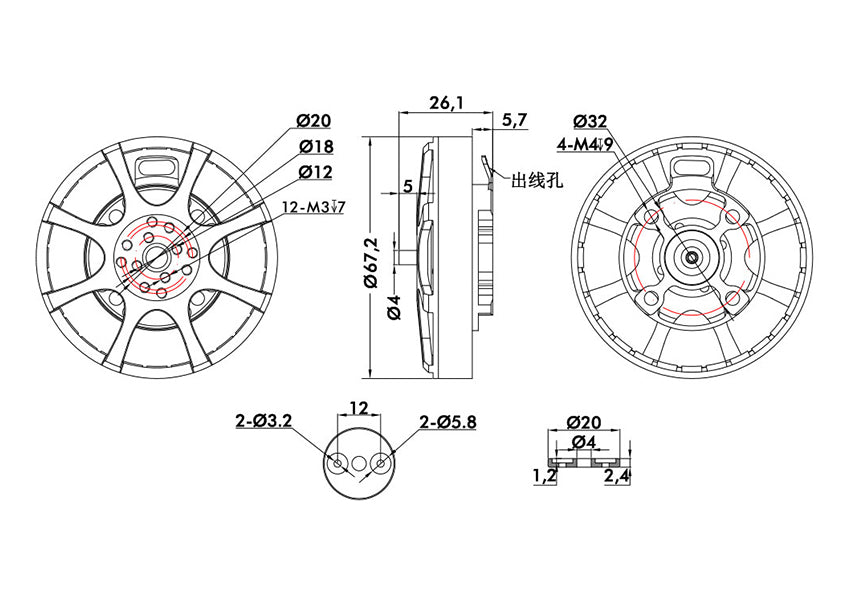

Dimensions
- Motor size: Φ67.2*26.1mm
- Shaft diameter: INSIDE 6mm / OUTSIDE 4mm
- Package size: 122*99*45.5mm
Materials and Construction
- Cable: Enamelled wire, 70mm
- Stator: Anti-corrosion treatment, resistance to high temperatures up to 180 °C
- Copper wire: Resistance to high temperatures up to 220 °C (level C)
- Magnet level: Resistance to high temperatures up to 150 °C (level E)
- Dynamic rotor balance: ≤15mg
- Bearing: Imported 696ZZ
Electrical parameters and Power
-
Model 320 KV
- KV value: 320
- Internal resistance: 47.5mΩ
- Quiet current (18V): 1.0A
- Nominal voltage (Lipo): 6S
- Peak current (180s): 44.2A
- Maximum power (180s): 1040W
- Motor weight (including cable): 161g
- Package weight: 182g
-
Isolation and Testing
- Coil insulation test: 500V
-
Package contents:
- 1× Engine

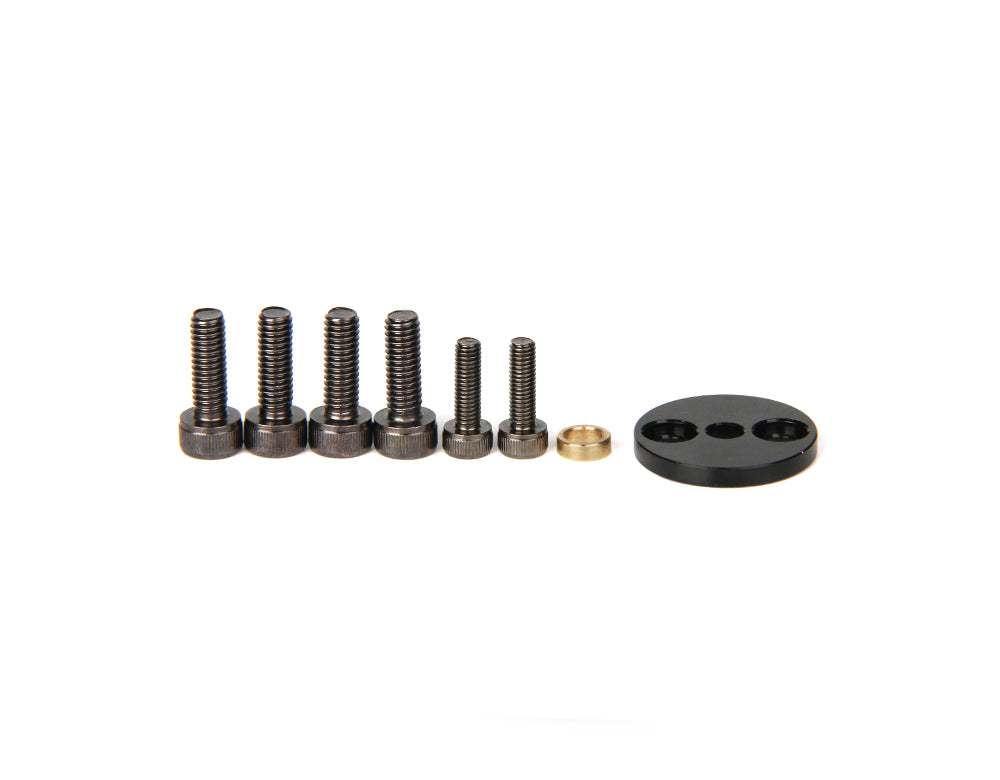

- 1× Bag with accessories
- Coil insulation test: 500V
