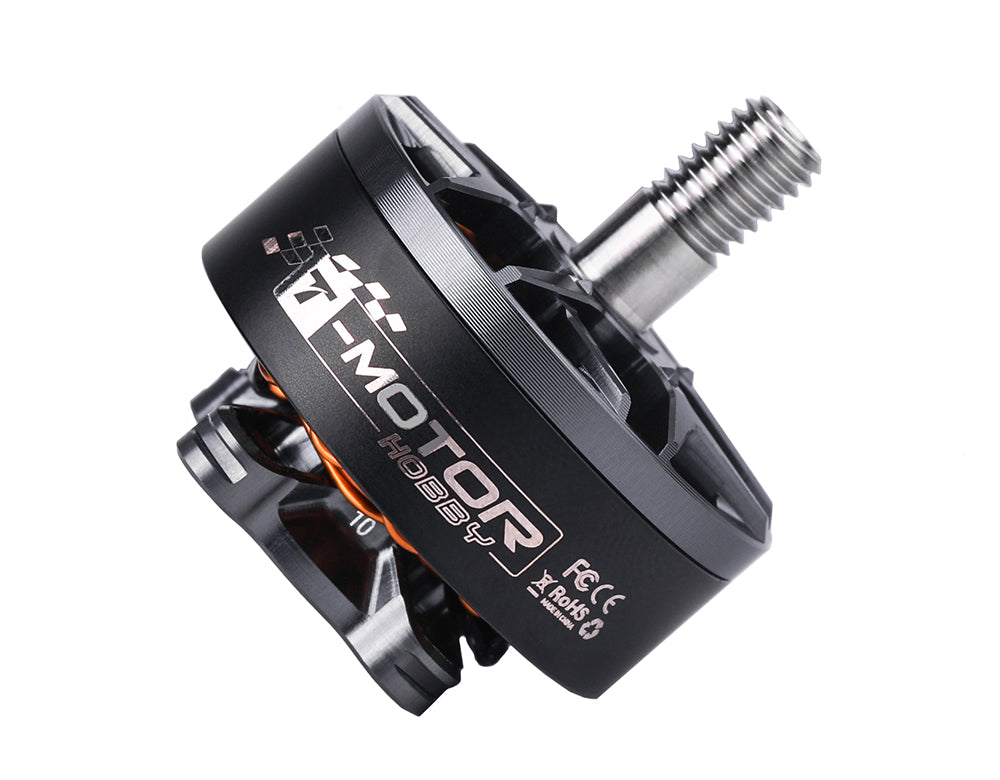

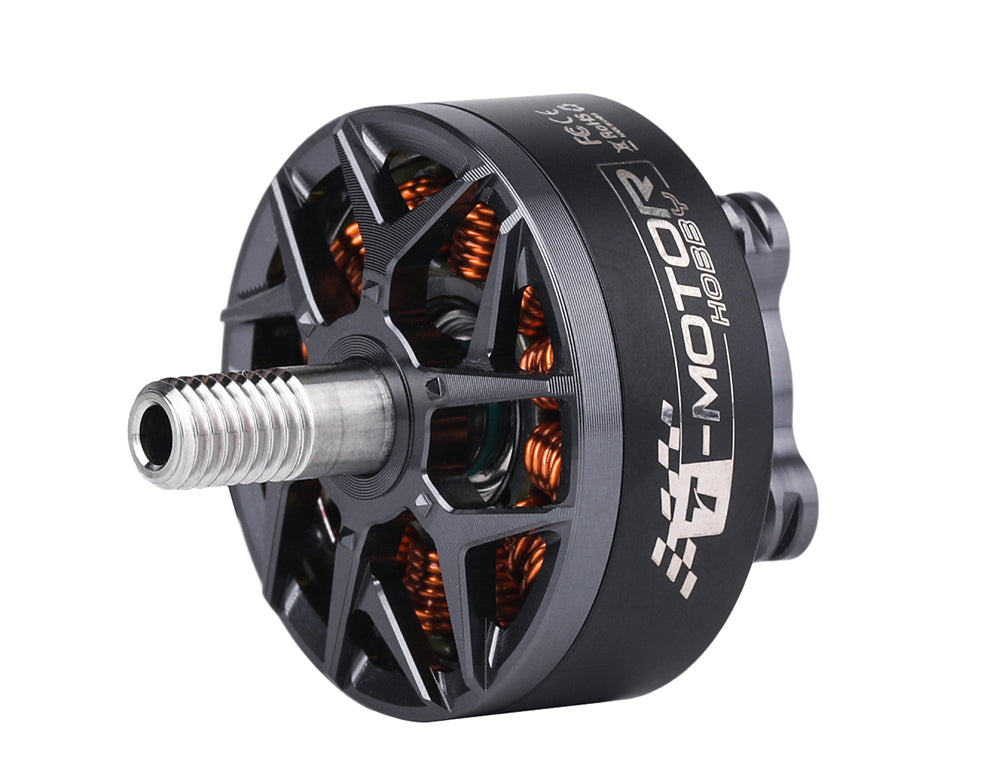

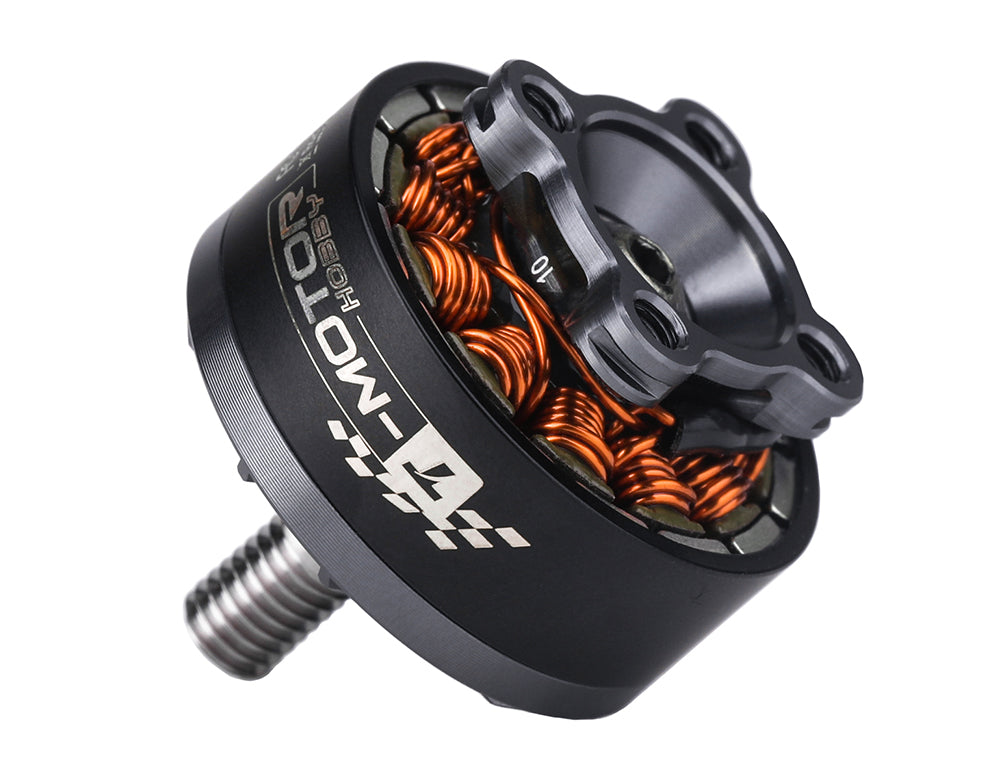

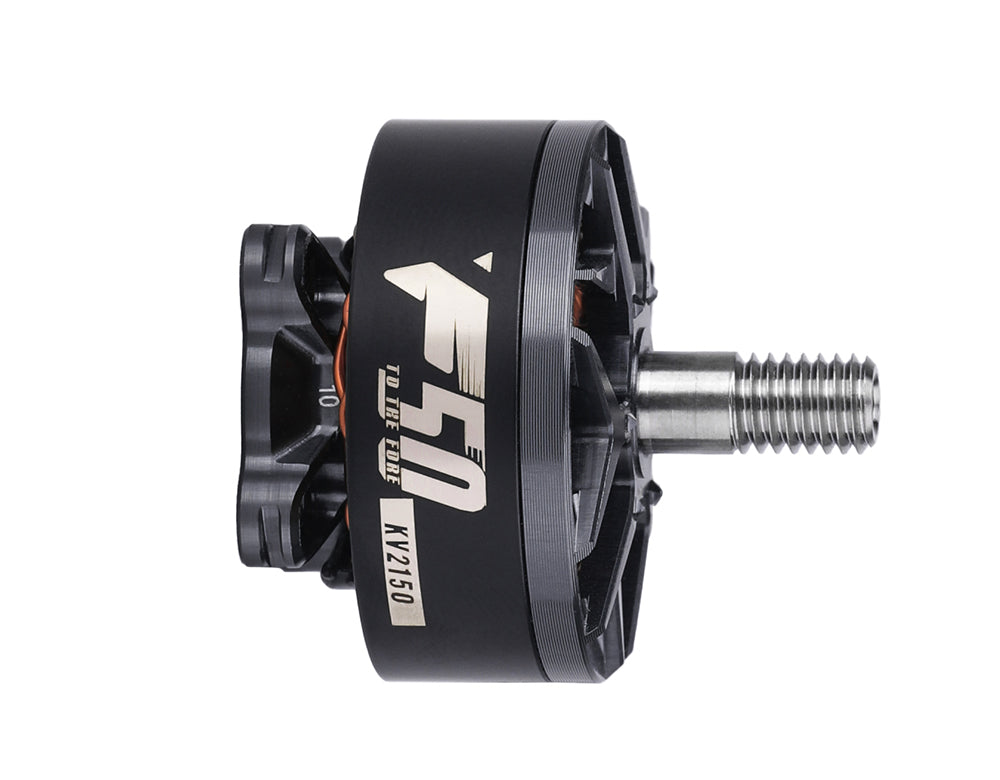

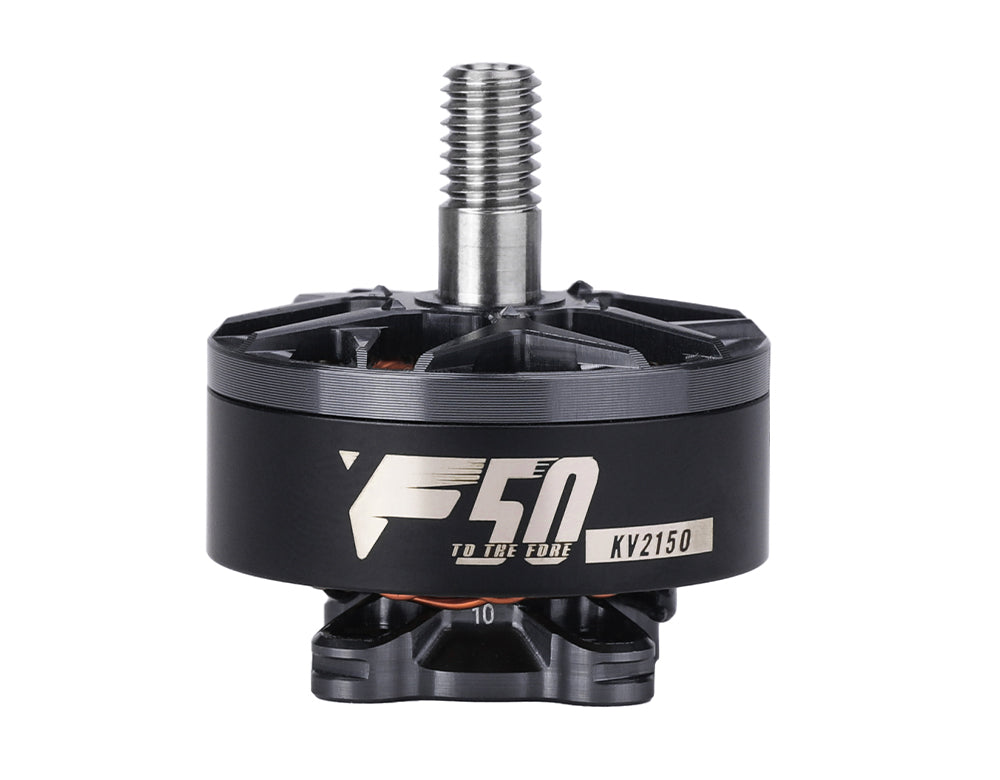

Motor T-Motor F50 2150KV T-Motor F50 2150KV is a high performance motor designed for racing drones. With its lightweight construction, excellent control options and robust thrust, it provides unmatched agility and performance for professional pilots and enthusiasts who want to dominate the competition. Features: - Lightweight design: The motor weighs only 28.56g (without cables), which greatly reduces the overall weight of the drone and increases the rotational inertia for better controllability. - Exceptional handling: High instant torque provides strong and precise power output, enabling quick acceleration and smooth throttle response for stable flights. - Racing accuracy: Captures every subtle movement of the stick and allows drones to maintain optimal flight position during sharp turns and tight maneuvers. - Full Throttle Performance: Maintains sufficient thrust at full throttle, providing amazing explosive performance while ensuring stability in straight and curved flight. Specifications - KV rating: 2150 - Maximum power: 1273 W - Nominal voltage (LiPo): 24V - Maximum pull: 2136g - No load current (10V): ≤1.6A - Internal resistance: 50mΩ - Peak current: 54.8A - Weight (without cable): 28.56g - Dynamic balance standards: ≤3mg - Shaft diameter: 5 mm - Screw diameter: Φ16-M3-4 - Package size: Φ68×35.0 mm - Package weight: 55 g - Motor dimensions: Φ27×29.5 mm - Configuration: 12N14P - Bearings: imported 684ZZ/MR84ZZ - Coil insulation test: 300 V withstand voltage test. - Lead: 20AWG × 150mm - Propeller adapter shaft thread: M5 × 10.75 mm The package contains: - 1 x T-Motor F100 1350KV - 1 x bag with screws
