Motor T-Motor AT7224 KV160

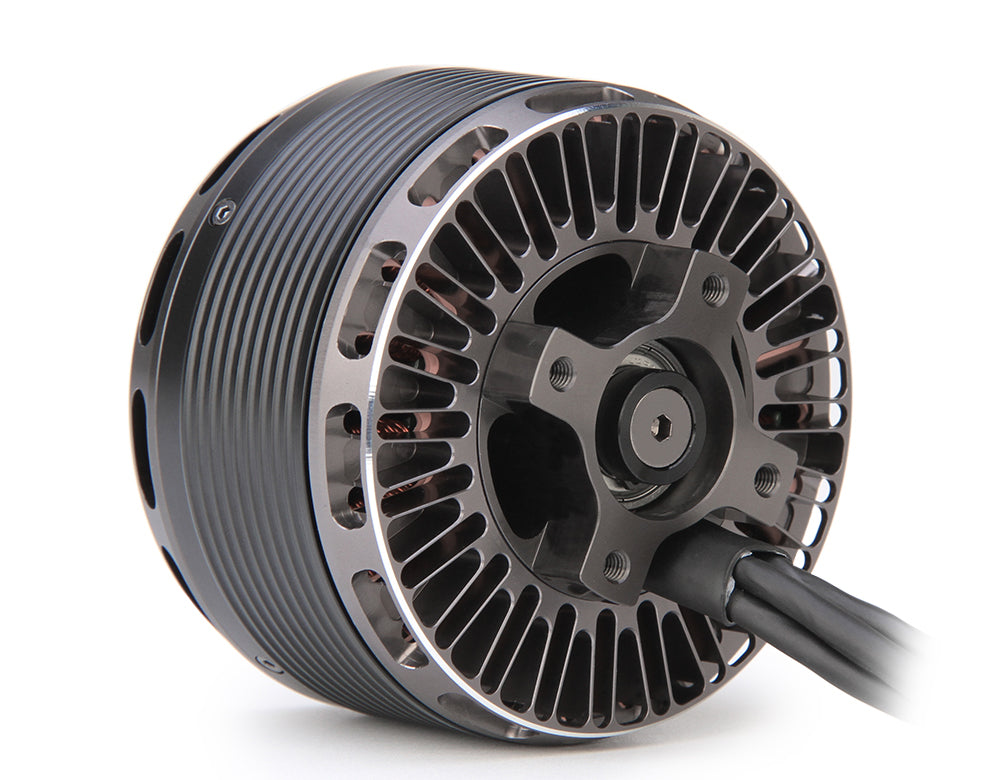

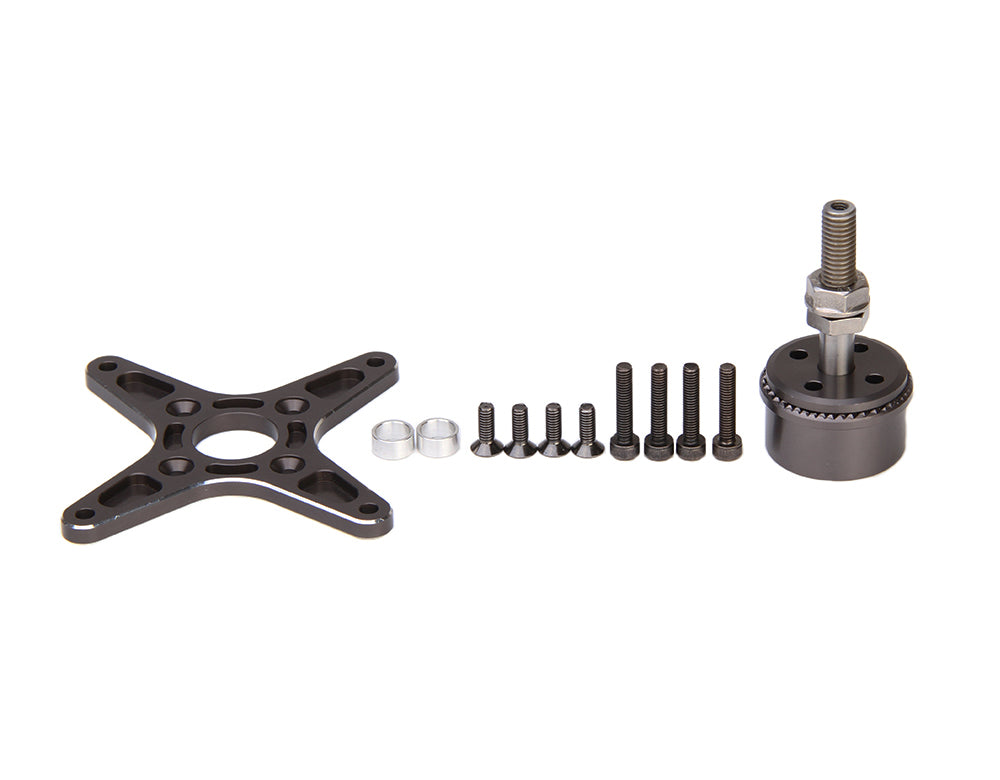

The AT7224 40CC KV160 long shaft motor is designed for larger outdoor fixed-wing aircraft, providing robust performance with a maximum power of 4800W and a thrust of up to 17.72kg. Its design features a removable propeller adapter that allows for universal mounting options suitable for both fixed-wing and multicopter configurations. High engine torque and efficient heat dissipation ensure reliable operation during longer flights.
Specifications:
Model: KV160 with long shaft
Weight (incl. cable): 780g

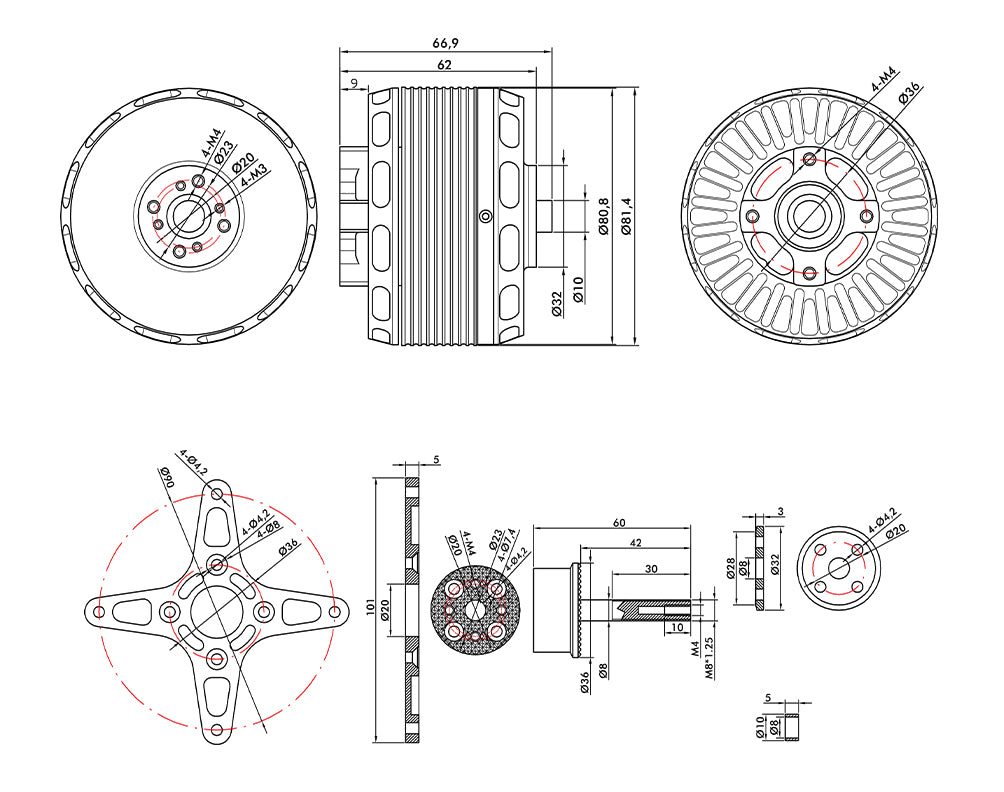

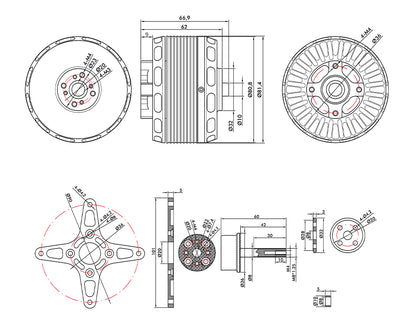

Motor dimensions: Φ81.4*66.9mm
Internal resistance: 24mΩ
Power cable: Enameled wire 100mm
Configuration: 24N22P
Shaft diameter: 10mm
Rated voltage (Lipo): 10-12S
No load current (10V): 3.1A
Peak current(180s): 105A
Max. Power(180s): 4800W/12S
The package contains:
1x motor T-Motor AT7224 KV160
