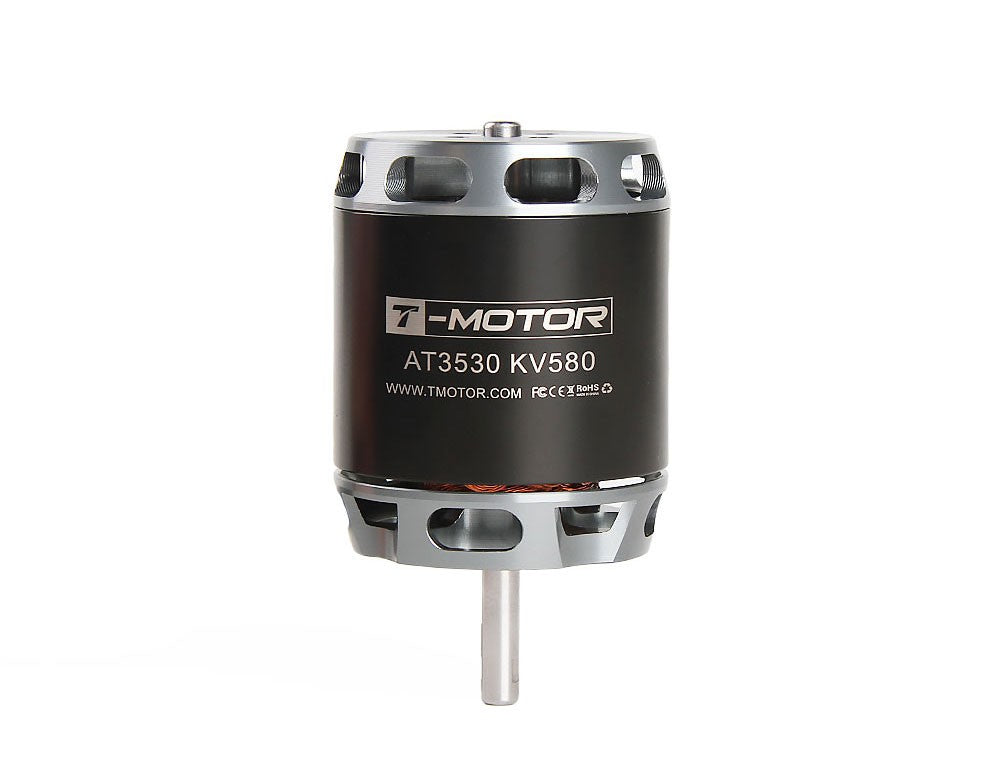

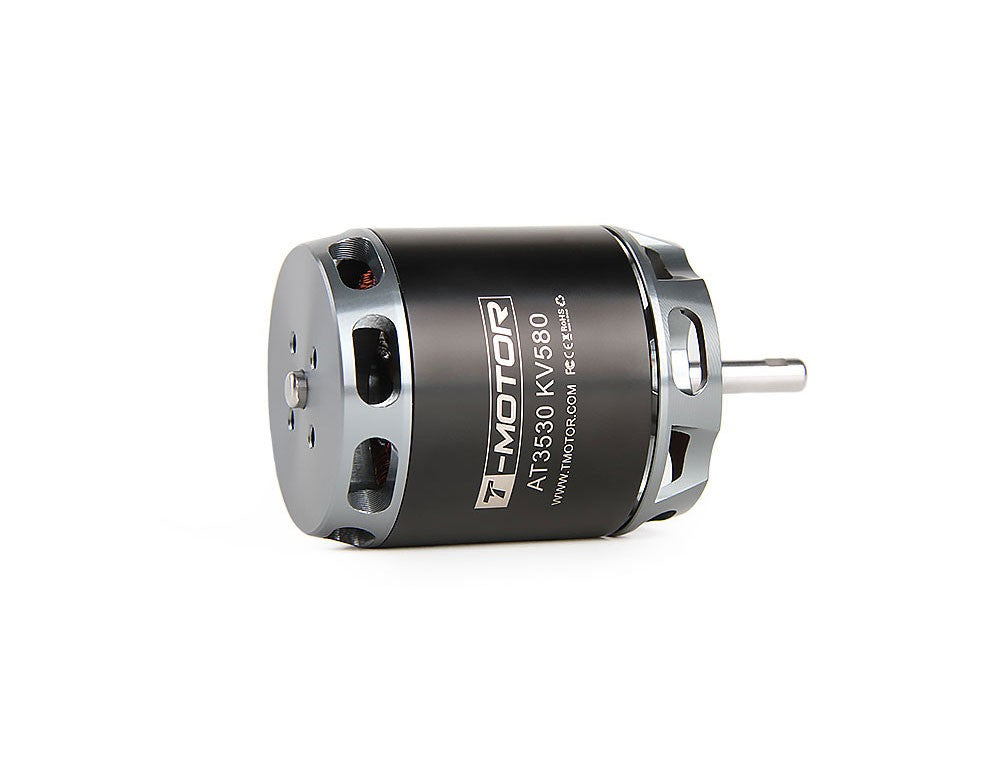

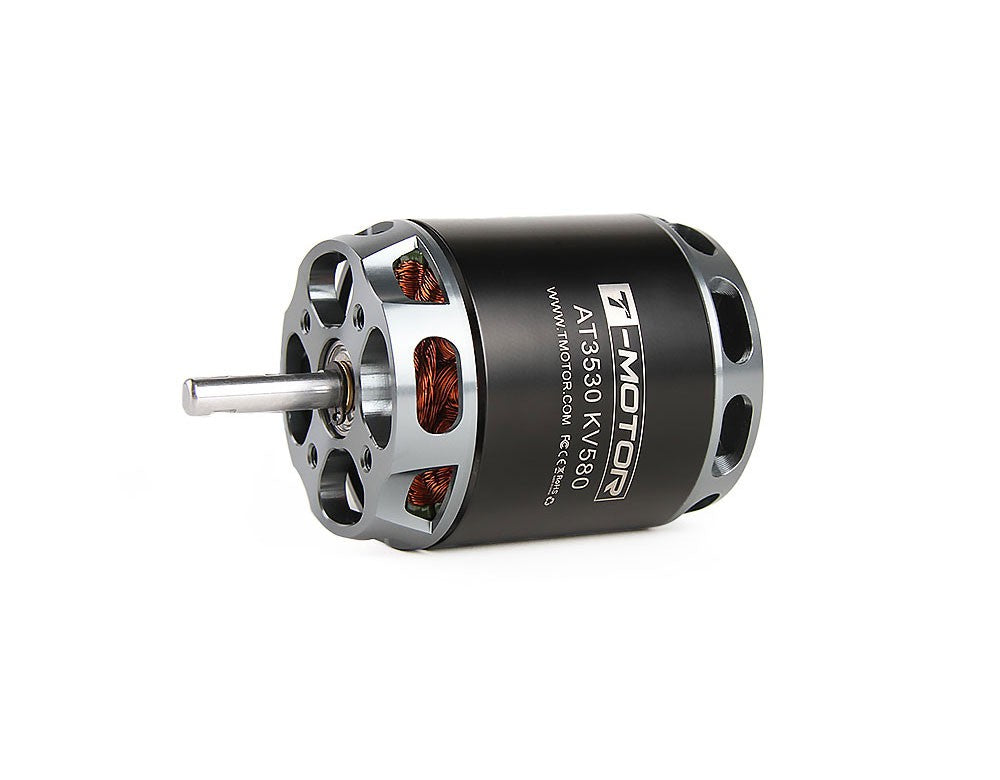

    Motor T-Motor AT3530 KV580

T-MOTOR AT3530 KV580 - high-performance AC motor designed for fixed-wing UAVs weighing 2.2-2.4 kg. Its efficient cooling system ensures stable operation under heavy loads. It weighs 298g and provides a maximum pull of 4.8kg. Triple bearing design increases durability and efficiency. Supports 4-6S LiPo, recommended with AT115A ESC.

Specifications:

Test item: Test item: Long shaft KV580
Weight (incl. cable): 298g

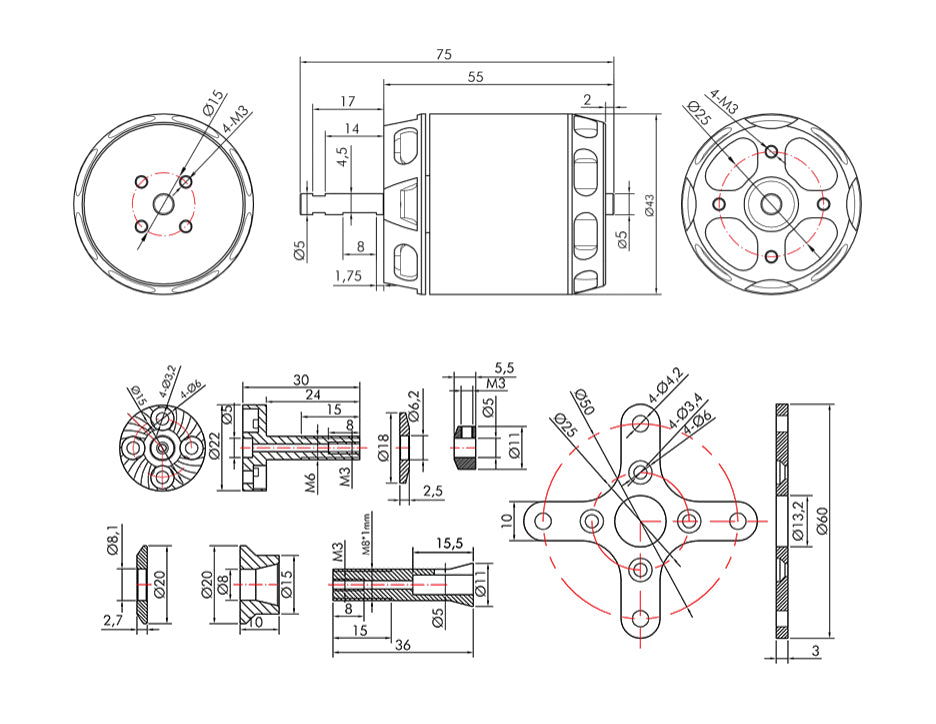

Motor dimensions: Φ43*75mm
Internal resistance: 18 mΩ
Power cable: 100 mm
Configuration: 12N14P
Shaft diameter: IN: 5 mm, OUT: 5 mm
Rated voltage (Lipo): 4-6S
No load current (10V): 1.9A
Peak current (180s): 65A
Max. Power (180s): 1400W

The package contains:
1x motor T-Motor AT3530 KV580

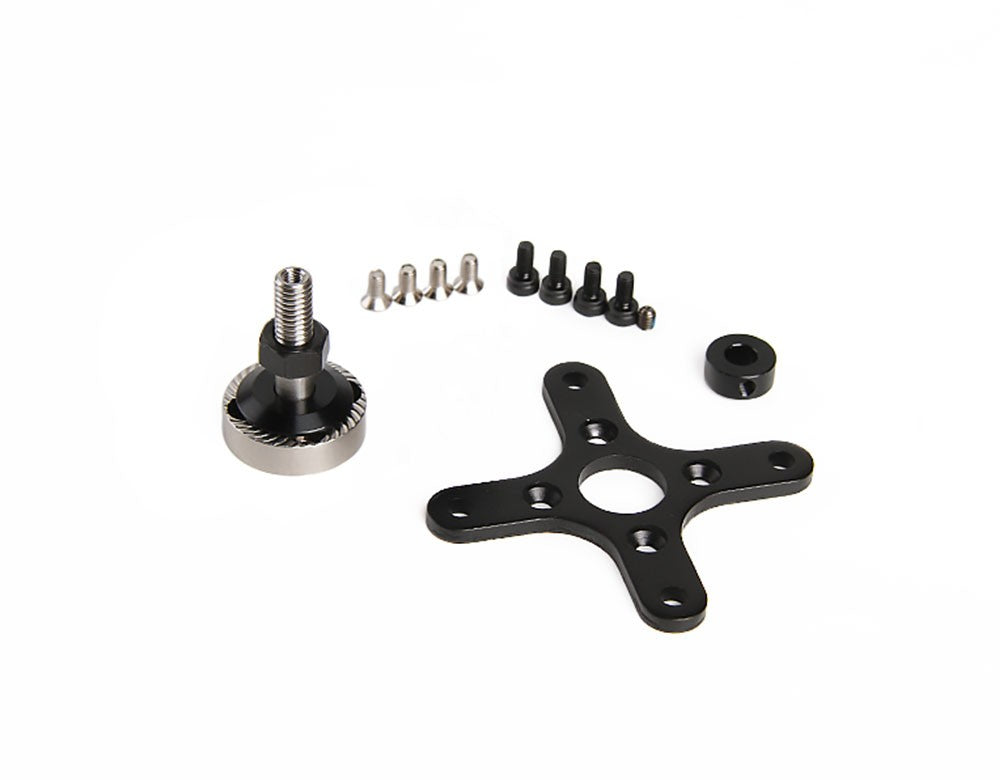

1x hardware pack
