    Motor T-Motor AT3520 KV720

The T-MOTOR AT3520 is a powerful and reliable AC motor designed for fixed-wing UAVs weighing 1.8-2.0 kg. Its efficient cooling system and high heat resistance ensure stable performance under heavy loads. It weighs just 221g and provides a maximum pull of 4.3kg. Triple bearing design increases durability and efficiency. Supports 4-6S LiPo, recommended with T-Motor T13*6.5 propeller and AT 115A ESC.

Specifications:

Test subject: Long shaft KV720
Weight (incl. cable): 219g

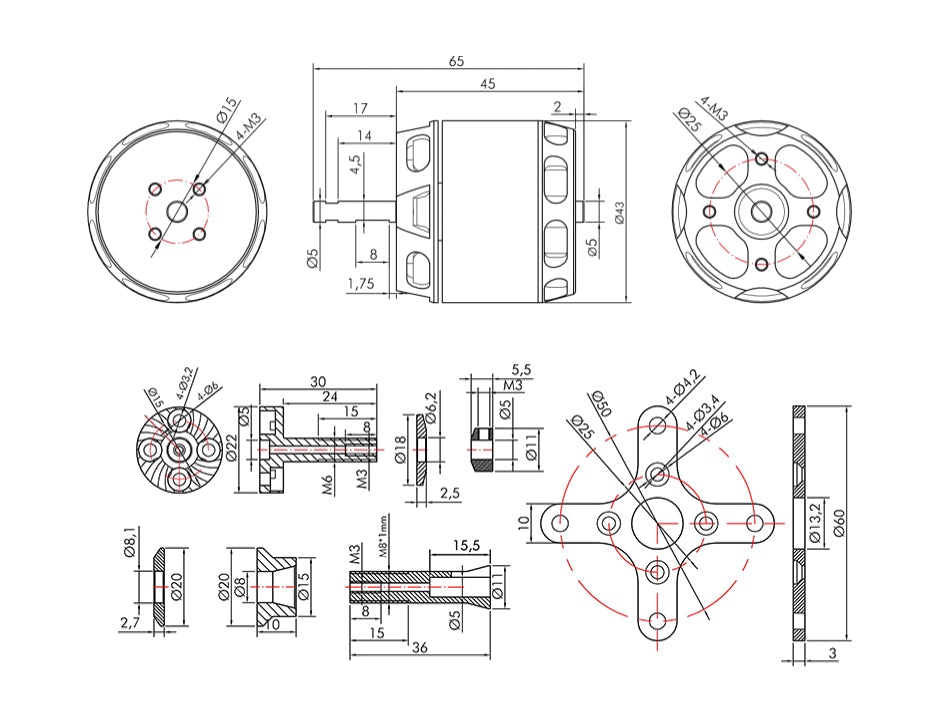

Motor dimensions: Φ43*65mm
Internal resistance: 20 mΩ
Power cable: Enameled wires 100mm
Configuration: 12N14P
Shaft diameter: IN: 5 mm, OUT: 5 mm
Rated voltage (Lipo): 4-5S
No load current (10V): 1.6A
Peak current (180s): 70A
Max. Power (180s): 1300W

The package includes:
1x motor T-MOTOR AT3520

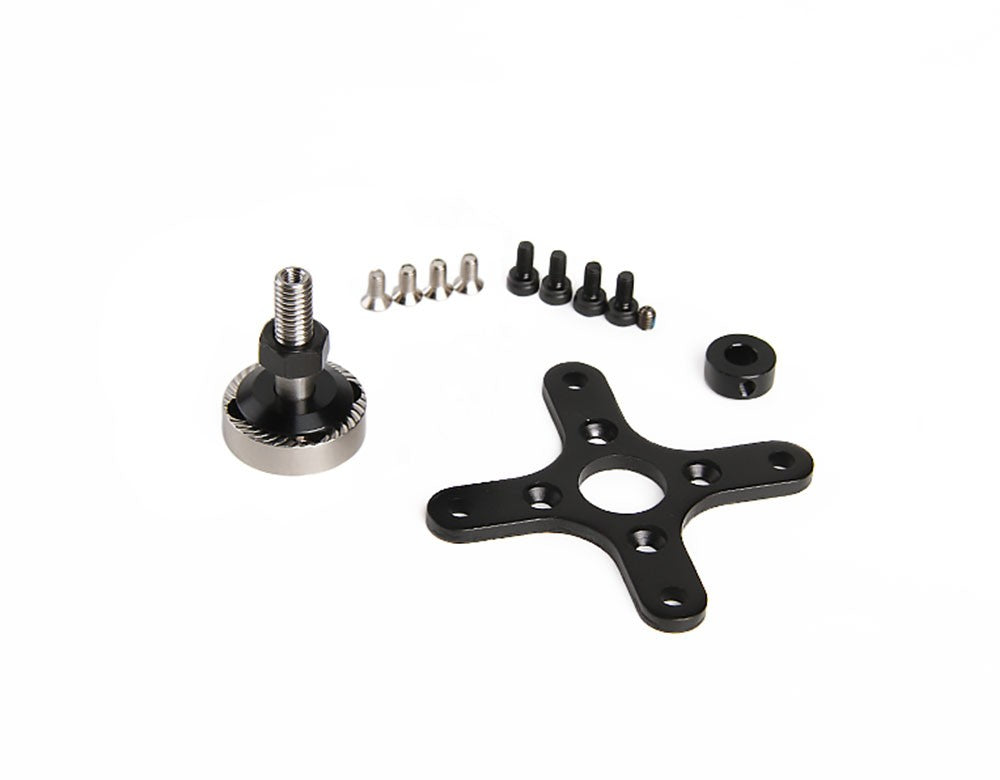

1x hardware pack
