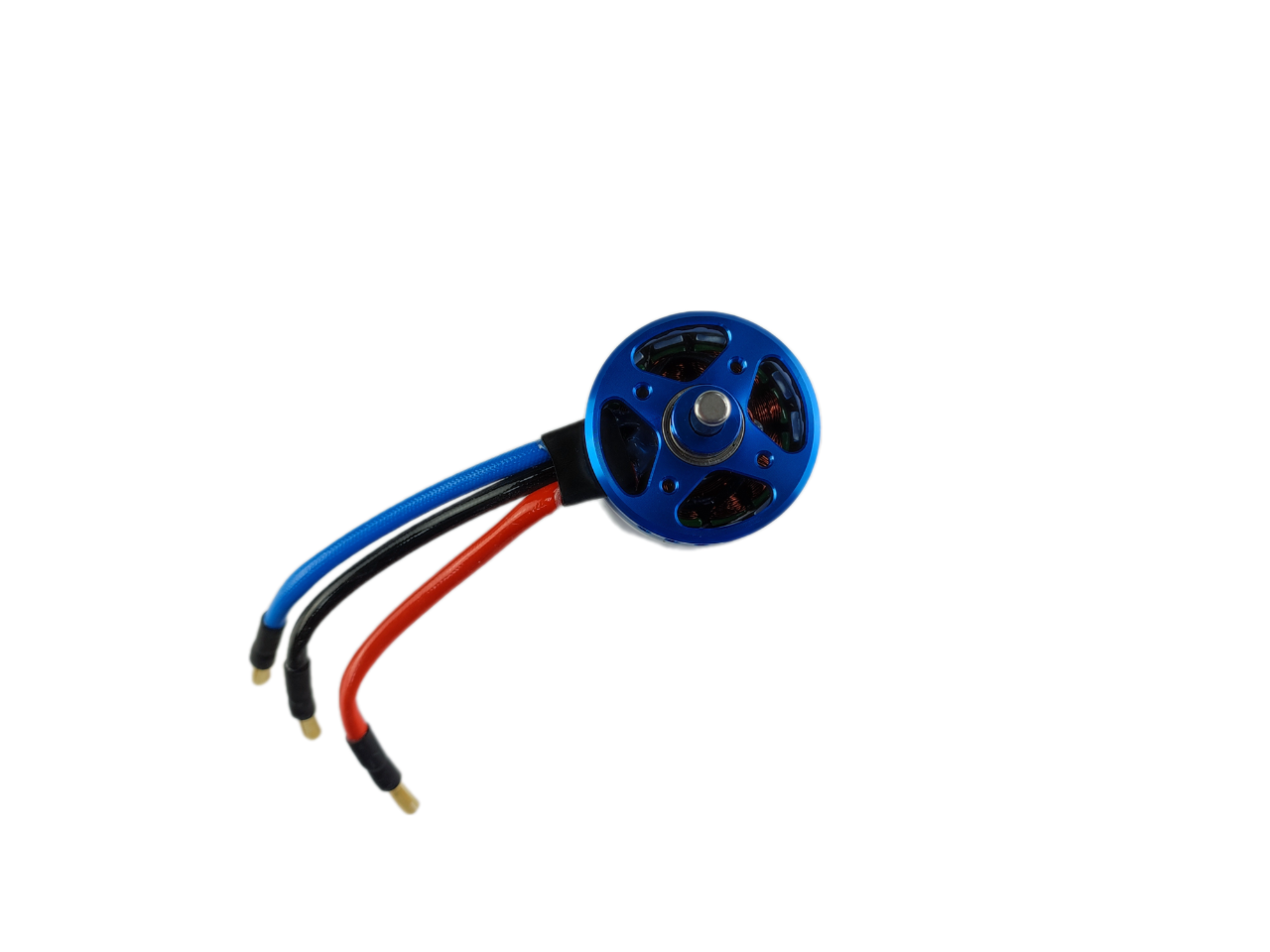

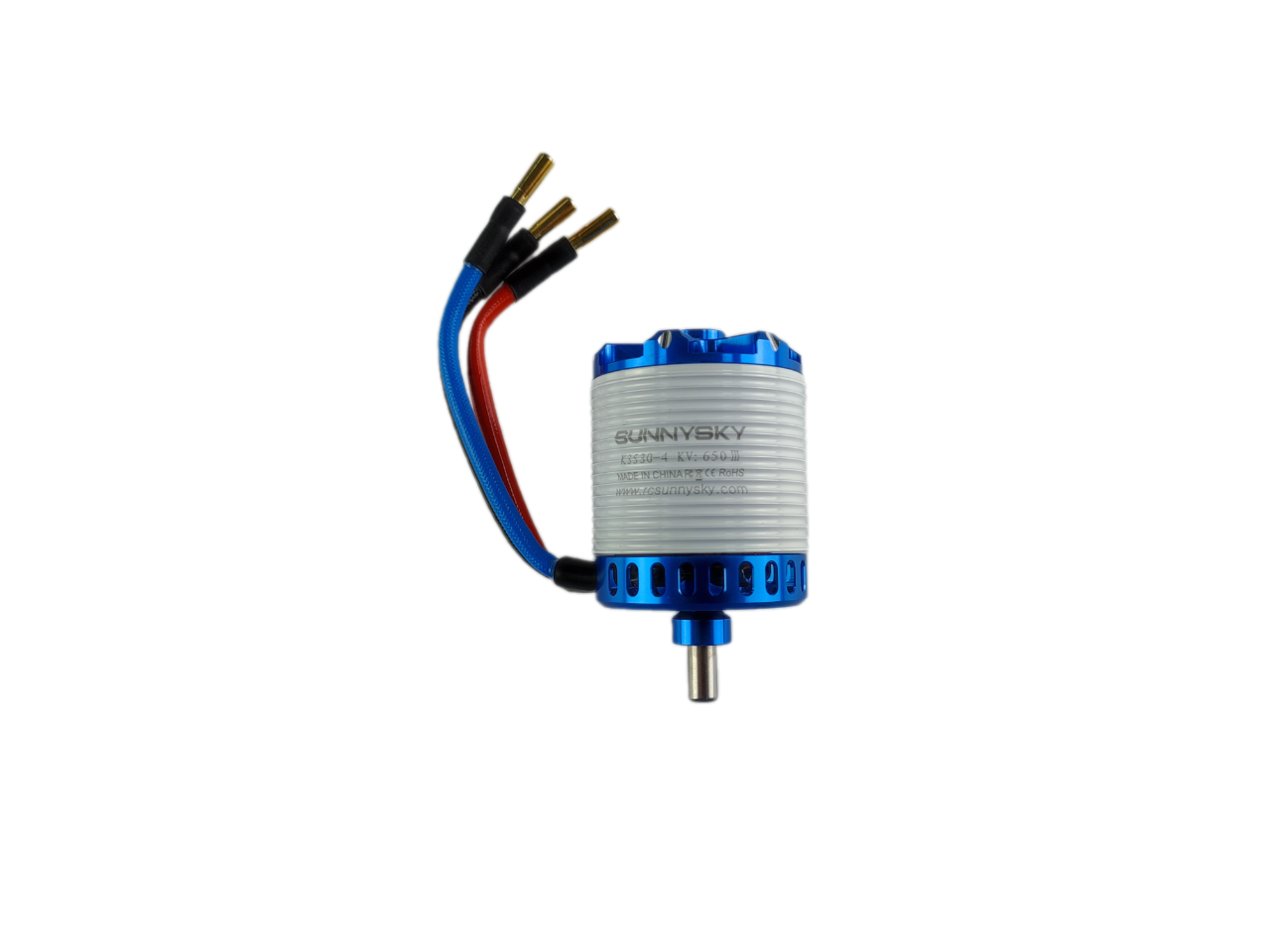

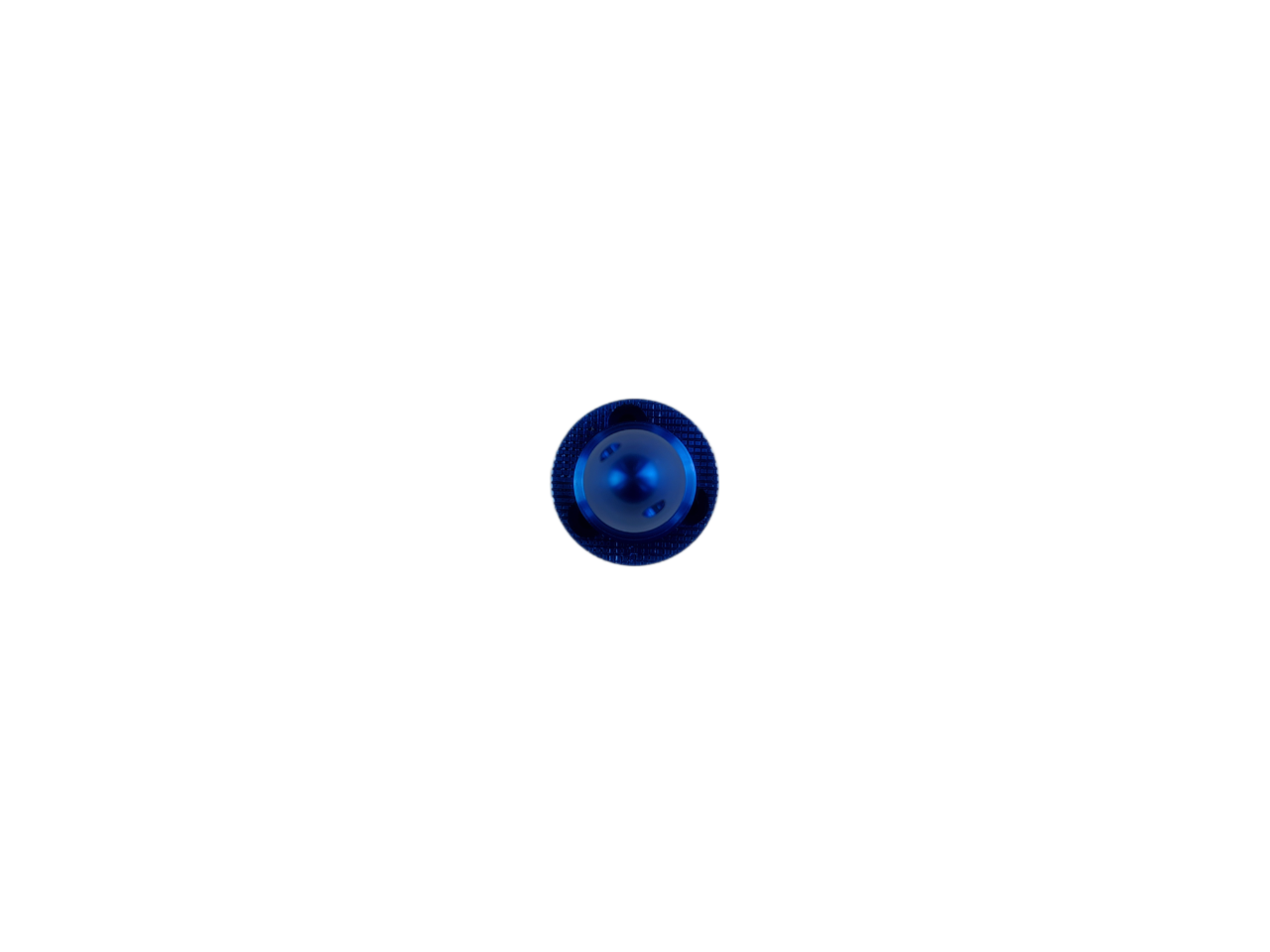

SunnySky V3 X3530 650KV motor
SunnySky X3530-III 650KV is a powerful AC motor designed for drones and model airplanes. With a power of 2310W and an operating voltage of 5-6S, it provides reliable performance even under demanding conditions. The lightweight 305g motor with low internal resistance of 11.3mΩ is ideal for 12-14 inch propellers. It supports a maximum current of 110A for 30 seconds and it is recommended to use controllers (ESC) with a power of 80-120A. A great choice for those looking for a balance between performance, efficiency and durability.
Specifications:
- Engine model: X3530-III
- KV: 650KV
- Number of stator/rotor poles: 12N14P
- Internal resistance: 11.3 mΩ
- Motor size: φ42.5 x 55mm
- Shaft diameter: 5.0 mm
- Cable: 20AWG 110mm
- Motor weight (including cable): 305 g
- Operating voltage: 5-6S
- No load current: 2A/10V
- Maximum continuous power: 2310W
- Maximum continuous current: 110A/30s
- Recommended controller (ESC): 80-120A
- Recommended propeller sizes: 6S (APC12х8/EOLO13х7) 5S (EOLO14х4/14х8)

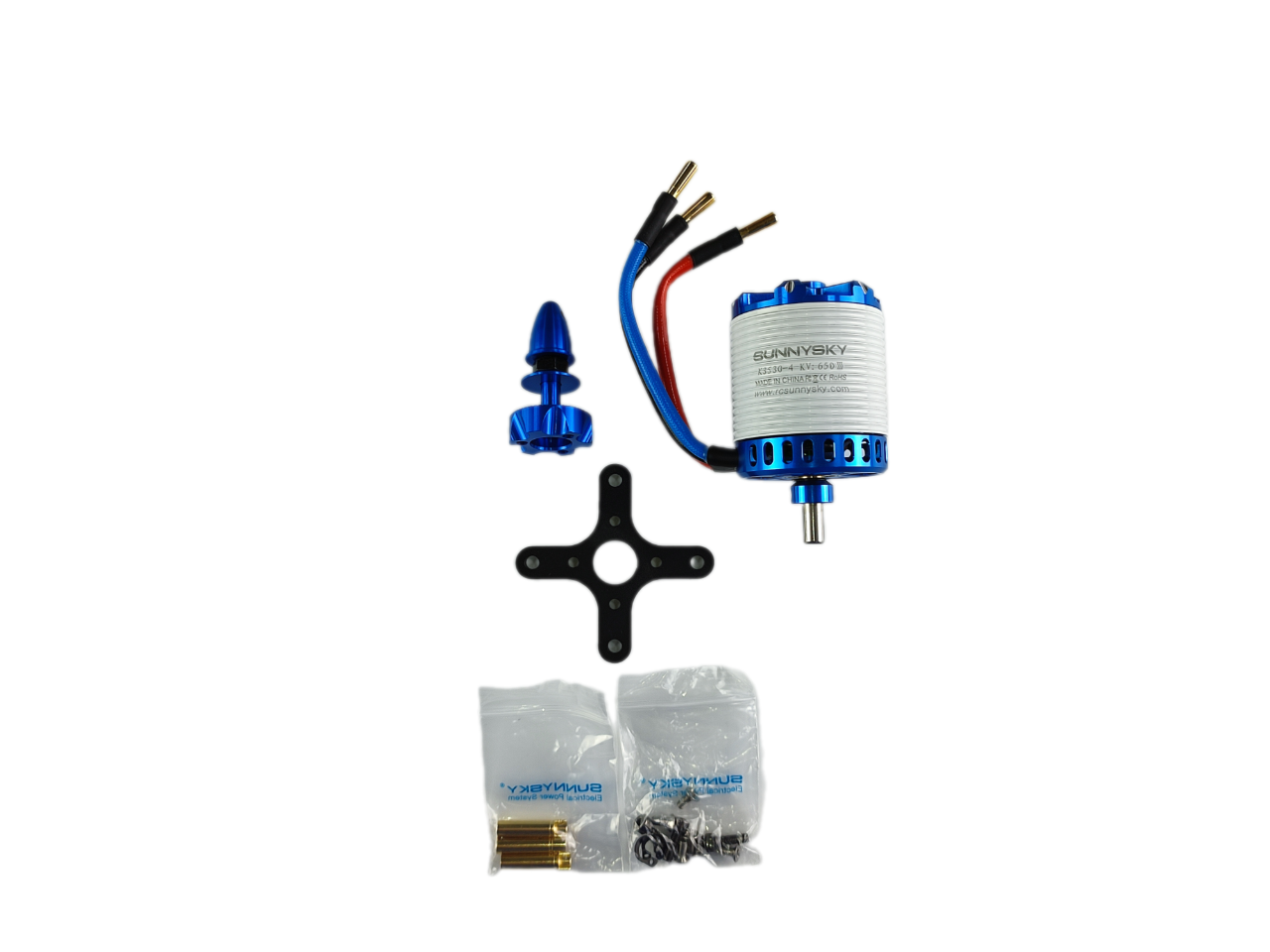

The package contains:
- 1x Motor SunnySky V3 X3530 650KV
