Code: SKU:4181
Motor SunnySky V3 X3520 780KV
Motor SunnySky V3 X3520 780KV
Brand: SunnySky
Couldn't load pickup availability
- Description
- Related Files
- Discussion

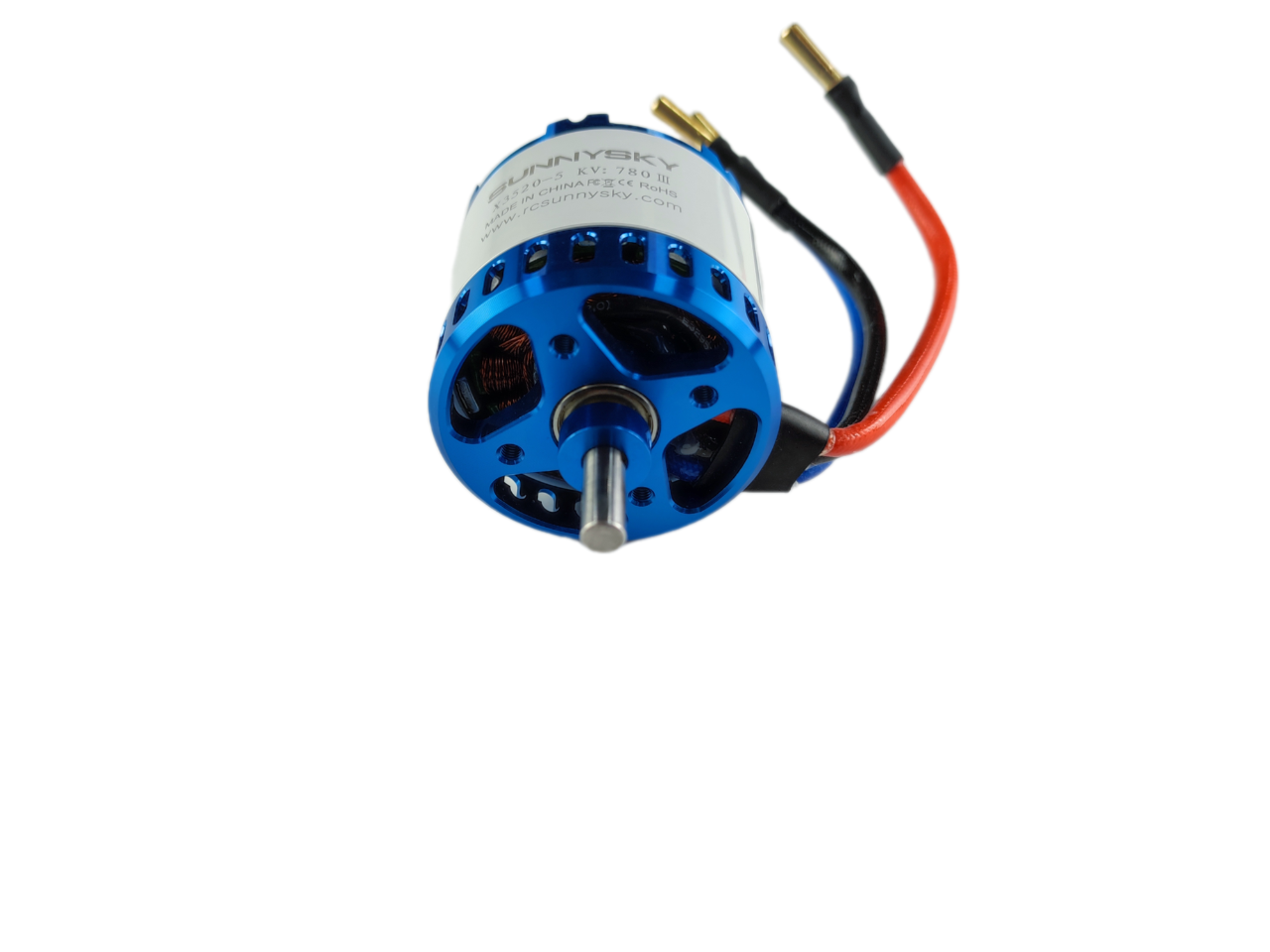

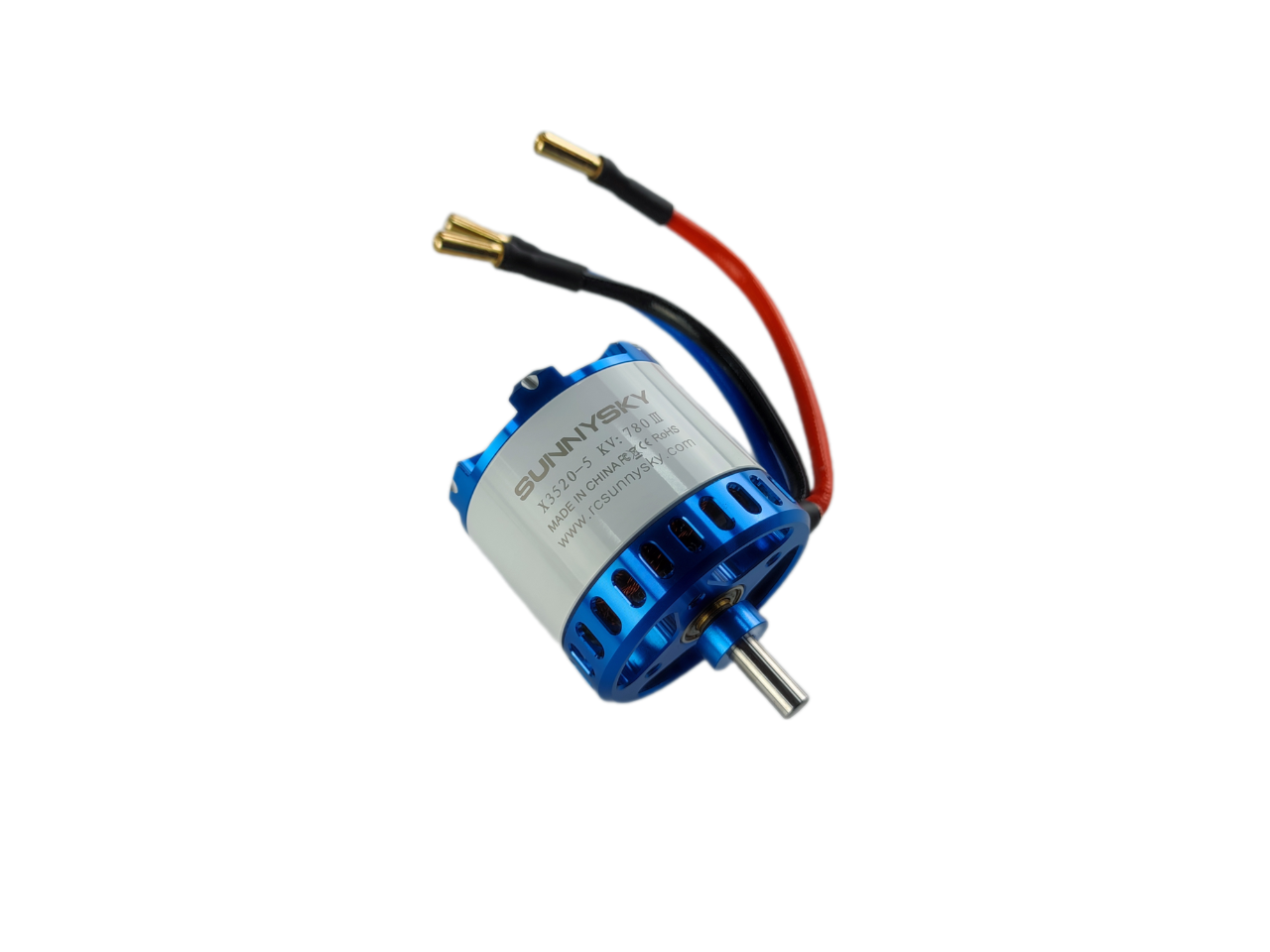

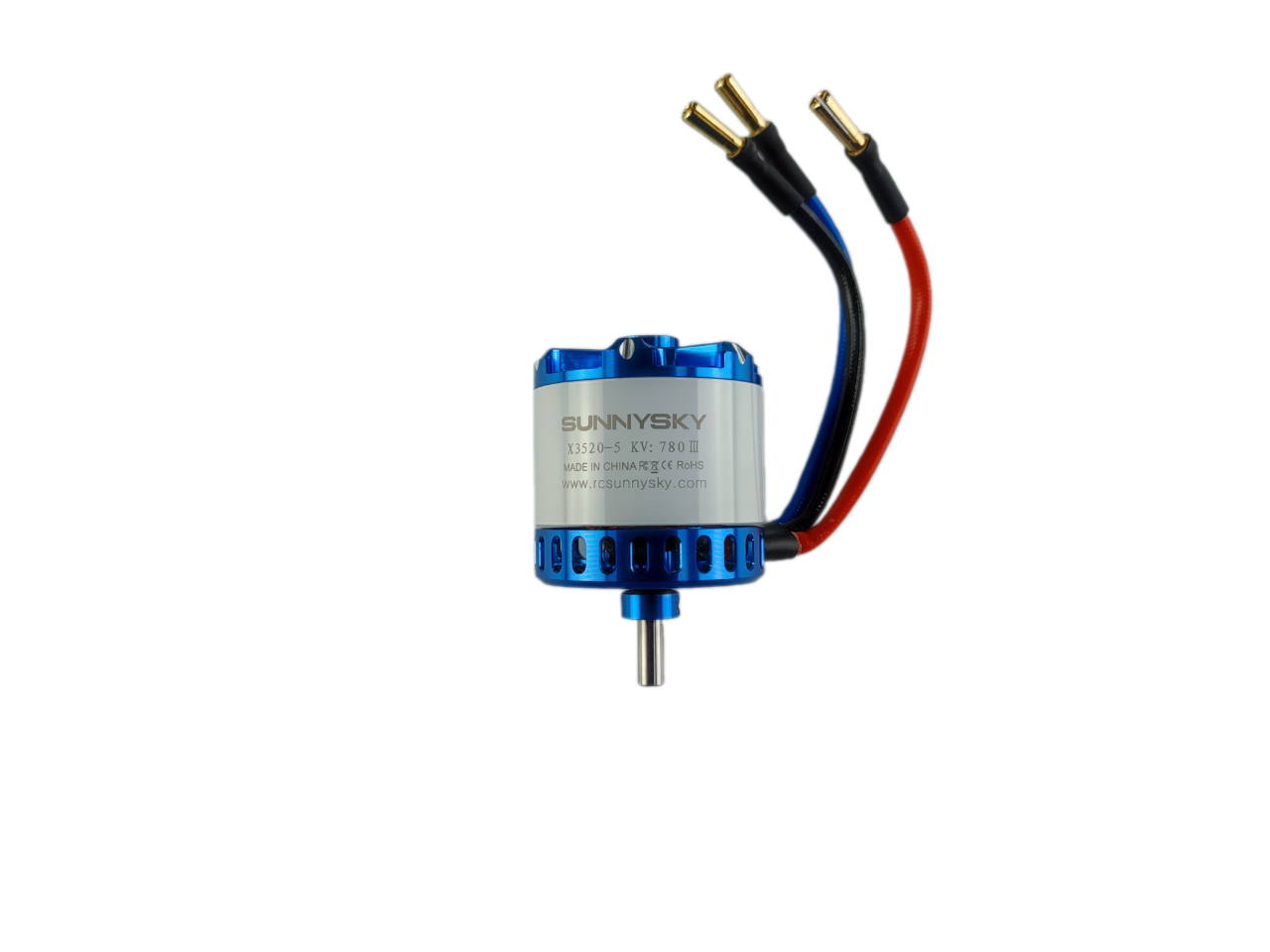

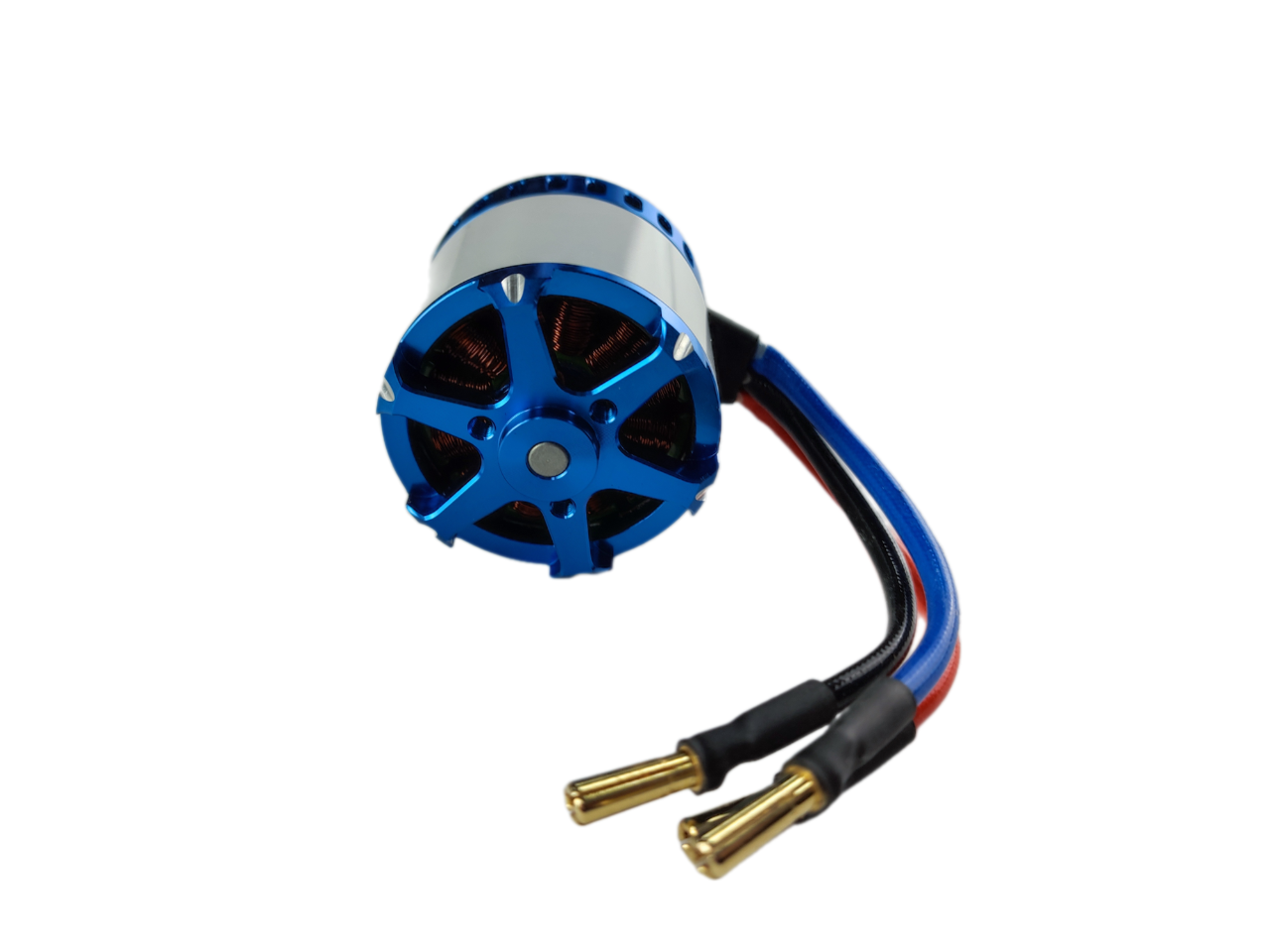

SunnySky V3 X3520 780KV Motor
The SunnySky V3 X3520 780KV motor features a sleek blue rotor and hollow-carved stator for better heat dissipation and visual effect. Precision engineered with NSK bearings and CNC machining for smooth and quiet operation. It features N48UH arc magnets and is optimized for efficiency with a high copper content. Ideal for applications where a balance between performance and efficiency is needed.
Specifications:
- Engine model: X3520-III
- KV: 780KV
- Number of stator/rotor poles: 12N14P
- Internal resistance: 12 mΩ
- Motor size: φ42.5 x 64.0 mm
- Shaft diameter: 5.0 mm
- Cable: 20AWG 110mm
- Motor weight (including cable): 219 g
- Operating voltage: 3-4S
- No load current: 1.7 A / 10V
- Maximum continuous power: 1395 W
- Maximum continuous current: 83 A / 30s
- Recommended controller (ESC): 60-80 A
- Recommended propeller sizes for 4S: APC12x8, APC12x6, APC13x6.5, APC13x8, APC14x7

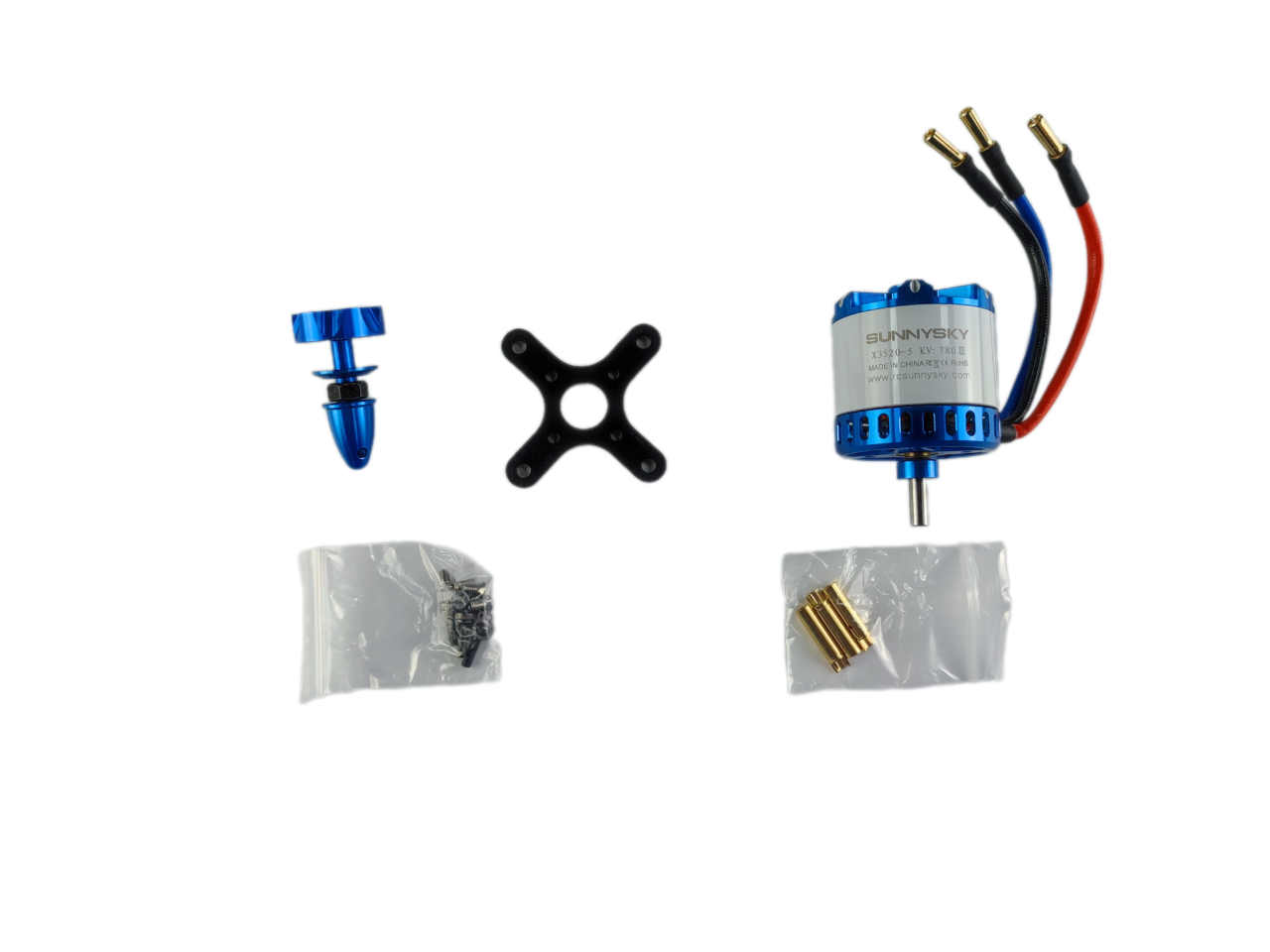

The package contains:
- 1x SunnySky V3 X3520 780KV Motor
