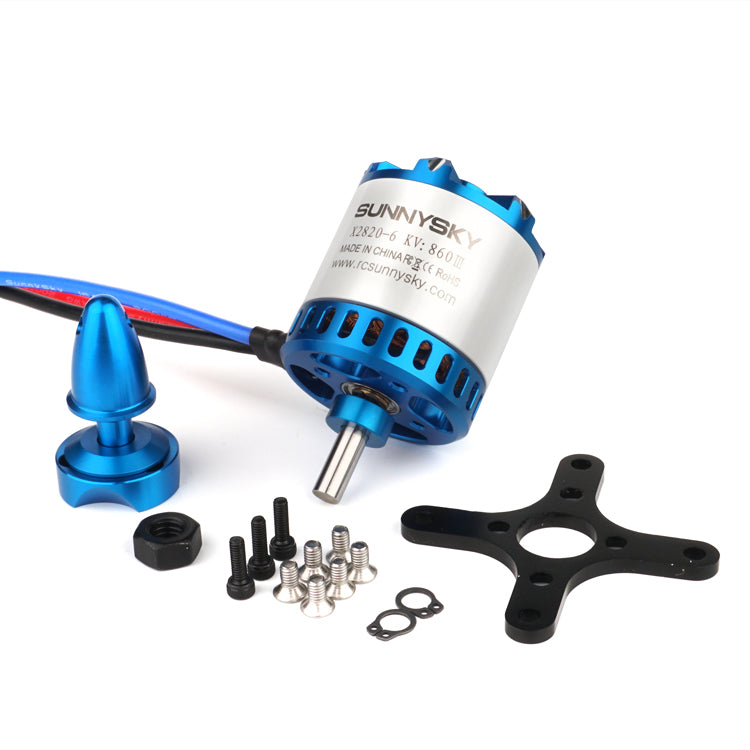

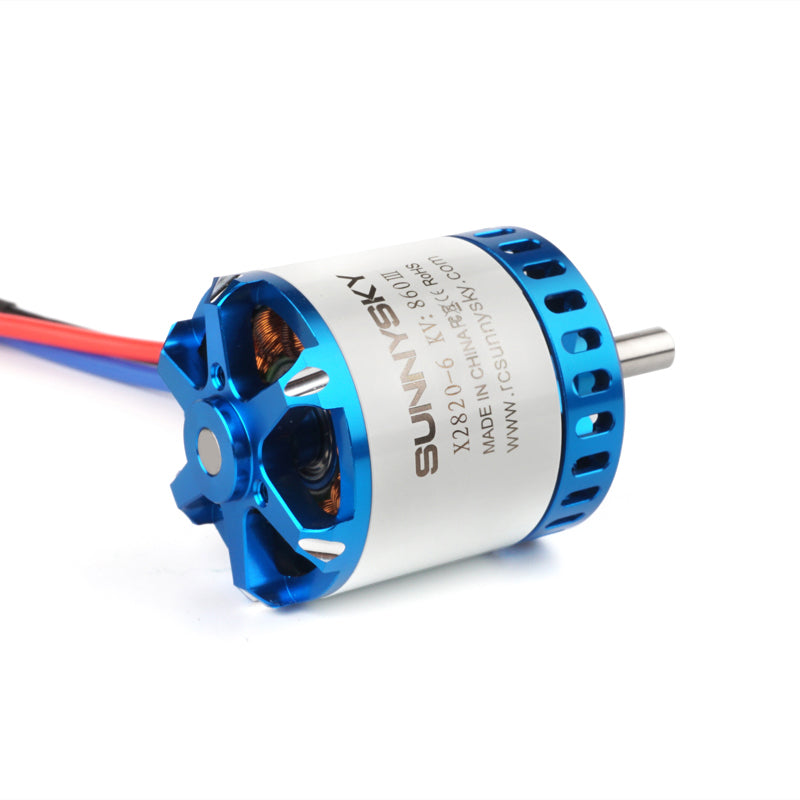

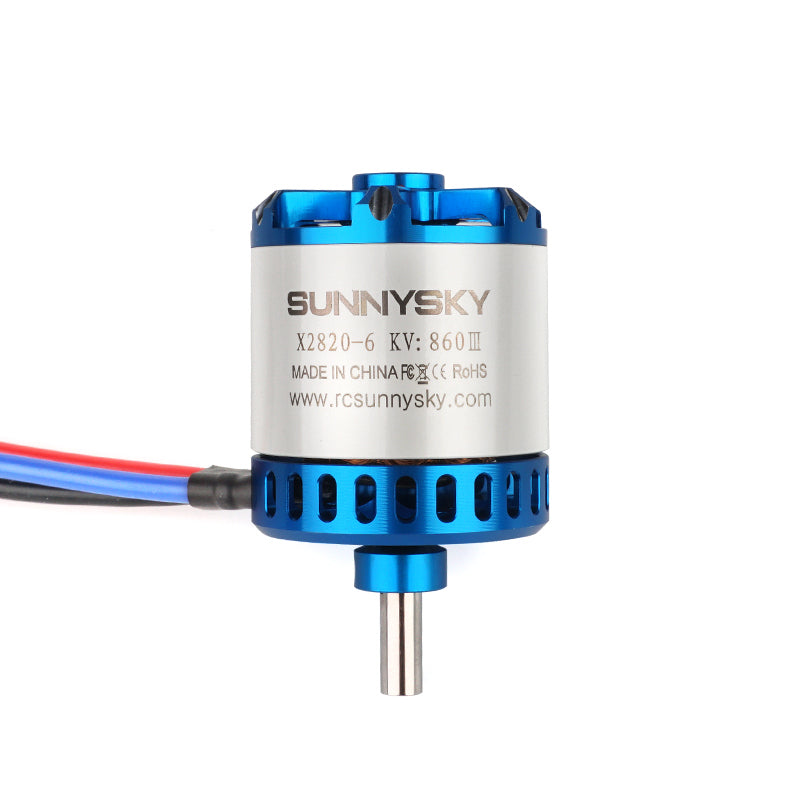

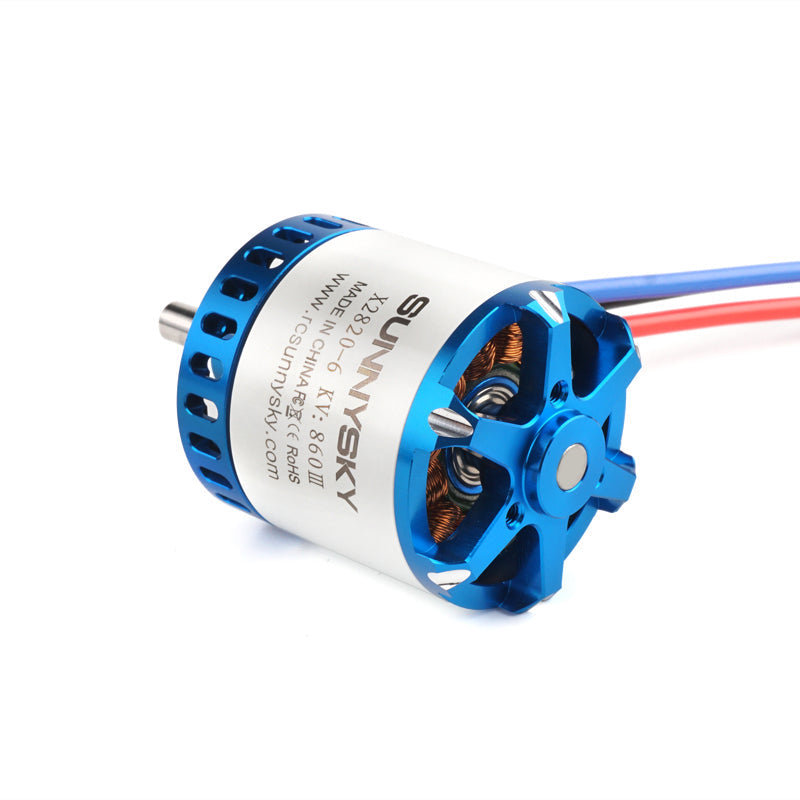

Motor Sunnysky V3 X2820 860KV The Sunnysky V3 X2820 860KV motor is engineered for powerful and efficient performance in high-end multirotor and fixed-wing drone applications. Featuring a high-grade construction and advanced dynamic balancing, it ensures smooth operation, minimal vibration, and consistent output power. Features: - Premium Rotor Cap: Stylish “magic blue” metallic finish with strong and durable construction. The stator cap’s hollow-carved design enhances heat dissipation while adding to the visual appeal. - Precision Bearing System: Equipped with original NSK bearings, delivering smoother, quieter performance and improved durability. - Strict Dynamic Balancing: Each motor undergoes high-precision CNC machining and balancing for optimal performance and superior concentricity. Specifications: Stator Diameter: 28 mm Stator Thickness: 20 mm Rotor Diameter: 35mm Body Length: 42mm Max Lipo Cell: 3-4S ESC: 50-60A Recommended Propellers: APC13*6.5 / APC13*8 / APC12*6 / APC12*8 Number of Stator Slots: 12 Number of Rotor Poles: 14 KV Rating: 860 KV No-load Current: 1.3 A @ 10V Motor Resistance: 25.8 mΩ Max Continuous Current: 65 A (30 sec) Max Continuous Power: 960 W Weight: 143 g Package includes: 1 х Motor Sunnysky V3 X2820 860KV 1 х X-shaped Motor Mount Bracket 1 х Mounting Screws Pack
