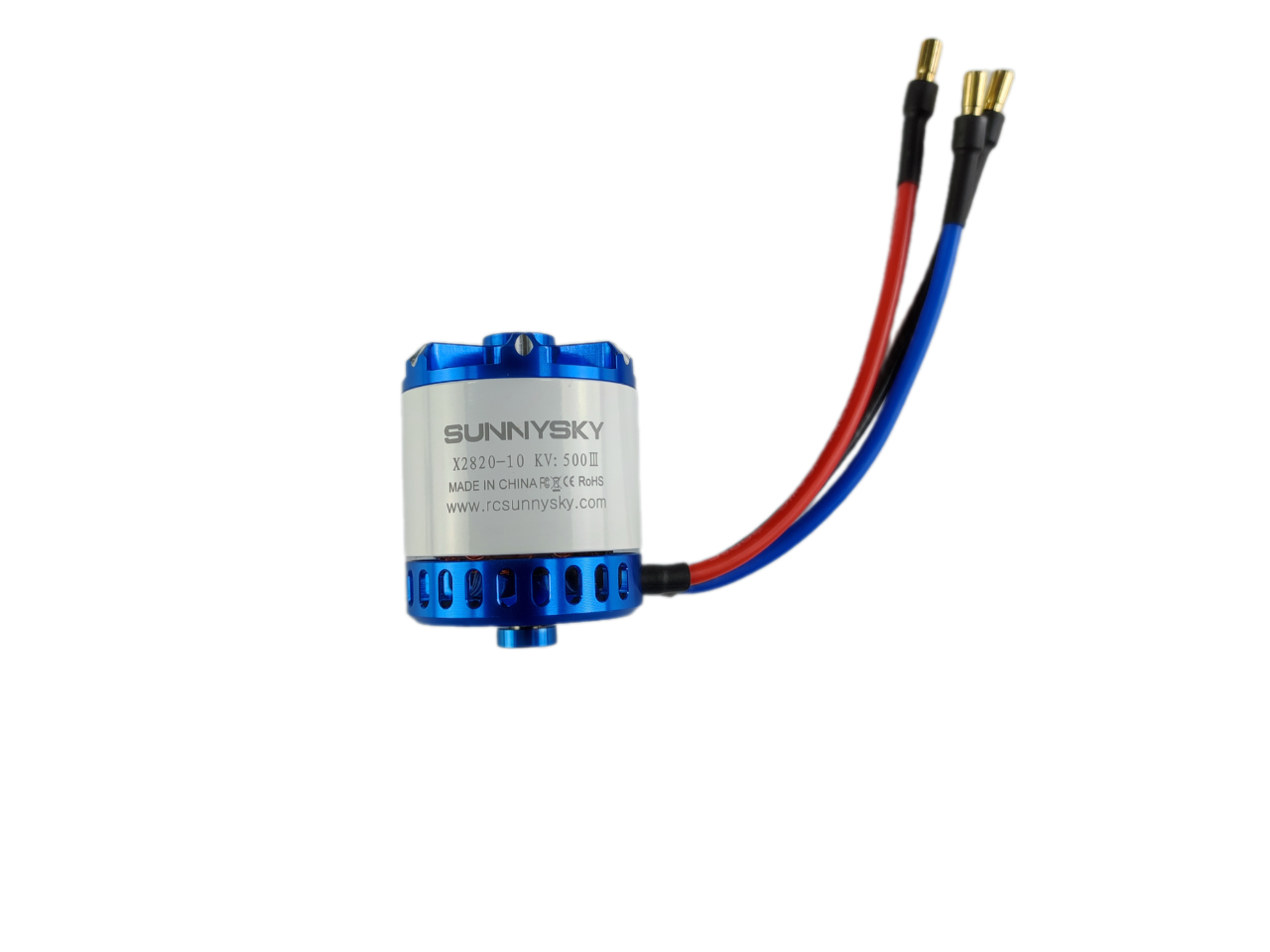

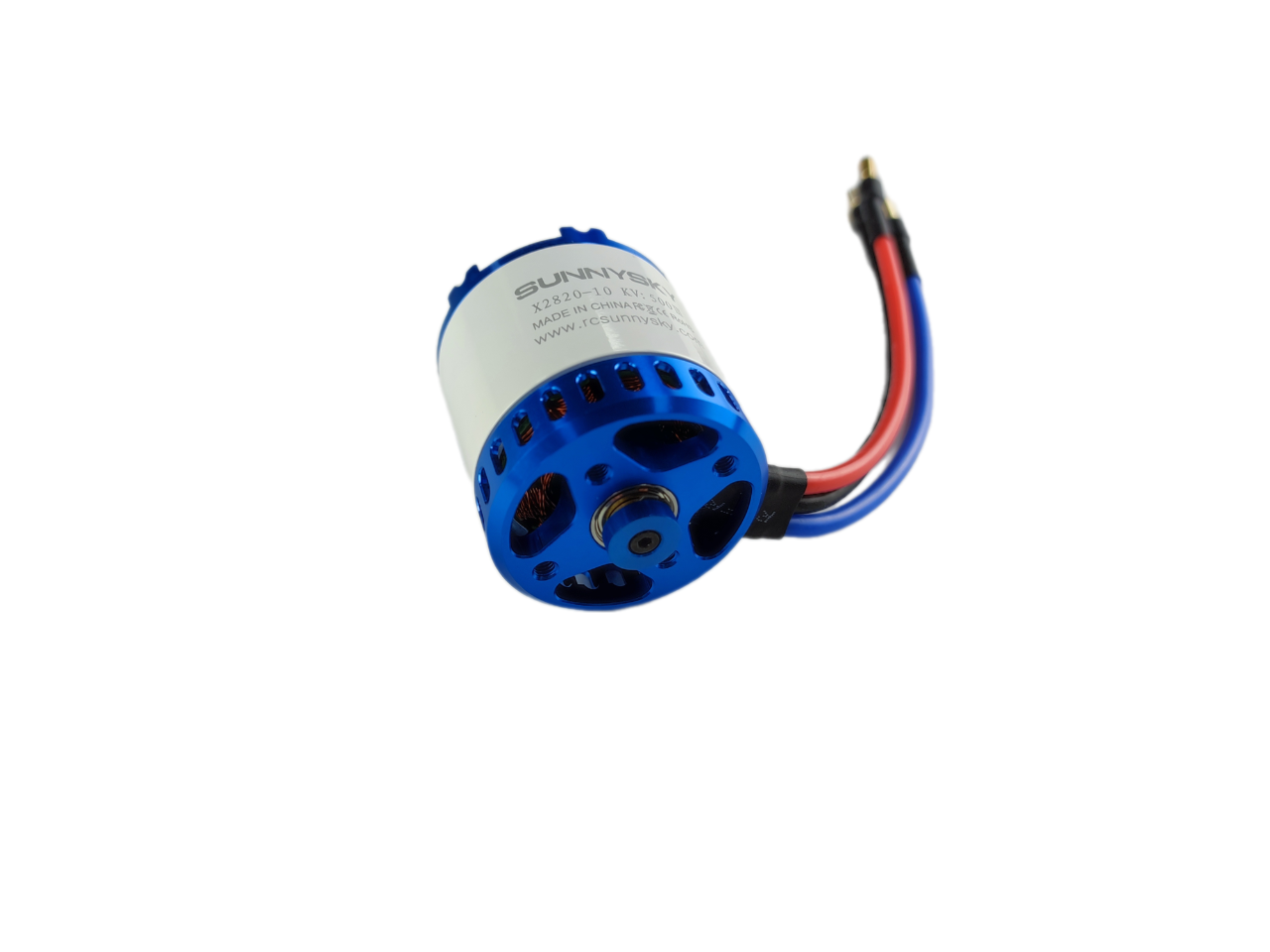

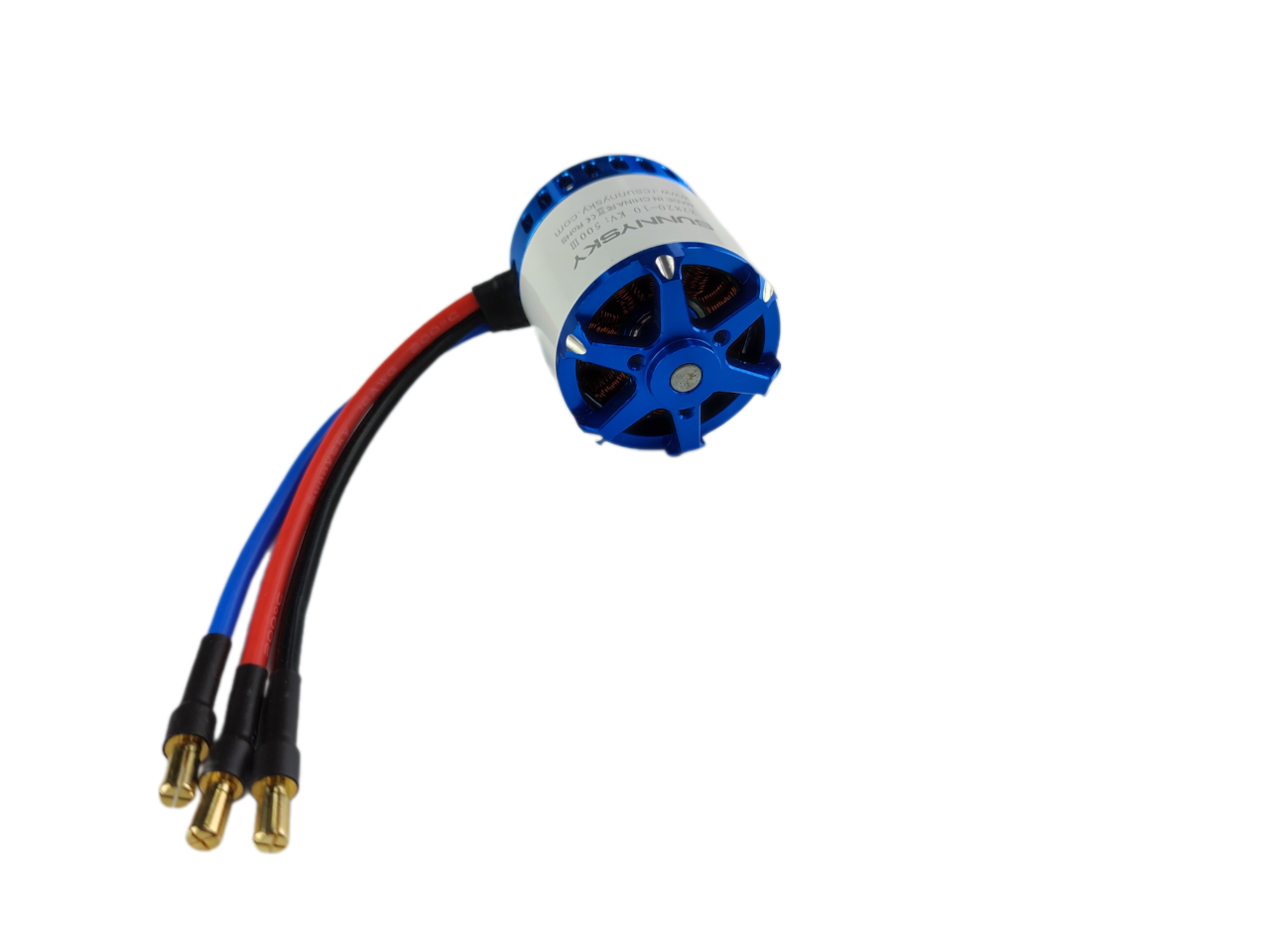

    SunnySky V3 X2820 500KV motor

    The SunnySky V3 X2820 500KV motor is designed for optimal performance in high thrust applications. With its 500KV output, this motor provides exceptional power and efficiency. The robust design features a smooth 5mm shaft and is built with a hollow body for better heat dissipation and reduced weight.

    Note: This motor has a short shaft version where the shaft does not extend beyond the housing.

    Specifications:

    • Model: X2820
    • KV: 500
    • Maximum thrust: 10368 g
    • Voltage: 22.2 V
    • Nominal current: 2.6 A
    • Peak current: 41 A
    • No-load current: 0.6 A
    • Maximum continuous current: 41 A
    • Maximum continuous power: 1025 W
    • Shaft: Smooth shaft
    • Shaft diameter: 5 mm
    • Resistance: 53 mΩ
    • Configuration: 12N14P
    • Number of poles: 14
    • Wire length: 100 mm

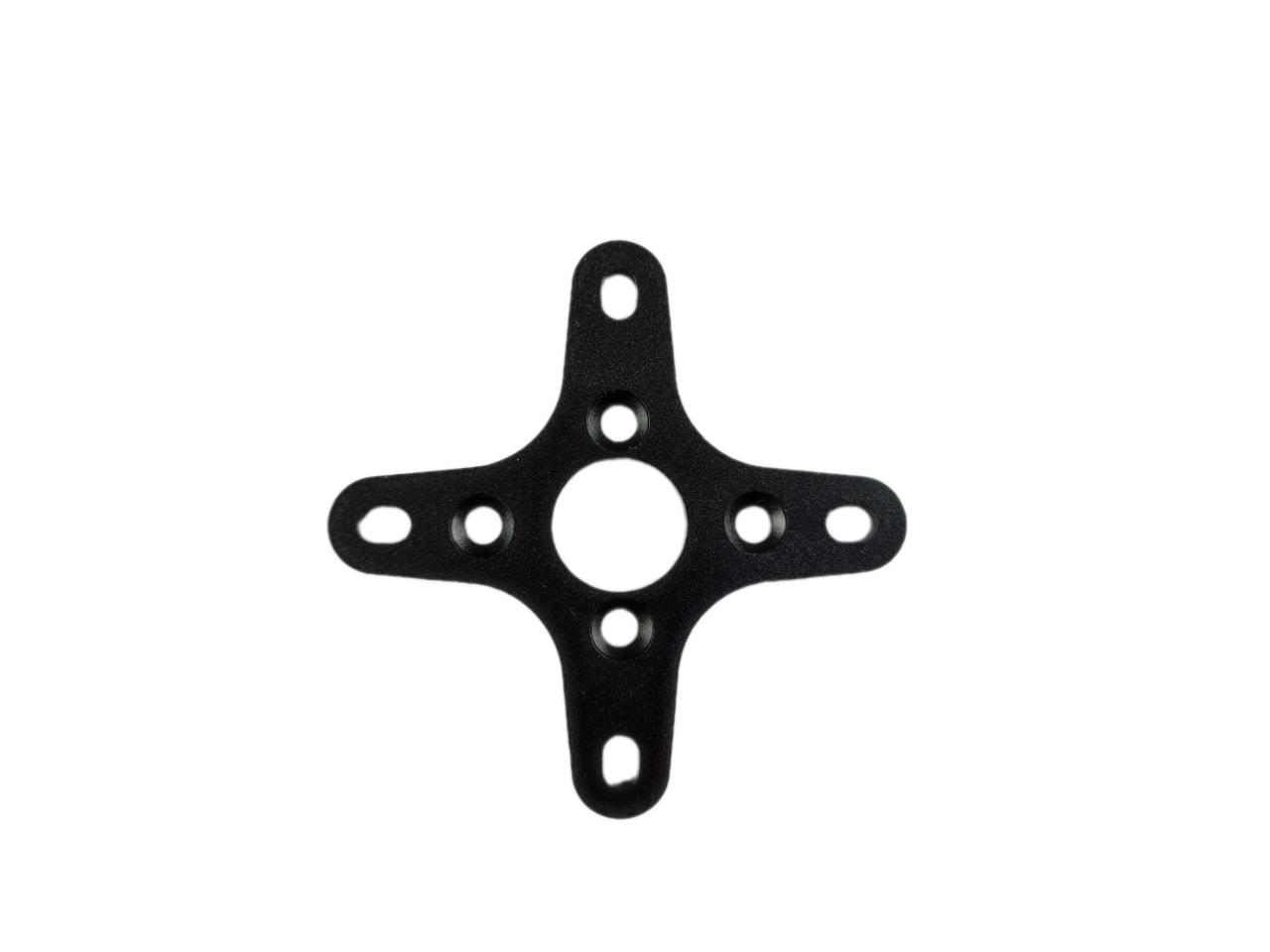

    • Motor mounting: 19x25 mm; 44x44 mm
    • Recommended propellers: 12x65", 12x80", 13x70"
    • Dimensions: 35x35x42 mm
    • Weight: 149 g

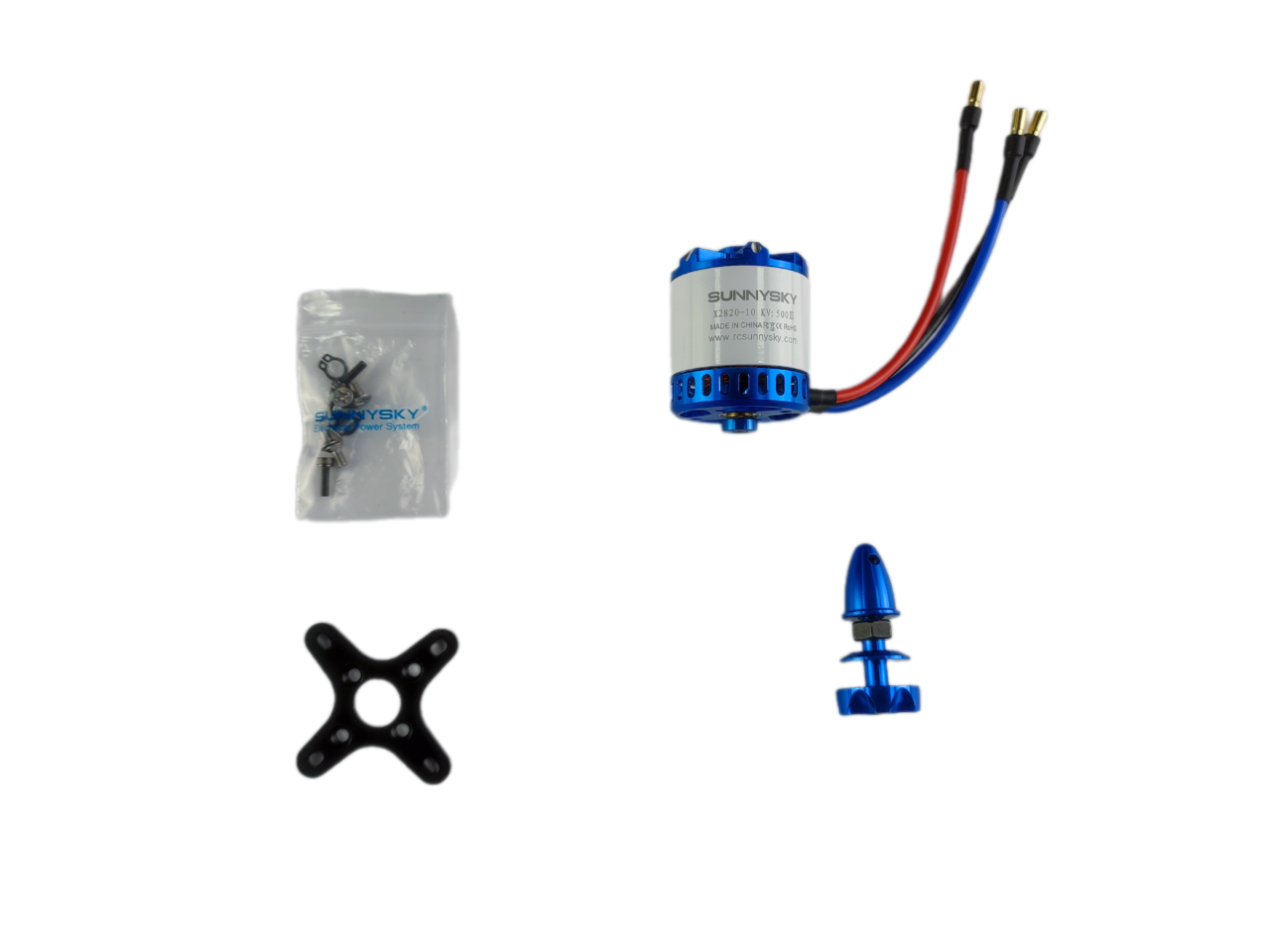

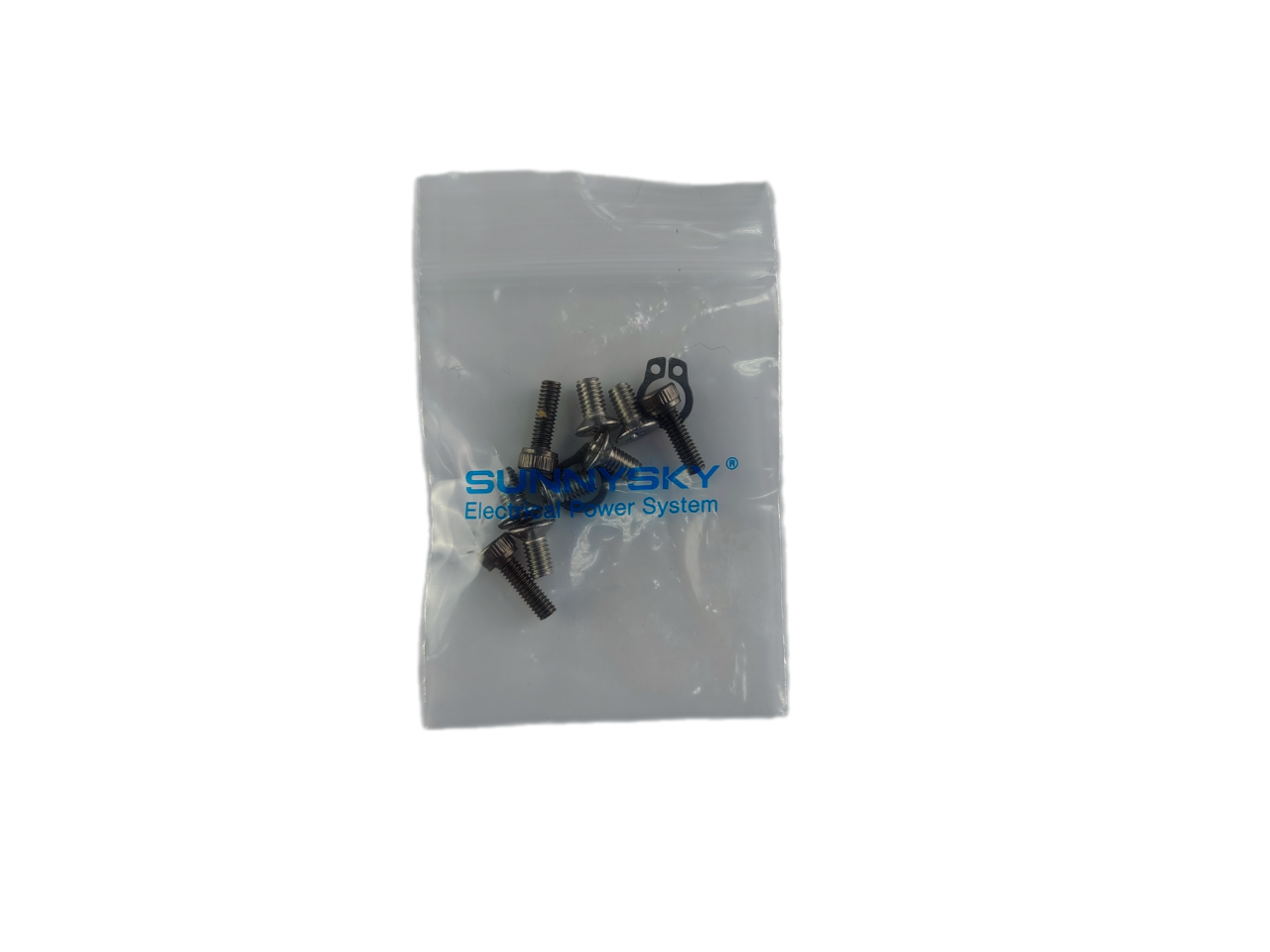

    The package contains:

    • 1x SunnySky V3 X2820 500KV Motor
