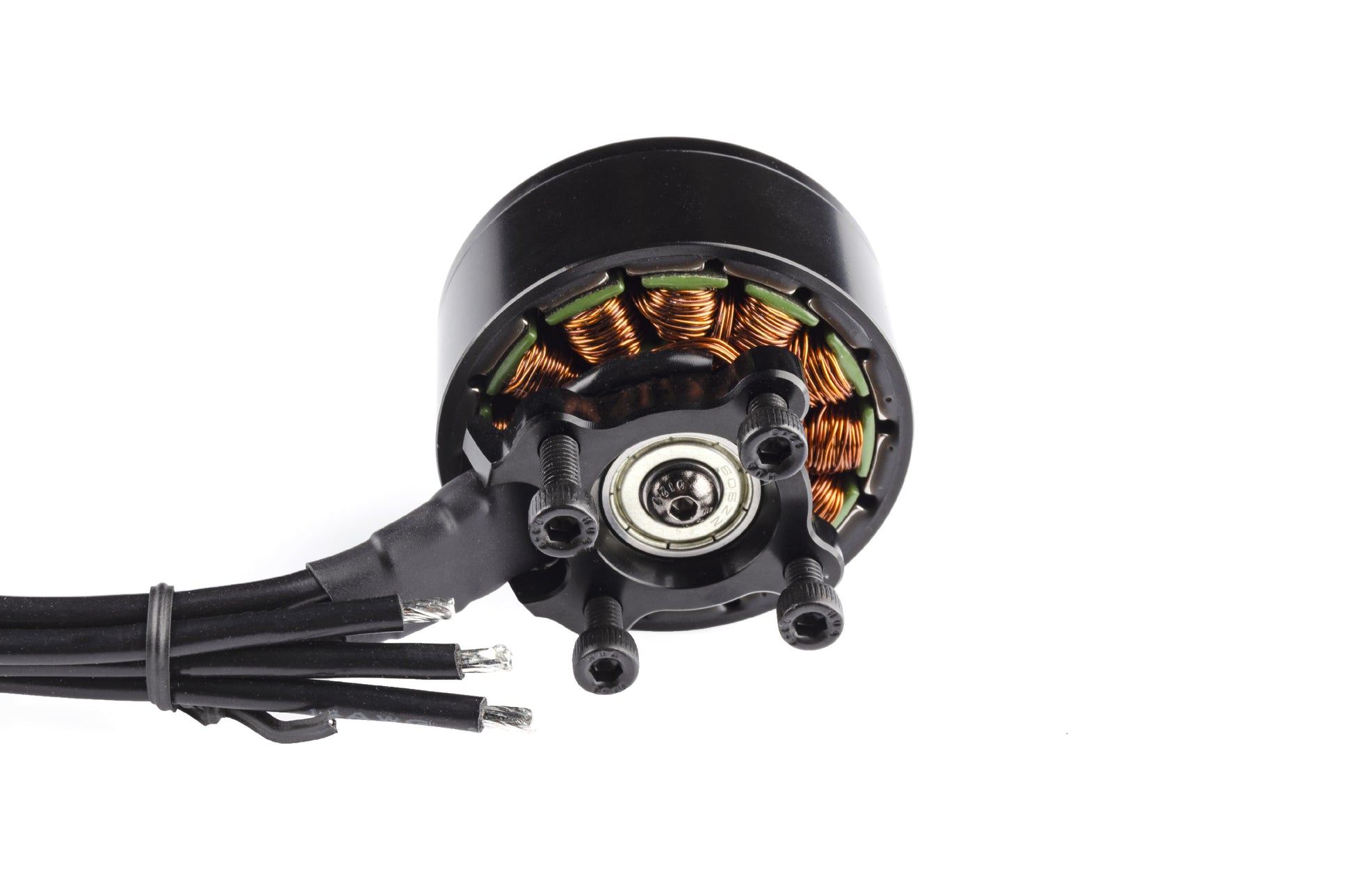

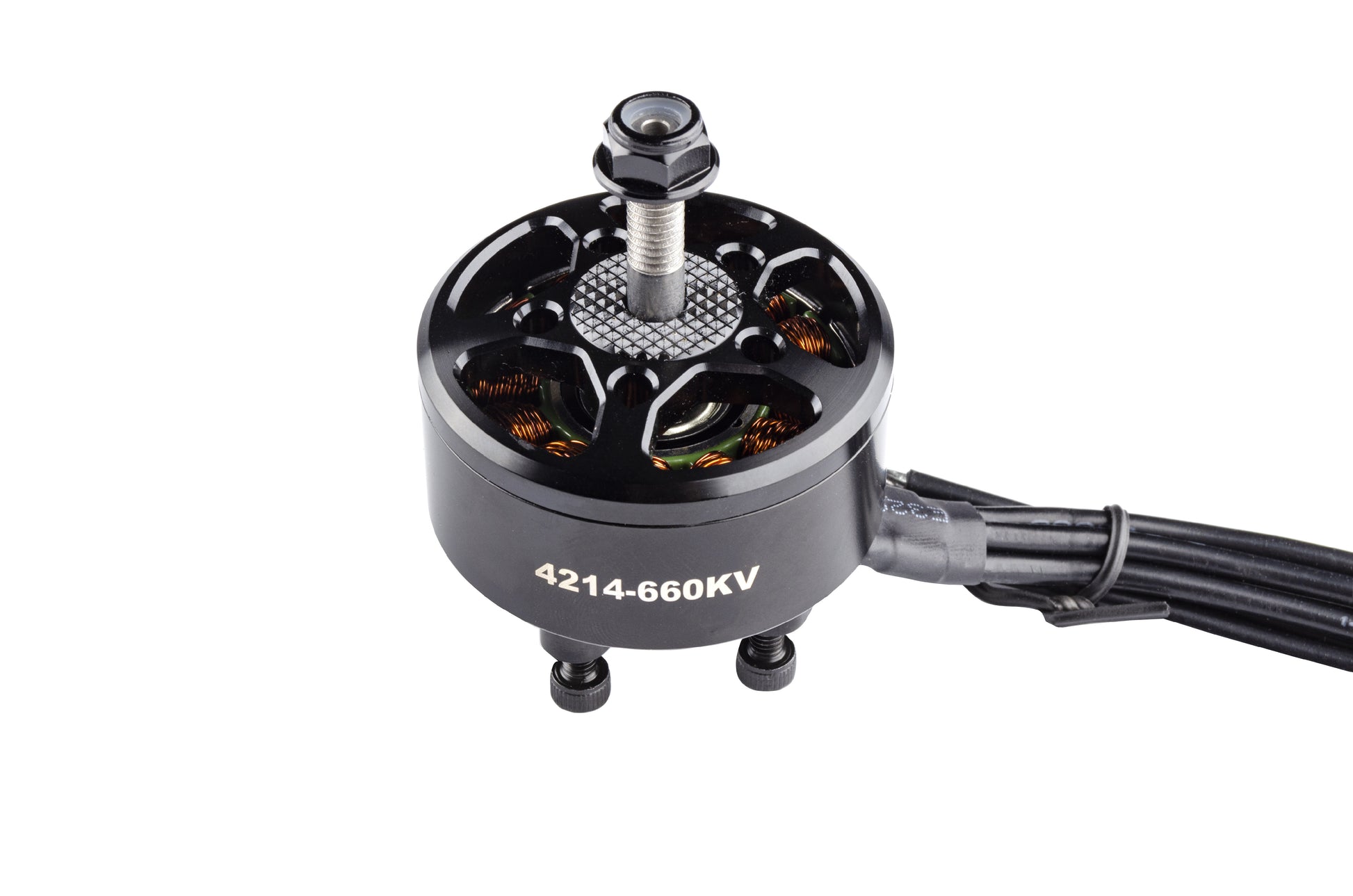

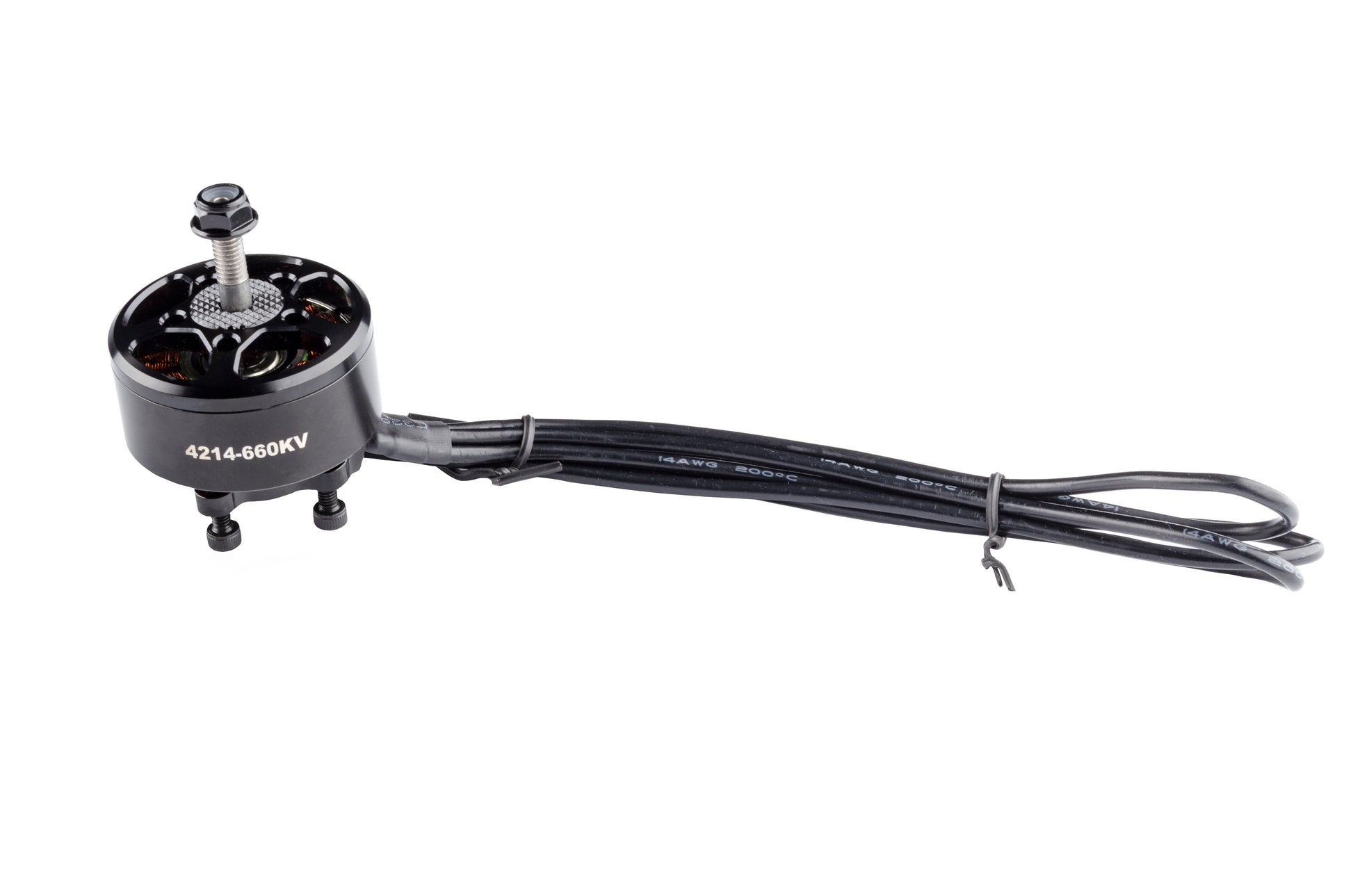

    Motor Pilotix 4214-660KV

The Pilotix 4214-660KV motor is a high performance motor designed for demanding applications that require precision, efficiency and durability. With robust construction and optimized performance, this engine delivers exceptional thrust while maintaining a compact and lightweight design.

Specifications:

Basic engine parameters:
- Model: F4214
- Groove and pole: 12N14P
- Motor size: Φ49 x H43.5mm
- Temperature resistance of the magnet: 120 ℃
- Temperature resistance of enameled wire: 180 ℃
- Insulation test: 500V
- Motor mounting dimensions: 4×M4 @ D30mm

Technical parameters of the engine:
- Rated KV power: 660KV
- Battery compatibility: 8S LiPo
- No load current: ≤1.5A
- Resistance: 23.41 mΩ ±3%
- Maximum pull: 5531g
- Maximum power: 1765.1W
- Wire size: 14AWG
- Wire length: 300 mm ±3 mm
- Dynamic balance: ≤20mg
- Weight (with wire): 124.9g

The package contains:

- 1 x Motor Pilotix 4214-660KV
