    Code: 3785

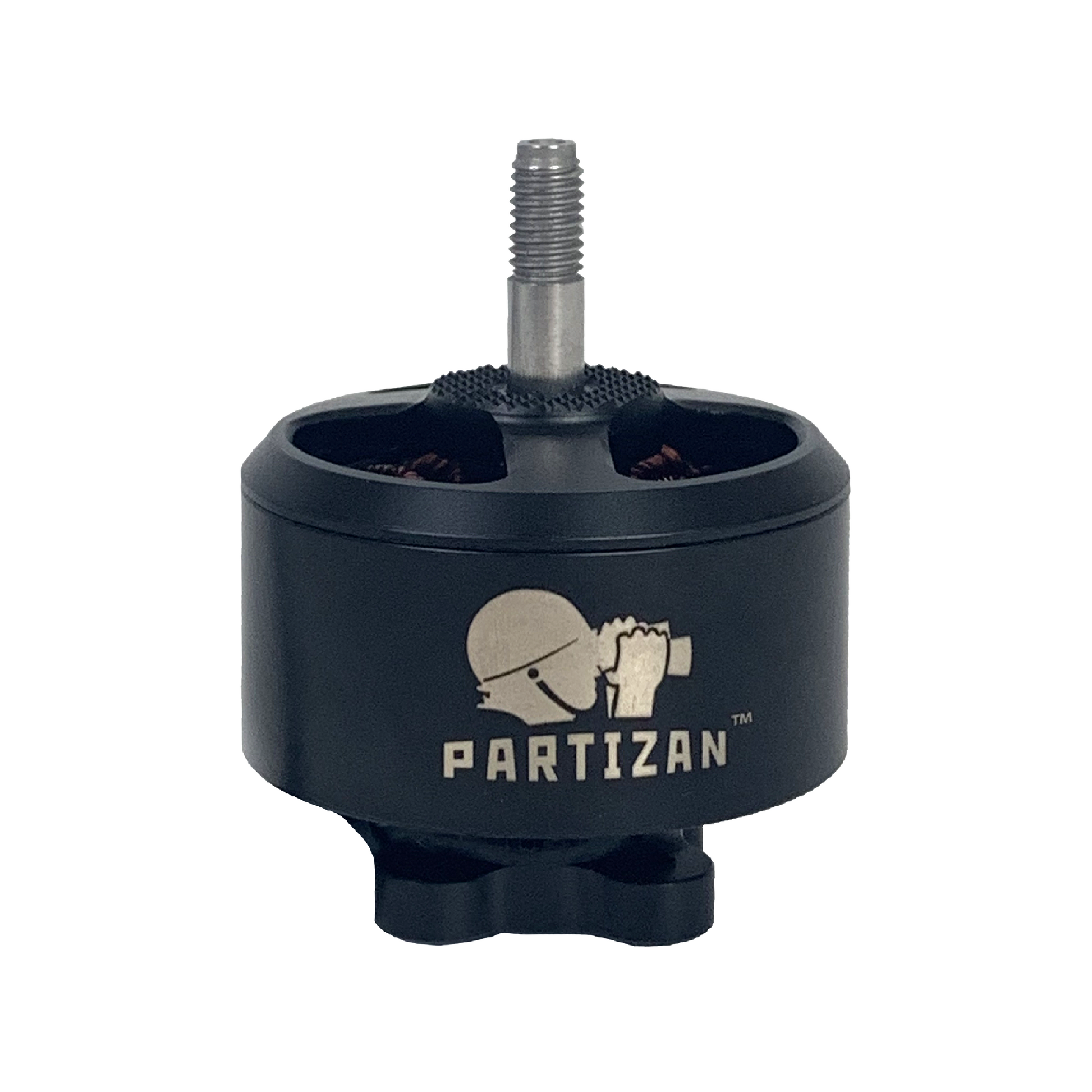

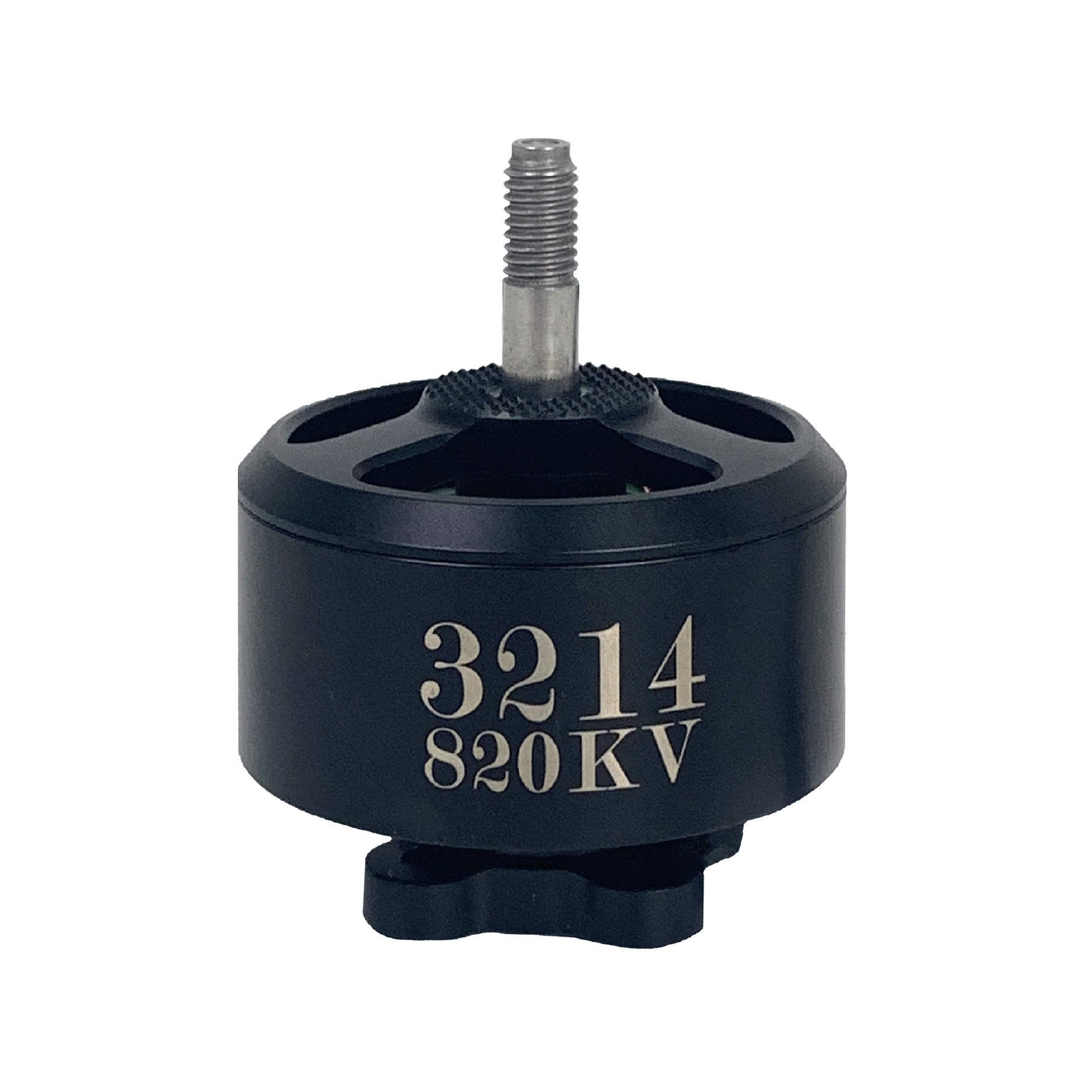

    Motor Partizan 3214, 820kv

    Motor Partizan 3214, 820kv

    Brand: Partizan

    €38,00
    €38,00 €38,00
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    AC motor 3214, 820kv

The 3214 820 kv brushless motor is compact and powerful. Its high torque and efficiency ensure stable performance, making it reliable for various RC models.

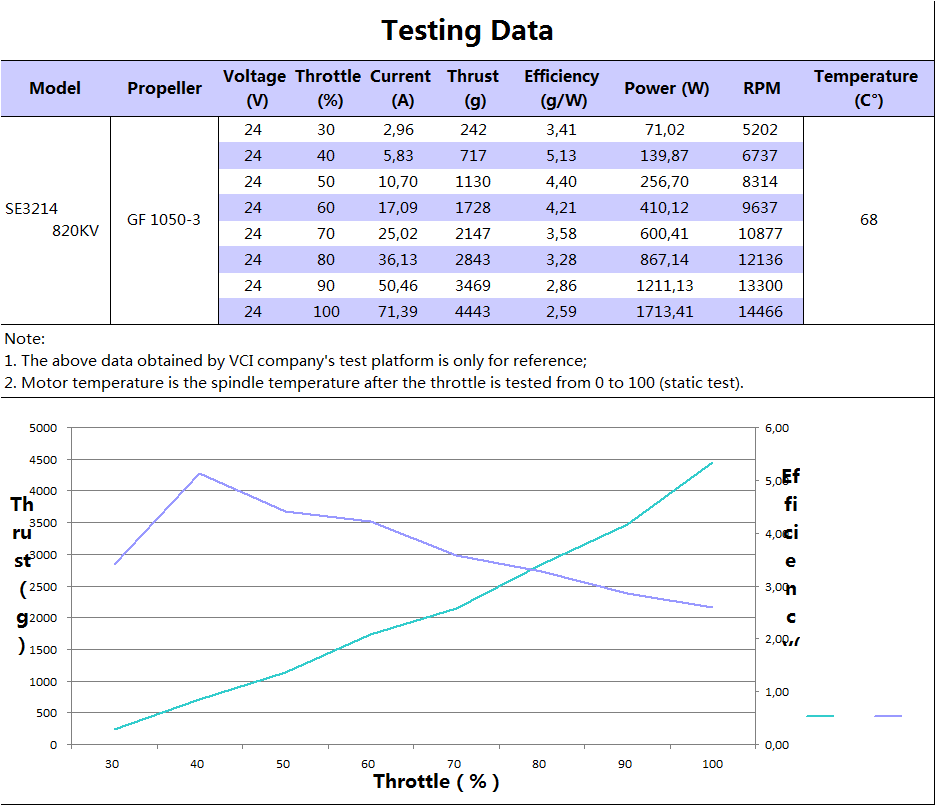

Specifications:
KV: 820KV
Magnets: N52SH arc
Configuration: 12S14P
Stator size: Ø32*L14mm
Internal resistance: 40mΩ

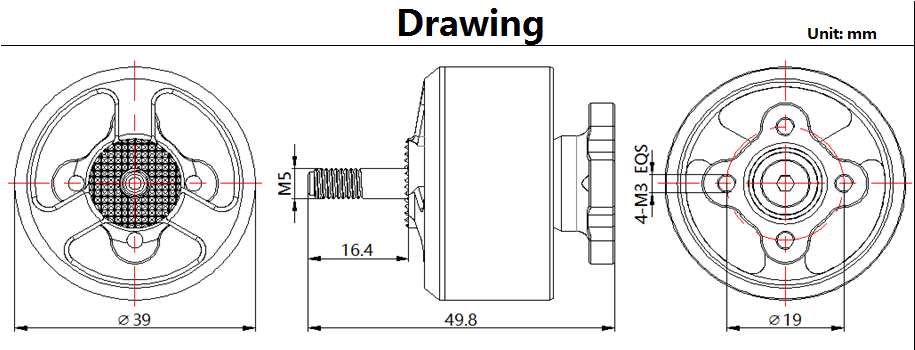

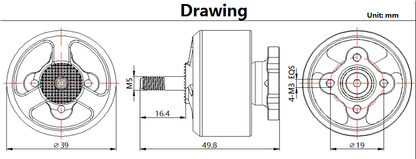

Dimensions: Ø39*L49.8
Shaft length: 16.4 mm
Shaft diameter: M5
Rated voltage: 6S (24V)
Silicone wire: 16AWG 500mm
Peak current: 71.39A
Maximum instantaneous power: 1713.41W
No load current (10V): 1.4A
Weight (including cable): 148.7g
