    Motor Partizan 2808, 1100kv

    Motor Partizan 2808, 1100kv

    Brand: Partizan

    €23,00
    €23,00 €23,00
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

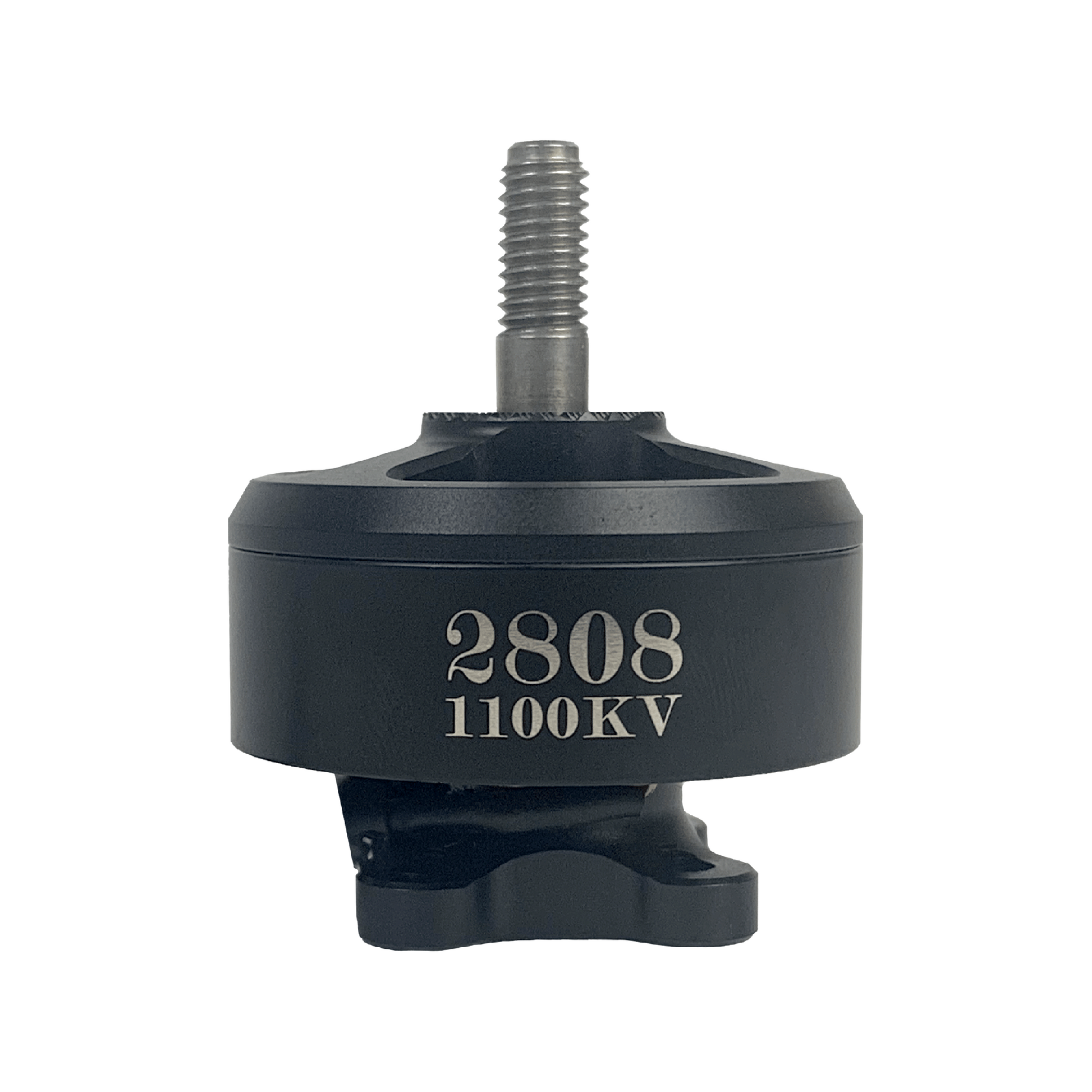

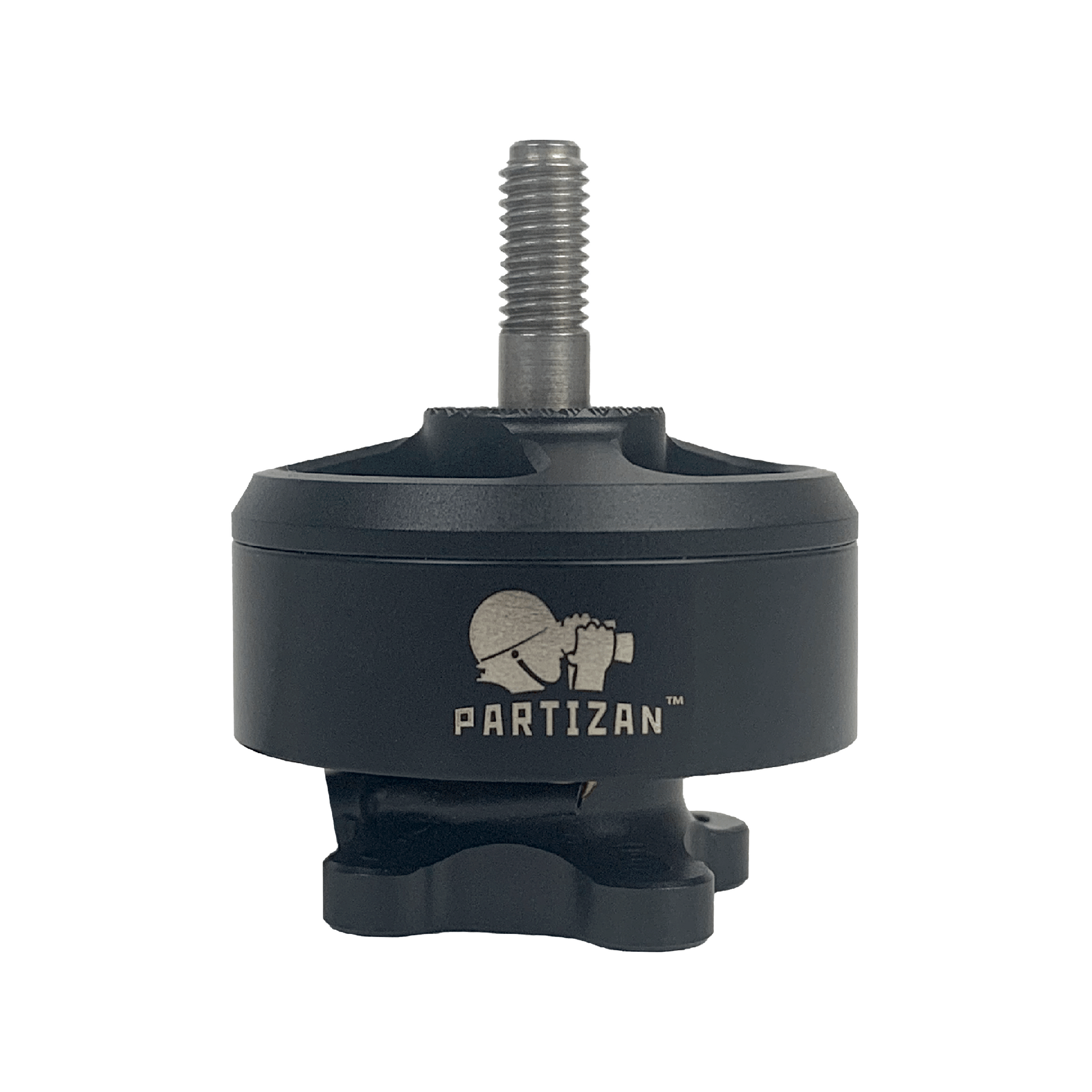

    AC motor 2808, 1100kv

The 1100 kv 2808 brushless motor is compact and powerful. Its high torque and efficiency ensure stable performance, making it reliable for various RC models.

Specifications:
KV: 1100KV
Magnets: N52SH arc
Configuration: 12S14P
Stator size: Ø28*L8mm
Internal resistance: 66mΩ

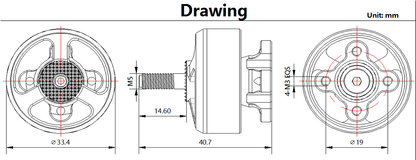

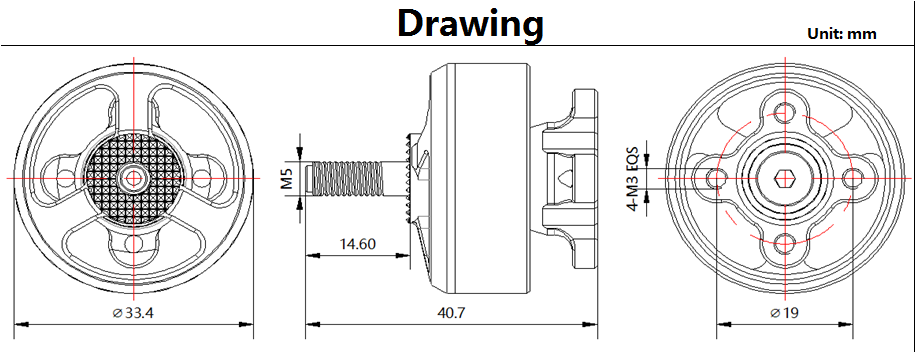

Dimensions: Ø33.4*L40.7
Shaft length: 14.6 mm
Shaft diameter: M5
Rated voltage: 6S (24V)
Silicone wire: 18AWG 300mm

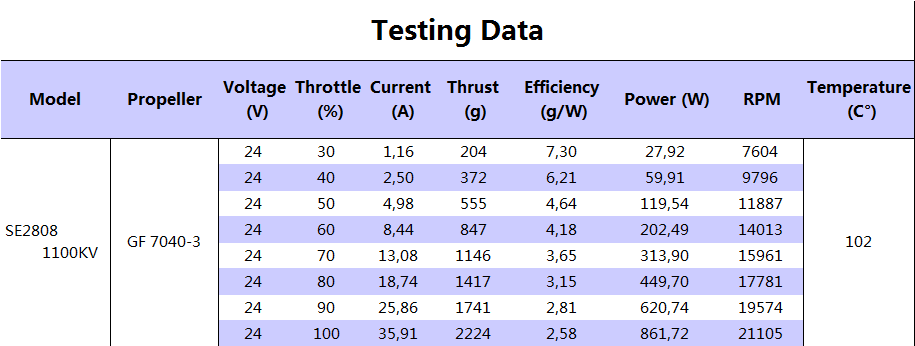

Peak current: 35.91A
Maximum instantaneous power: 861.72W
No load current (10V): 1.1A
Weight (including cable): 61g
