    Code: 3889

    Motor Partizan 2806.5, 1350kv

    Motor Partizan 2806.5, 1350kv

    Brand: Partizan

    €23,29
    €23,29 €23,29
    -0% View Product
    Taxes included.
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

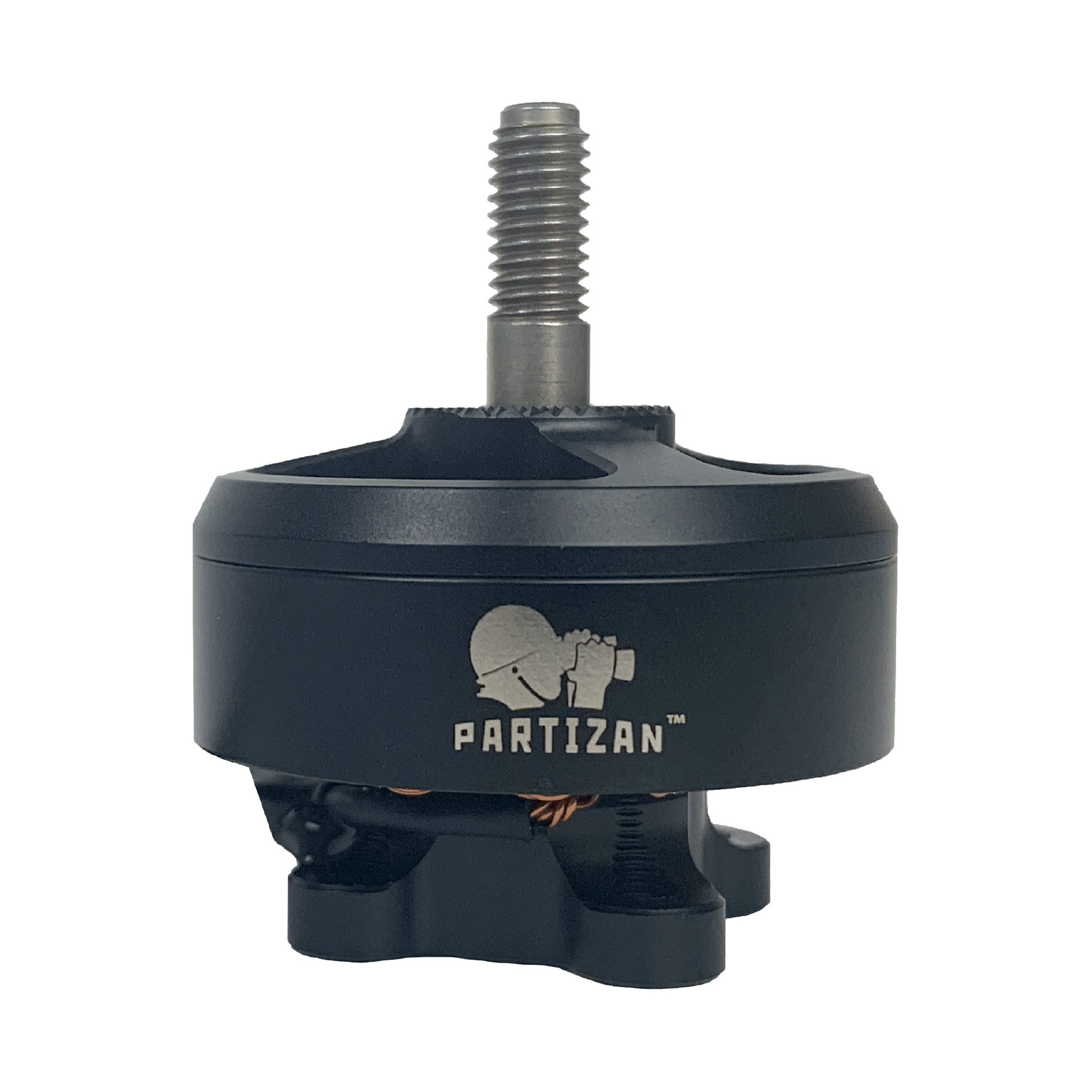

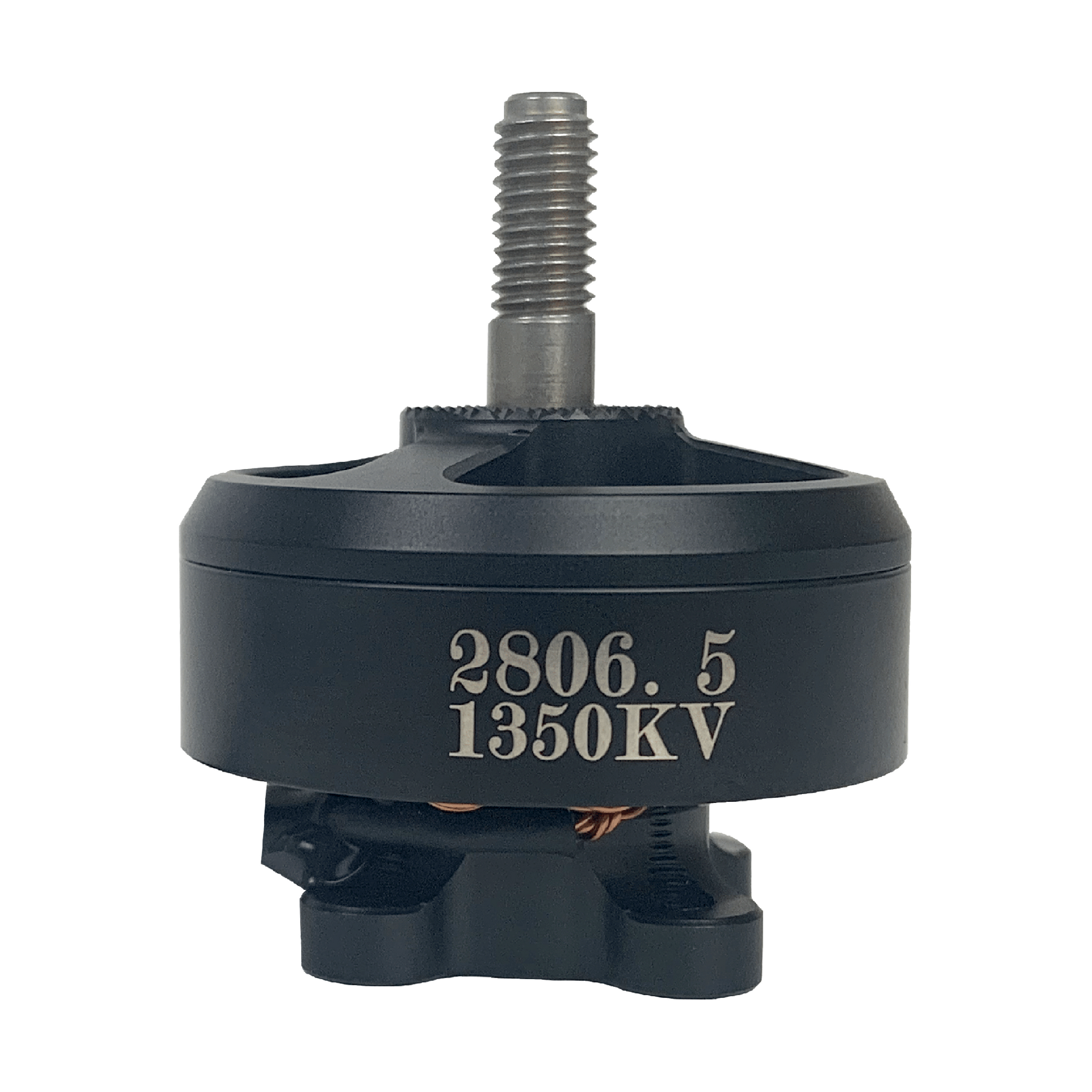

    AC motor 2806.5, 1350kv

The brushless motor 2806.5 with a power of 1350 kv is compact and powerful. Its high torque and efficiency ensure stable performance, making it reliable for various RC models.

Specifications:

KV: 1350KV
Magnets: N52SH arc
Configuration: 12S14P
Stator size: Ø28*L6.5mm
Internal resistance: 70mΩ

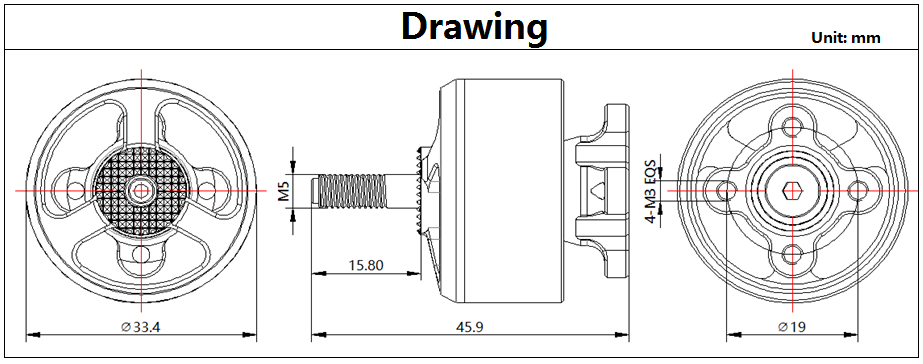

Dimensions: Ø33.4*L39.2mm
Shaft length: 14.6 mm
Shaft diameter: M5
Rated voltage: 6S (24V)
Silicone wire: 18AWG 300mm
Peak current: 43.4A
Maximum instantaneous power: 1041.6W
No load current (10V): 1.0A
Weight (including cable): 56g
