    Motor iFlight XING2 3110 Unibell 1250KV

    Motor iFlight XING2 3110 Unibell 1250KV

    Brand: iFlight

    €45,70
    €45,70 €45,70
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

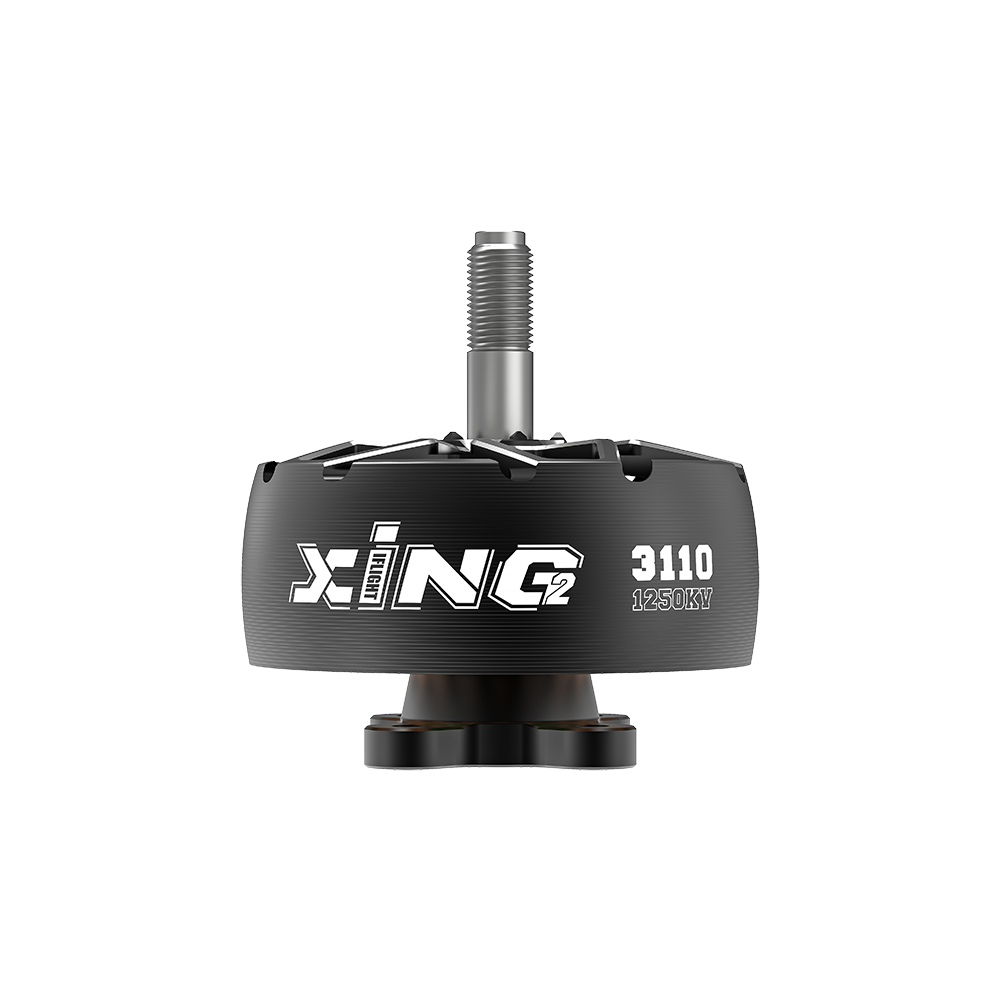

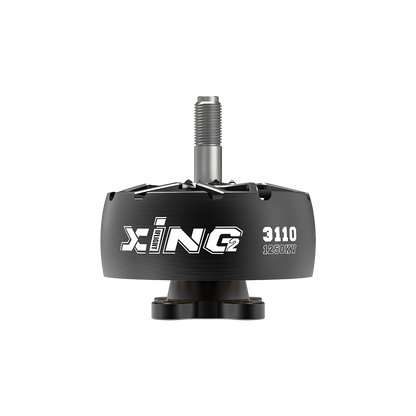

    XING2 3110 FPV Motor Unibell 1250KV

Function

- 5mm titanium alloy shaft, our strongest propeller shaft ever!
- Impact resistant 7075 aluminum bell
- NSK 11x5x5 smooth bearings with long service life
- N52H Curved Arc Magnets with Center Groove
- Bearing gap protection with XING O-ring
- Motor wire protector
- Dynamically balanced
- Designed for 7/8/9 inch Cinelifter.

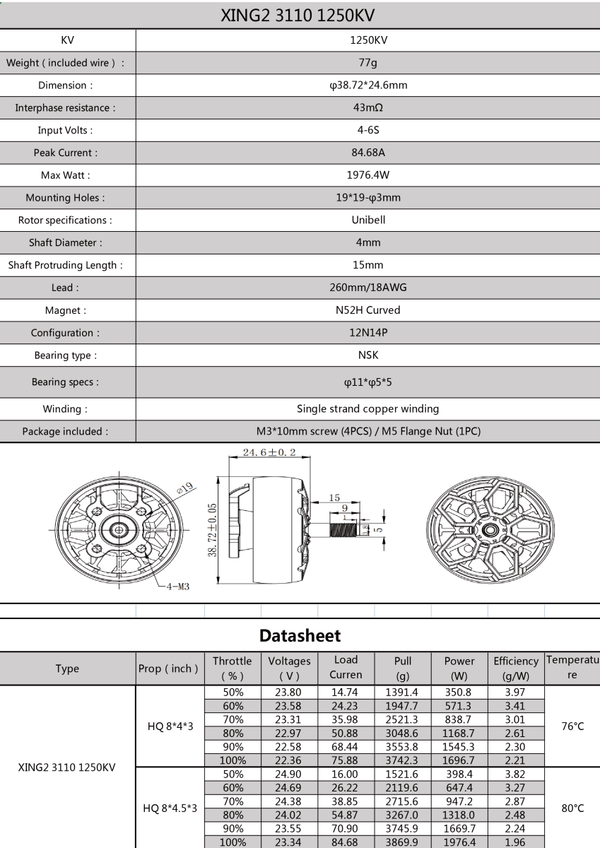

Specifications:
KV: 1250 KV
Weight (including wire): 77 g
Size: φ38.72*24.6mm
Interphase resistance: 43mΩ
Input voltage: 25.2V
Peak current: 84.68A
Maximum wattage: 1976.4W
Mounting holes: 19*19 φ3mm
Rotor specifications: Unibell
Shaft diameter: 5 mm
Length of protruding shaft: 15 mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ11*φ5*5
Winding: Single-core copper winding

The package includes:
1 x XING2 3110 brushless motor
4x M3x10 screw
1 x M5 flange nut
