    Code: X012802

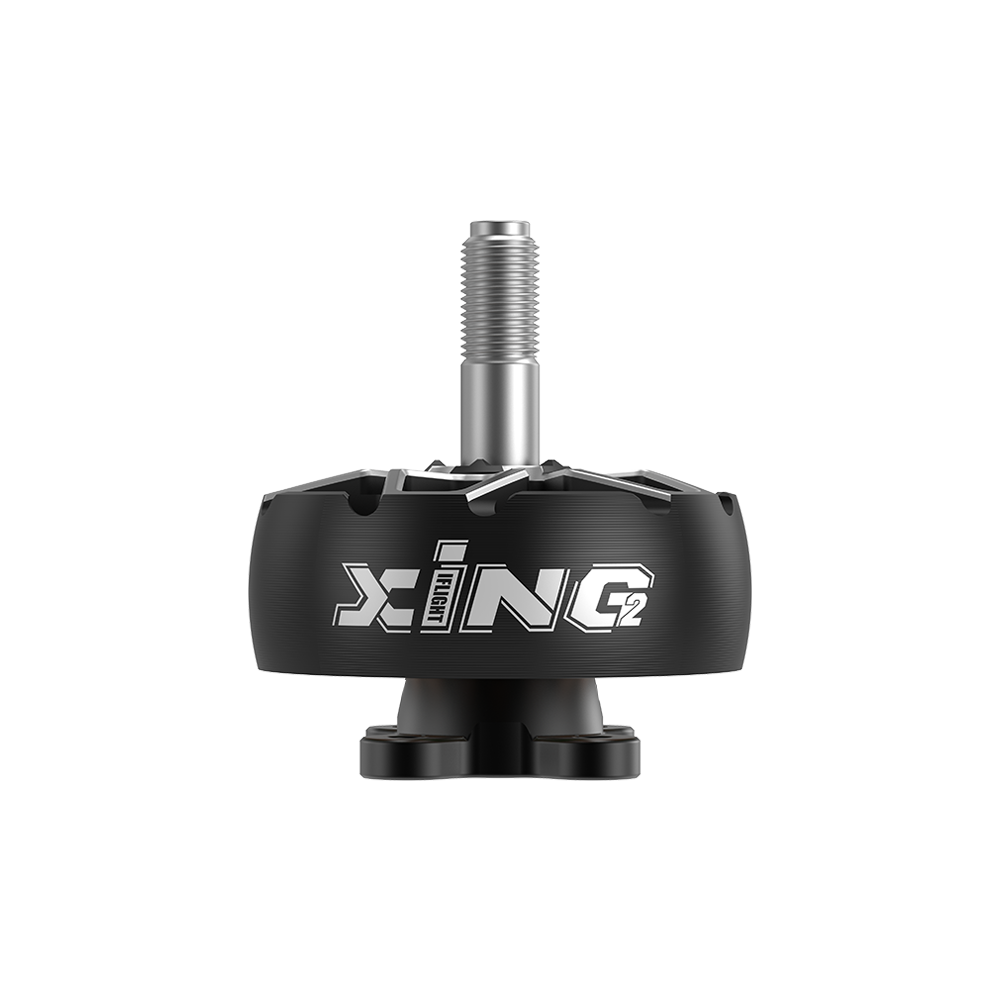

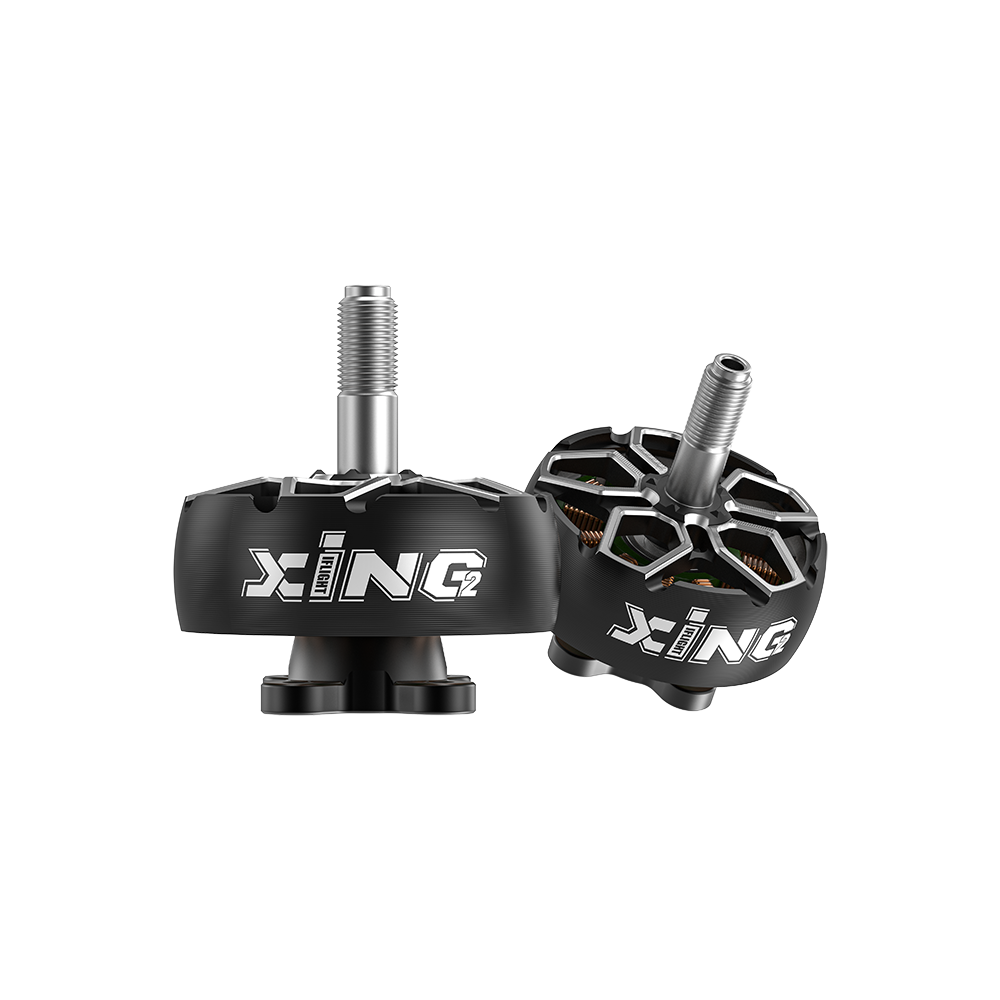

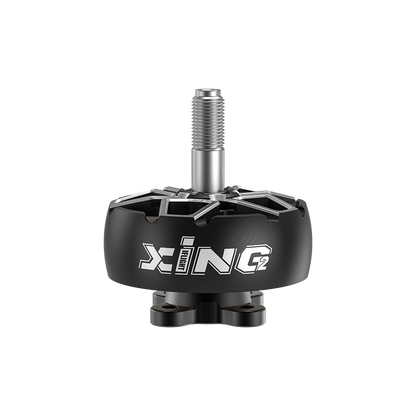

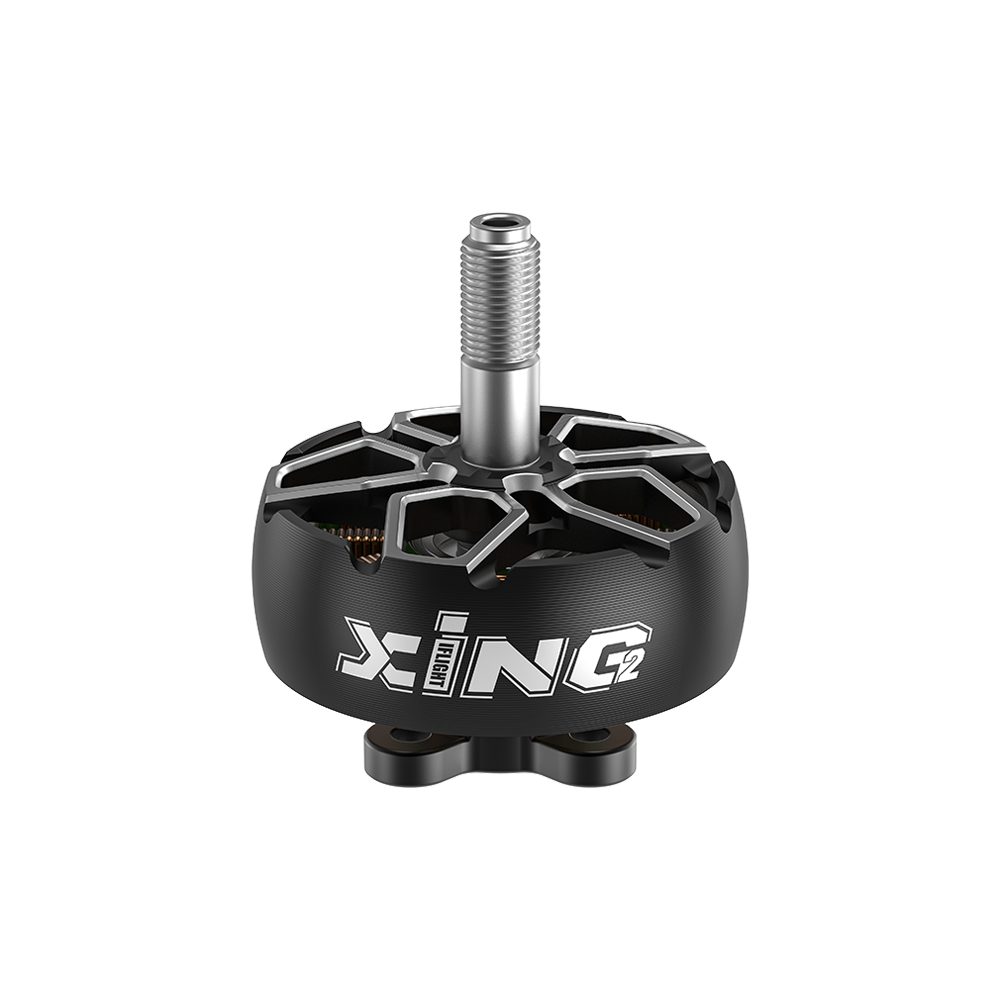

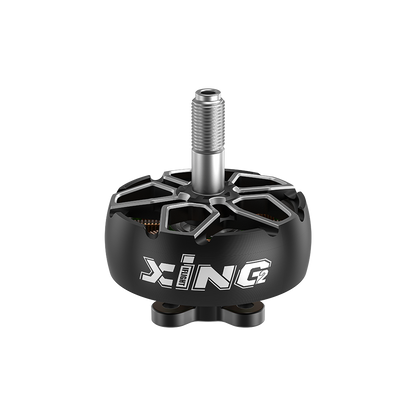

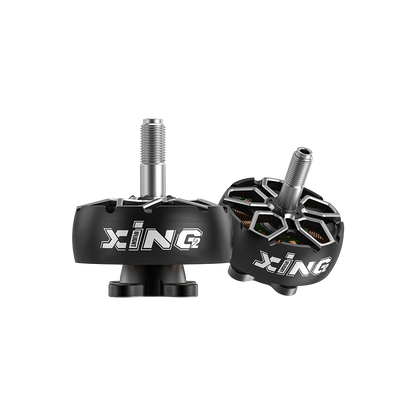

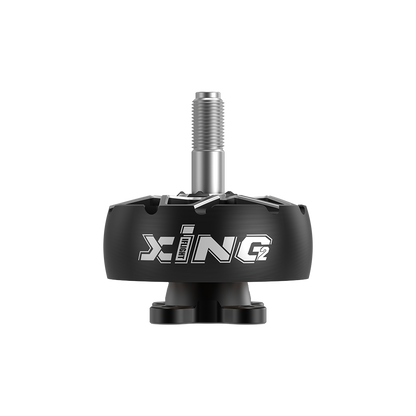

    Motor iFlight XING2 2506 Unibell 1850KV

    Motor iFlight XING2 2506 Unibell 1850KV

    Brand: iFlight

    €23,70
    €23,70 €23,70
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

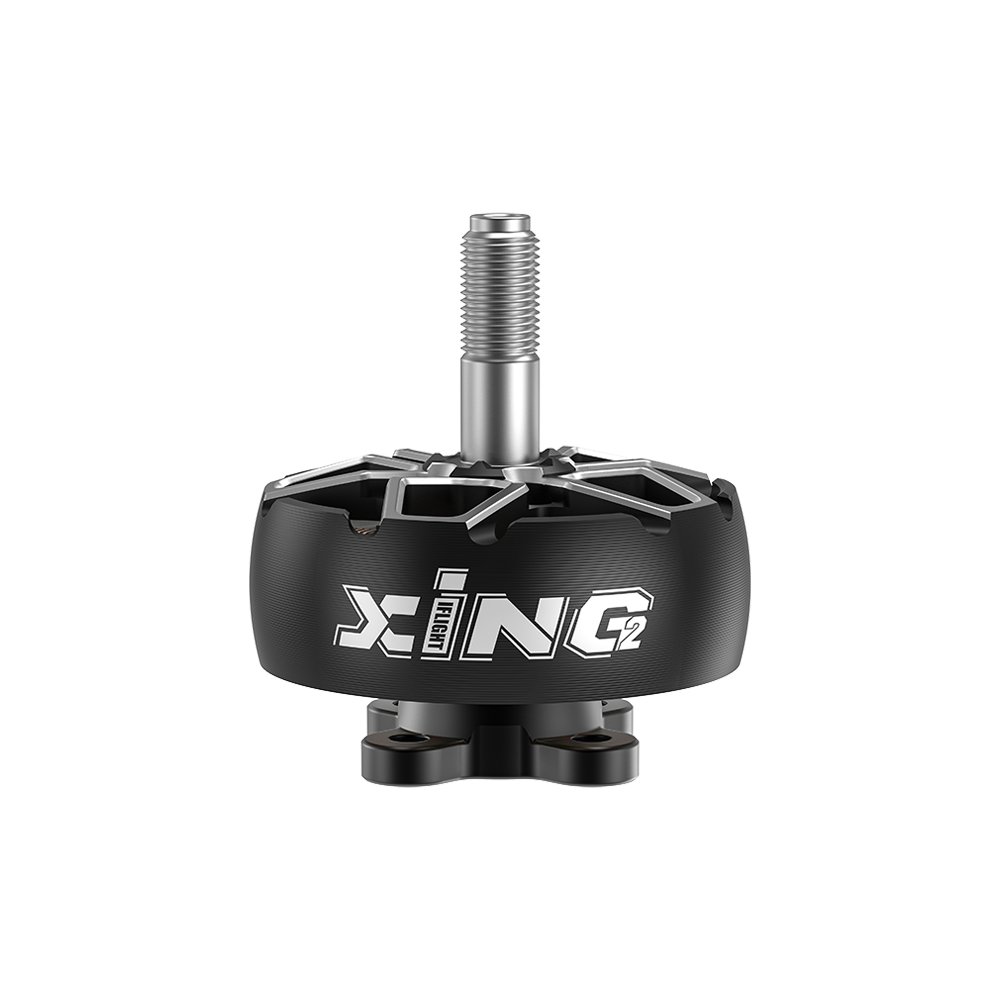

    XING2 2506 FPV Motor Unibell 1850KV

Function:

- 5mm titanium alloy shaft, our strongest propeller shaft ever!
- NSK 10x4x4 smooth bearings with long service life
- N52H Curved Arc Magnets with Center Groove
- Bearing gap protection with XING O-ring
- Impact resistant 7075 aluminum bell
- Motor wire protector
- Dynamically balanced

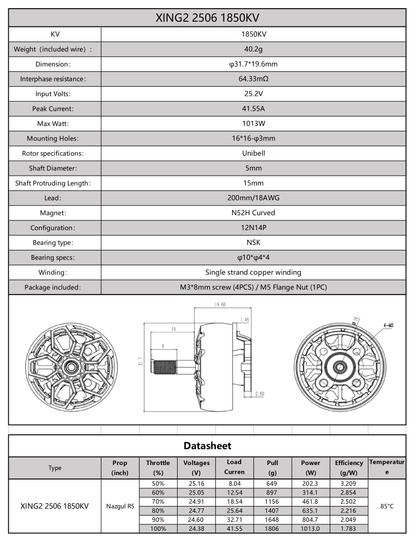

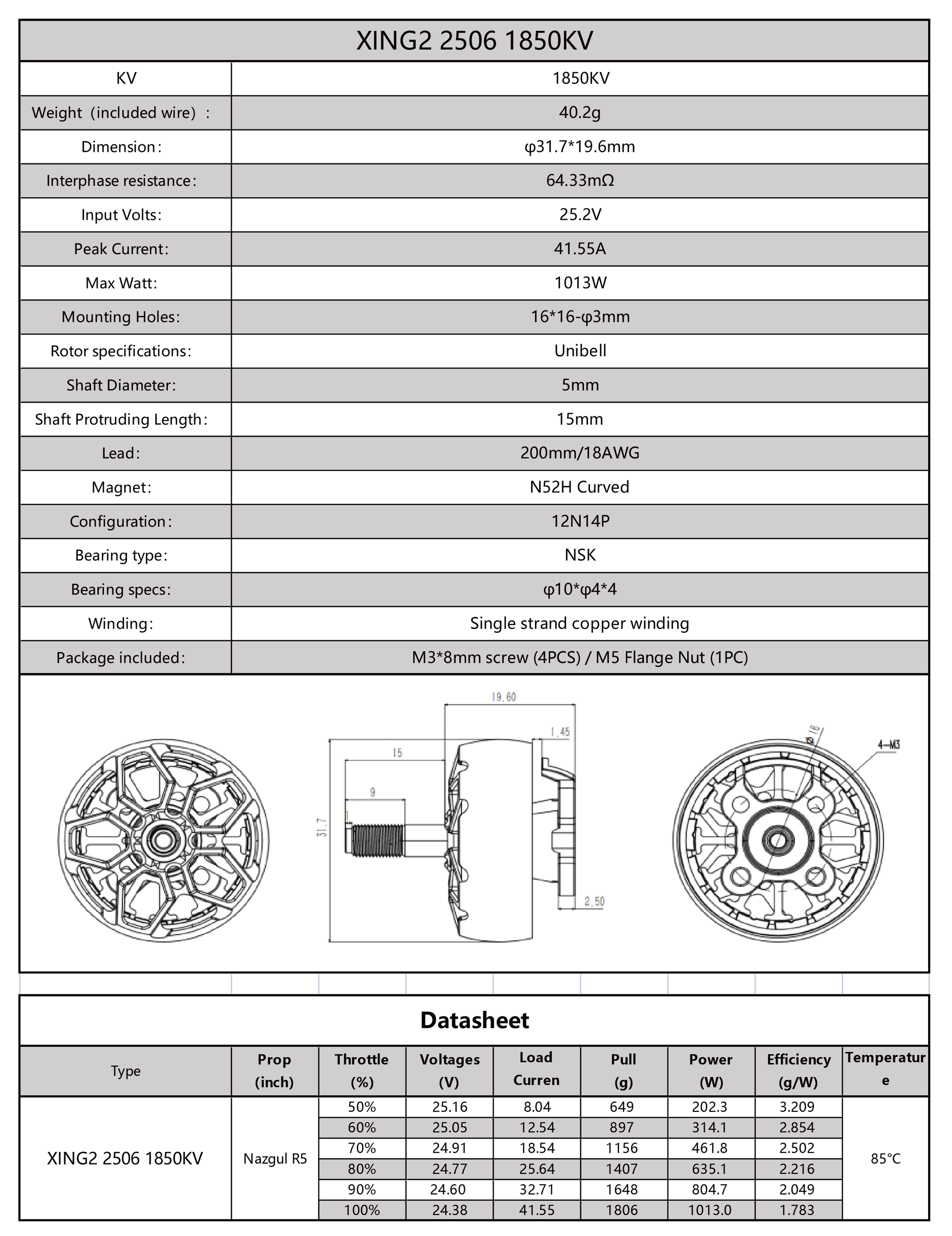

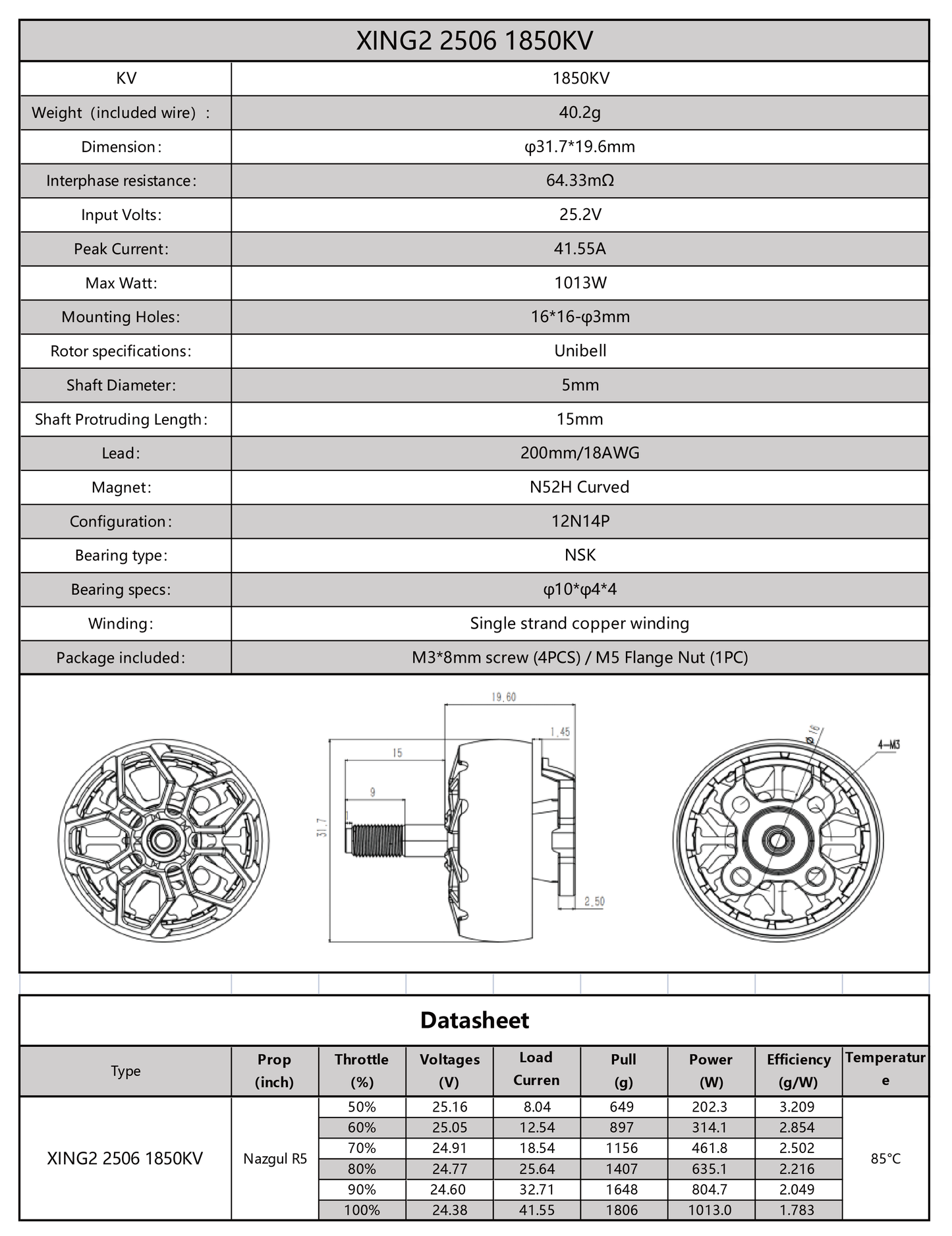

Specifications:

Model: XING2 2506 Black Motor
KV: 1850 KV
Weight (including wire): 40.2g
Size: φ31.7*19.6mm
Interphase resistance: 64.33 mΩ
Input voltage: 25.2V
Peak current: 41.55A
Maximum power: 1013W
Mounting holes: 16*16 φ3mm
Rotor specifications: Unibell
Shaft diameter: 5 mm
Length of protruding shaft: 15 mm
Lead: 200mm-18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ10*φ4*4
Winding: Single-core copper winding

The package includes:
1 x M5 flanged nylon lock nut
1 x XING2 2506 motor black
4x M3*8mm screws
