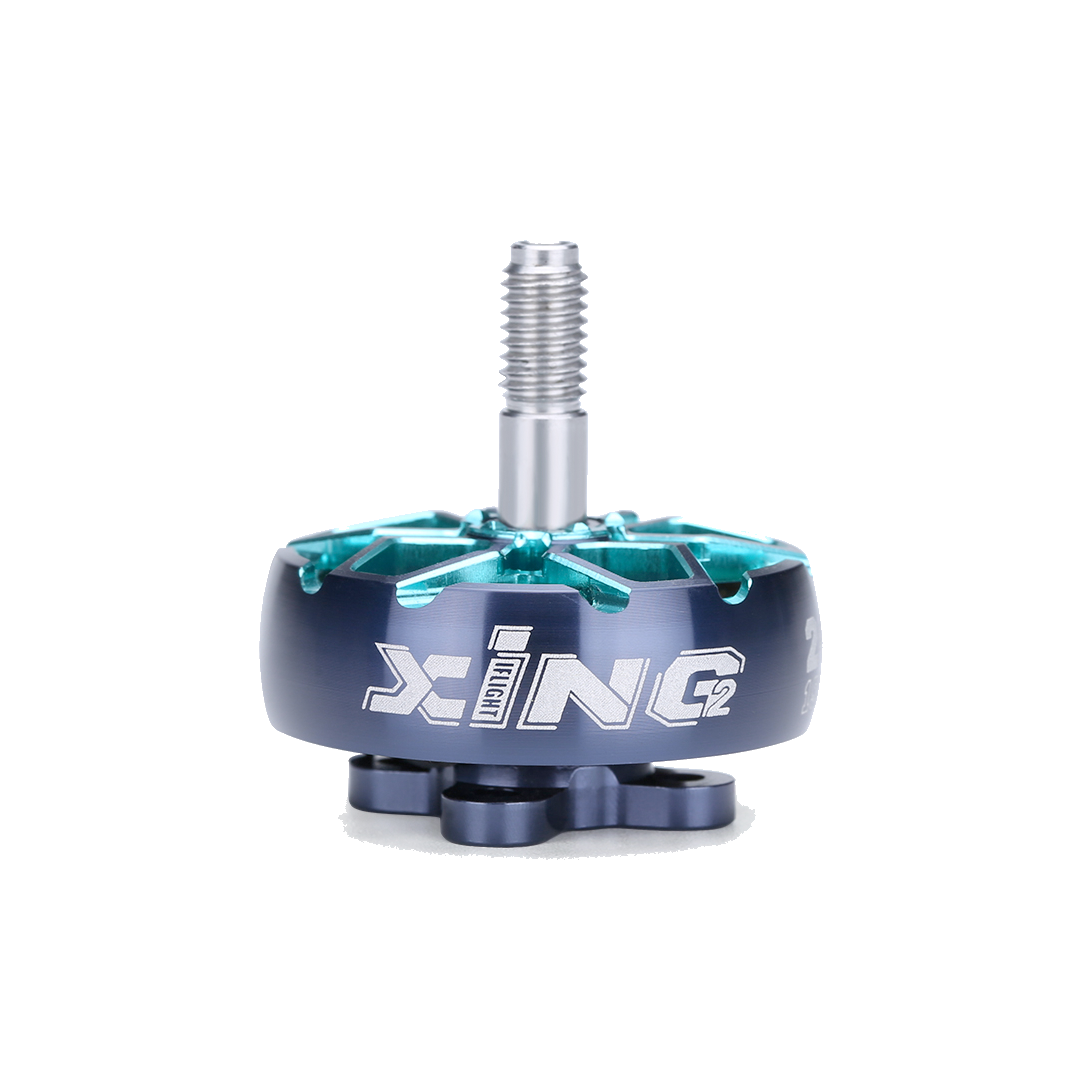

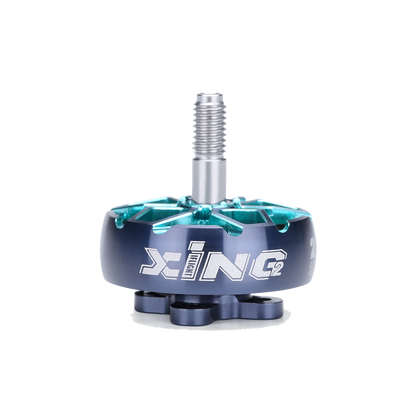

XING2 2405 FPV Motor Unibell 1800KV


The upgraded XING motors are equipped with new N52H curved arc magnets with a center groove for faster response time, reducing shift lag during braking and acceleration. This enhancement increases the performance of FPV flight controllers and provides faster PID loop conversion for a greater sense of lock-in. Additionally, high-quality materials and a durable bell-to-shaft connection minimize magnet air gap and stator lamination, resulting in increased efficiency and higher performance.

Function:

- 5mm titanium alloy shaft
- Impact resistant 7075 aluminum bell
- NSK 9x4x4 smooth bearings with long service life
- N52H Curved Arc Magnets with Center Groove
- Bearing gap protection with XING O-ring
- Motor wire protector
- Dynamically balanced

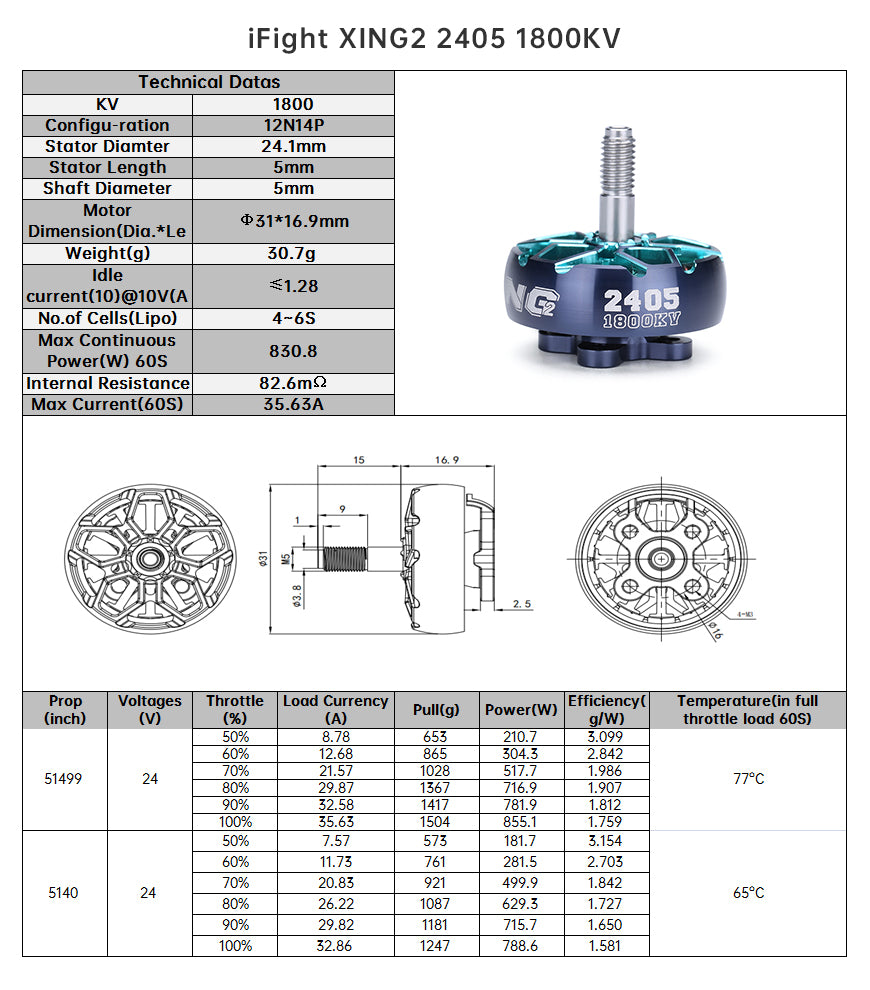

Specifications:

Model: XING2 2405 engine
KV: 1800 KV
Weight (including wire): 30.7g
Size: φ31*16.9mm
Interphase resistance: 82.6 mΩ
Input voltage: 24V
Peak current: 35.63A
Maximum wattage: 855W
Mounting holes: 16*16 φ3mm
Rotor specifications: Unibell
Shaft diameter: 5 mm
Length of protruding shaft: 13.5 mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ9*φ4*4
Winding: Single-core copper winding

The package includes:
1x XING2 2405 brushless motor
4x M3x7 screws
1x M5 flange nut
