  • Motor iFlight XING2 2207 Unibell 1855KV
    • 14988 motor iflight xing2 2207 unibell 1855kv
    • 14988 1 motor iflight xing2 2207 unibell 1855kv
    • 14988 2 motor iflight xing2 2207 unibell 1855kv
    • 14988 3 motor iflight xing2 2207 unibell 1855kv
    1 4

    Code: X009342

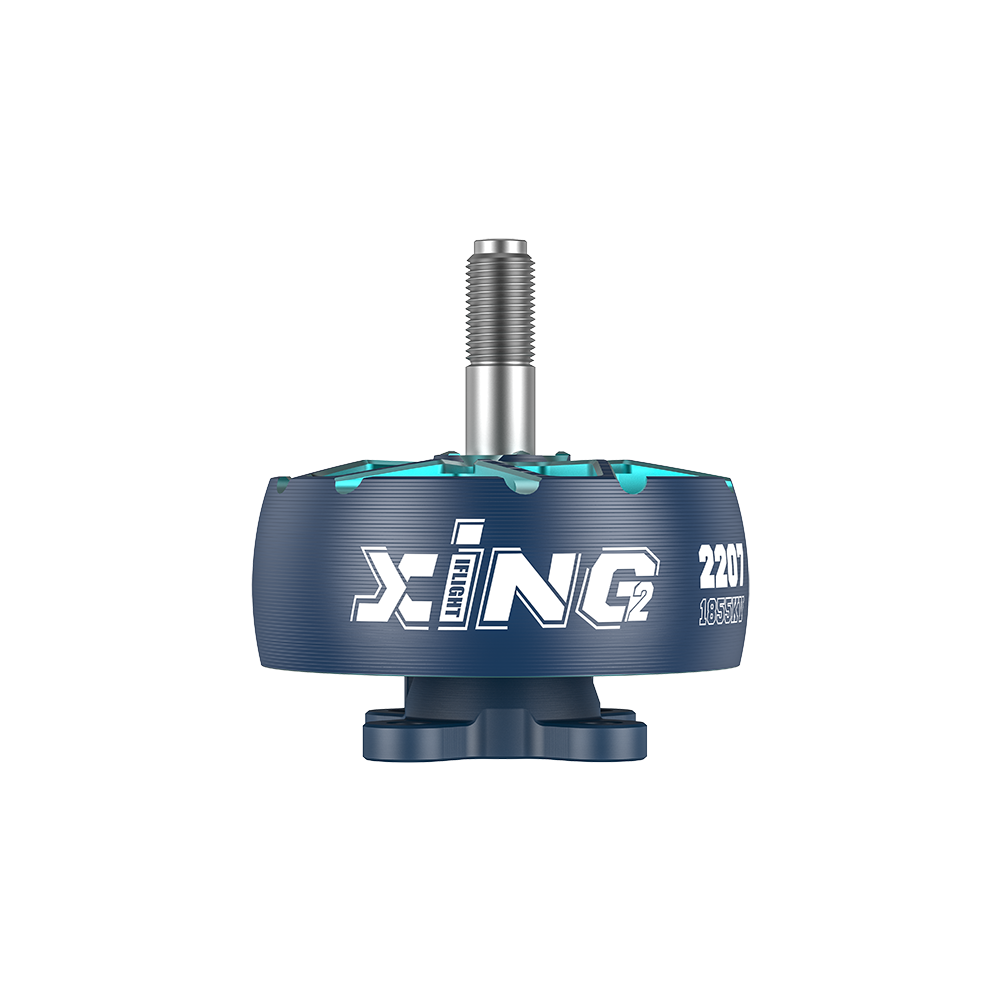

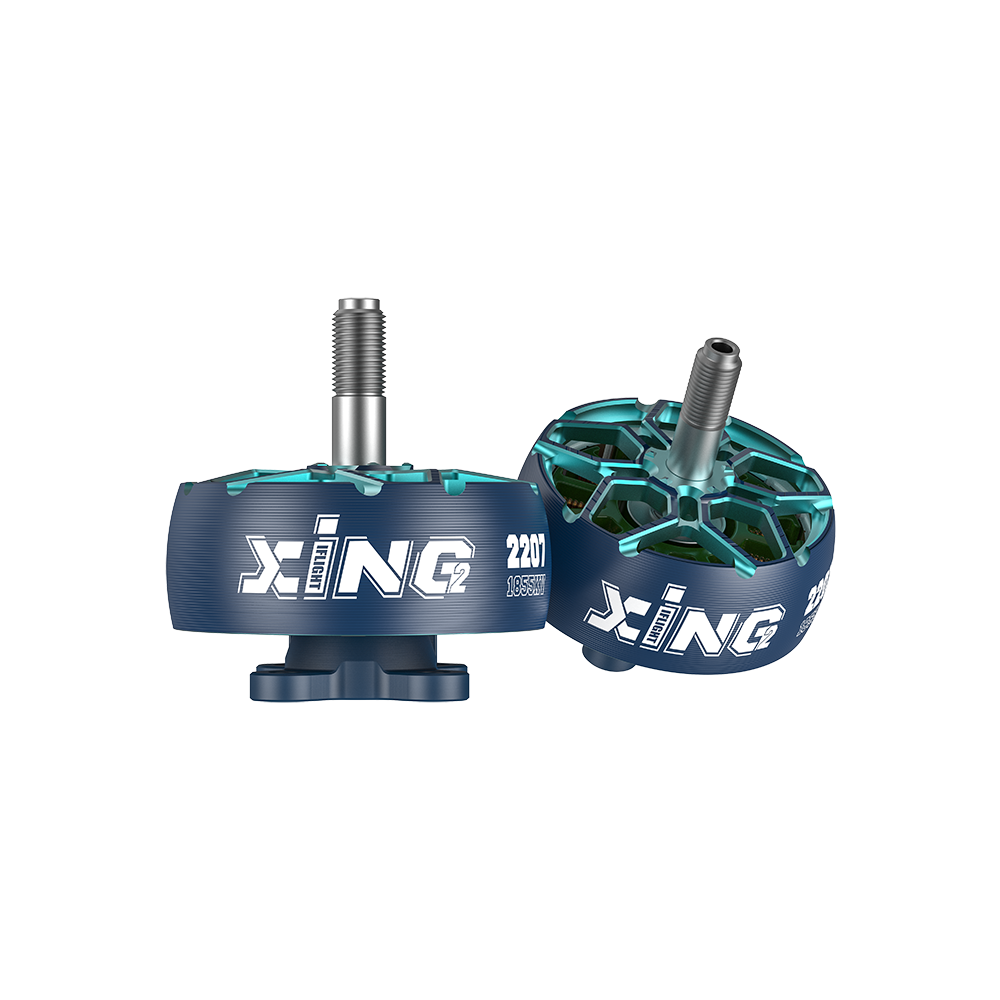

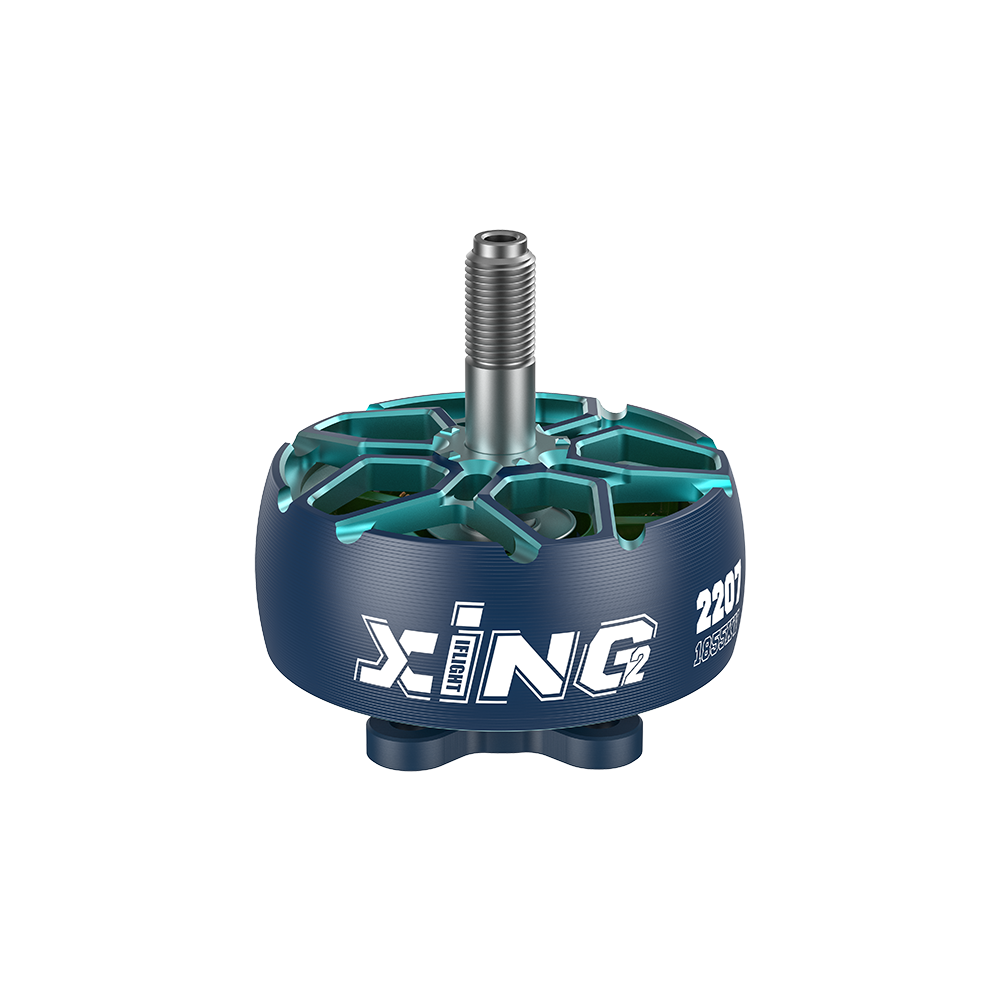

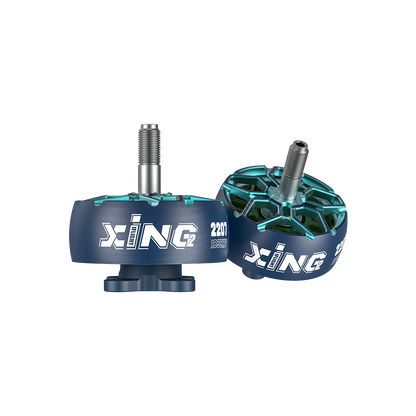

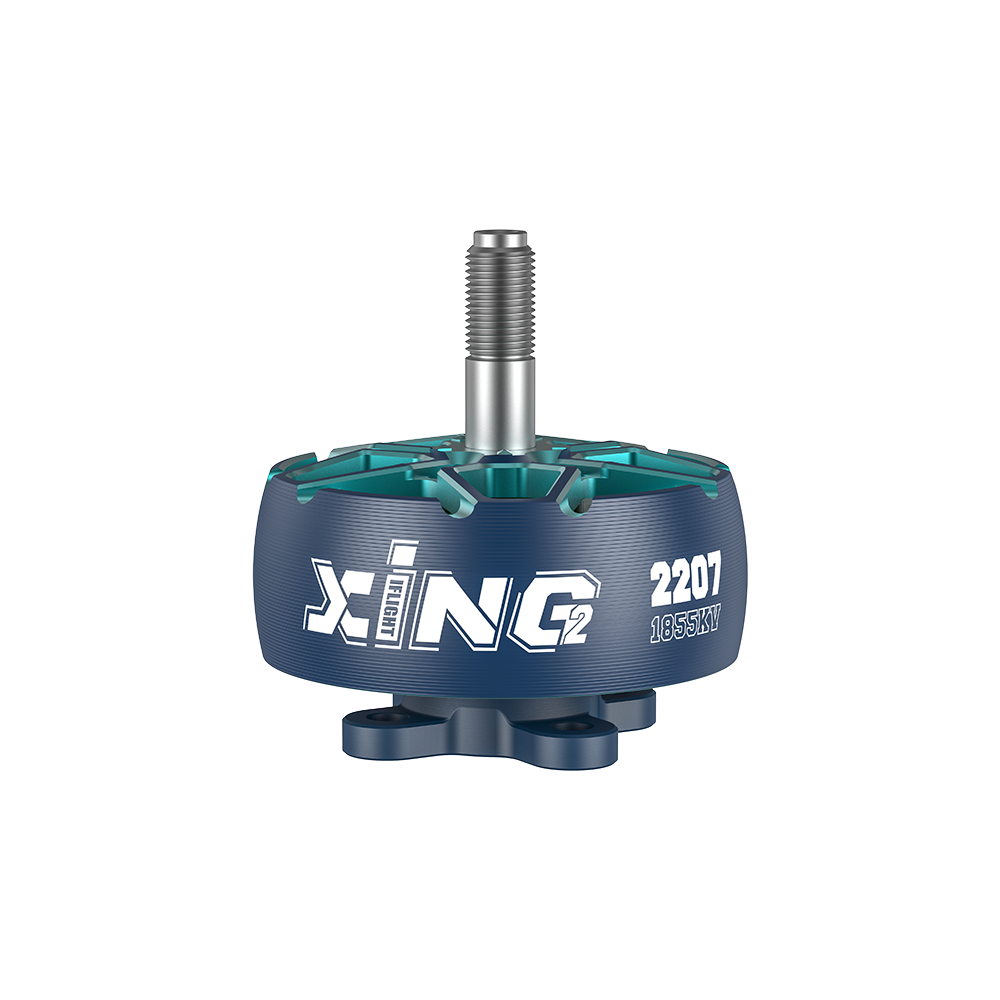

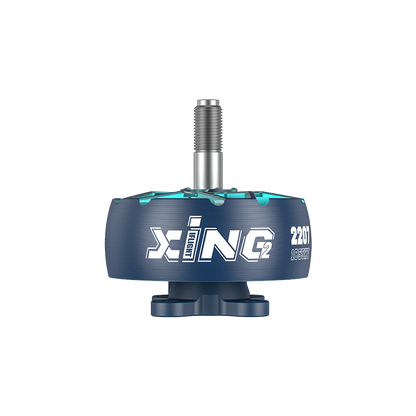

    Motor iFlight XING2 2207 Unibell 1855KV

    Motor iFlight XING2 2207 Unibell 1855KV

    Brand: iFlight

    €21,20
    €21,20 €21,20
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    XING2 2207 FPV Motor Unibell 1855KV

Function:

- 5mm titanium alloy shaft
- Impact resistant 7075 aluminum bell
- NSK 9x4x4 smooth bearings with long service life
- N52H Curved Arc Magnets with Center Groove
- Bearing gap protection with XING O-ring
- Motor wire protector
- Dynamically balanced

Specifications

KV: 1855KV
Weight (including wire): 31.6 g
Size: φ29.08*19.1mm
Interphase resistance: 50mΩ
Input voltage: 6S Lipo, 24V
Peak current: 35.08A
Maximum wattage: 841.90W
Mounting holes: 16*16 φ3mm
Rotor specifications: Unibell
Shaft diameter: 5 mm
Length of protruding shaft: 13.5 mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ9*φ4*4
Winding: Single-core copper winding

The package includes:
1 x XING2 2207 1855KV brushless motor
4 x M3*7 screws
1 x M5 flanged nylon lock nut
