    XING2 1404 FPV Motor Unibell 3000KV

The new XIN2 X1404 MOTOR is designed for ultralight drones with toothpicks. Featuring N52H curved arc magnets with a center groove, these motors provide a faster response time, reducing shift lag during braking and acceleration. This improvement ensures faster PID loop conversion and gives FPV pilots a greater sense of lock-in. In addition, with high-quality materials and a durable bell-shaft connection, we have minimized magnet air gap and stator lamination, resulting in increased efficiency and performance.

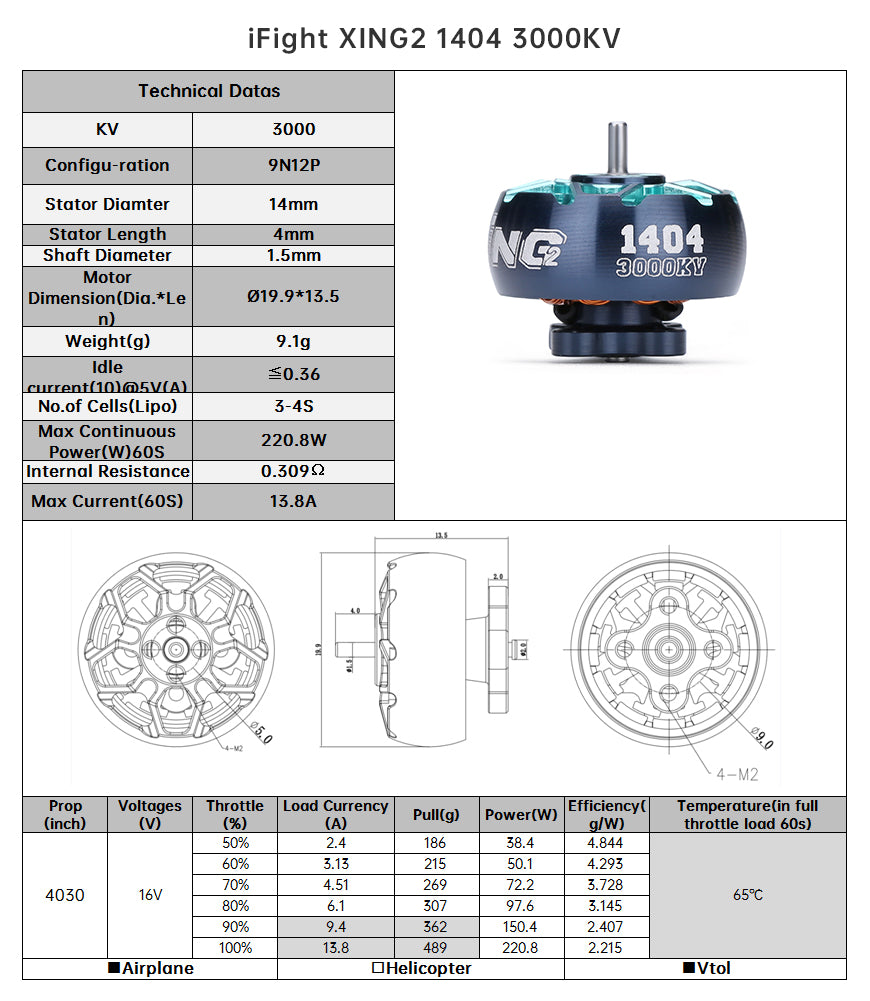

Specifications:

KV: 3000 KV
Weight (including wire): 9.1 g
Size: φ19.9*13.5mm
Phase-to-phase resistance: 0.309Ω
Input voltage: 3S-4S
Peak current: 13.8A
Maximum wattage: 220.8W
Mounting holes: 9*9 φ2mm
Rotor specifications: Unibell
Lead: 120mm/26AWG
Magnet: N52H Curved
Configuration: 9N12P
Bearing type: NSK
Winding: Single-core copper winding

The package includes:
1 x XING2 1404 Motor Unibell
4x M2x7 mounting screws
