    Code: X010455

    Motor iFlight XING 2205 (Φ12/M2) 3200KV

    Motor iFlight XING 2205 (Φ12/M2) 3200KV

    Brand: iFlight

    €17,10
    €17,10 €17,10
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    XING 2205 FPV motor (Φ12/M2) 3200KV

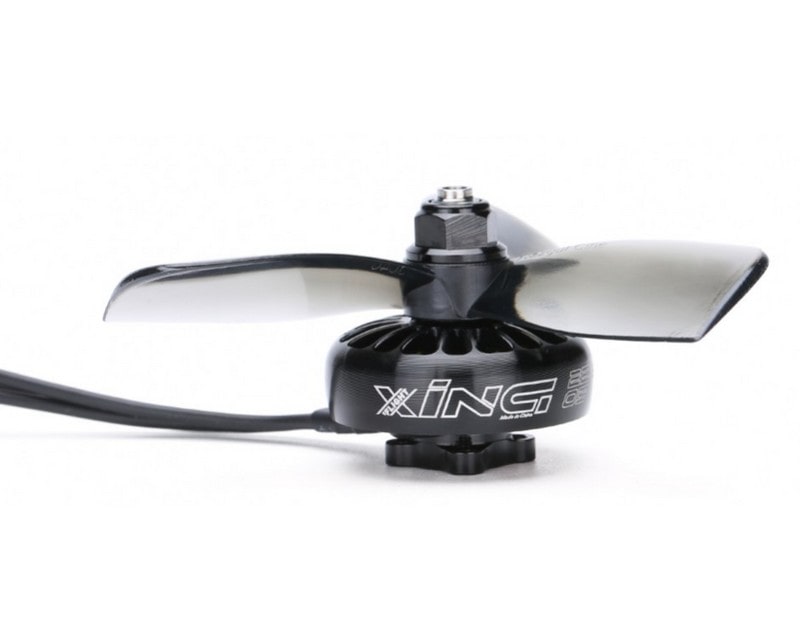

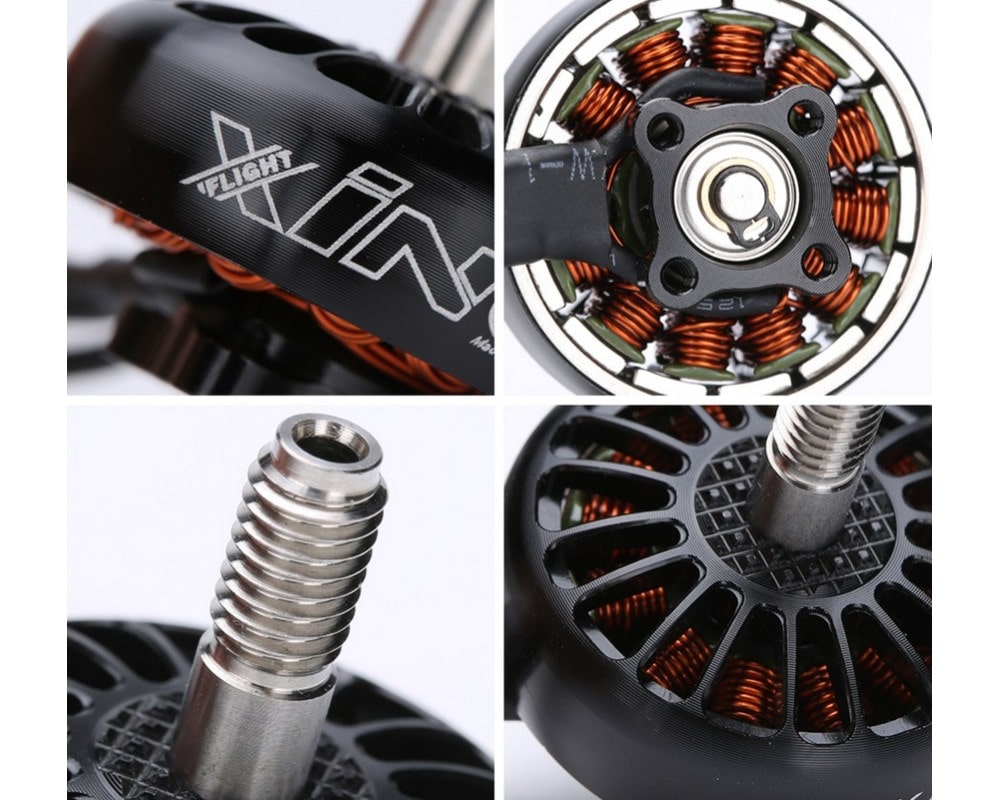

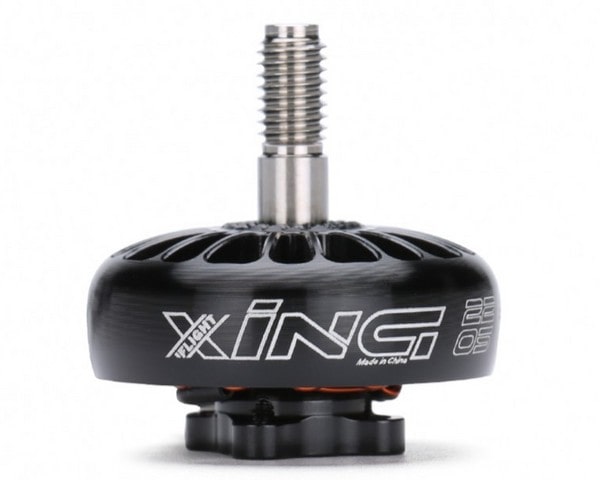

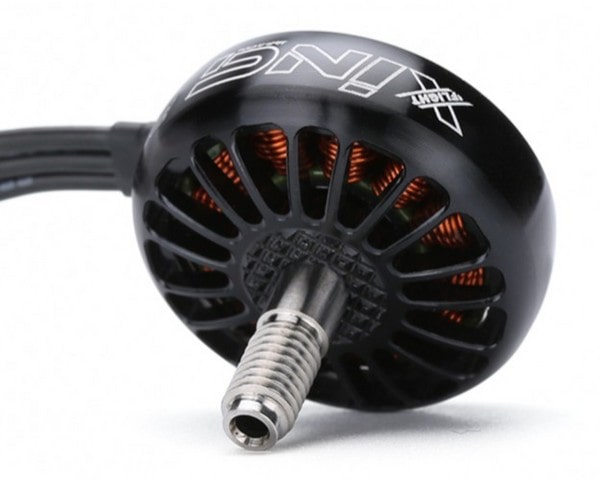

iFlight XING 2205 is a black brushless motor designed for FPV drones.

Function:

- High strength 5mm steel shaft
- Japanese NSK bearings φ8*φ3*4
- N52H curved magnets
- Motor leads are protected
- Dynamically balanced

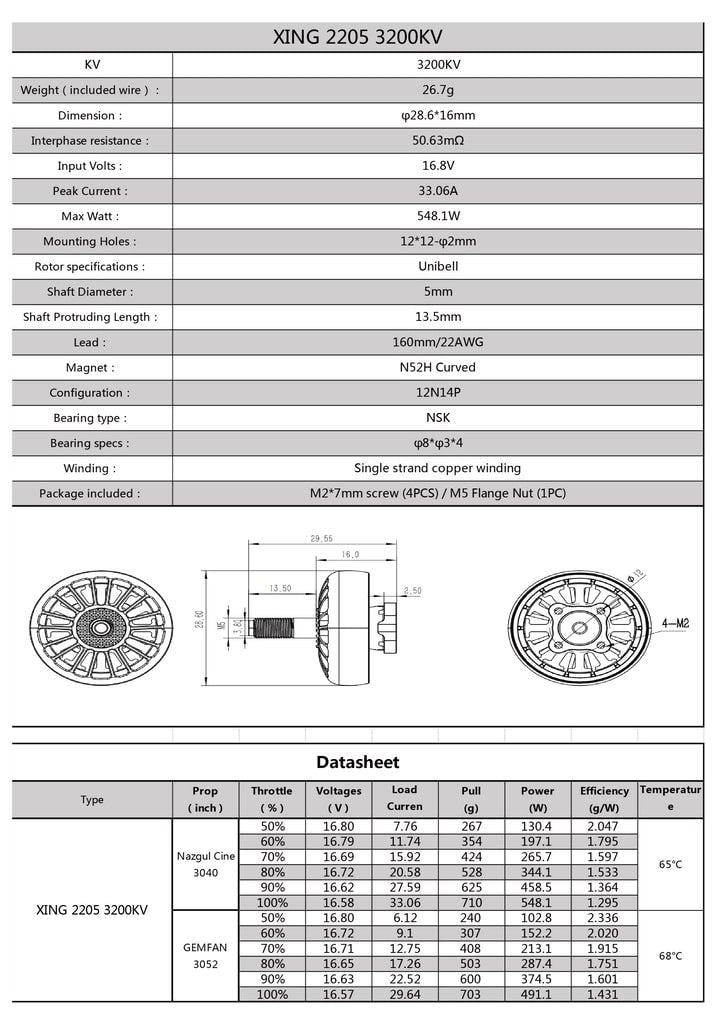

Specifications:
KV: 3200 KV
Weight (including wire): 26.7 g
Size: φ28.6*16mm
Interphase resistance: 50.63 mΩ
Input voltage: 16.8V
Peak current: 33.06A
Maximum wattage: 548.1W
Mounting holes: 12*12 φ2mm
Rotor specifications: Unibell
Shaft diameter: 5 mm
Length of protruding shaft: 13.5 mm
Lead: 160mm/22AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ8*φ3*4
Winding: Single-core copper winding

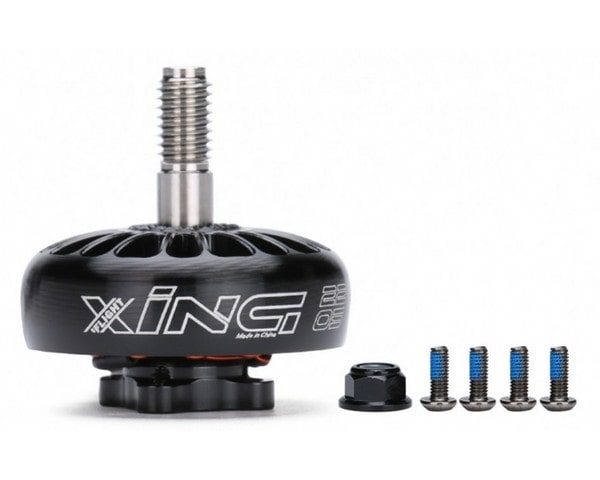

The package includes:
1 x XING 2205 FPV NextGen Motor Black
4x M2*7mm screws
1 x M5 flange nut
