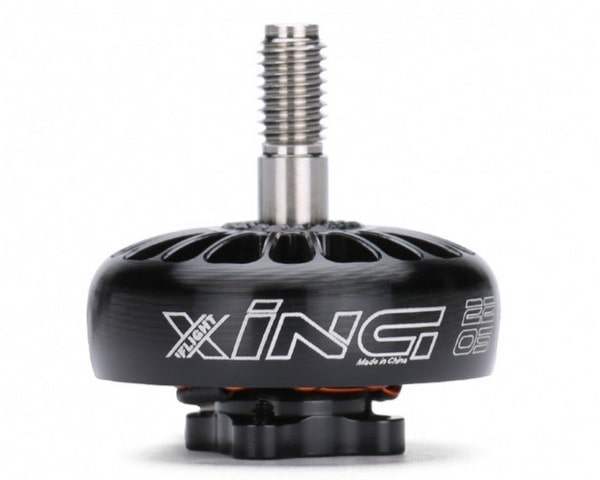

    XING 2205 FPV motor (Φ12/M2) 2450KV

iFlight XING 2205 is a black brushless motor designed for FPV drones.

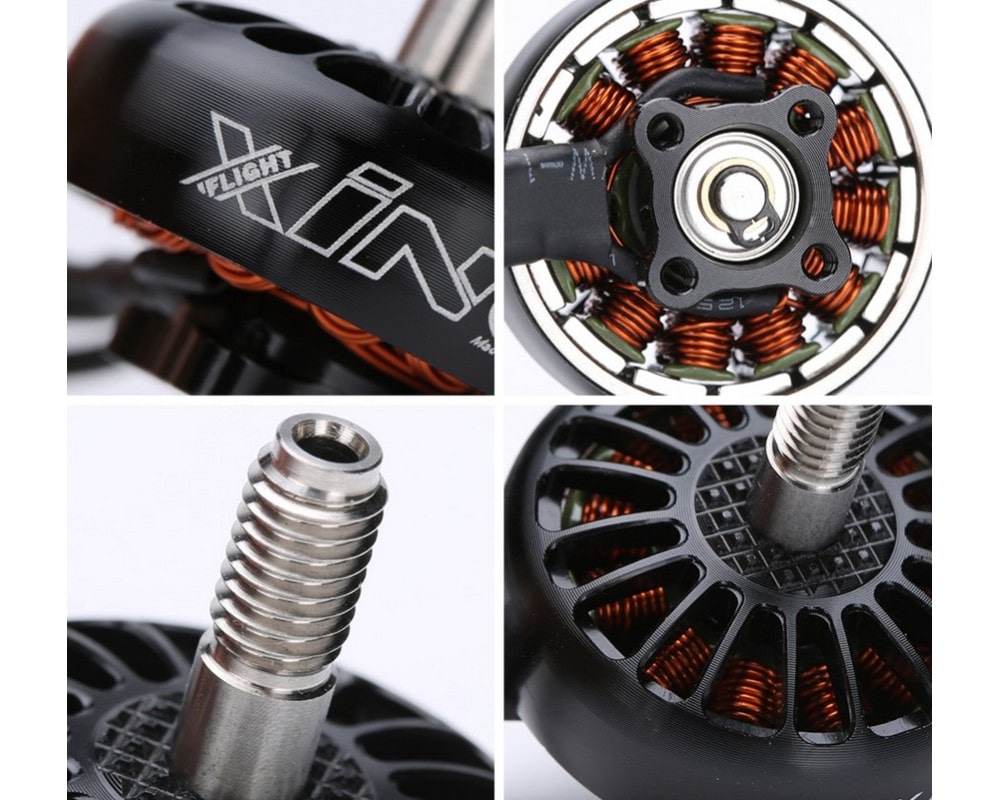

Function:

- High strength 5mm steel shaft
- Japanese NSK bearings φ8*φ3*4
- N52H curved magnets
- Motor leads are protected
- Dynamically balanced

Specifications
KV: 2450KV
Weight (including wire): 25.3 g
Size: φ28.6*16mm
Interphase resistance: 72.41 mΩ
Input voltage: 24V
Peak current: 38.43A
Maximum power: 910W
Mounting holes: 12*12 φ2mm
Rotor specifications: Unibell
Shaft diameter: 5 mm
Length of protruding shaft: 13.5 mm
Lead: 160mm/22AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ8*φ3*4
Winding: Single-core copper winding

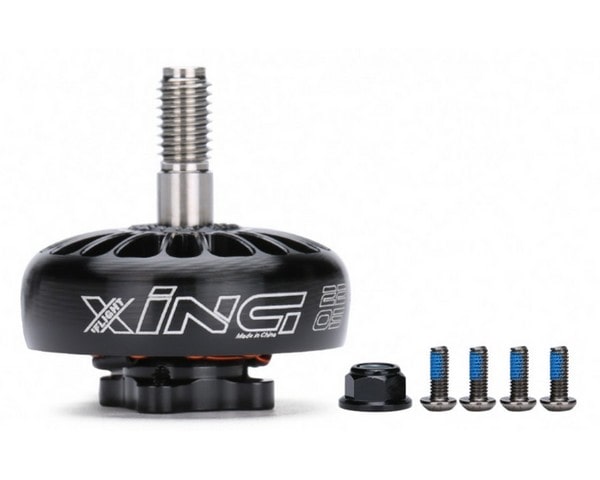

The package includes:
1 x XING 2205 FPV NextGen Motor Black
4x M2*7mm screws
1 x M5 flange nut
