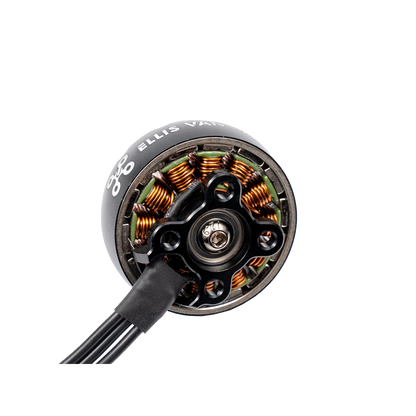

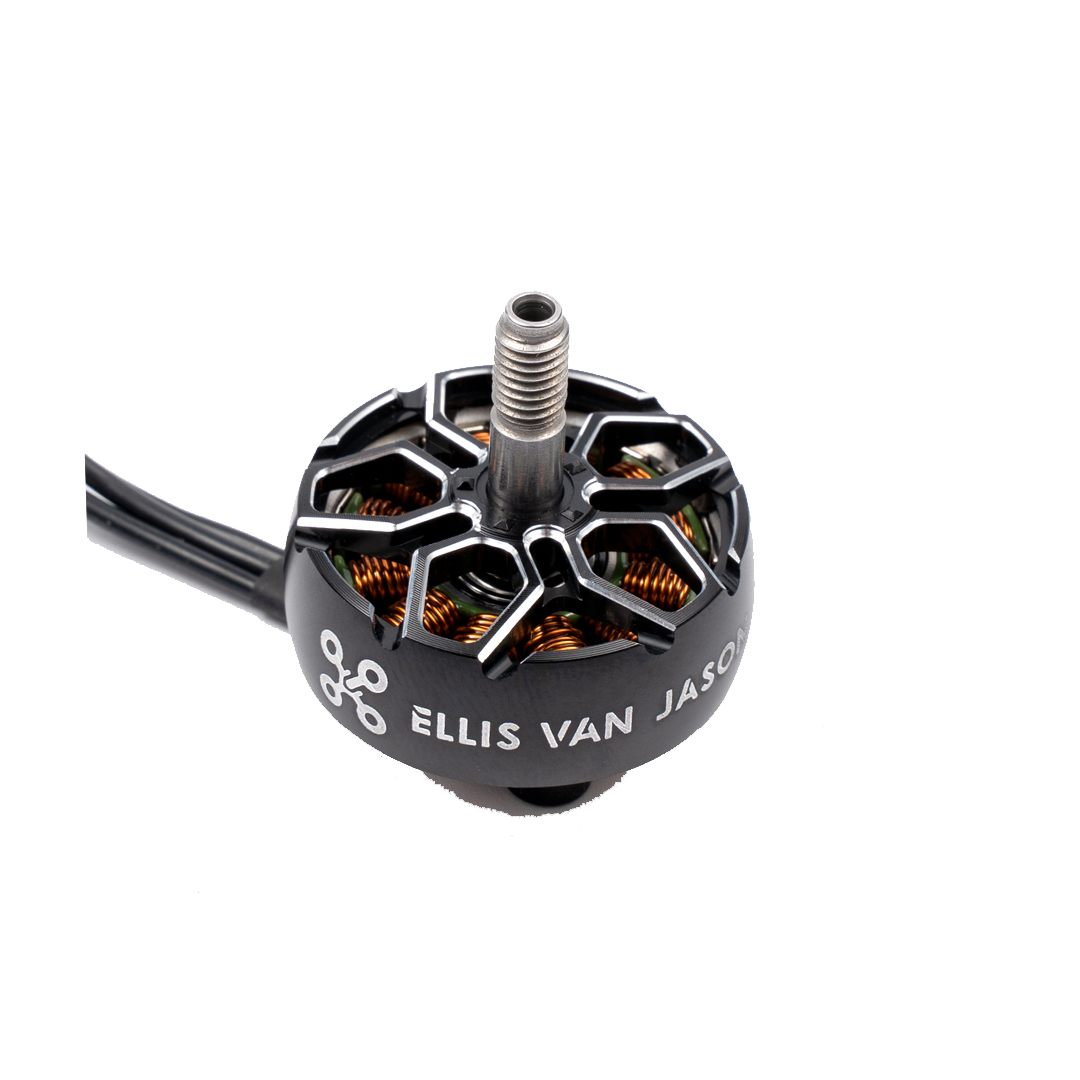

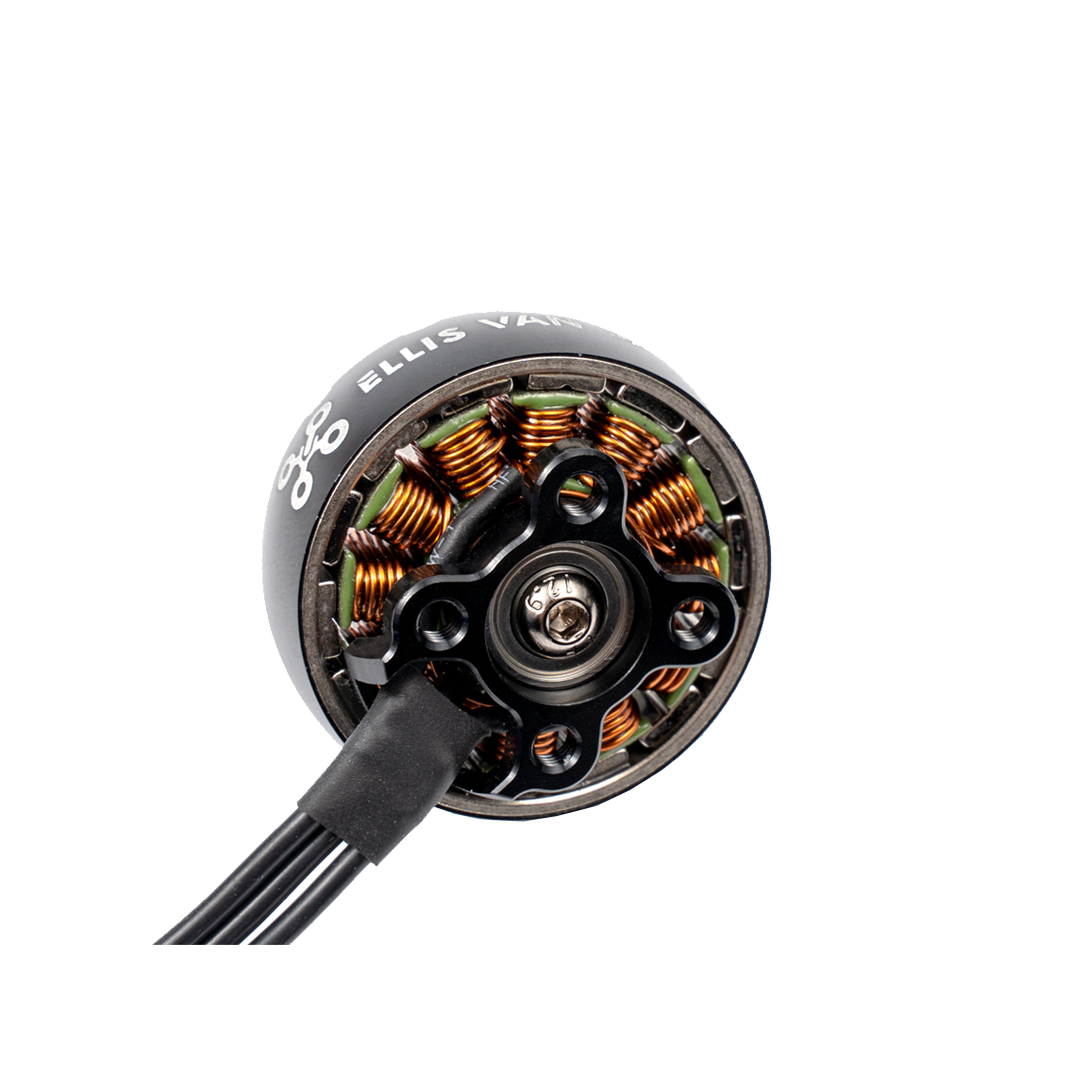

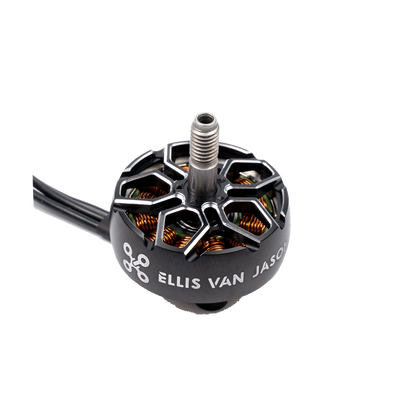

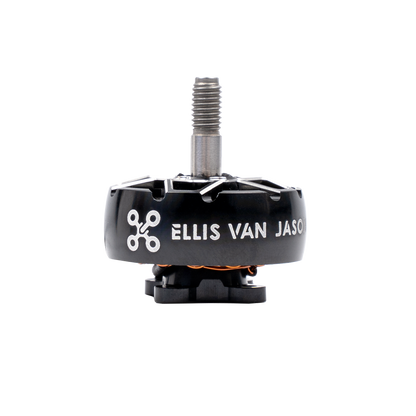

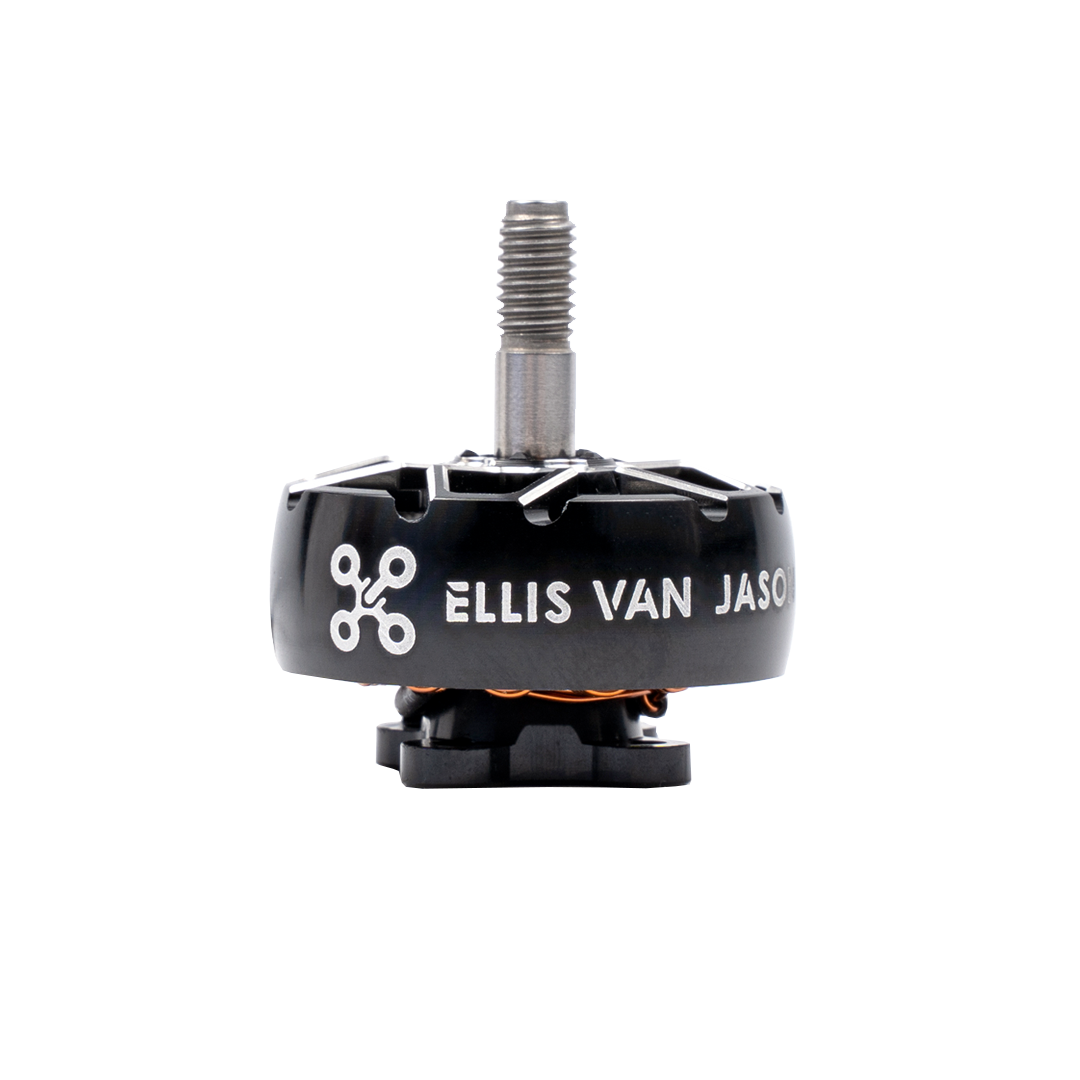

BOB57 2506 6S 1500KV FPV Motor

This motor is specially adapted for 6 inch BNF BOB57 Cinematic LR & Freestyle drone.

With improved components, including new N52H curved arc magnets with a center groove, it provides increased performance with a shorter response time.

Using high-quality materials and a robust bell-shaft connection, it minimizes magnet air gap and stator lamination, resulting in increased efficiency and performance.

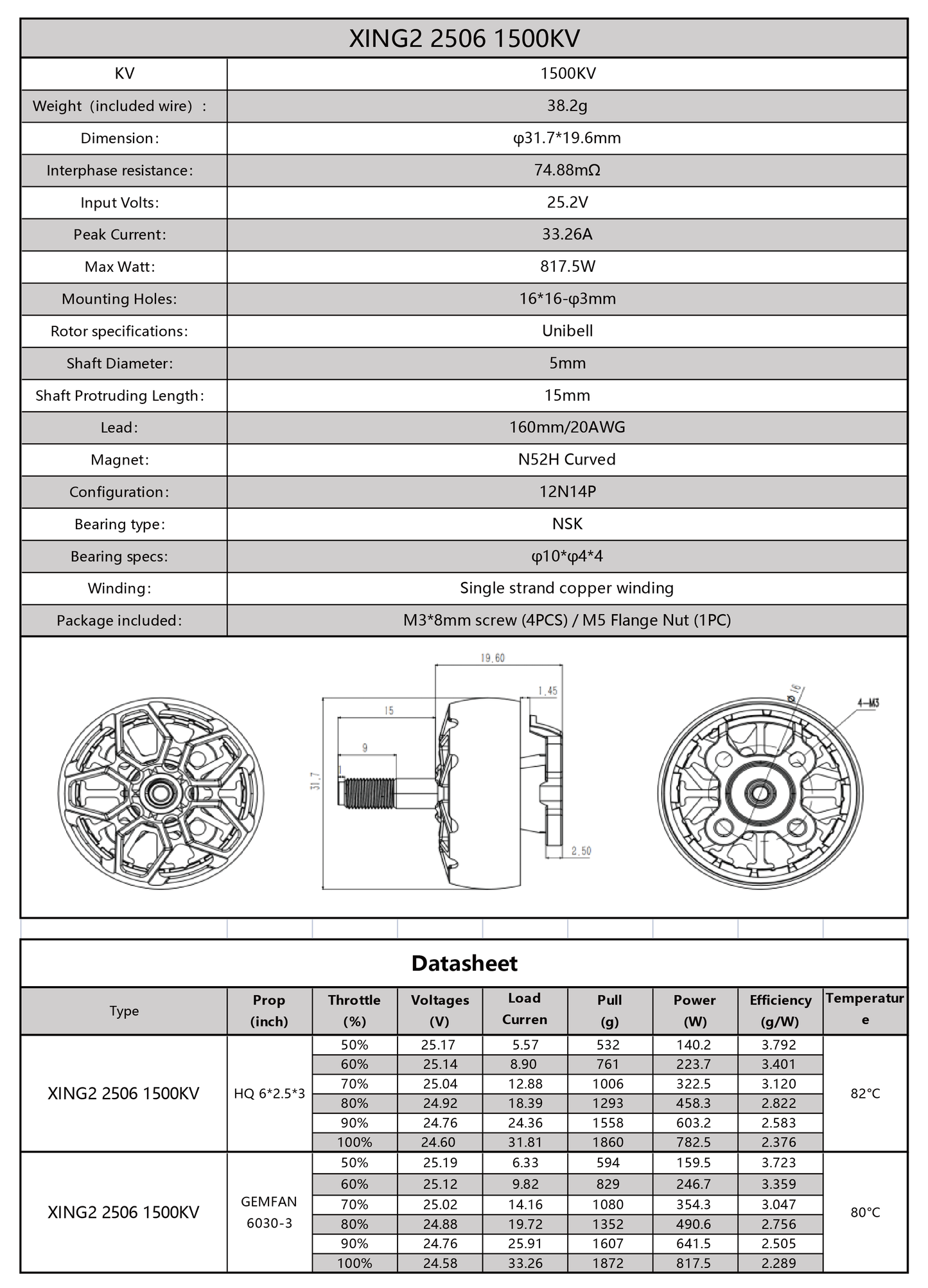

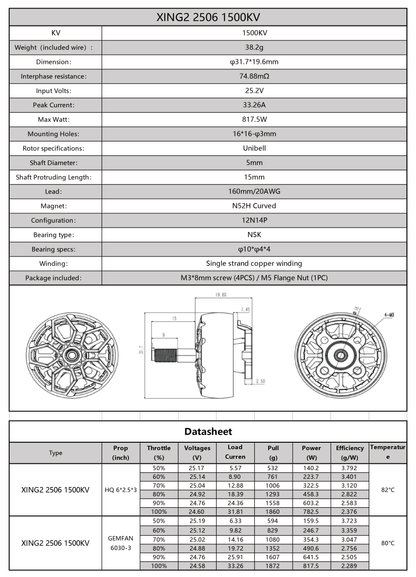

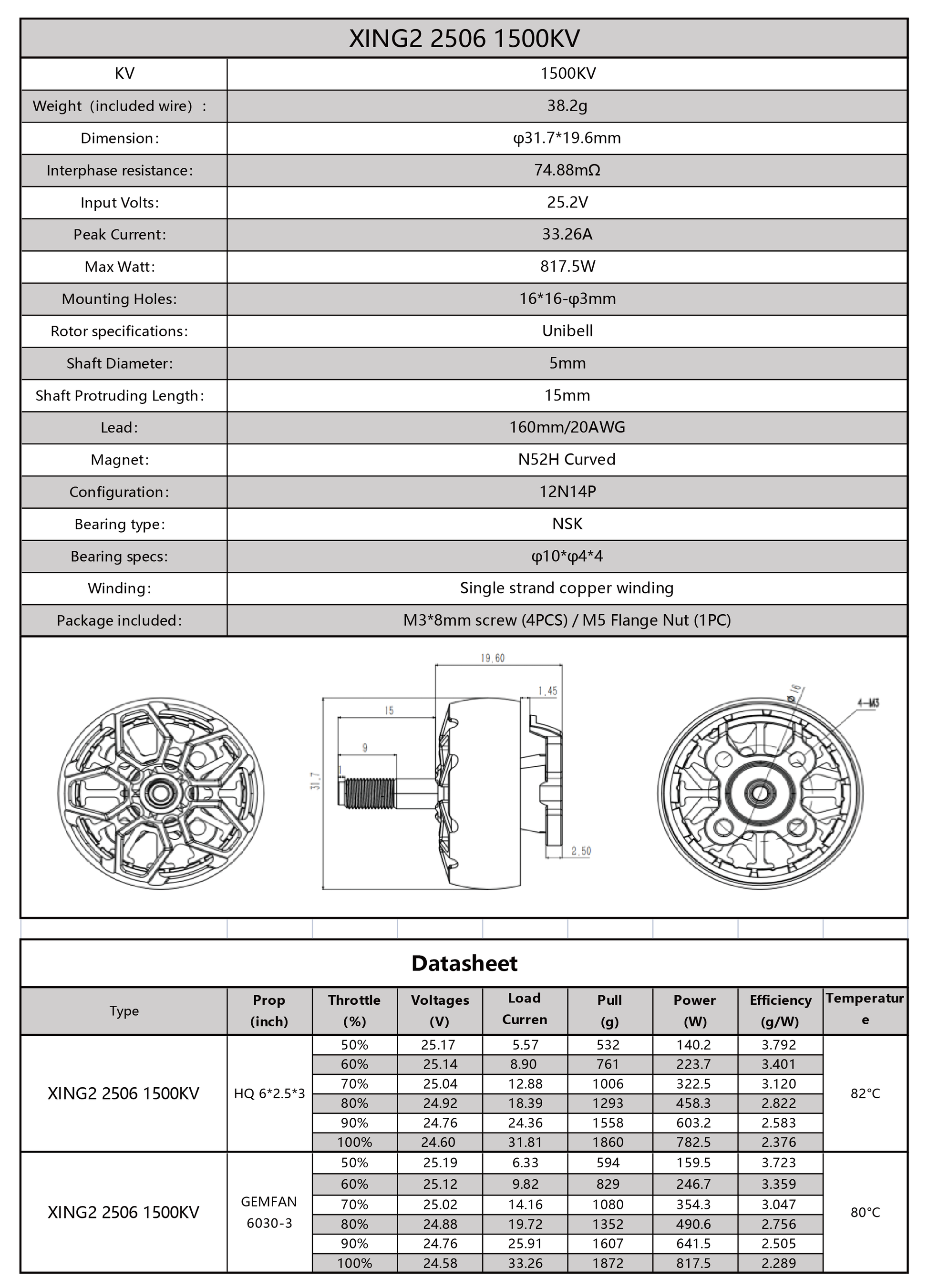

Specifications:
Product name: BOB57 2506 6S 1500KV
KV: 1500 KV
Weight (including wire): 38.2 g
Size: φ31.7*19.6mm
Interphase resistance: 74.88 mΩ
Input voltage: 25.2V
Peak current: 33.26A
Maximum wattage: 817.5W
Mounting holes: 16*16 φ3mm
Rotor specifications: Unibell
Shaft diameter: 5 mm
Length of protruding shaft: 15 mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ10*φ4*4
Winding: Single-core copper winding

The package includes:
1 x BOB57 2506 1500KV 6S FPV Motor
1 x M5 flanged nylon lock nut
4x M3*8mm screws
