    Code: GP105986

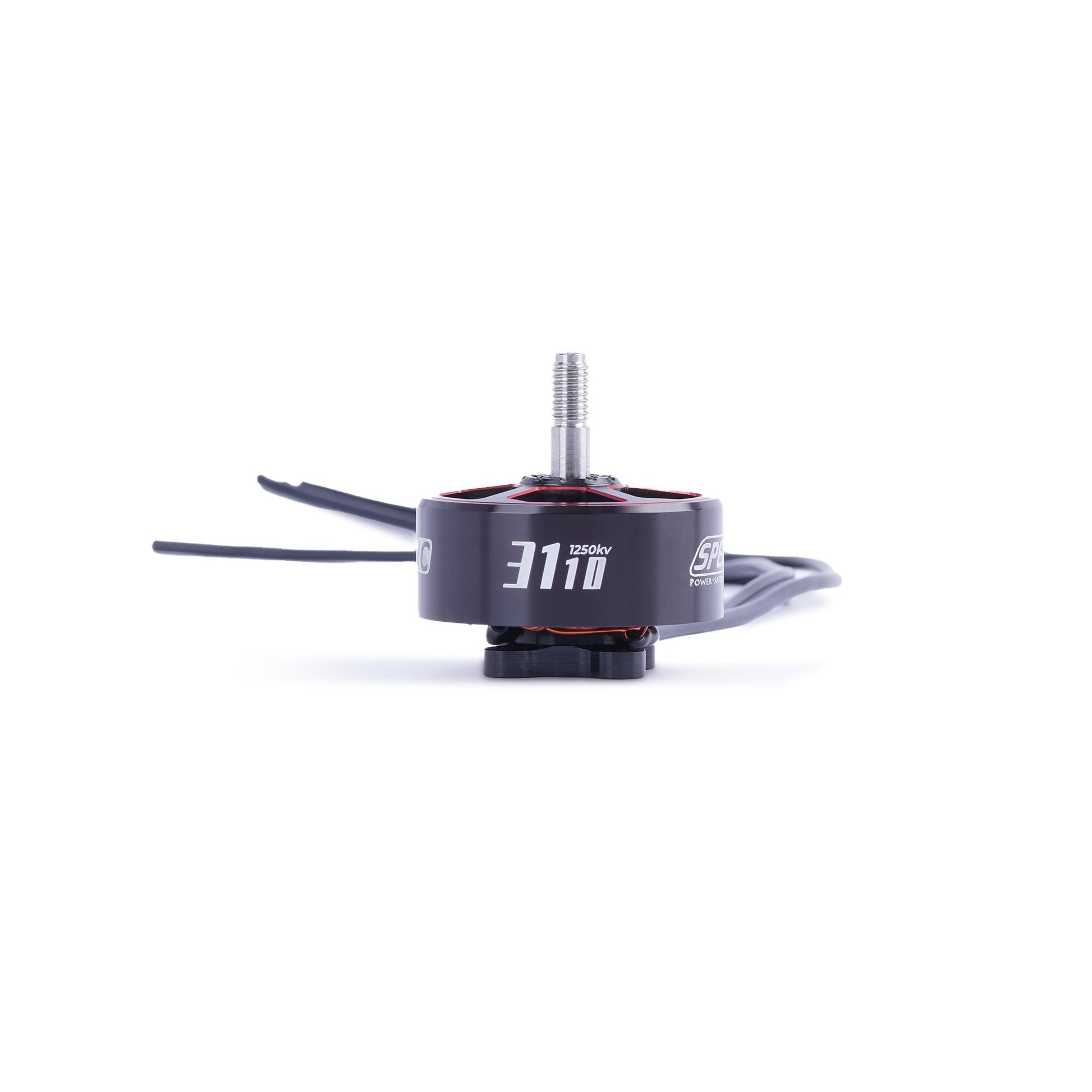

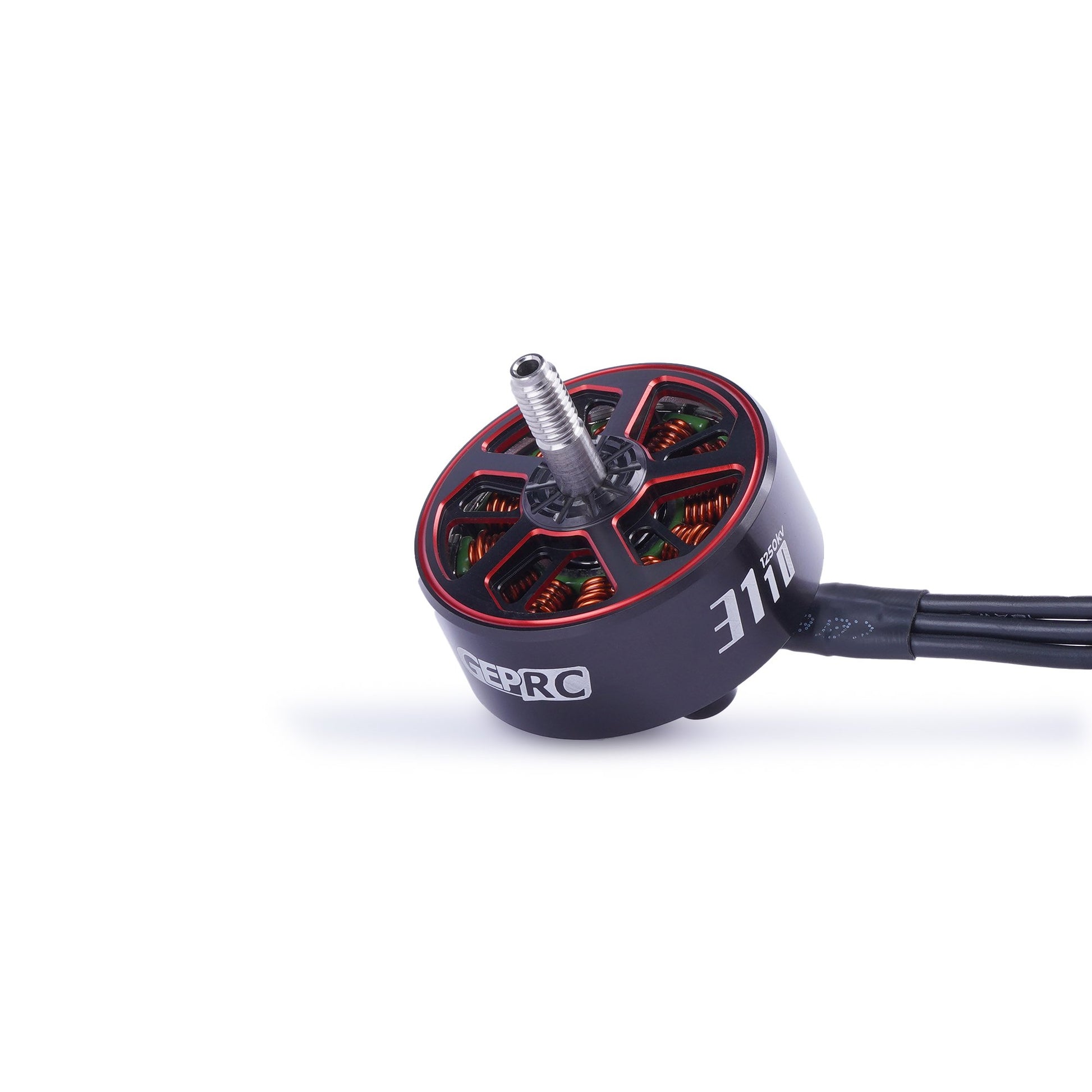

    Motor GEPRC SPEEDX2 3110 (1250KV)

    Motor GEPRC SPEEDX2 3110 (1250KV)

    Brand: GEPRC

    €39,99
    €39,99 €39,99
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    SPEEDX2 3110 (1250 KV)

The SPEEDX2 series engines are characterized by cutting-edge design with innovative aesthetics. The SPEEDX2 3110 motor is available in two KV variants: 900KV and 1250KV.

Function:
1. The design of the motor's magnetic circuit is highly efficient, resulting in 10% energy savings compared to motors of the same class.
2. The surface of the engine is treated with a fine CD texture, which provides protection against scratches and preserves its appearance.
3. Made of 7075 aircraft aluminum alloy with high precision integrated CNC stamping.

Specifications:

SPEEDX2 3110-1250KV motor
KV: 1250 KV
Configuration: 12N14P
Magnet: N52H ARC
Rotor material: aircraft aluminum alloy 7075-T6
Stator diameter: 31 mm
Stator height: 10 mm
Output shaft diameter: 5 mm
Dimensions: 39.58mm x 37.85mm
Output specification: 18AWG 270mm
Rated voltage: 25.2V LiPo 6S
Maximum power: 1697.87W
Maximum current: 75.26A
Mounting hole: 19x19mm (M3)
Color: Black with red accents
Weight: 79.3g (including wire)
Applicable models: suitable for 7-10 inch long range FPV drones / 7 inch X8 models
