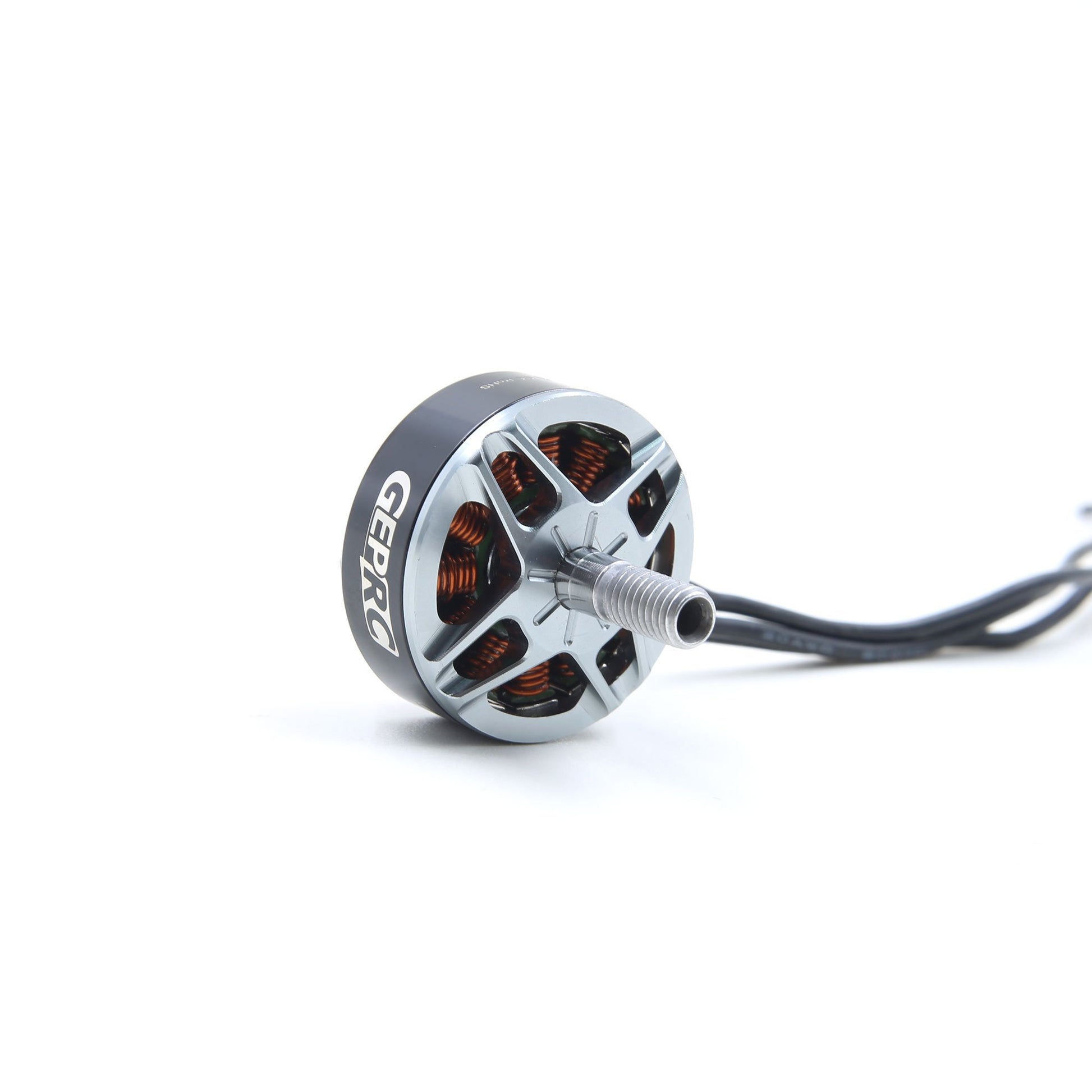

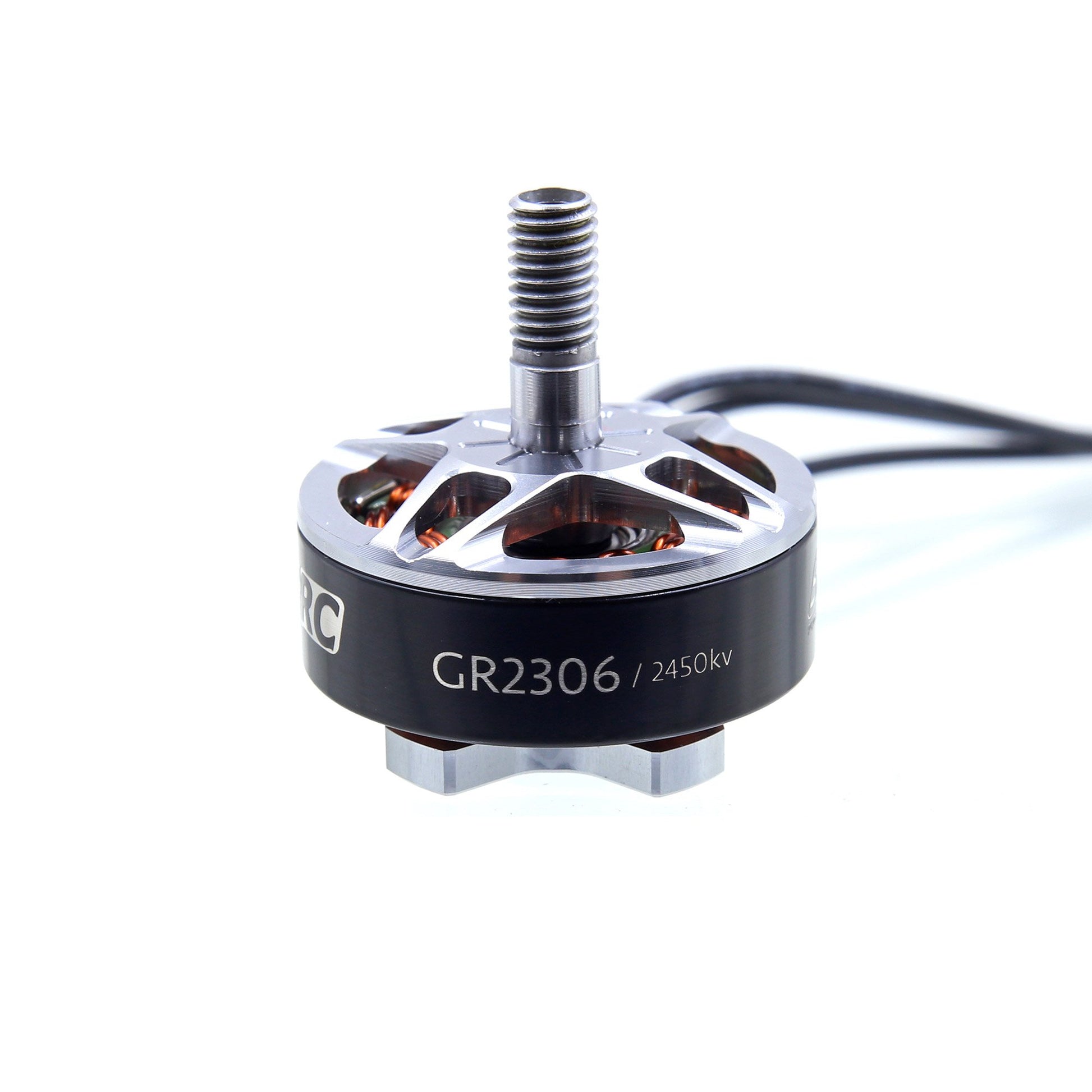

    Motor GEPRC GEP-GR2306 (2450KV)

    Motor GEPRC GEP-GR2306 (2450KV)

    Brand: GEPRC

    €19,99
    €19,99 €19,99
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    GEP-GR2306 (2450 KV)

The 2450KV model is optimized for freestyle with low power consumption and high efficiency. The design minimizes coil vibrations during operation. The motor boasts N52H arc magnets with a gap of just 0.15mm between stator and magnet, ensuring exceptional torque and maximum efficiency. The body is made of 7075 aluminum, which guarantees high performance and minimal impact damage. Japanese NSK bearings are engineered to withstand high-speed impacts and ensure consistently smooth operation.

GEP-GR2306 is compatible with 3-5S batteries and 5-6 inch propellers such as Gemfan51523, DAL50503 or GEP5040*3.

Specifications:

Item name: GEP-GR2306
KV: 2450
Configuration: 12N14P
Stator diameter: 23 mm
Stator length: 6 mm
Shaft diameter: 4 mm (hollow)
Motor dimensions (diameter x length): 28.49mm x 30mm
No load current (10) @ 10 V (A): 2.1
Number of cells (LiPo): 3-5S
Maximum continuous power (W) 15S: 950
Internal resistance: 33mΩ
Maximum current (15S): 45A
Efficiency current (4-8A): >81%
Rotor: Arc magnets N52H
Bearings: NSK
Base case: Al 7075
Wire AWG: 20AWG
Weight: 32g
