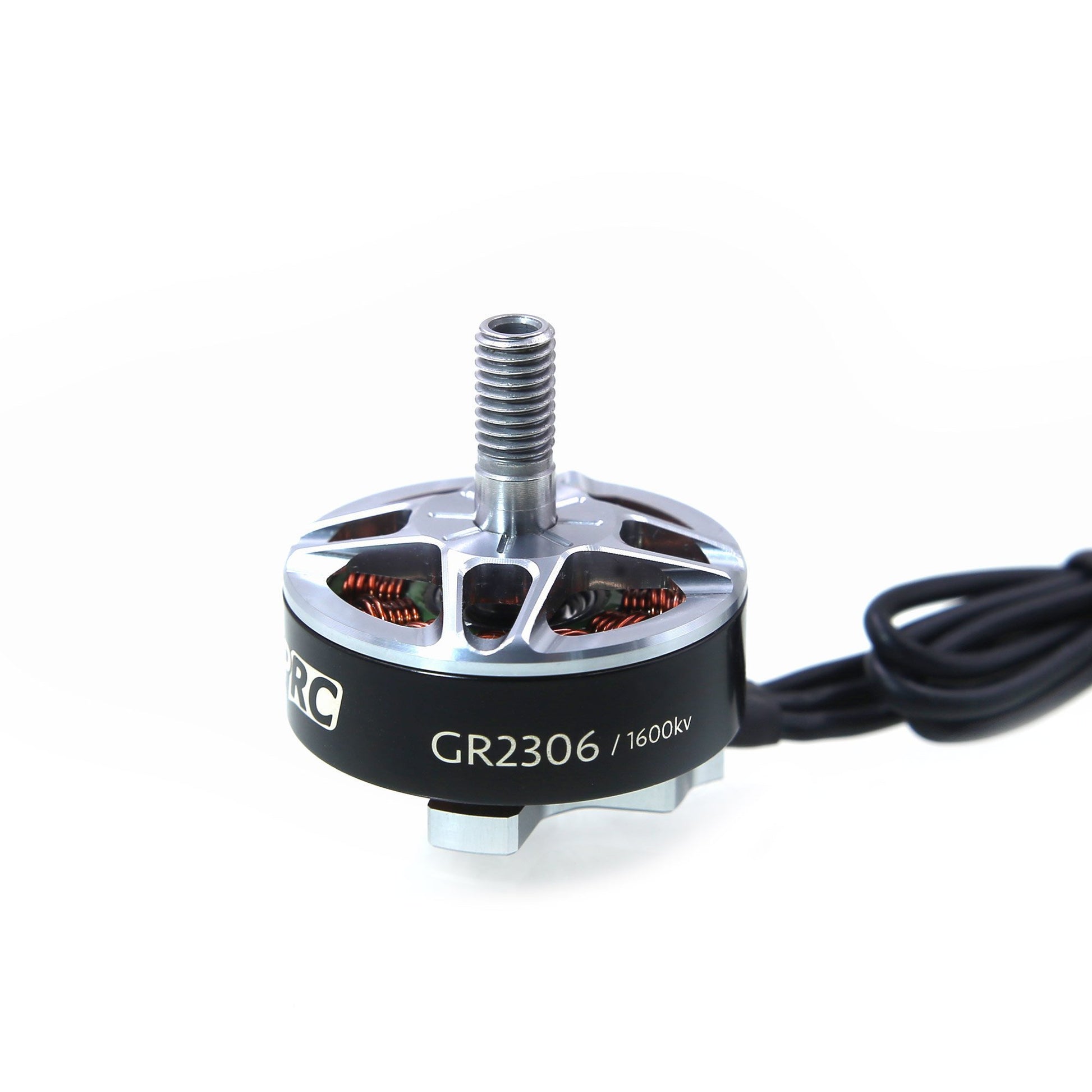

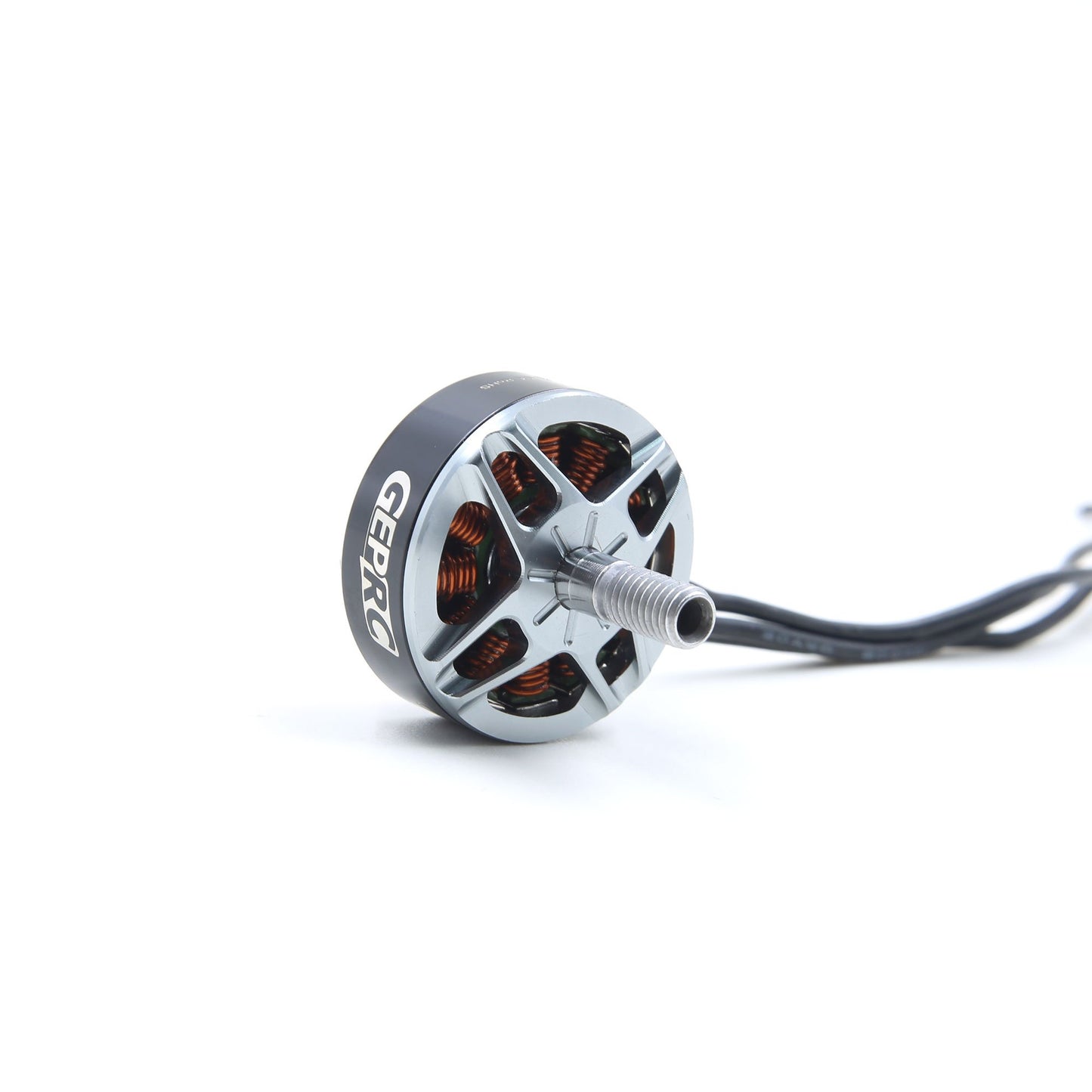

GEP-GR2306 (1600 KV) The GEP-GR2306 motors have a super light basic construction with robust performance. The entire motor is highly precision CNC machined using 7075 aluminum alloy to ensure precision and strength. N52H magnets guarantee torque, high temperature resistance and magnet retention. Optimal thrust is achieved in the range of 60% to 80% throttle. Precise dynamic motor balancing minimizes vibration and noise during high-speed operation. Japanese NSK bearings ensure smooth engine operation. Tile-shaped magnets and 0.15mm air gap improve power delivery. Thoughtful heat radiation design reduces temperature by 20% compared to similar motors. The 1600KV version is ideal for 6-7 inch propellers, providing high efficiency and suitability for long distance flights. Specifications: Item name: GEP-GR2306 KV: 1600 Configuration: 12N14P Stator diameter: 23 mm Stator length: 6 mm Shaft diameter: 4 mm (hollow) Motor dimensions (diameter x length): 28.49mm x 30mm Open circuit current (10) @ 10 V (A): 1.3 Number of cells (LiPo): 3-6S Maximum continuous power (W) 15S: 950 Internal resistance: 68mΩ Maximum current (15S): 35A Maximum efficiency current (4-8A): >83% Rotor: Arc magnets N52H Bearings: NSK Base case: Al 7075 Wire AWG: 20AWG Weight: 32g
