    Motor GEPRC GEP-GR2207 (2700KV, Red)

    Motor GEPRC GEP-GR2207 (2700KV, Red)

    Brand: GEPRC

    €17,69
    €17,69 €17,69
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

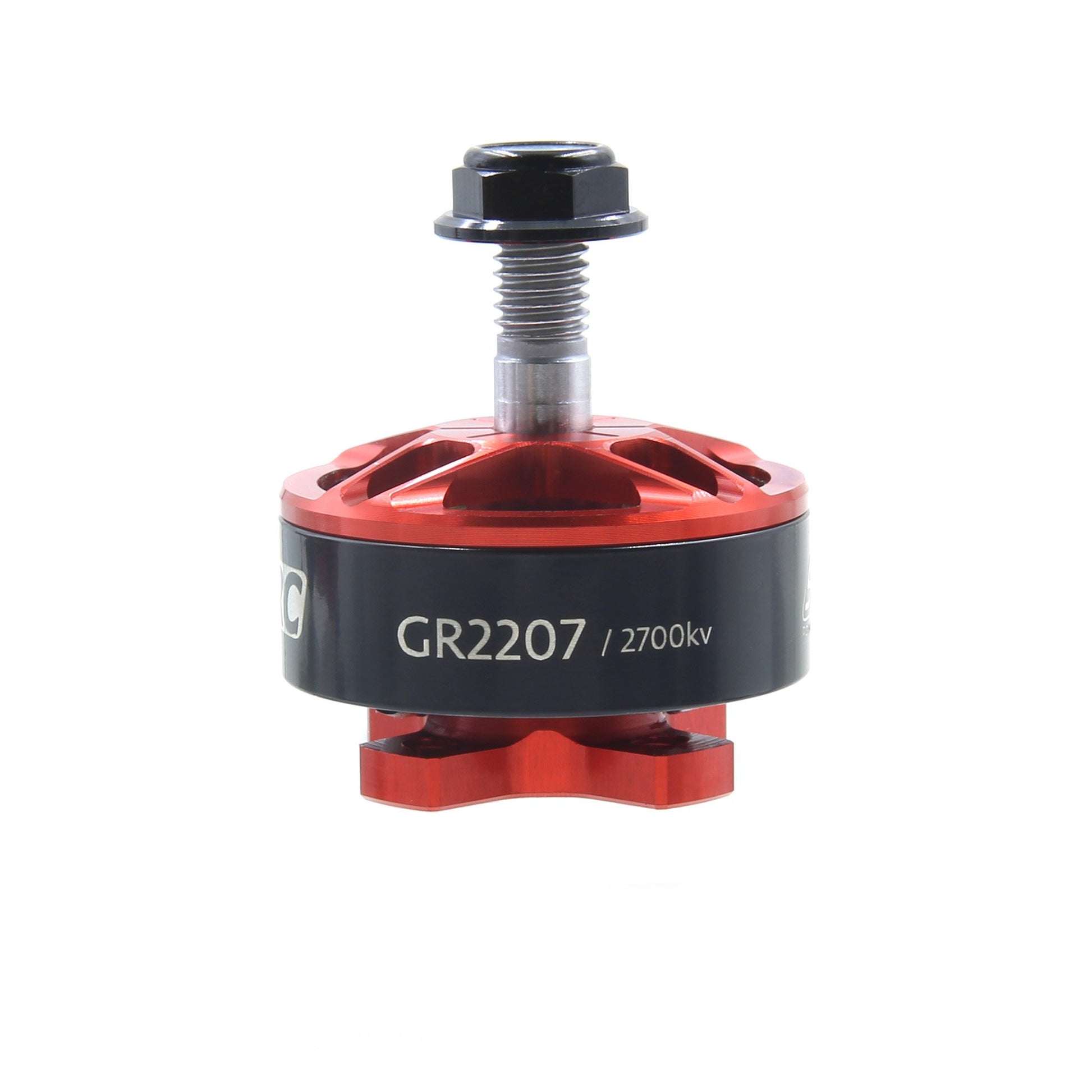

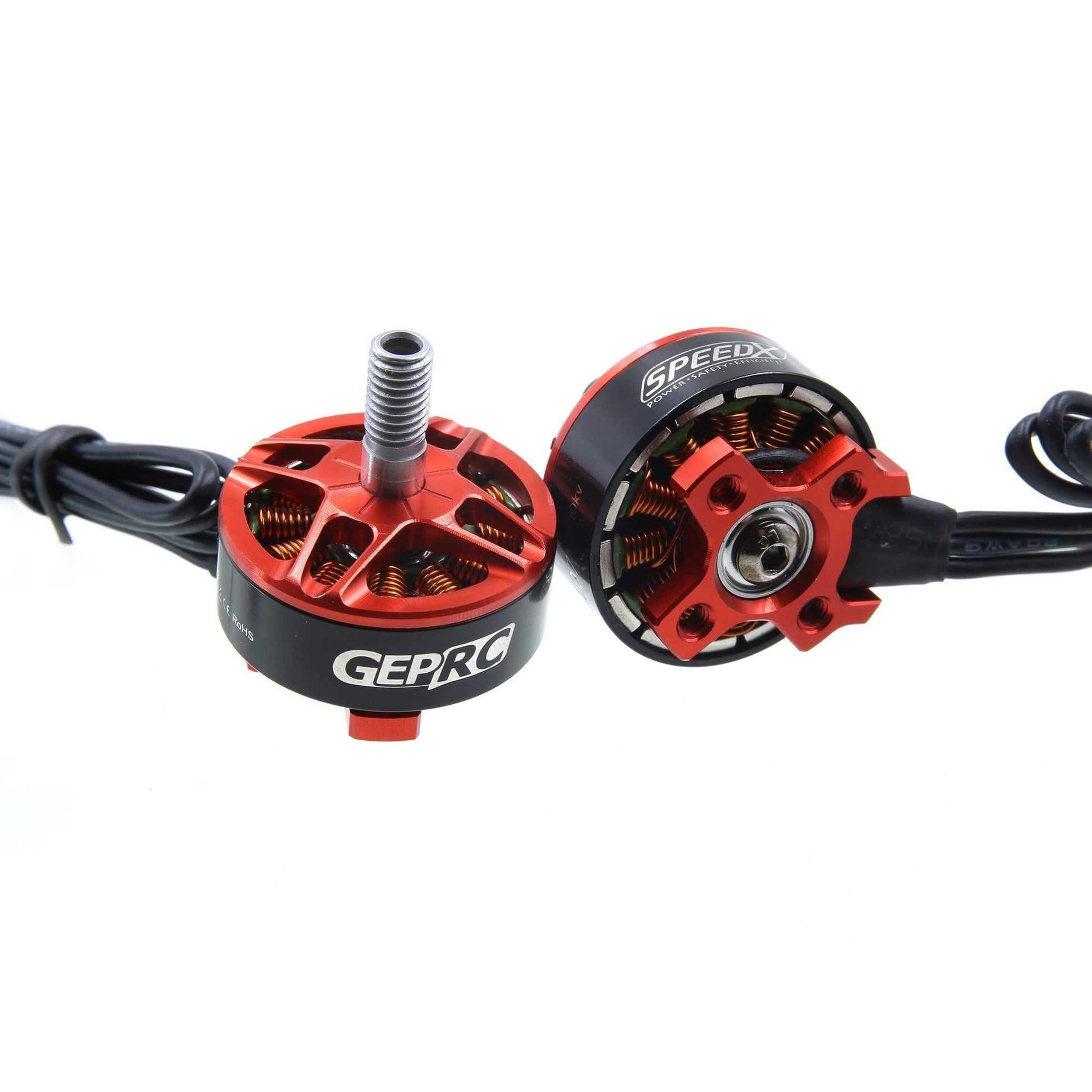

    GEP-GR2207 (2700 KV, Red)

The GR2207 motor is made from high quality 7075 aluminum with high precision CNC machining. The motor includes NSK bearings and N52H arc magnets. The GR2207 offers three different KV options: 1900KV, 2400KV and 2700KV. In addition, the GR2207 is available in two colors: red and titanium.

Specifications:
Item name: GEP-GR2207
KV: 2400 KV
Red
Configuration: 12N14P
Stator diameter: 22 mm
Stator length: 7 mm
Shaft diameter: 4 mm (hollow)
Motor dimension (diameter x length): 26.7mm x 30.5mm
No load current (10) @10V (A): 2.8
Battery (Lipo): 4-5S
Max. Continuous power (15S): 1000W
Internal resistance: 29mΩ
Max. Current (30S): 48A
Max. Efficiency current: (4-8A) > 81%
Rotor: Arc magnets N52H
Bearings: NSK
Base case: Al 7075
Wire AWG: 20AWG
Weight: 31g
