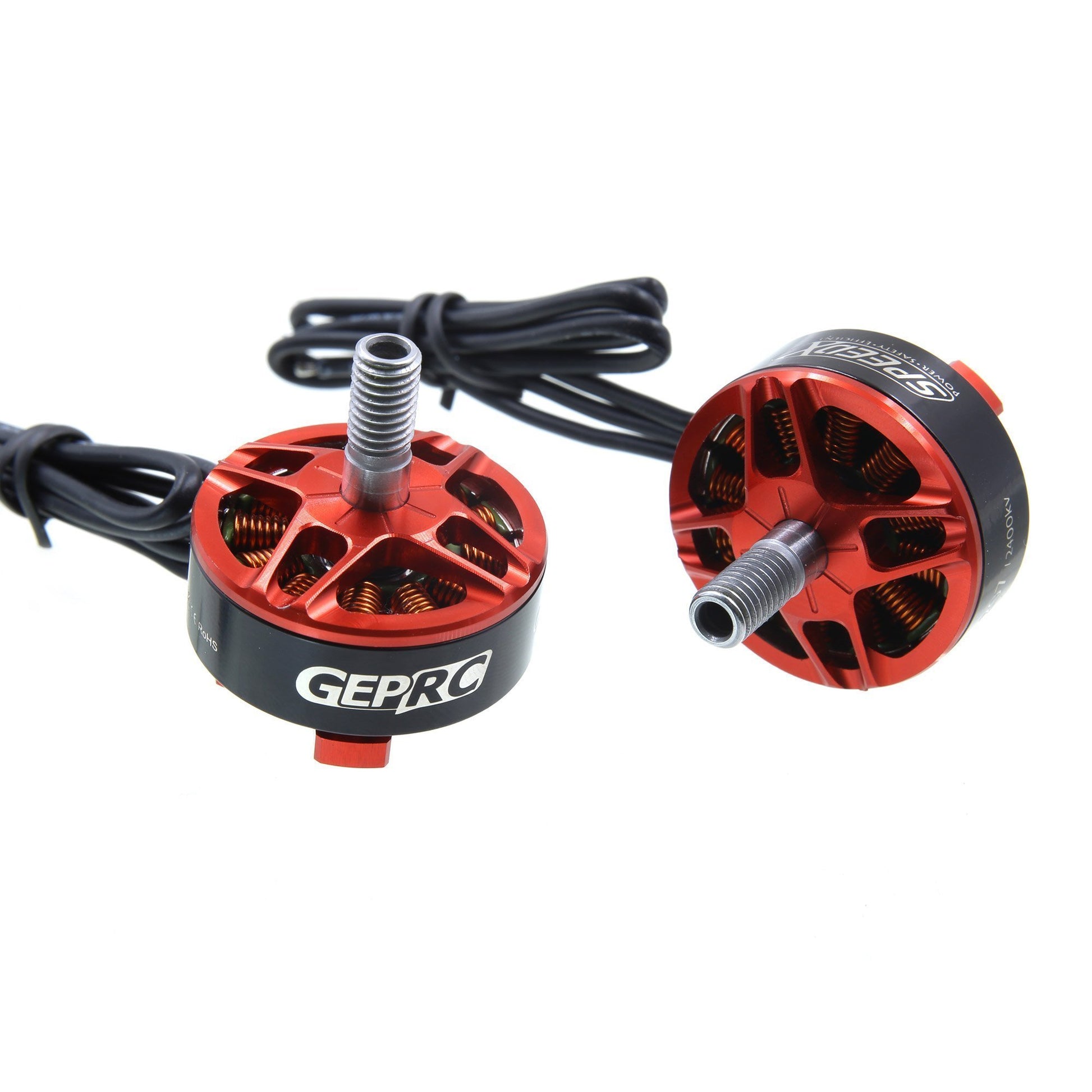

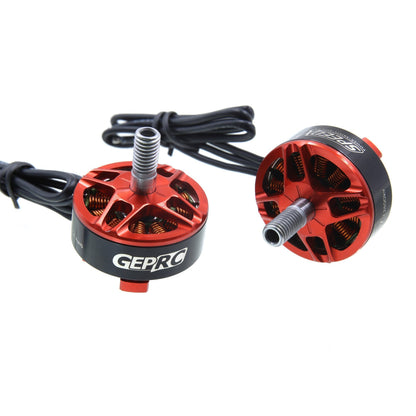

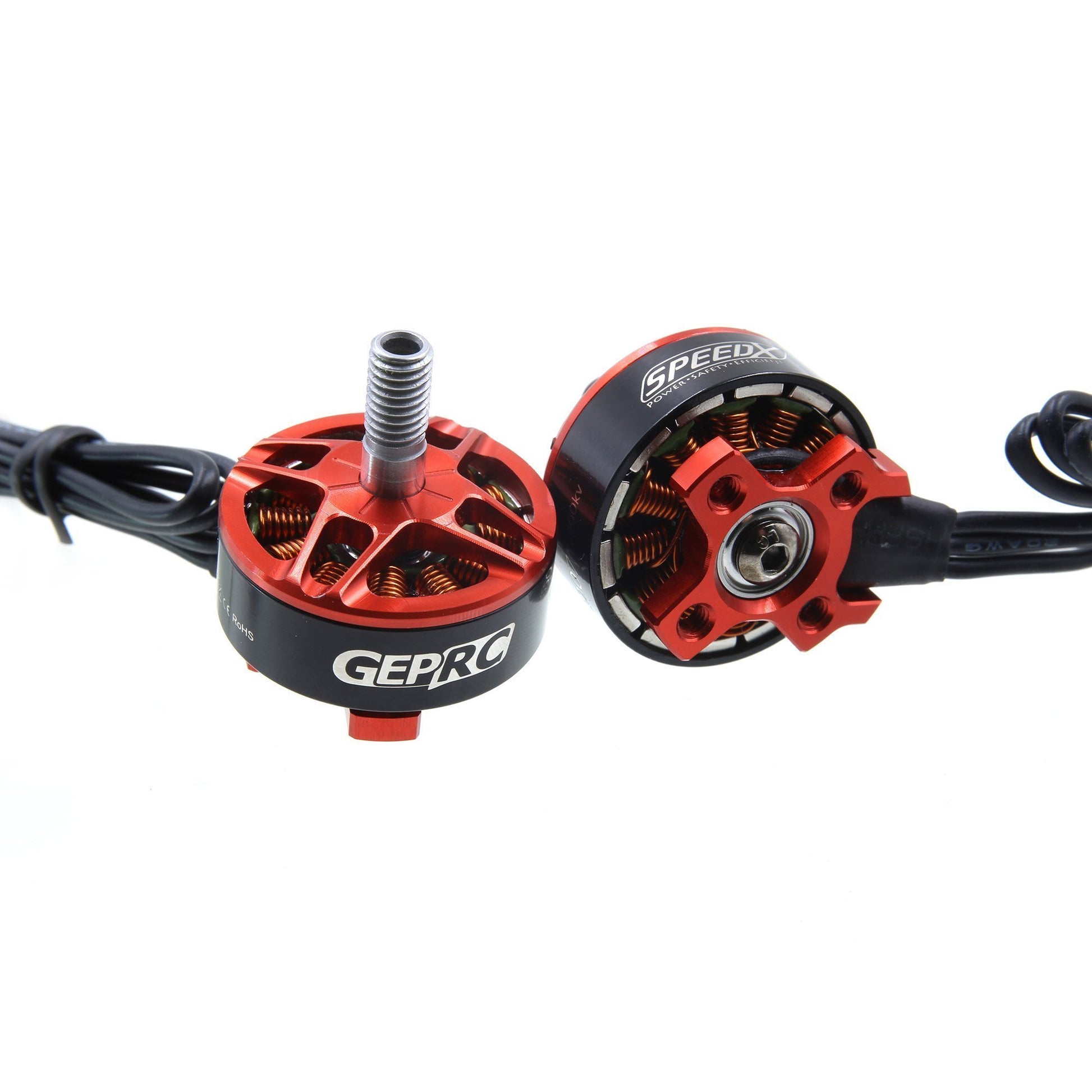

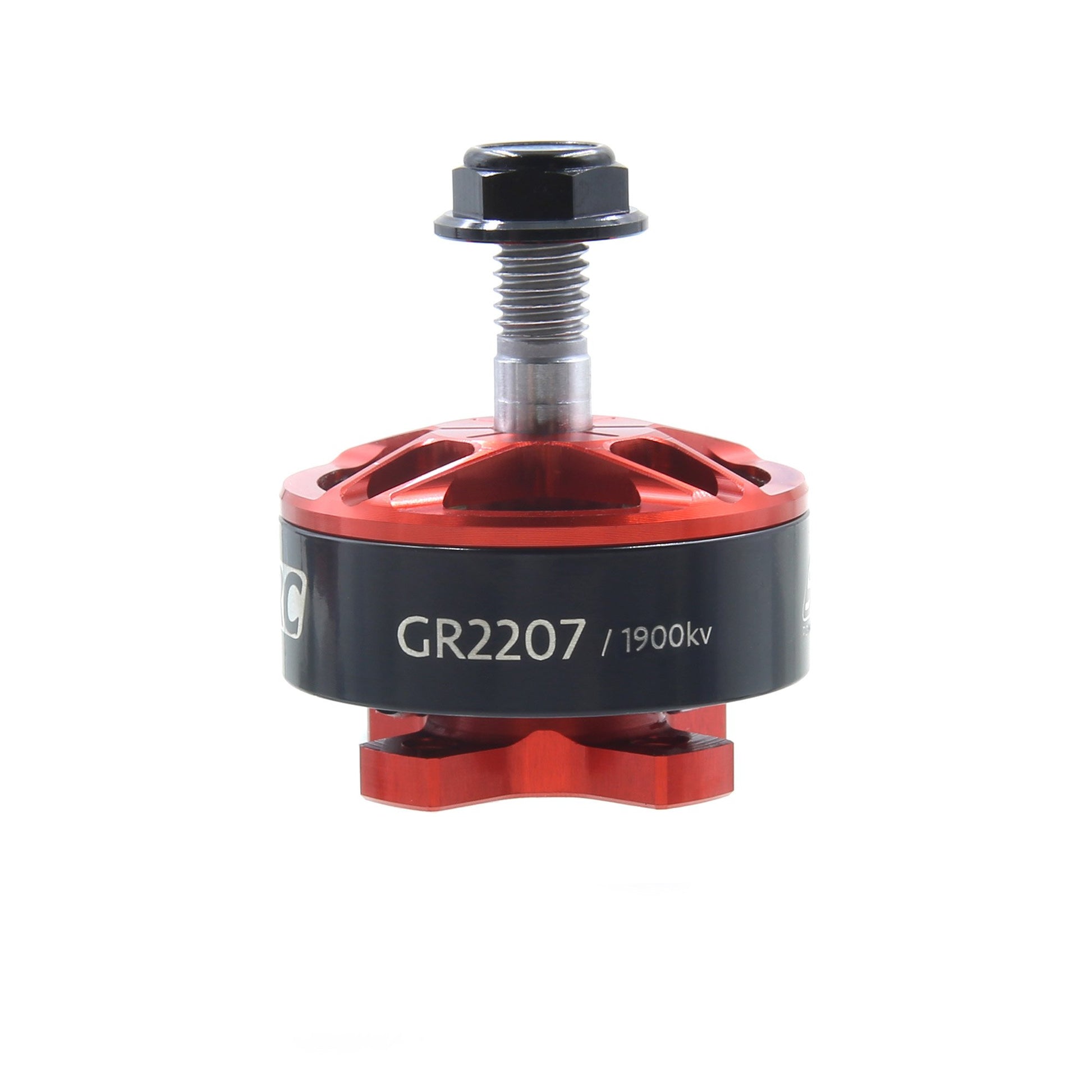

    GEP-GR2207 (1900 KV, Red)

The GR2207 motor is made from high quality 7075 aluminum with high precision CNC machining. The motor includes NSK bearings and N52H arc magnets. The GR2207 offers three different KV options: 1900KV, 2400KV and 2700KV. In addition, the GR2207 is available in two colors: red and titanium.

Specifications:
Item name: GEP-GR2207
KV: 1900 KV
Red
Configuration: 12N14P
Stator diameter: 22 mm
Stator length: 7 mm
Shaft diameter: 4 mm (hollow)
Motor dimension (diameter x length): 26.7mm x 30.5mm
Open circuit current (10) @10V (A): 1.8
Battery (Lipo): 4-6S
Maximum continuous power (15S): 900W
Internal resistance: 48mΩ
Max. Current (30S): 40A
Max. Efficiency current: (3-6A) > 83%
Rotor: Arc magnets N52H
Bearings: NSK
Base case: Al 7075
Wire AWG: 20AWG
Weight: 31g
